Электросхемы Система Фар Audi A3 Quattro 2009

Система Фар

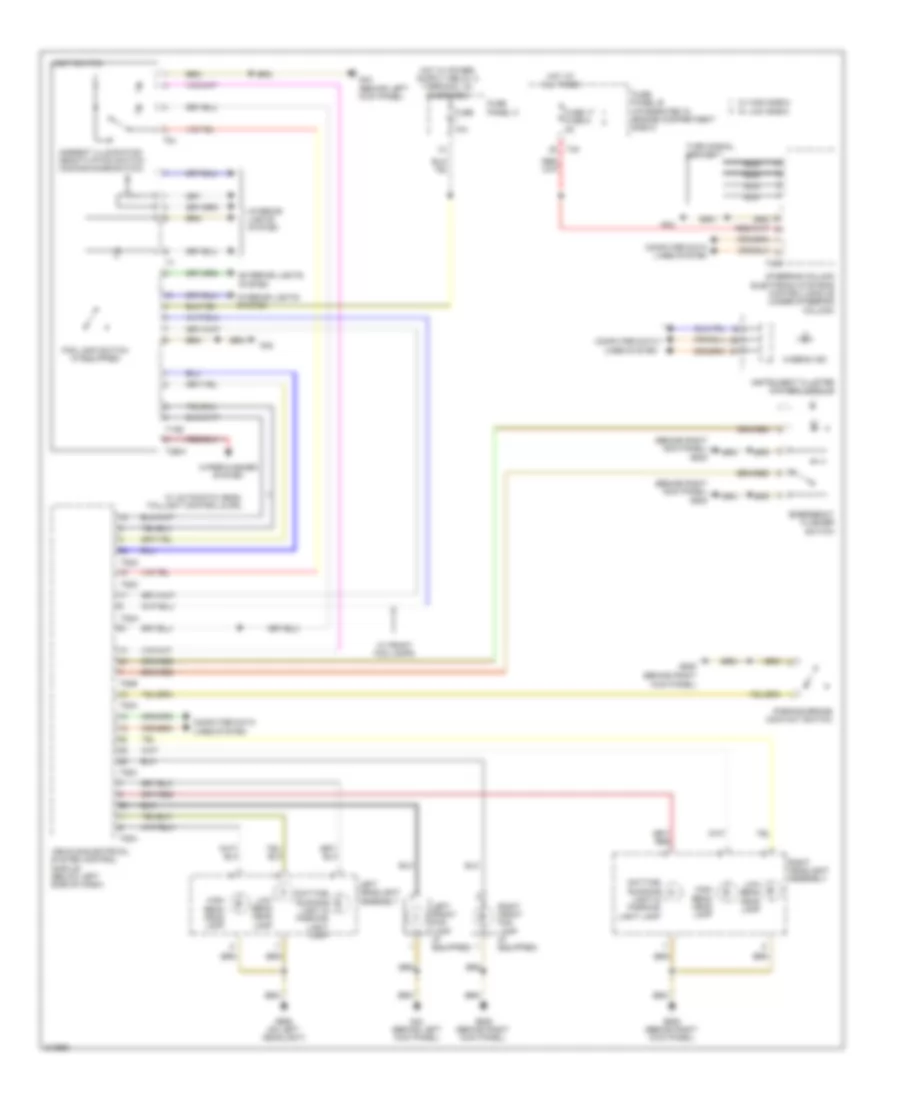

Электросхема фар, Дорестайлинг С Стандартные Фары для Audi A3 Quattro 2009

Электросхема фар, Дорестайлинг С Стандартные Фары для Audi A3 Quattro 2009 - Список элементов:

• (behind left kick panel) g44
• (behind right kick panel) g638
• Ambient illumination deactivation switch (coming-home-switch)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Daytime running light & parking light lamp
• Dimmer switch
• Emergency flasher switch
• Exterior lights system
• Fog lamp switch (if equipped)
• Fuse 10a
• Fuse 17 fuse 6 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G42
• G44 (behind left kick panel)
• G638 (behind right
• G638 (behind right kick panel)
• G655 (on left headlight)
• Hi-beam ind
• High beam head lamp
• Hot at all times
• Instrument cluster control module
• Interior lights system
• Kick panel)
• Left front fog lamp (if equipped)
• Left headlight assembly
• Light switch
• Low beam head lamp
• Nca
• Parking brake contact switch
• Right front fog lamp (if equipped)
• Right headlight assembly
• Steering column electronic systems control module (under steering column)
• T10d
• T10e
• T11b
• T11c
• T12d
• T12e
• T16a
• T18
• T20b
• T40
• T6j
• Turn signal switch
• Vehicle electrical system control module (below left side of dash)
• W/ automatic head, taillight control & drl
• W/ front fog lamps
• W/ high e-box
• W/ low e-box

Электросхема фар, Посол Рестайлинга С Стандартные Фары для Audi A3 Quattro 2009

Электросхема фар, Посол Рестайлинга С Стандартные Фары для Audi A3 Quattro 2009 - Список элементов:

• (behind right kick panel) g638
• Ambient illumination deactivation switch (coming-home-switch)
• Computer data lines system
• Daytime running light & parking light lamp
• Emergency flasher switch
• Exterior lights system
• Fog lamp switch (if equipped)
• Fuse 10a
• Fuse 17 fuse 6 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G42
• G44 (behind left kick panel)
• G638 (behind right
• G638 (behind right kick panel)
• G655 (on left headlight)
• Hi-beam ind
• High beam head lamp
• Hot at all times
• Instrument cluster control module
• Interior lights system
• Kick panel)
• Left front fog lamp (if equipped)
• Left headlight assembly
• Light switch
• Low beam head lamp
• Nca
• Parking brake contact switch
• Right front fog lamp (if equipped)
• Right headlight assembly
• Steering column electronic systems control module (under steering column)
• T10e
• T20b
• T2bw
• T40
• T52a
• T52b
• T52c
• T6j
• Turn signal switch
• Vehicle electrical system control module (below left side of dash)
• W/ automatic head, taillight control & drl
• W/ front fog lamps
• W/ high e-box
• W/ low e-box
• Wiper/washer system

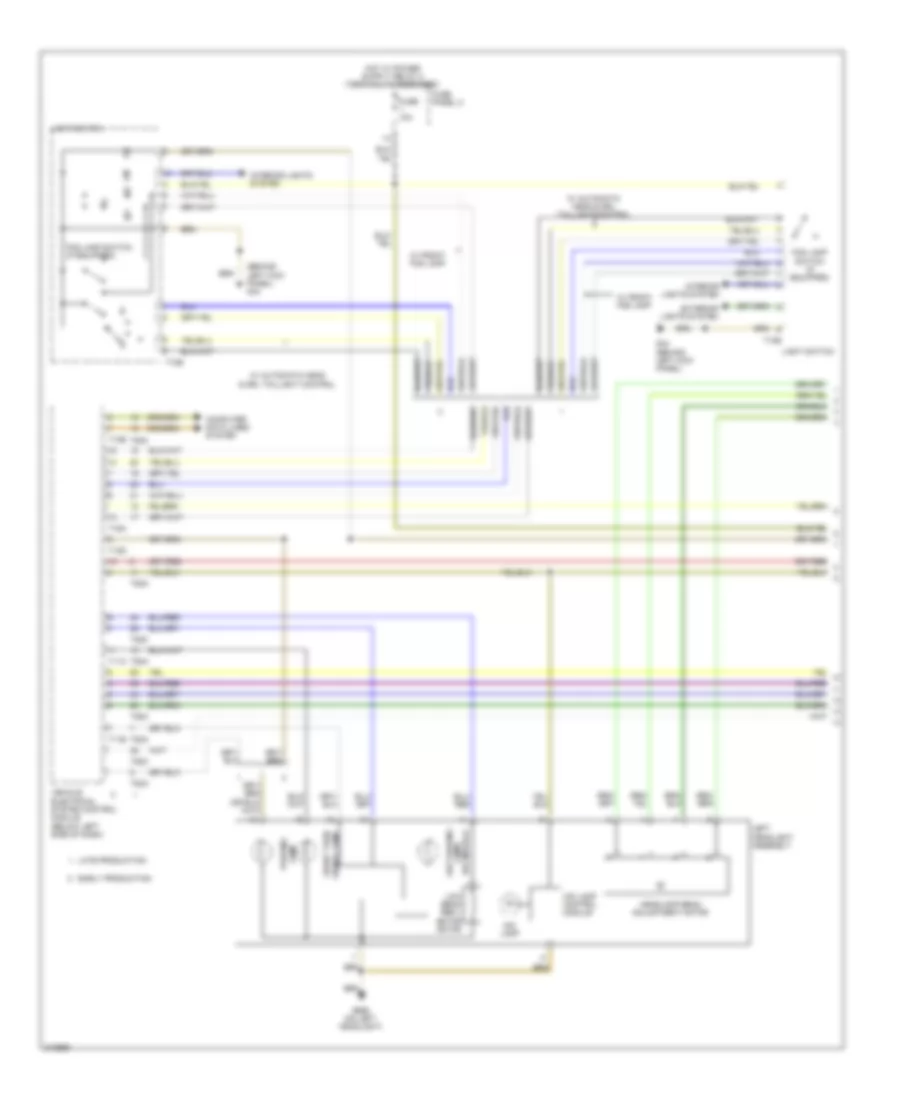

Электросхема фар, С Ксенон висмута С Автоматические Фары (1 из 2) для Audi A3 Quattro 2009

Электросхема фар, С Ксенон висмута С Автоматические Фары (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (behind left kick panel) g44
• Computer data lines system
• Drl module
• Early production
• Exterior lights system
• Fog lamp switch (if equipped)
• Fuse 10a
• Fuse panel c
• G44 (behind left kick panel)
• G655 (on left headlight)
• Headlamp beam adjustment motor
• Hid lamp
• Hid lamp control module
• Interior lights system
• Lamp parking
• Late production
• Led parking lamp/
• Left headlight assembly
• Light switch
• Low beam refl- ector motor
• Signal lamp front turn
• T10e
• T11b
• T11c
• T12d
• T12e
• T16a
• T52a
• T52c
• Vehicle electrical system control module (below left side of dash)
• W/ automatic head & drl taillight control
• W/ front fog lamp

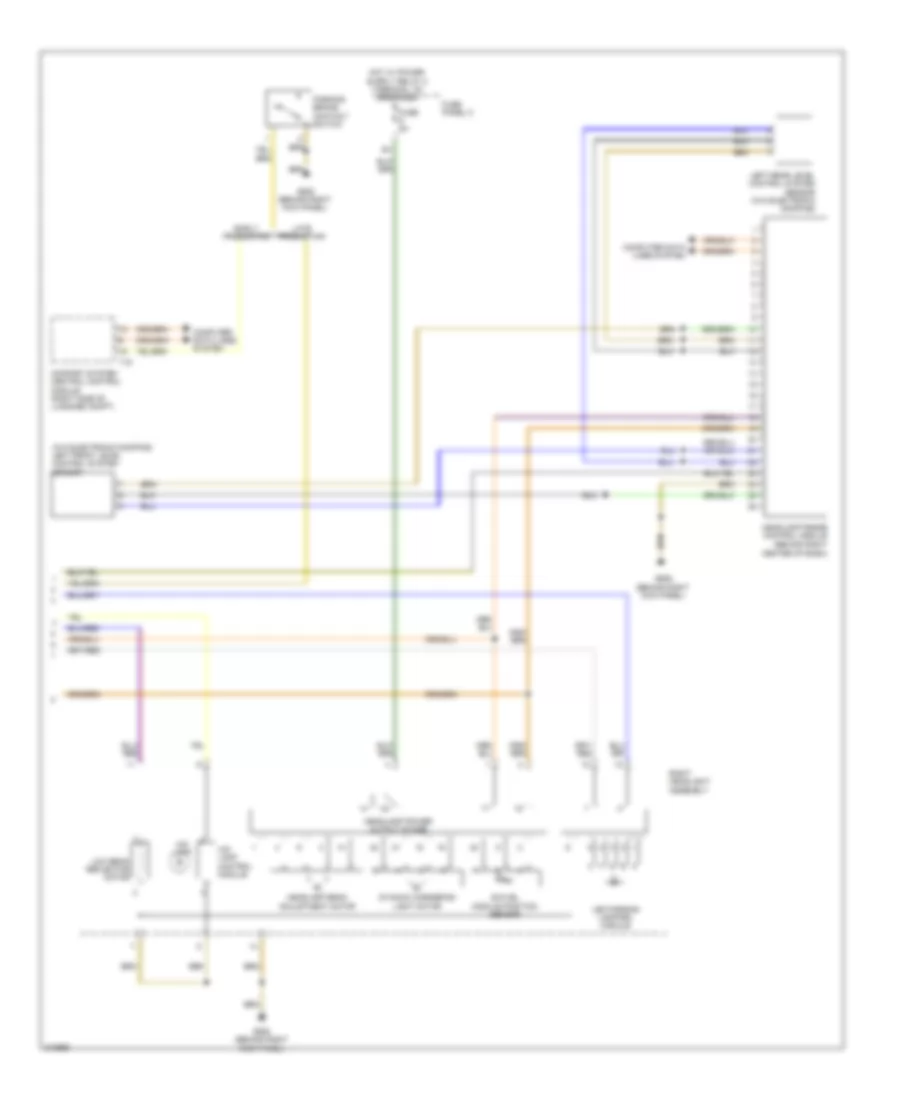

Электросхема фар, С Ксенон висмута С Автоматические Фары (2 из 2) для Audi A3 Quattro 2009

Электросхема фар, С Ксенон висмута С Автоматические Фары (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (w/o electronic damping) left front level control system sensor
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Drl module
• Early production
• G638 (behind right kick panel)
• Headlamp beam adjustment motor
• Headlight range control module (behind right center of bash)
• Hi-beam ind
• Hid lamp
• Hid lamp control module
• Instrument cluster control module
• Lamp parking
• Late production
• Led parking lamp/
• Left rear level control system sensor (w/o electronic damping)
• Low beam refl- ector motor
• Parking brake contact switch
• Right headlight assembly
• Signal lamp front turn
• T18

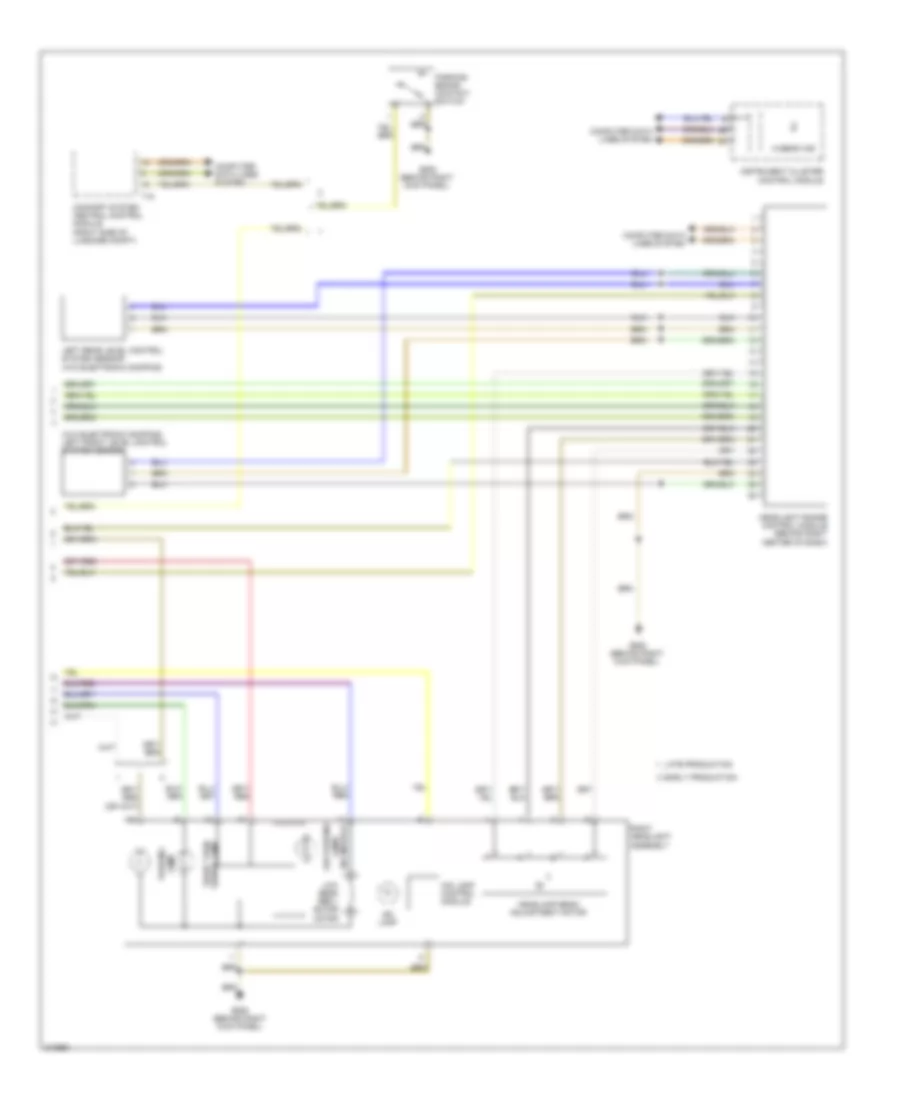

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (1 из 2) для Audi A3 Quattro 2009

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (under steering column) steering column electronic systems control module
• Computer data lines system
• Dynamic cornering light motor
• Early production
• Exterior lights system
• Fog lamp switch (if equipped)
• Fuse 10a
• Fuse 17 fuse 6 5a
• Fuse 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G42
• G44 (behind left kick panel)
• G655 (on left headlight)
• Headlamp beam adjustment motor
• Headlamp power output stage
• Hi-beam ind
• Hid lamp
• Hid lamp control module
• Hot at all times
• Instrument cluster control module
• Interior lights system
• Late production
• Led parking lamp/drl module
• Left headlight assembly
• Light switch
• Low beam reflector motor
• Nca
• Swivel module position sensor
• T10e
• T11b
• T11c
• T12e
• T16a
• T20b
• T40
• T52a
• T52c
• Turn signal switch
• Vehicle electrical system control module (below left side of dash)
• W/ automatic head & drl taillight control
• W/ high e-box
• W/ low e-box

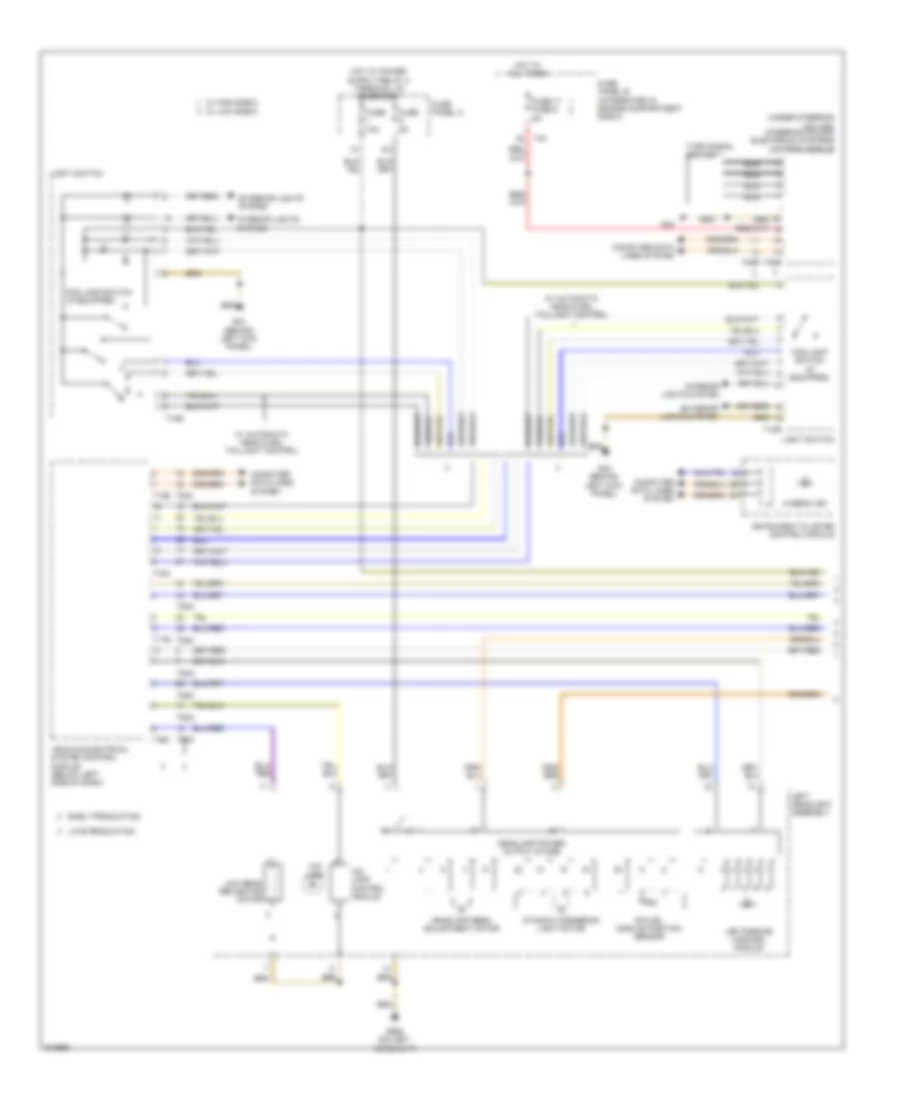

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (2 из 2) для Audi A3 Quattro 2009

Электросхема фар, С Ксенон висмута, С Загоняющий Фары в угол (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (behind right center of bash)
• (w/o electronic damping) left front level control system sensor
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Dynamic cornering light motor
• Early production
• Fuse 5a
• Fuse panel c
• G638 (behind right
• G638 (behind right kick panel)
• Headlamp beam adjustment motor
• Headlamp power output stage
• Headlamp range control module
• Hid lamp
• Hid lamp control module
• Kick panel)
• Late production
• Led parking lamp/drl module
• Left rear level control system sensor (w/o electronic damping)
• Low beam reflector motor
• Parking brake contact switch
• Right headlight assembly
• Swivel module position sensor
• T18
