Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Audi A3 Quattro 2009

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

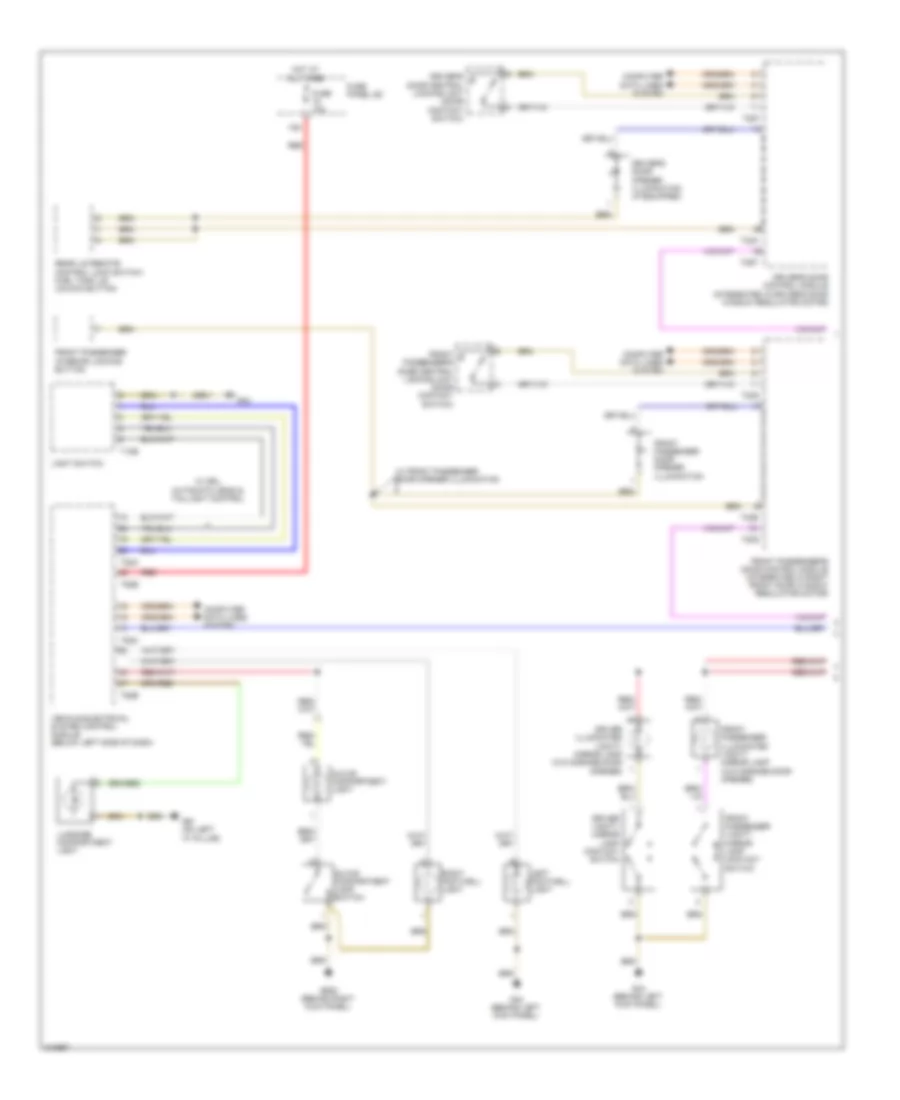

Электросхема подсветки, Дорестайлинг (1 из 2) для Audi A3 Quattro 2009

Электросхема подсветки, Дорестайлинг (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (on left "c" pillar) g61
• 25a
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Driver's door central locking unit (door contact switch)
• Driver's door control module (integrated in driver's door window regulator motor)
• Driver's door opener illumination (if equipped)
• Driver's illuminated vanity mirror light (w/o garage door opener)
• Driver's vanity mirror light contact switch
• Front passenger's door central locking unit (door contact switch)
• Front passenger's door control module (integrated in right front door window regulator motor)
• Front passenger's door opener illumination (if equipped)
• Front passenger's illuminated vanity mirror light (w/o garage door opener)
• Front passenger's interior locking button
• Front passenger's vanity mirror light contact switch
• Fuse 30a
• Fuse panel sc
• G42
• G44 (behind left kick panel)
• G638 (behind right kick panel)
• Glove compartment lamp switch
• Glove compartment light
• Hot at all times
• Left footwell light
• Light switch
• Luggage compartment light
• Rear lid remote control lock switch/ fuel tank lid unlock button
• Right footwell light
• T10d
• T10e
• T12c
• T12e
• T16a
• T18
• T20f
• T20g
• T32a
• T32b
• Vehicle electrical system control module (below left side of dash)
• W/ drl, automatic head & taillight control

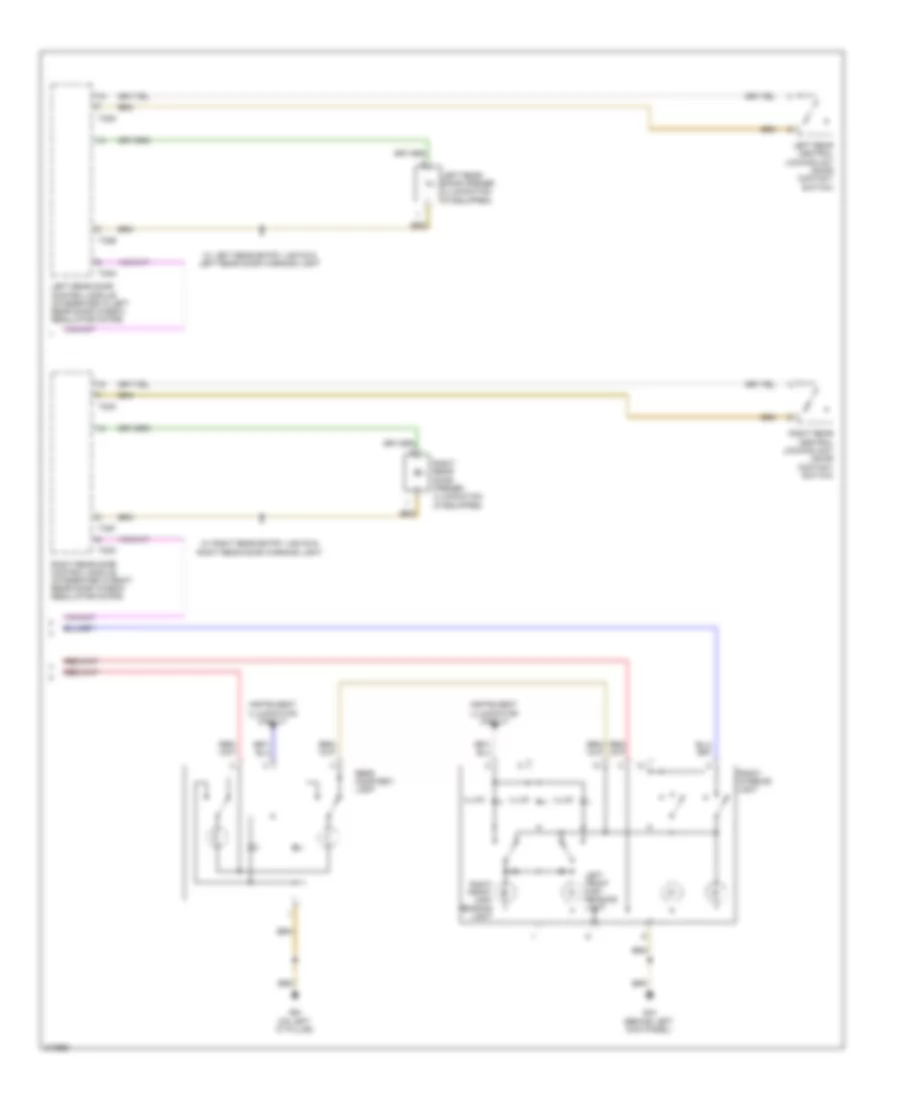

Электросхема подсветки, Дорестайлинг (2 из 2) для Audi A3 Quattro 2009

Электросхема подсветки, Дорестайлинг (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• Front interior light
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• Illum
• Instrument illumination circuit
• Left front map/ reading light
• Left rear central locking unt (door contact switch)
• Left rear door control module (integrated in left rear door window regulator motor)
• Left rear door opener illumination (if equipped)
• Rear courtesy light
• Right front map/ reading light
• Right rear central locking unt (door contact switch)
• Right rear door control module (integrated in right rear door window regulator motor)
• Right rear door opener illumination (if equipped)
• T20n
• T20o
• T32e
• T32f
• W/ left rear entry lights & left rear door warning light
• W/ right rear entry lights & right rear door warning light

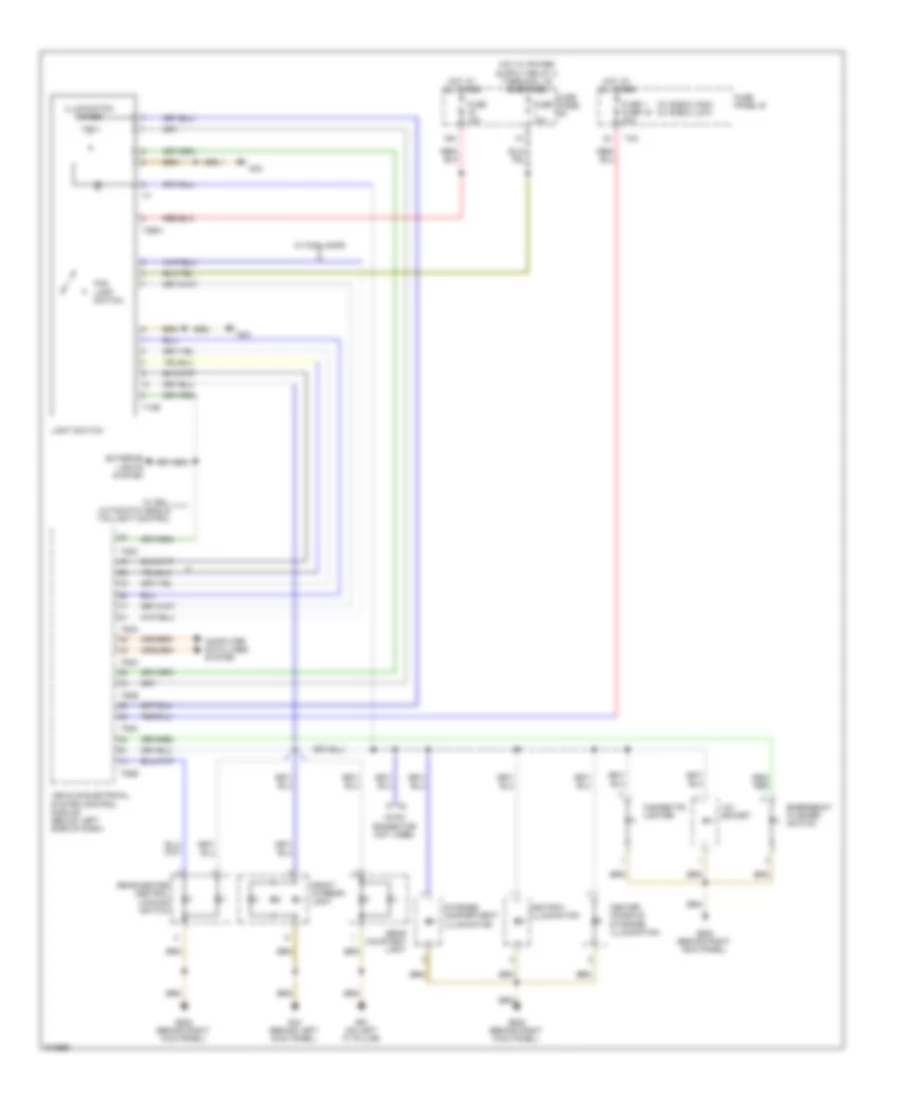

Электросхема подсветки, Посол Рестайлинга (1 из 2) для Audi A3 Quattro 2009

Электросхема подсветки, Посол Рестайлинга (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• 15a
• Computer data lines system
• Driver illuminated vanity mirror lamp (w/o garage door opener)
• Driver vanity mirror lamp contact switch
• Driver's door central locking unit (door contact switch)
• Driver's door control module (integrated in driver's door window regulator motor)
• Driver's door opener illumination (if equipped)
• Front passenger door opener illumination
• Front passenger illuminated vanity mirror lamp (w/o garage door opener)
• Front passenger interior locking button
• Front passenger vanity mirror lamp contact switch
• Front passenger's door central locking unit (door contact switch)
• Front passenger's door control module (integrated in right front door window regulator motor)
• Fuse 10a
• Fuse panel sc
• G42
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• G638 (behind right kick panel)
• Glove compartment lamp switch
• Glove compartment light
• Hot at all times
• Left footwell light
• Light switch
• Luggage compartment light
• Rear lid remote control lock switch/ fuel tank lid unlock button
• Red
• Right footwell light
• T10e
• T20f
• T20g
• T32a
• T32b
• T52a
• T52b
• T52c
• Vehicle electrical system control module (below left side of dash)
• W/ drl, automatic head & taillight control
• W/ front passenger door opener illumination

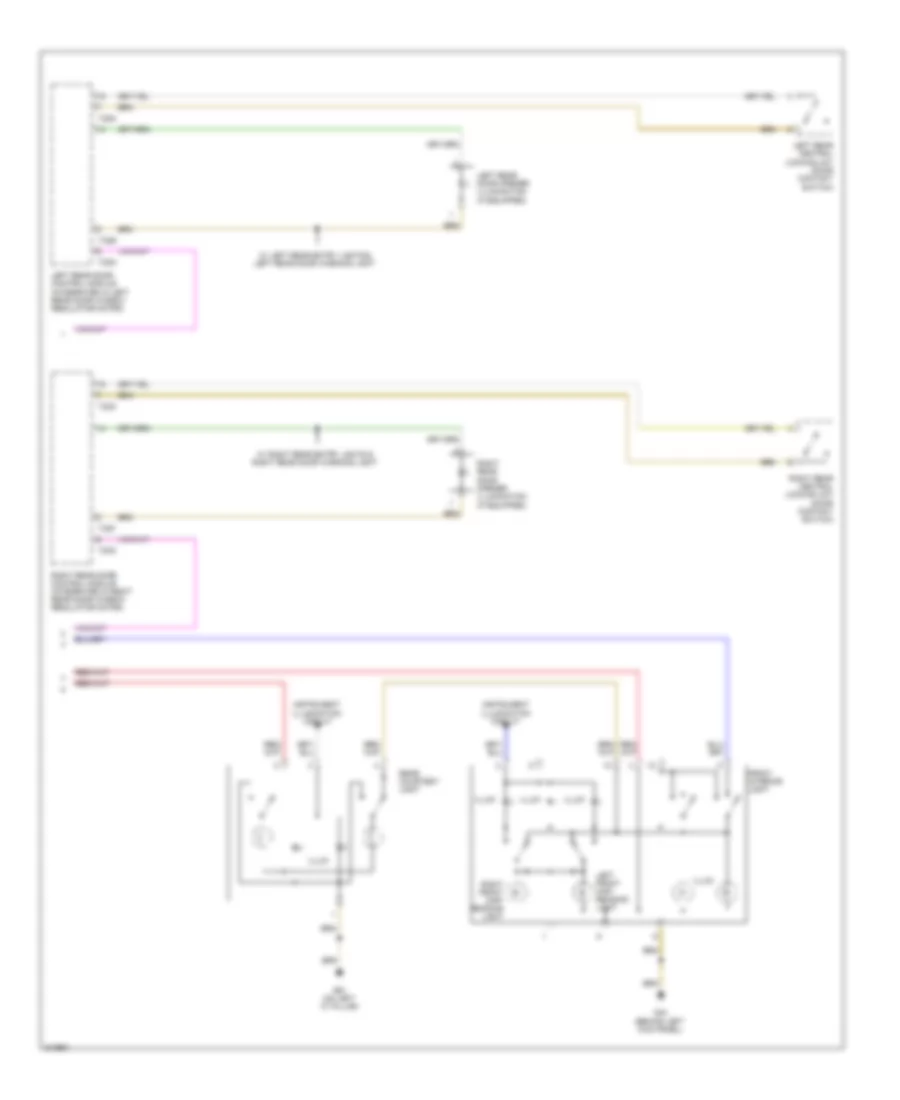

Электросхема подсветки, Посол Рестайлинга (2 из 2) для Audi A3 Quattro 2009

Электросхема подсветки, Посол Рестайлинга (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• Front interior light
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• Illum
• Instrument illumination circuit
• Left front map/ reading light
• Left rear central locking unt (door contact switch)
• Left rear door control module (integrated in left rear door window regulator motor)
• Left rear door opener illumination (if equipped)
• Rear courtesy light
• Right front map/ reading light
• Right rear central locking unit (door contact switch)
• Right rear door control module (integrated in right rear door window regulator motor)
• Right rear door opener illumination (if equipped)
• T20n
• T20o
• T32e
• T32f
• W/ left rear entry lights & left rear door warning light
• W/ right rear entry lights & right rear door warning light

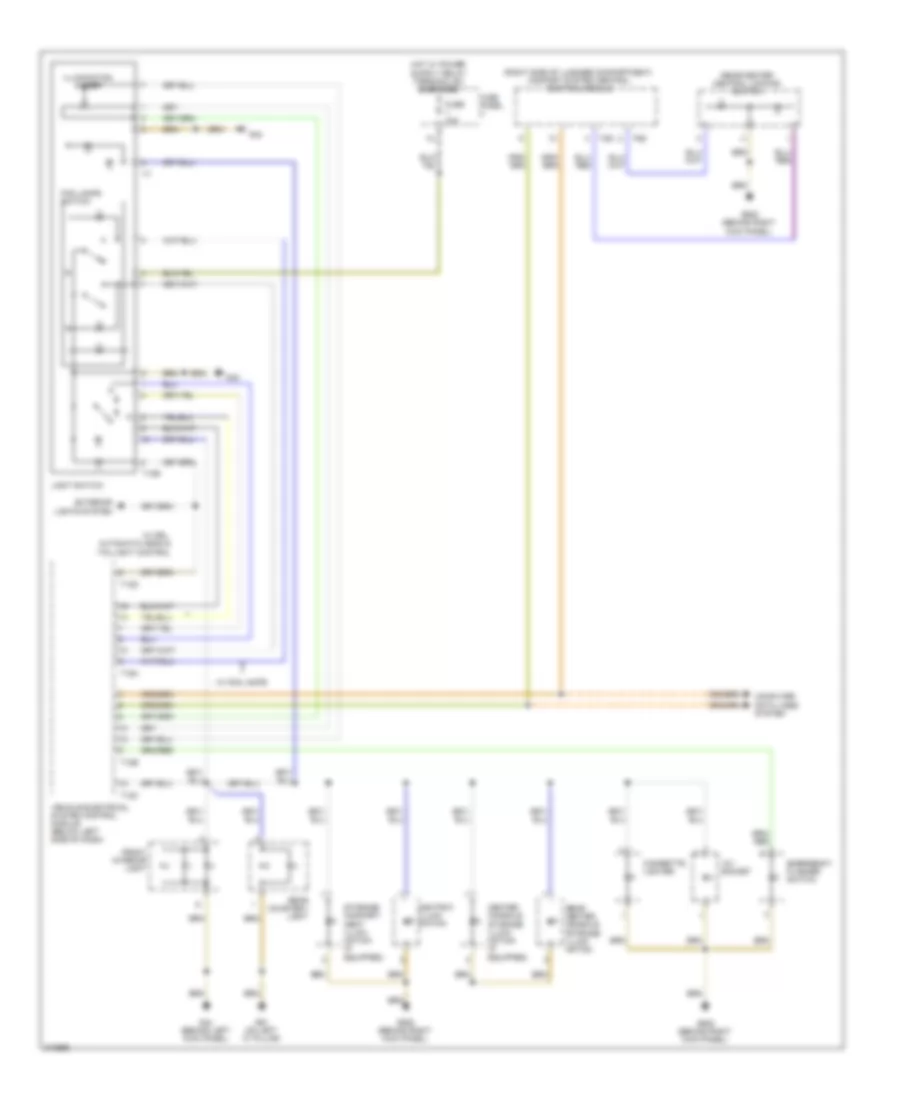

Электросхема подсветки приборов, Дорестайлинг (1 из 2) для Audi A3 Quattro 2009

Электросхема подсветки приборов, Дорестайлинг (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (right side of luggage compartment) comfort system central control module
• 12v socket
• Ashtray illumi- nation
• Center console storage illumi- nation (if equipped)
• Cigarette lighter
• Computer data lines system
• Emergency flasher switch
• Exterior lights system
• Fog lamps switch
• Front interior light
• Fuse 10a
• Fuse panel c
• G42
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• G638 (behind right kick panel)
• Illumination dimmer
• Light switch
• Rear center console storage illumi- nation
• Rear courtesy light
• Rear/center central locking switch
• Storage compart- ment illumi- nation (if equipped)
• T10e
• T12c
• T12d
• T12e
• T16a
• T6g
• T8g
• Vehicle electrical system control module (below left side of dash)
• W/ drl, automatic head & taillight control
• W/ fog lamps

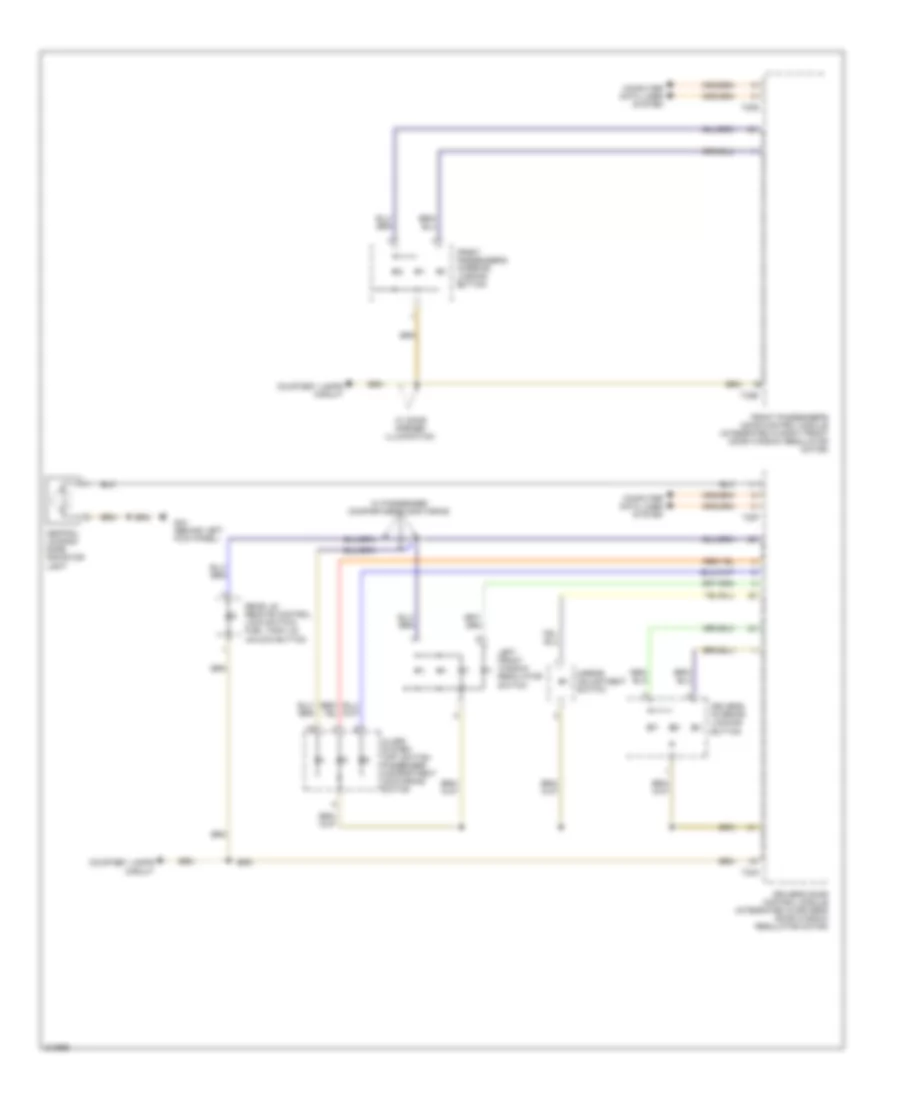

Электросхема подсветки приборов, Дорестайлинг (2 из 2) для Audi A3 Quattro 2009

Электросхема подсветки приборов, Дорестайлинг (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• Alarm system -off- switch/ passenger compartment monitoring switch
• Central locking- safe- indicator light
• Computer data lines system
• Courtesy lamps circuit
• Driver's door control module (integrated in driver's door window regulator motor)
• Driver's interior locking button
• Front passenger's door control module (integrated in right front door window regulator motor)
• Front passenger's interior locking button
• G44 (behind left kick panel)
• Left front window regulator switch
• Mirror adjustment switch
• Rear lid remote control lock switch/ fuel tank lid unlock button
• T20f
• T20g
• T32a
• T32b
• W/ door opener illumination
• W/ passenger compartment monitoring

Электросхема подсветки приборов, Посол Рестайлинга (1 из 2) для Audi A3 Quattro 2009

Электросхема подсветки приборов, Посол Рестайлинга (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (w/ e-box high) (w/ e-box low)
• 12v socket
• 16a
• 18-pin connector (not used)
• Ashtray illumination
• Center console storage illumination
• Cigarette lighter
• Computer data lines system
• Emergency flasher switch
• Exterior lights system
• Fog lamp switch
• Front interior light
• Fuse 1 fuse 16 30a
• Fuse 10a
• Fuse panel b
• Fuse panel sc
• G42
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• G638 (behind right kick panel)
• Hot at all times
• Illumination dimmer
• Light switch
• Rear courtesy light
• Rear/center central locking switch
• Storage compartment illumination
• T10e
• T2bw
• T4o
• T52a
• T52b
• T52c
• Vehicle electrical system control module (below left side of dash)
• W/ drl, automatic head & taillight control
• W/ fog lamps

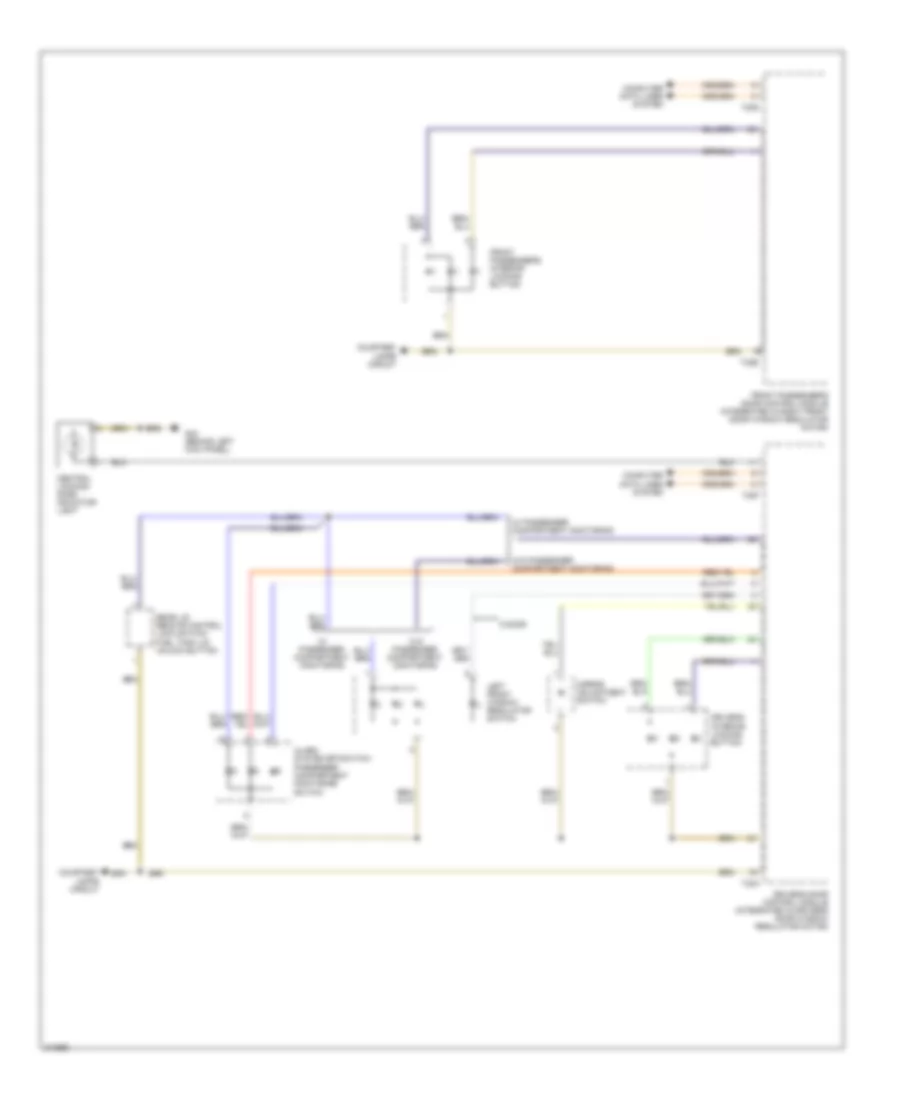

Электросхема подсветки приборов, Посол Рестайлинга (2 из 2) для Audi A3 Quattro 2009

Электросхема подсветки приборов, Посол Рестайлинга (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• 5 door
• Alarm system-off-switch/ passenger compartment monitoring switch
• Central locking- safe- indicator light
• Computer data lines system
• Courtesy lamps circuit
• Driver's door control module (integrated in driver's door window regulator motor)
• Driver's interior locking button
• Front passenger's door control module (integrated in right front door window regulator motor)
• Front passenger's interior locking button
• G44 (behind left kick panel)
• Left front window regulator switch
• Mirror adjustment switch
• Rear lid remote control lock switch/ fuel tank lid unlock button
• T20f
• T20g
• T32a
• T32b
• W/ passenger compartment monitoring
• W/o passenger compartment monitoring
