Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Audi A3 Quattro 2009

СИСТЕМА КРУИЗКОНТРОЛЯ

2.0L ТУРБО

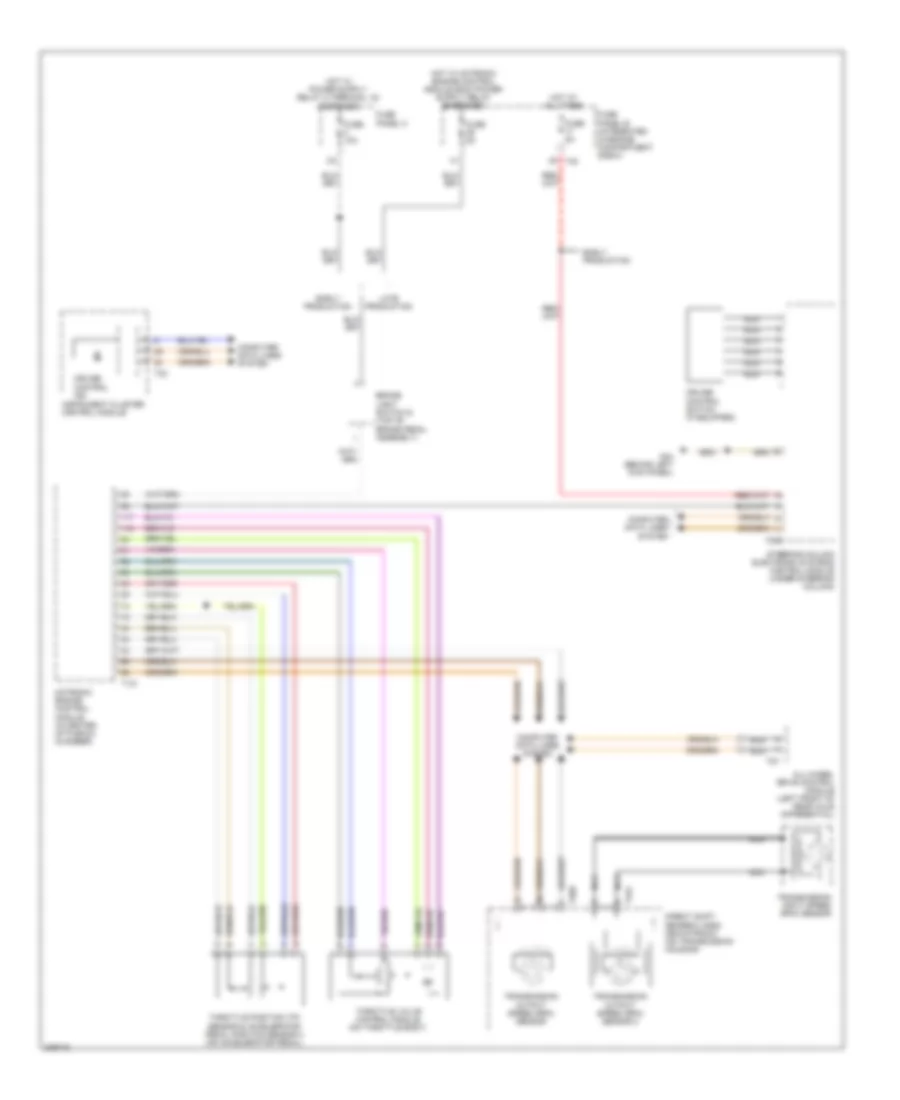

2.0L турбо, Электросхема системы круизконтроля, BPY для Audi A3 Quattro 2009

2.0L турбо, Электросхема системы круизконтроля, BPY для Audi A3 Quattro 2009 - Список элементов:

• All-wheel drive control module (left front of rear axle differential)
• Brake light switch & (top of brake pedal assembly)
• Clutch position sensor (m/t)
• Computer data lines system
• Cruise control ind
• Cruise control switch (if equipped)
• Direct shift gearbox (dsg) mechatronic (on transmission housing)
• Early production
• Fuse 10a
• Fuse 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G44 (behind left kick panel)
• Hot at all times
• Instrument cluster control module
• Late production
• Motronic engine control module (ecm) (in center of plenum chamber)
• Nca
• Steering column electronic systems control module (under steering column)
• T20b
• T20e
• T32
• T40
• T4al
• T60
• T8y
• T94
• Throttle position (tp) sensor & accelerator pedal position sensor 2 (on accelerator pedal)
• Throttle valve control module (on throttle body)
• Transmission input speed (rpm) sensor
• Transmission output speed (rpm) sensor
• Transmission output speed (rpm) sensor 2

2.0L турбо, Электросхема системы круизконтроля, CBFA для Audi A3 Quattro 2009

2.0L турбо, Электросхема системы круизконтроля, CBFA для Audi A3 Quattro 2009 - Список элементов:

• All-wheel drive control module (left front of rear axle differential)
• Brake light switch & (top of brake pedal assembly)
• Cbfa
• Ccta
• Ccta early production & cbfa
• Ccta late production
• Clutch position sensor (m/t)
• Computer data lines system
• Cruise control ind
• Cruise control switch (if equipped)
• Direct shift gearbox (dsg) mechatronic (on transmission housing)
• Early production
• Fuse 10a
• Fuse 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G44 (behind left kick panel)
• Hot at all times
• Instrument cluster control module
• Late production
• Motronic engine control module (in center of plenum chamber)
• Nca
• Steering column electronic systems control module (under steering column)
• T20b
• T20e
• T32
• T40
• T4al
• T60
• T8y
• T94
• Throttle position (tp) sensor & accelerator pedal position sensor 2 (on accelerator pedal)
• Throttle valve control module (on throttle body)
• Transmission input speed (rpm) sensor
• Transmission output speed (rpm) sensor
• Transmission output speed (rpm) sensor 2

2.0L турбо, Электросхема системы круизконтроля, CCTA для Audi A3 Quattro 2009

2.0L турбо, Электросхема системы круизконтроля, CCTA для Audi A3 Quattro 2009 - Список элементов:

• All-wheel drive control module (left front of rear axle differential)
• Brake light switch & (top of brake pedal assembly)
• Cbfa
• Ccta
• Ccta early production & cbfa
• Ccta late production
• Clutch position sensor (m/t)
• Computer data lines system
• Cruise control ind
• Cruise control switch (if equipped)
• Direct shift gearbox (dsg) mechatronic (on transmission housing)
• Early production
• Fuse 10a
• Fuse 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G44 (behind left kick panel)
• Hot at all times
• Instrument cluster control module
• Late production
• Motronic engine control module (in center of plenum chamber)
• Nca
• Steering column electronic systems control module (under steering column)
• T20b
• T20e
• T32
• T40
• T4al
• T60
• T8y
• T94
• Throttle position (tp) sensor & accelerator pedal position sensor 2 (on accelerator pedal)
• Throttle valve control module (on throttle body)
• Transmission input speed (rpm) sensor
• Transmission output speed (rpm) sensor
• Transmission output speed (rpm) sensor 2

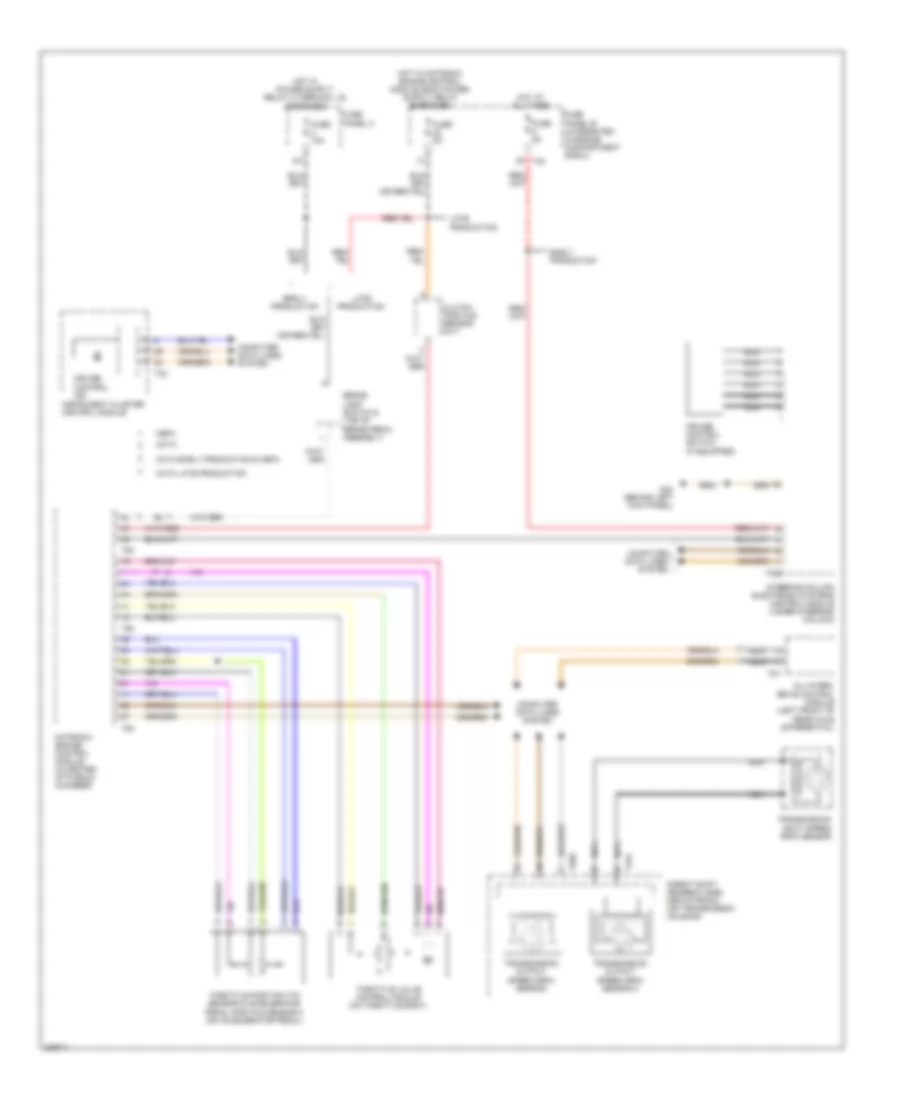

3.2L

3.2L, Электросхема системы круизконтроля для Audi A3 Quattro 2009

3.2L, Электросхема системы круизконтроля для Audi A3 Quattro 2009 - Список элементов:

• All-wheel drive control module (left front of rear axle differential)
• Brake light switch & (top of brake pedal assembly)
• Computer data lines system
• Cruise control ind
• Cruise control switch (if equipped)
• Direct shift gearbox (dsg) mechatronic (on transmission housing)
• Early production
• Fuse 10a
• Fuse 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G44 (behind left kick panel)
• Hot at all times
• Instrument cluster control module
• Late production
• Motronic engine control module (in center of plenum chamber)
• Nca
• Steering column electronic systems control module (under steering column)
• T121
• T20b
• T20e
• T32
• T40
• T4al
• T8y
• Throttle position (tp) sensor & accelerator pedal position sensor 2 (on accelerator pedal)
• Throttle valve control module (on throttle body)
• Transmission input speed (rpm) sensor
• Transmission output speed (rpm) sensor
• Transmission output speed (rpm) sensor 2
