Электросхемы ПРИВОД ЗЕРКАЛ Audi A3 Quattro 2009

ПРИВОД ЗЕРКАЛ

Электросхема автозатемнения зеркала заднего вида, Дорестайлинг для Audi A3 Quattro 2009

Электросхема автозатемнения зеркала заднего вида, Дорестайлинг для Audi A3 Quattro 2009 - Список элементов:

• (behind left kick panel) g44
• Automatic day/night interior mirror
• Driver's door control module (integrated in in driver's door window regulator motor)
• Exterior lights system
• Front passenger's door control module (integrated in right front door window regulator motor)
• Fuse 30 fuse 52 50a
• Fuse 5a
• Fuse panel b (integrated in engine compt e-box)
• Fuse panel c
• Hot at all times
• Light recognition sensor
• T12c
• T20f
• T20g
• T2t
• T40
• Vehicle electrical system control module (below left side of dash)
• W/ high e-box
• W/ low e-box

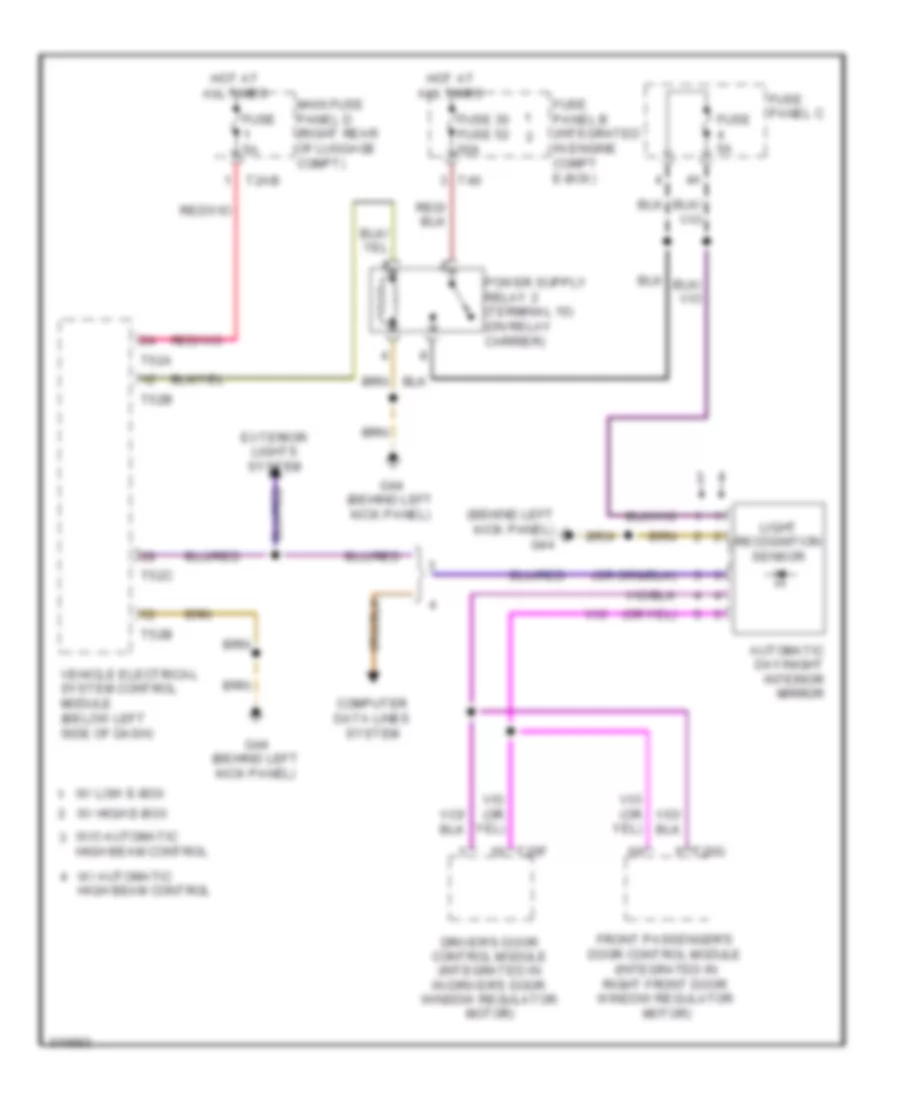

Электросхема автозатемнения зеркала заднего вида, Посол Рестайлинга для Audi A3 Quattro 2009

Электросхема автозатемнения зеркала заднего вида, Посол Рестайлинга для Audi A3 Quattro 2009 - Список элементов:

• (behind left kick panel) g44
• Automatic day/night interior mirror
• Computer data lines system
• Driver's door control module (integrated in in driver's door window regulator motor)
• Exterior lights system
• Front passenger's door control module (integrated in right front door window regulator motor)
• Fuse 30 fuse 52 50a
• Fuse 5a
• Fuse panel b (integrated in engine compt e-box)
• Fuse panel c
• G44 (behind left kick panel)
• High beam control
• Hot at all times
• Light recognition sensor
• Main fuse panel d (right rear of luggage compt)
• T20f
• T20g
• T2ab
• T40
• T52a
• T52b
• T52c
• Vehicle electrical system control module (below left side of dash)
• W/ automatic
• W/ high e-box
• W/ low e-box
• W/o automatic

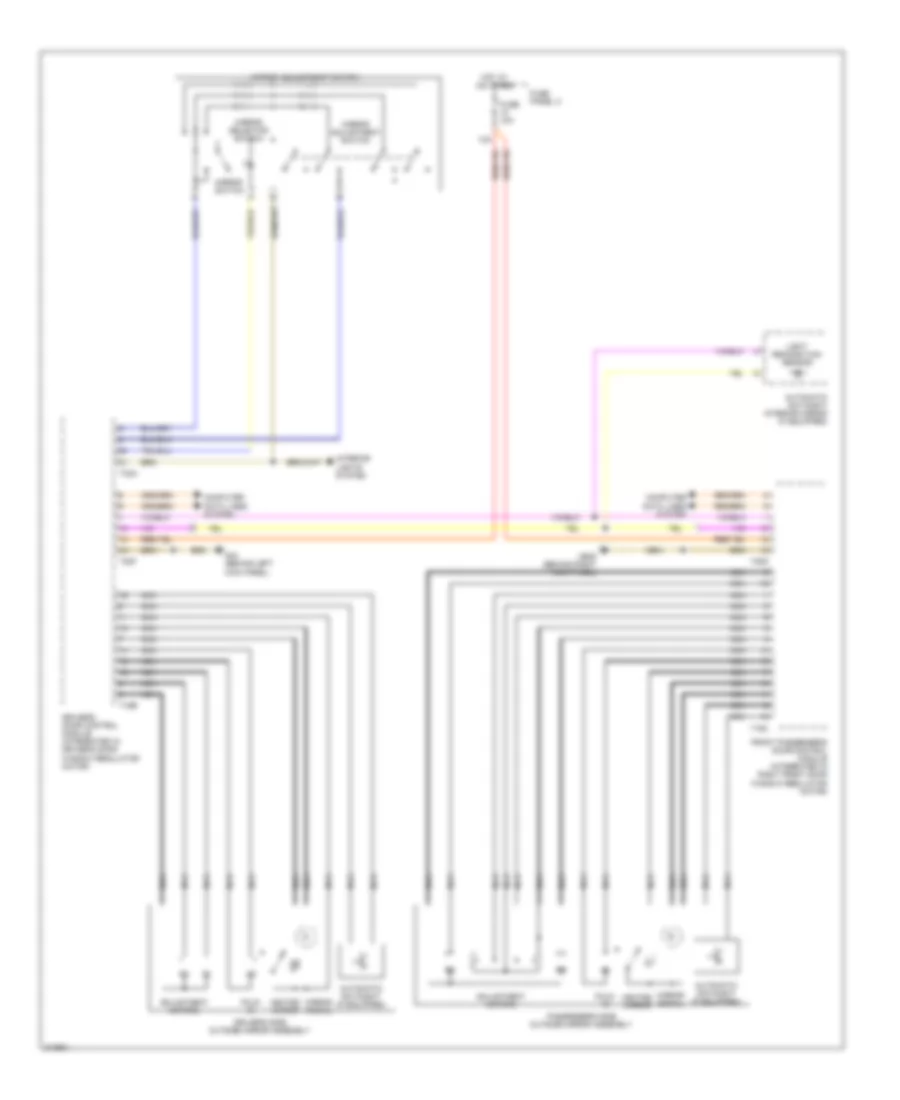

Электросхема привода зеркал для Audi A3 Quattro 2009

Электросхема привода зеркал для Audi A3 Quattro 2009 - Список элементов:

• 12a
• Adjustment motors
• Automatic day/night (if equipped)
• Automatic day/night interior mirror (if equipped)
• Computer data lines system
• Driver's door control module (integrated in driver's door window regulator motor)
• Driver's side outside mirror assembly
• Fold- in
• Front passenger's door control module (integrated in right front door window regulator motor)
• Fuse 10a
• Fuse panel c
• G44 (behind left kick panel)
• G638 (behind right kick panel)
• Heated mirror
• Hot at all times
• Interior lights system
• Light recognition sensor
• Mirror adjustment switch
• Mirror selector switch
• Mirror signal
• Mirror switch
• Nca
• Passenger's side outside mirror assembly
• T16b
• T16c
• T20f
• T20g
• T32a
