Электросхемы Подогрев стекол и зеркал Audi A3 Quattro 2009

Подогрев стекол и зеркал

Электросхема подогрева зеркал заднего вида для Audi A3 Quattro 2009

Электросхема подогрева зеркал заднего вида для Audi A3 Quattro 2009 - Список элементов:

• (behind right kick panel)
• 12a
• Climatronic control module (w/ a/c display control head)
• Computer data lines system
• Driver door control module (integrated in driver's door window regulator motor)
• Driver heated outside mirror
• Front passenger heated outside mirror
• Front passenger's door control module (integrated in right front door window regulator motor)
• Fuse 10a
• Fuse panel c
• G44 (behind left kick panel)
• G638
• Hot at all times
• Nca
• T16b
• T16c
• T16e
• T20f
• T20g

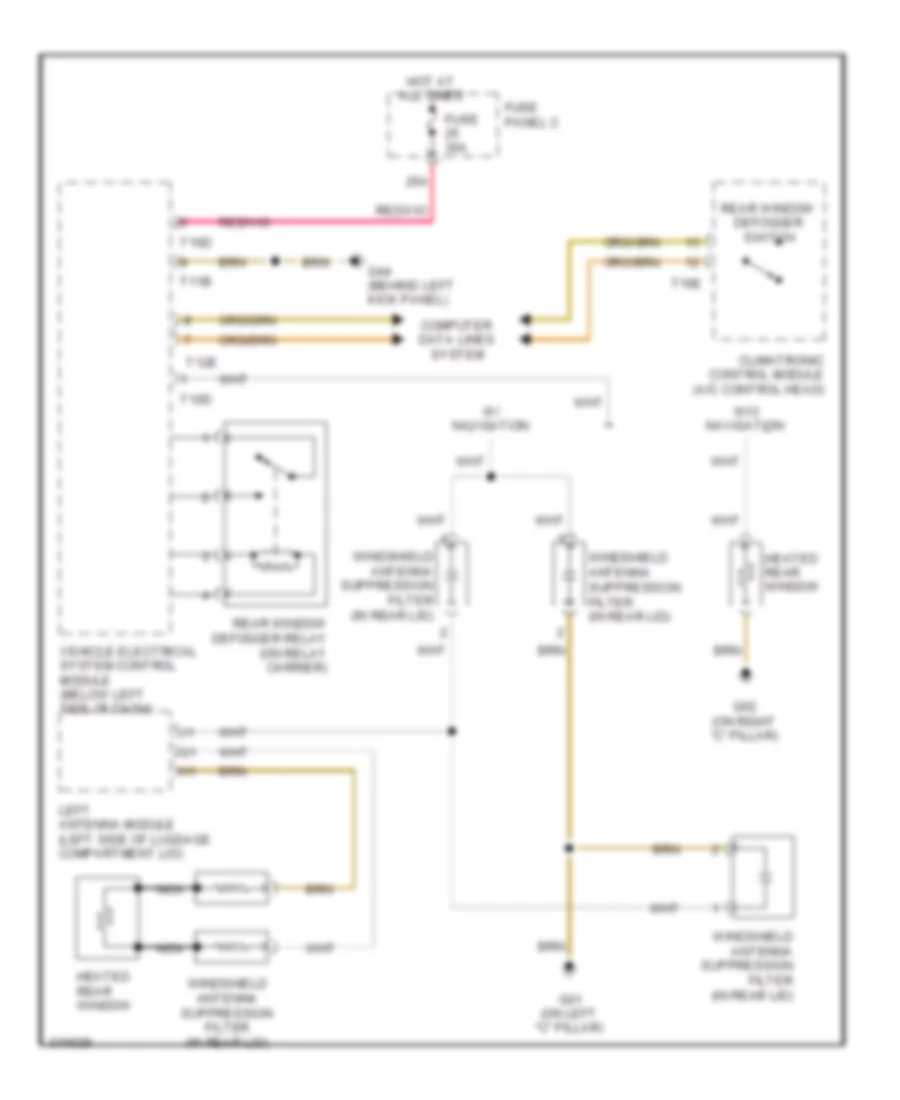

Электросхема заднего стекла, Дорестайлинг для Audi A3 Quattro 2009

Электросхема заднего стекла, Дорестайлинг для Audi A3 Quattro 2009 - Список элементов:

• 25a
• Climatronic control module (a/c control head)
• Computer data lines system
• Fuse 30a
• Fuse panel c
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• G62 (on right "c" pillar)
• Heated rear window
• Hot at all times
• Left antenna module (left side of luggage compartment lid)
• Nca
• Rear window defogger relay (on relay carrier)
• Rear window defogger switch
• T10d
• T11b
• T12e
• T16e
• Vehicle electrical system control module (below left side of dash)
• W/ navigation
• W/o navigation
• Windshield antenna suppression filter (in rear lid)

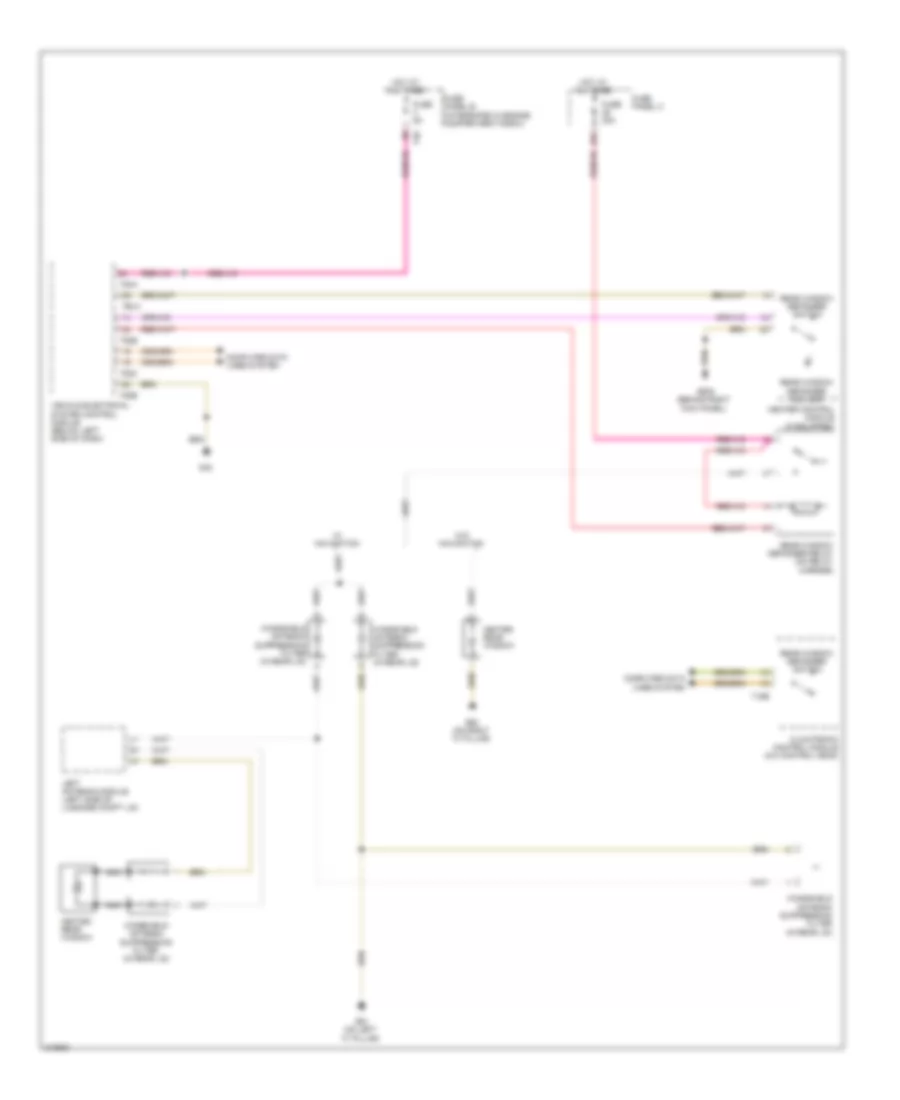

Электросхема заднего стекла, Посол Рестайлинга для Audi A3 Quattro 2009

Электросхема заднего стекла, Посол Рестайлинга для Audi A3 Quattro 2009 - Список элементов:

• 25a
• Climatronic control module (a/c control head)
• Computer data lines system
• Fuse 30a
• Fuse 5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G42
• G61 (on left "c" pillar)
• G62 (on right "c" pillar)
• G638 (behind right kick panel)
• Heated rear window
• Heater control module (if equipped)
• Hot at all times
• Left antenna module (left side of luggage compt lid)
• Nca
• Rear window defogger ind lamp
• Rear window defogger relay (on relay carrier)
• Rear window defogger switch
• T16e
• T40
• T52a
• T52b
• T52c
• T54a
• Vehicle electrical system control module (below left side of dash)
• W/ navigation
• W/o navigation
• Windshield antenna suppression filter (in rear lid)
