AIR CONDITIONING – Ford Ranger 1998 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

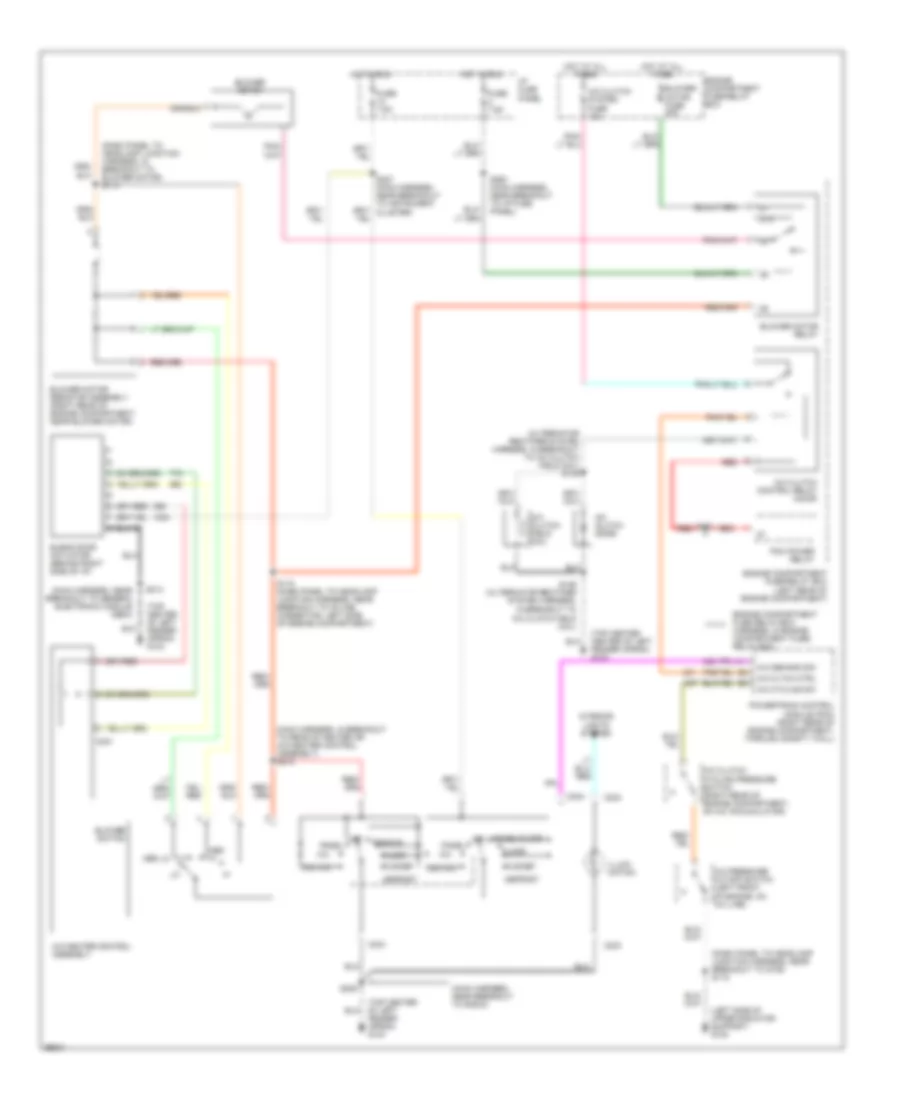

A/C Wiring Diagram for Ford Ranger 1998

List of elements for A/C Wiring Diagram for Ford Ranger 1998:

• (alternator rectifier system harness, in breakout to a/c clutch field coil) s145
• (dash panel to headlamp junction harness, in breakout to blower motor) s114
• (dash panel to headlamp junction harness, near breakout to g108) s118
• (left side of upper radiator support) g108
• (main harness, in breakout to rear of heater or a/c-heater control assembly) s212
• (main harness, near breakout to radio)
• (main harness, near breakout to generic electronic module (gem))
• (top center center of left fender apron) g104
• (top center of left fender apron) g104
• 87a
• A/c
• A/c cltch ctrl
• A/c clutch control relay (accr)
• A/c clutch cycling pressure switch (right rear of engine compartment, on a/c accumulator)
• A/c clutch diode
• A/c clutch field coil
• A/c clutch system fuse 10a
• A/c cycling sw
• A/c demand sig
• A/c pressure cutoff switch (left front of engine, on a/c line)
• A/c-heater control assembly
• Blend door actuator (behind right side of i/p)
• Blower motor
• Blower motor fuse 40a
• Blower motor relay
• Blower motor resistor assembly (right rear of engine compartment, near blower motor)
• Blower switch
• C231
• C233
• C234
• Defrost
• Engine compartment fuse relay/box harness, in engine compartment fuse/ relay box
• Engine compartment fuse/relay box
• Engine compartment fuse/relay box (left rear of engine compartment)
• Floor
• Flr/def
• Fuse 7.5a
• Hot at all times
• Hot in run
• I/p fuse panel
• Illumi- nation
• In breakout to a/c clutch field coil)
• Interior lights system
• Max a/c
• Med hi
• Med lo
• Off
• Pan/flr
• Panel
• Panel/floor
• Pcm power relay
• Powertrain control module (pcm) (right rear of engine compartment, through safety wall)
• Red
• S115 (dash panel to headlamp junction harness, near breakout to in-line connector, left side of engine compartment)
• S121
• S146 (alternator rectifier system harness,
• S209
• S214
• S227 (main harness, near breakouit to instrument cluster)
• S250 (main harness, near breakout to i/p fuse panel)

Heater Wiring Diagram for Ford Ranger 1998

List of elements for Heater Wiring Diagram for Ford Ranger 1998:

• (dash panel to headlamp junction harness, near breakout to in-line connector left side of engine compartment)
• (main harness, in breakout to rear of heater or a/c- heater control assembly)
• (main harness, near breakout to radio)
• (top center of left fender apron) g104
• 87a
• A/c- heater control assembly
• Blower motor
• Blower motor fuse 40a
• Blower motor relay
• Blower motor resistor assembly (right rear of engine compartment, near blower motor)
• Blower switch
• C233
• C234
• Def
• Engine compartment fuse/relay box
• Engine compartment fuse/relay box (left rear of engine compartment)
• Flr
• Flr/def
• Fuse 7.5a
• Hot at all times
• Hot in run
• I/p fuse panel
• Illumi- nation
• Interior lights system
• Off
• Pan/flr
• Panel
• S114 (dash panel to headlamp junction harness, in breakout to blower motor)
• S115
• S209
• S212
• S250 (main harness, near breakout to i/p fuse panel)
