HEADLIGHTS – Ford Ranger 1998 – SYSTEM WIRING DIAGRAMS

HEADLIGHTS

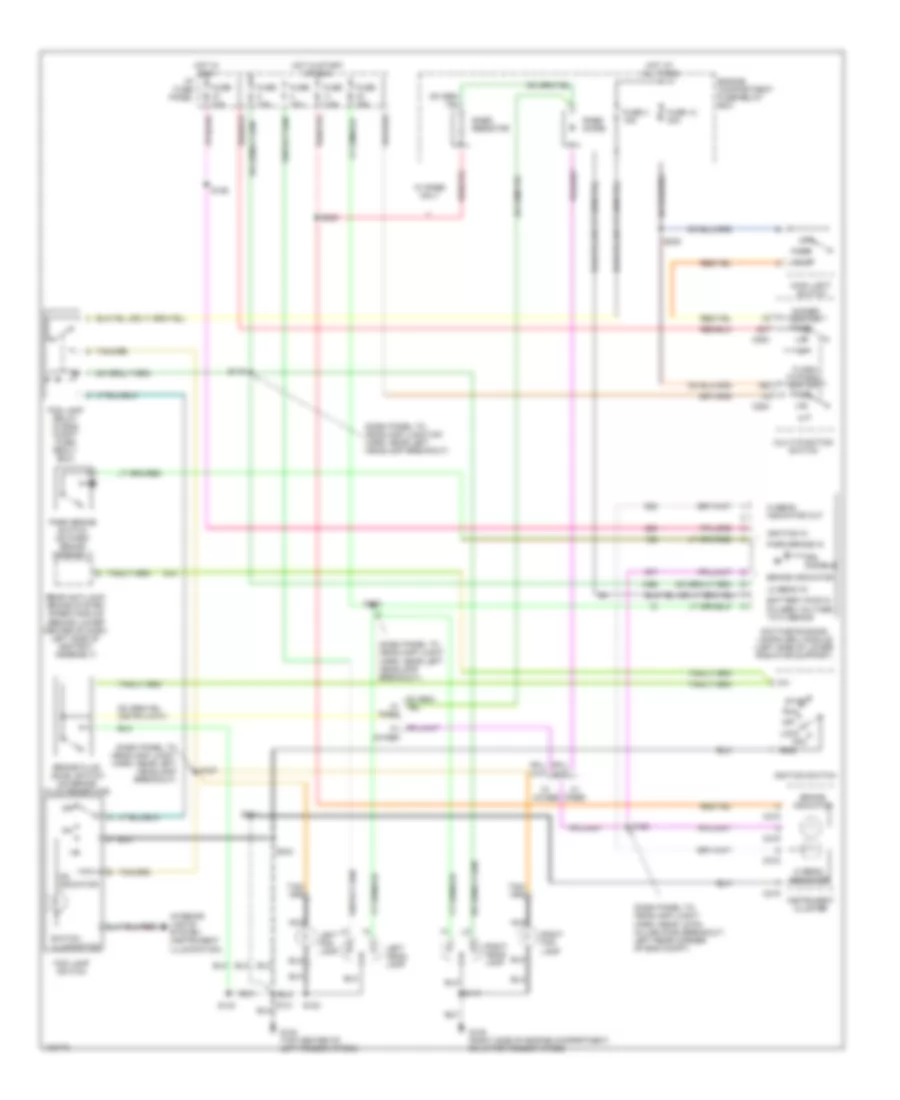

Headlamps/Fog Lamps Wiring Diagram, with DRL for Ford Ranger 1998

List of elements for Headlamps/Fog Lamps Wiring Diagram, with DRL for Ford Ranger 1998:

• (dash panel to headlamp junct harn, near 12-pin in-line conn breakout, left rear corner of eng compt)
• (dash panel to headlamp junct harn, near left headlamp breakout)
• (dash panel to headlamp junction harn, near left headlamp breakout)
• Acc
• Battery pwr in
• Brake fluid level switch (on brake fluid reservoir)
• Brake indicator
• C215
• C216
• C254
• Daytime running lamps (drl) module (left side of lower radiator support)
• Dimmer switch
• Drl disable
• Engine compartment fuse/relay box
• Flash- to-pass switch
• Fog lamp relay (in eng compt fuse/ realy box)
• Fog lamp switch
• Fuse 10a
• Fuse 12 30a
• Fuse 15a
• Fuse 4 15a
• Fuse 7.5a
• G104 (top center of left fender apron)
• G105 (right side of engine compartment, on upper fender apron)
• Gnd
• Head
• Hi beam indicator
• Hi beam indicator out
• Hot at all times
• Hot in run
• Hot in start or run
• I/p fuse panel
• Ignition in
• Ignition switch
• Instrument cluster
• Interior lights system (instrument illumination)
• Left fog lamp
• Left head- lamp
• Lo beam in
• Lock
• Main light switch
• Multi-function switch
• Nca
• Off
• On indicator
• Park
• Park brake in
• Park brake switch (on park brake assembly)
• Pass
• Pulsed voltage to hi beams
• Rabs diode
• Rabs resistor
• Rear anti-lock brake system (rabs) module (behind lower center of dash, left side of ashtray assembly)
• Right fog lamp
• Right head- lamp
• Run
• S117
• S119
• S120
• S122
• S123
• S126
• S127
• S143
• S214
• S230
• S240
• S244
• Start
• Switch illumination
• W/ 4wabs
• W/ rabs
• W/ rabs only

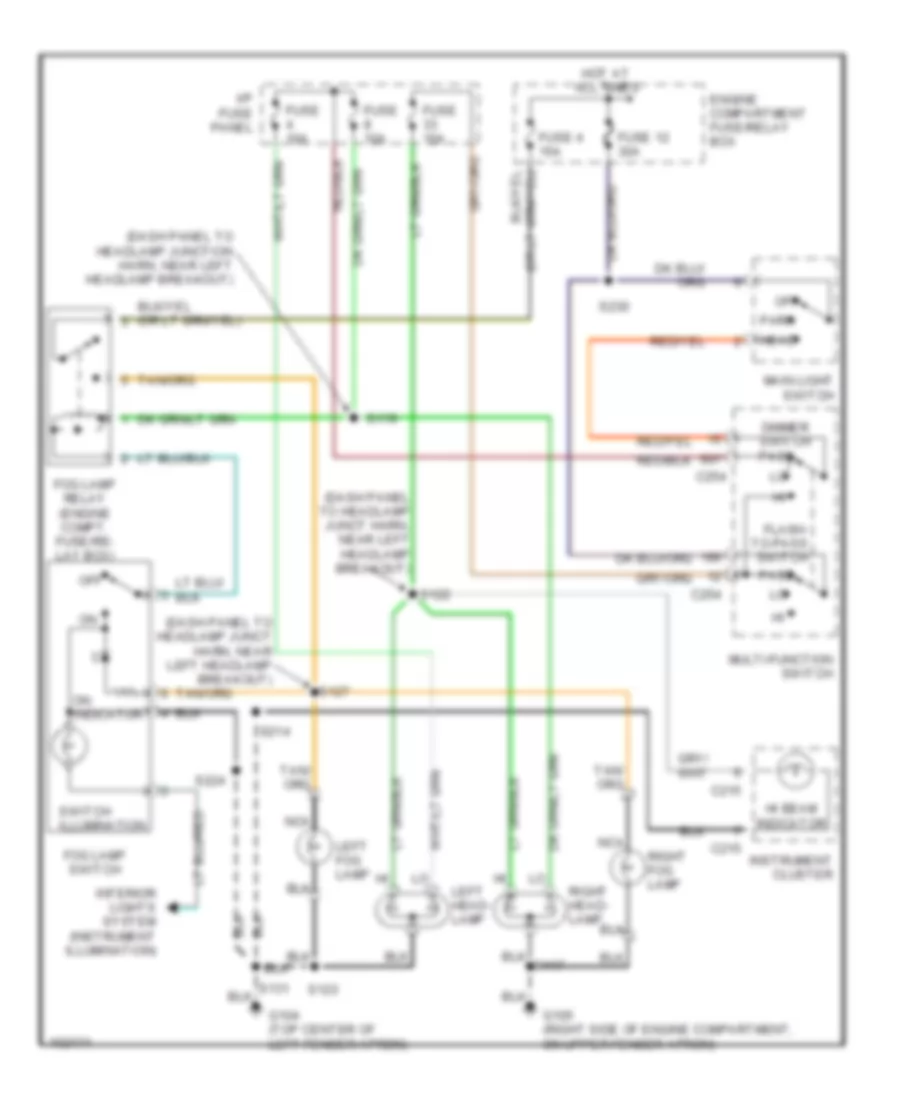

Headlamps/Fog Lamps Wiring Diagram, without DRL for Ford Ranger 1998

List of elements for Headlamps/Fog Lamps Wiring Diagram, without DRL for Ford Ranger 1998:

• (dash panel to headlamp junct harn, near left headlamp breakout)
• (dash panel to headlamp junction harn, near left headlamp breakout)
• C215
• C254
• Dimmer switch
• Engine compartment fuse/relay box
• Flash- to-pass switch
• Fog lamp relay (engine compt. fuse/re- lay box)
• Fog lamp switch
• Fuse 10a
• Fuse 12 30a
• Fuse 15a
• Fuse 4 15a
• G104 (top center of left fender apron)
• G105 (right side of engine compartment, on upper fender apron)
• Head
• Hi beam indicator
• Hot at all times
• I/p fuse panel
• Instrument cluster
• Interior lights system (instrument illumination)
• Left fog lamp
• Left head- lamp
• Main light switch
• Multi-function switch
• Nca
• Off
• On indicator
• Park
• Pass
• Right fog lamp
• Right head- lamp
• S119
• S122
• S123
• S127
• S214
• S224
• S230
• Switch illumination
