INTERIOR LIGHTS

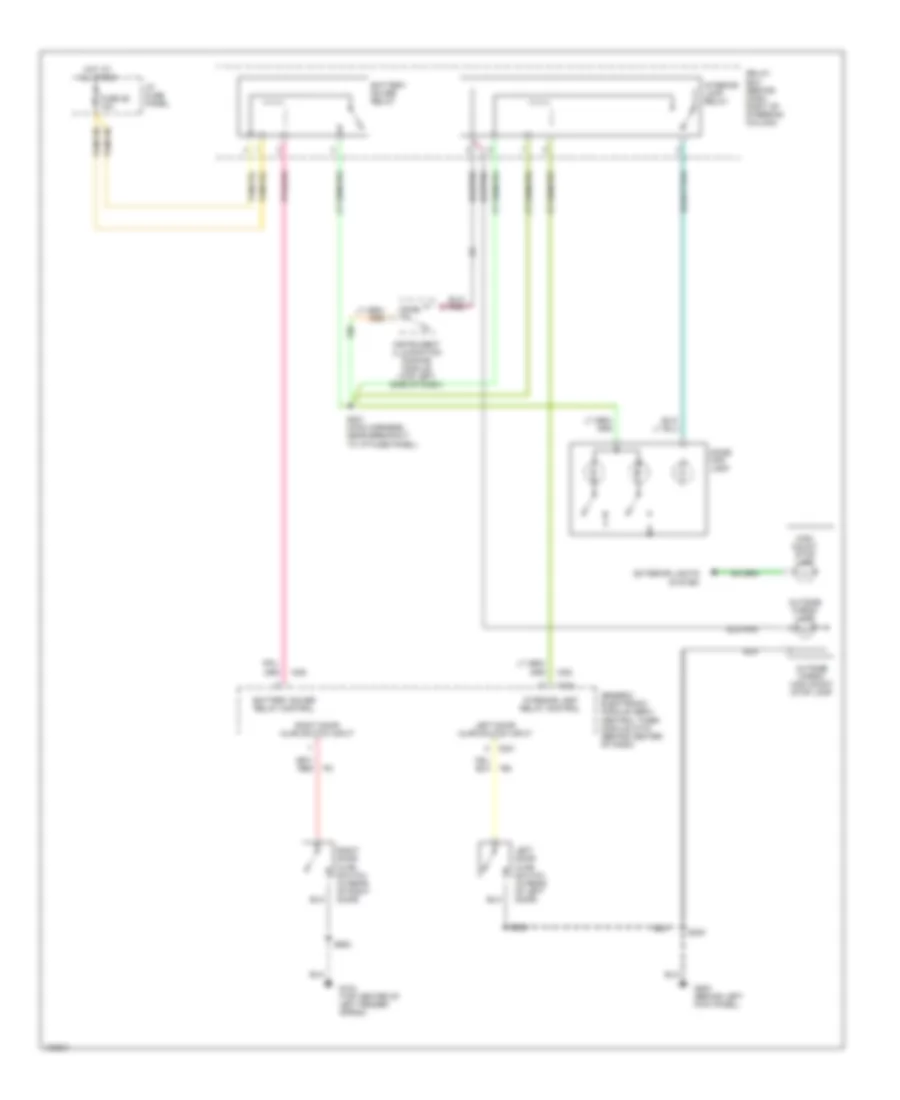

Courtesy Lamps Wiring Diagram for Ford Ranger 1998
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Courtesy Lamps Wiring Diagram for Ford Ranger 1998:
- Battery saver relay
- Battery saver relay control
- C221
- C224
- Dome
- Dome/ map lamp
- Exterior lights system
- Fuse 26 10a
- G104 (top center of left fender apron)
- G200 (behind left kick panel)
- Generic electronic module (gem)/ central timer module (ctm) (behind center of dash)
- High mount stop lamp
- Hot at all times
- I/p fuse panel
- Instrument illumination dimming module (top left side of dash)
- Interior lamp relay
- Interior lamp relay control
- Left door ajar switch (in rear of left door)
- Left door ajar switch input
- Outside cargo lamp
- Outside cargo/ high mount stop lamp
- Relay box (behind dash, right of steering column)
- Right door ajar switch (in rear of right door)
- Right door ajar switch input
- S221 (main harness, near breakout to i/p fuse panel)
- S300
- S500
- S600
Instrument Illumination Wiring Diagram for Ford Ranger 1998
List of elements for Instrument Illumination Wiring Diagram for Ford Ranger 1998:
- (6 bulbs)
- (main harn, near i/p fuse panel breakout)
- (main harn, near rear of instrument cluster)
- 15a
- 4wd mode switch
- 7.5a
- Anti- theft system
- C201
- C214
- C215
- C225
- C228
- C233
- C236
- C409
- Clockspring assembly (top of steering column)
- Courtesy lamps circuit
- Dome
- Engine compartment fuse/relay box
- Exterior lamps system
- Exterior lights system
- Fog lamp switch
- Fuse
- G104 (top center of left fender apron)
- G108 (left side of upper radiator support)
- Head
- Heater or a/c-heater control assembly
- Horn switches
- Hot at all times
- Hot in start or run
- I/p fuse panel
- Ignition key warning switch
- Illumination
- Instrument cluster
- Instrument cluster system
- Instrument illumin- ation dimming module (top left side of dash)
- Main light switch
- Nca
- Off
- Park
- Park lamps relay
- Radio
- Relay box
- Remote anti-theft personality (rap) module (left rear corner of cab)
- S131
- S205
- S208
- S209
- S214
- S234
- S240
- S244
- Speed control switch assembly
- Steering assembly
- Theft
- W/ anti- theft
- W/ power equipment
- W/o anti-
- W/o anti- theft
- W/o power equipment
