GROUND DISTRIBUTION – Ford Ranger 1998 – SYSTEM WIRING DIAGRAMS

GROUND DISTRIBUTION

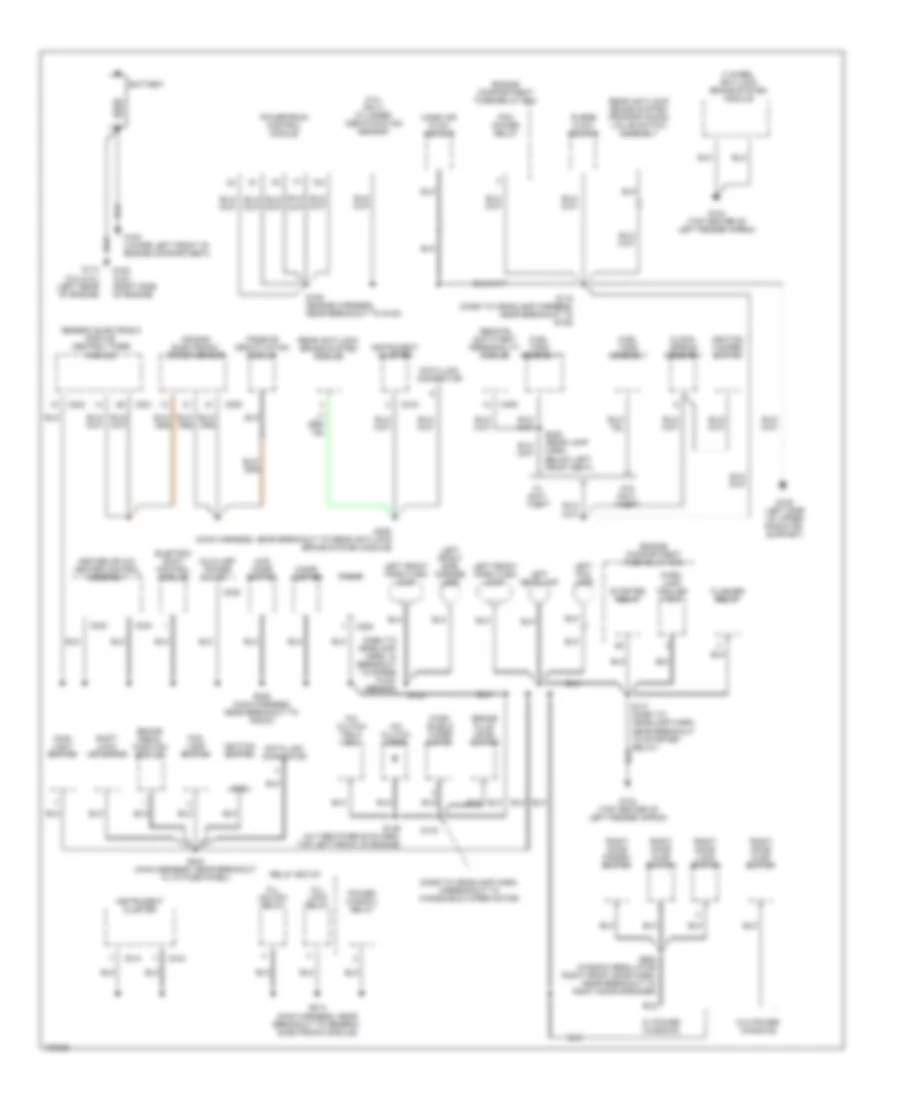

Ground Distribution Wiring Diagram (1 of 2) for Ford Ranger 1998

List of elements for Ground Distribution Wiring Diagram (1 of 2) for Ford Ranger 1998:

• (4.0l only) cylinder identification sensor
• (dash to headlamp harn, in breakout to purge flow sensor)
• (dash to headlamp harn, in breakout to windshield wiper motor)
• 4 wheel anti-lock brake system module
• 4wd mode switch
• A/c clutch diode
• A/c clutch field coil
• Air bag electronic crash sensor
• All lock relay
• All unlock relay
• Auxiliary power socket 1
• Battery
• Brake fluid level switch
• Brake pedal position switch
• C214
• C215
• C221
• C224
• C228
• C233
• C234
• C235
• C250
• C409
• Cigar lighter
• Clock- spring assembly
• Data link connector
• Electric shift control module
• Engine compartment fuse/relay box
• Flasher relay
• Fog lamp switch
• Fuel tank assembly
• G100 (lower left front of engine compartment)
• G104 (top center of left fender apron)
• G108 (left side of upper radiator support)
• G114 (3.0l/4.0l) (left rear of engine)
• G120 (2.5l) (right side of engine)
• Generic electronic module/ central timer module
• Gnd
• Heater or a/c- heater control assembly
• Ignition switch
• Ignition tamper switch
• Instrument cluster
• Left fog lamp
• Left front park/turn lamp
• Left front side marker lamp
• Left headlamp
• Main light switch
• Mass air flow sensor
• Park lamp trailer tow
• Passive deactivation module
• Pcm power relay
• Power window relay
• Powertrain control module
• Purge flow sensor
• Radio
• Rear anti-lock brake system module
• Rear anti-lock brake system proportioning valve switch assembly
• Relay box #1
• Remote anti-theft personality module
• Right door ajar switch
• Right door disarm switch
• Right door lock switch
• S106 (engine harness, near breakout to g123)
• S118 (dash to headlamp harness, near breakout to g108)
• S123
• S143
• S146 (alt rectifier sys harn, top left front of engine)
• S205 (main harness, near breakout to rear anti-lock brake system module)
• S209 (main harness, near breakout to radio)
• S214 (main harness, near breakout to generic electronic module)
• S244 (main harness, near breakout to i/p fuse panel)
• S305 (rear lamp harn, below left front seat)
• S600 (window regulator right front door harn, near breakout to right door speaker)
• Shift lock actuator
• Starter relay
• W/ anti- theft
• W/ power windows
• W/o anti- theft
• W/o power windows
• Wind- shield wiper motor

Ground Distribution Wiring Diagram (2 of 2) for Ford Ranger 1998

List of elements for Ground Distribution Wiring Diagram (2 of 2) for Ford Ranger 1998:

• Anti-theft hood switch
• C223
• Camshaft position sensor shield
• Crankshaft position sensor shield
• Digital transmission range sensor
• Fuel tank assembly
• G105 (right side of engine compartment, on upper fender apron)
• G123 (right side of firewall)
• G200 (behind left kick panel)
• G203 (behind right kick panel)
• Generic electronic module
• Left backup lamp
• Left door ajar switch
• Left door disarm switch
• Left door lock switch
• Left license lamp
• Left power bolster lumbar motor
• Left rear park/stop lamp
• Left rear turn lamp
• Left seat control switch
• M/t only
• Master window control switch
• Outside cargo/high mount stop lamp
• Power mirror switch
• Powertrain control module
• Radio
• Right backup lamp
• Right fog lamp
• Right front park/ turn lamp
• Right front park/turn lamp
• Right front side marker light
• Right headlamp
• Right license lamp
• Right rear park/stop lamp
• Right rear turn lamp
• S107 (engine harness, 2.5l & 4.0l: near breakout to g123; 3.0l: near breakout to octane adjust shorting bar)
• S117 (dash to headlamp harness, near breakout to right headlamp)
• S300 (interior lamp harness, below left front seat)
• S307 (rear lamp harness, near breakout to fuel pump module)
• S400 (rear lamp harness, under left rear of vehicle, near rear of frame)
• S500 (window regulator left door harness, near breakout to left power mirror switch)
• Seat belt switch
• Speed control servo/ amplifier assembly
• Windshield washer pump
