Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Dodge Sprinter 3500 2005

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

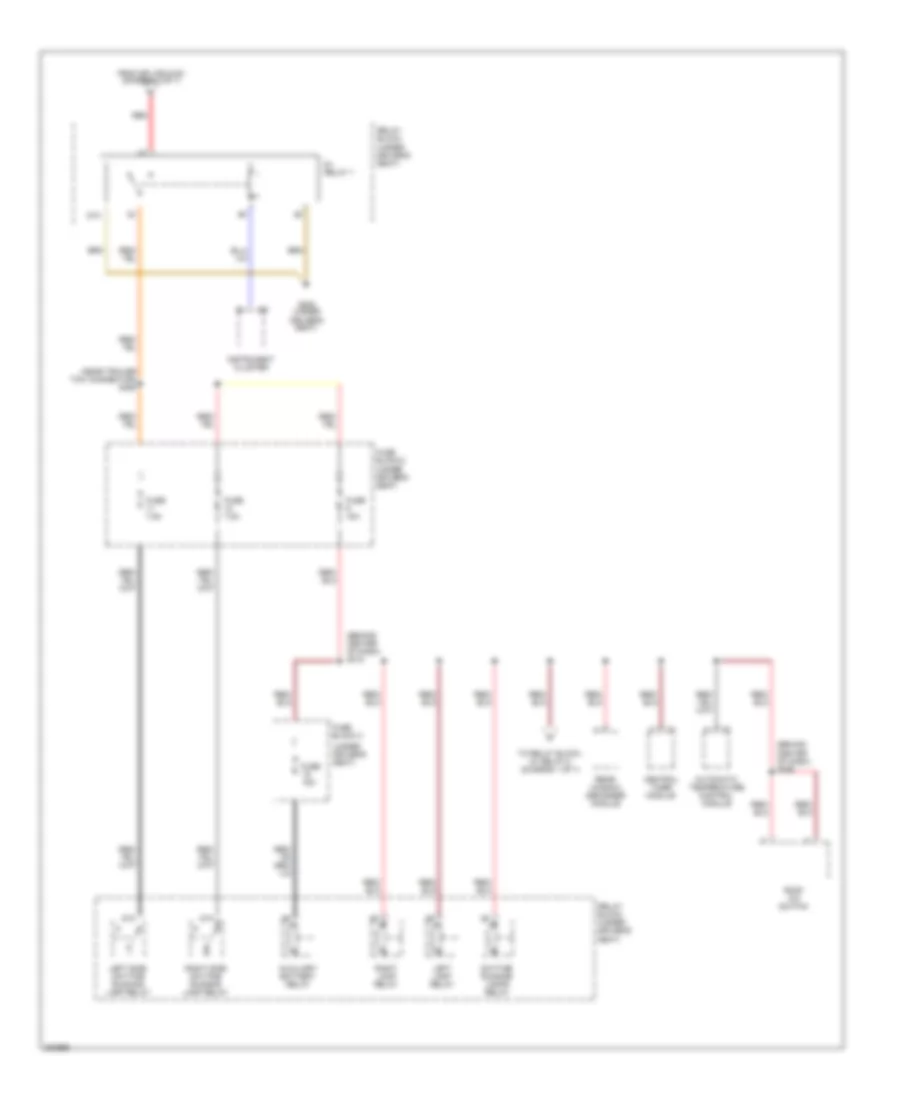

Электросхема блока предохранителей и реле (1 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (1 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (instrument panel) s216
• (under driver's seat) s100
• (under driver's seat) s102
• A/c compressor clutch relay
• A/c roof auxiliary fan relay
• Auxiliary battery relay
• Battery
• Body plug connector (under driver's seat)
• Central timer module
• D+ relay
• Data link connector
• Except heavy duty
• From fuse block 1, fuse 18 (diagram 5 of 7)
• From fuse block 2, fuse 9 (diagram 7 of 7)
• Fuse 100a
• Fuse 10a
• Fuse 125a
• Fuse 15a
• Fuse 200a
• Fuse 25a
• Fuse 7.5a
• Fuse 70a
• Fuse 80a
• Fuse block 2 (under driver's seat)
• Fused ignition switch run/start relay
• G202 (under driver's seat)
• Generator
• Glow plug control module
• Heavy duty
• Instrument cluster
• Left lamp relay
• Nca
• Power distribution center (left side of engine compt)
• Red
• Relay block (under driver's seat)
• Right lamp relay
• S234
• S261 (near data link conn)
• Starter motor
• To fuse/relay block, fuse 9 (diagram 2 of 7)
• To optional equipment relay (diagram 6 of 7)
• To splice 101 (diagram 3 of 7)
• Trans- mission relay

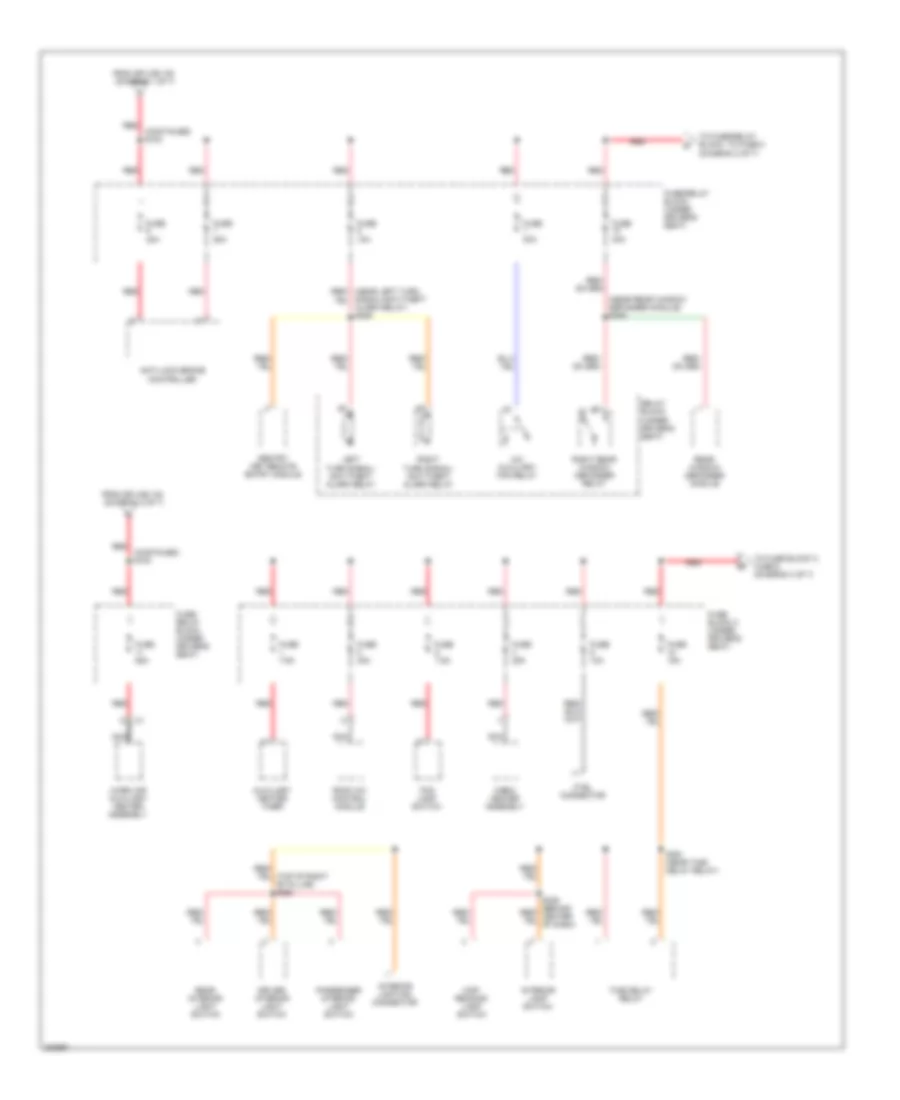

Электросхема блока предохранителей и реле (2 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (2 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (continued) s100
• (near rear window defogger module) s355
• (top of right "b" pillar) s360
• A/c auxiliary fan relay
• Anti-lock brake controller
• Auxiliary heater timer
• Cabin heater assembly
• Ctel connector
• Driver interior light switch
• Fog lamp switch
• From splice 100 (diagram 1 of 7)
• From splice 100 (diagram 2 of 7)
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 30a
• Fuse 40a
• Fuse 7.5a
• Fuse block 3 (under driver's seat)
• Fuse/ relay block (under driver's seat)
• Fuse/relay block (under driver's seat)
• Interior lamp switch
• Interior lighting connector
• Left turn signal/ anti-theft alarm relay
• Map/ reading lamp switch
• Nca
• Passenger interior light switch
• Rear interior light switch
• Rear window defogger module
• Red
• Relay block (under driver's seat)
• Right rear window defogger relay
• Right turn signal/ anti-theft alarm relay
• Roof a/c control module
• S361 (near time delay relay)
• Sentry key remote entry module
• Signal/anti-theft alarm relay) s226
• Time delay relay
• To fuse block 3, fuse 6 (diagram 3 of 7)
• To fuse/relay block, to fuse 8 (diagram 2 of 7)
• Warm air auxiliary heater assembly

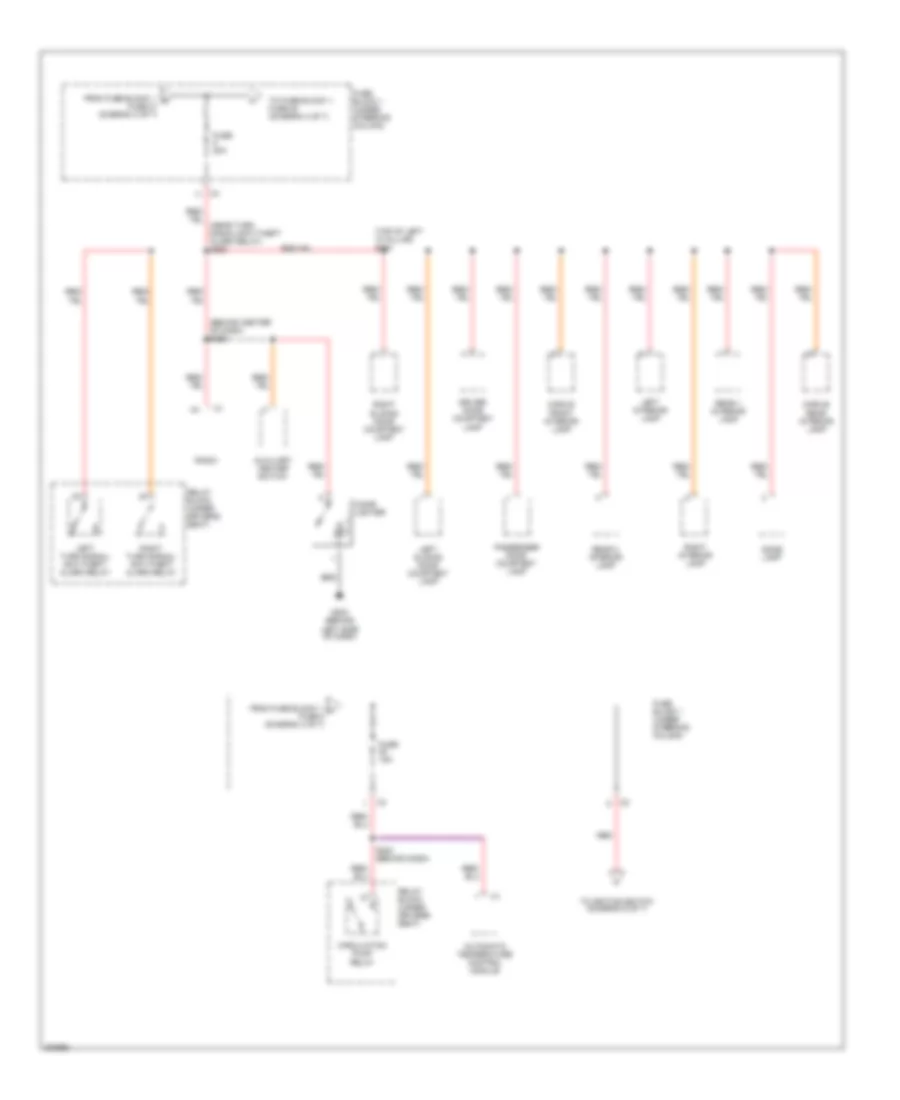

Электросхема блока предохранителей и реле (3 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (3 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (near trailer red tow module) s358
• (under driver's seat)
• (w/o retrofit)
• Additional heat exchanger relay
• Blower motor resistor block
• D (w/ retrofit)
• Daytime running lamps relay
• Engine control relay
• Fan stage 1 relay
• From power distribution center, fuse 6 (diagram 1 of 7)
• From splice 100 (diagram 2 of 7)
• Fuel pump relay
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 30a
• Fuse 7.5a
• Fuse block 1 (under steering column)
• Fuse block 2 (under driver's seat)
• Fuse block 3
• Fuse block 3 (under driver's seat)
• Hazard warning switch
• Instrument panel socket
• Intrusion sensor 1
• Intrusion sensor 2
• Intrusion sensor 3
• Multifunction switch
• Nca
• Red
• Red (continued) s100
• Relay block
• S101 (behind left side of dash)
• S103 (left side of engine compt) red
• Security system module
• Siren
• To d+ relay 1 (diagram 7 of 7)
• To fuse block 1, fuse 8 (diagram 4 of 7)
• Trailer tow connector
• Trailer tow control module

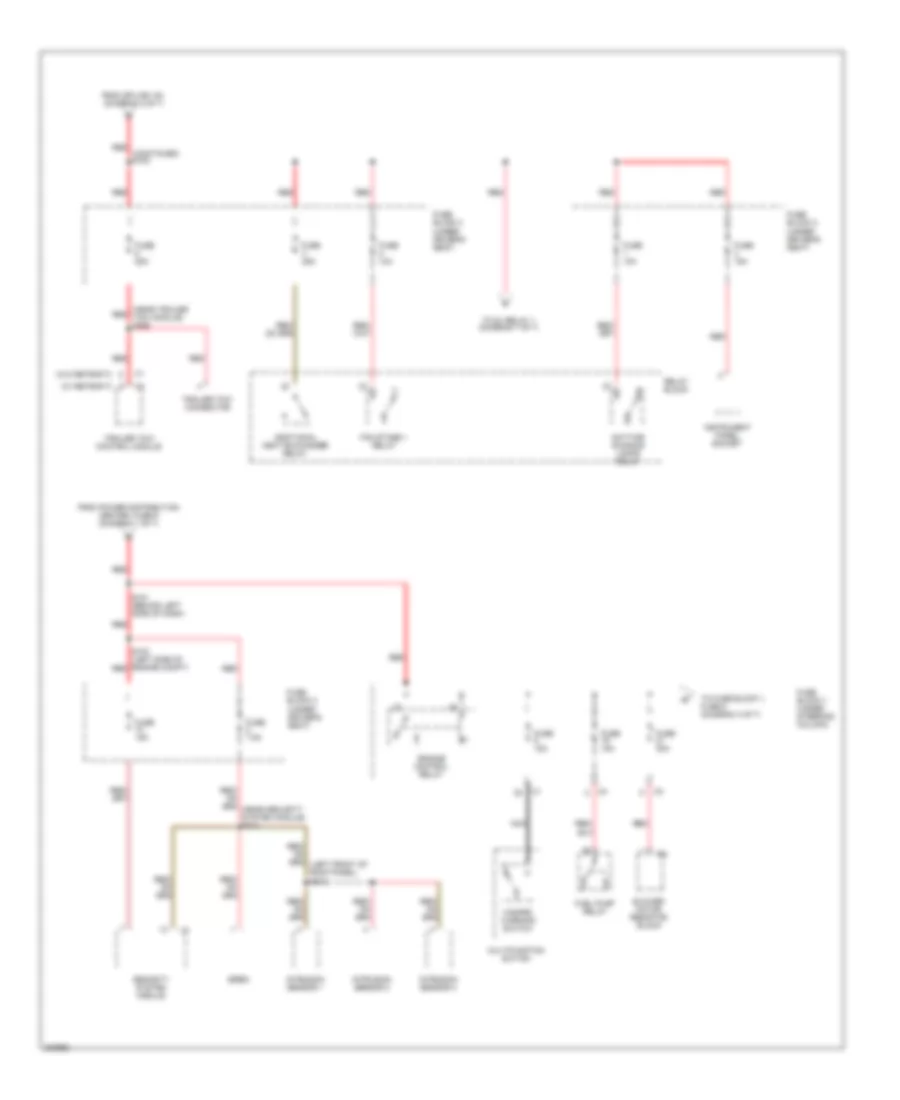

Электросхема блока предохранителей и реле (4 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (4 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (behind center of dash) s252
• (near turn signal/anti-theft alarm relay) s250
• (top of left "a" pillar) s353
• Automatic temperature control module
• Auxiliary heater switch
• Cigar lighter
• Circulation pump relay
• Dome lamp
• Driver door courtesy lamp
• From fuse block 1, g fuse 21 (diagram 3 of 7)
• From fuse block 1, h fuse 8 (diagram 4 of 7)
• Fuse 15a
• Fuse 20a
• Fuse block 1 (under steering column)
• G203 (behind left side of dash)
• Left interior lamp
• Left sliding door courtesy lamp
• Left turn signal/ anti-theft alarm relay
• Middle front interior lamp
• Middle rear interior lamp
• Passenger door courtesy lamp
• Radio
• Rear 1 interior lamp
• Rear 2 interior lamp
• Red
• Relay block (under driver's seat)
• Right interior lamp
• Right sliding door courtesy lamp
• Right turn signal/ anti-theft alarm relay
• S223 (behind dash)
• To fuse block 1, fuse 20 (diagram 4 of 7)
• To ignition switch (diagram 5 of 7)

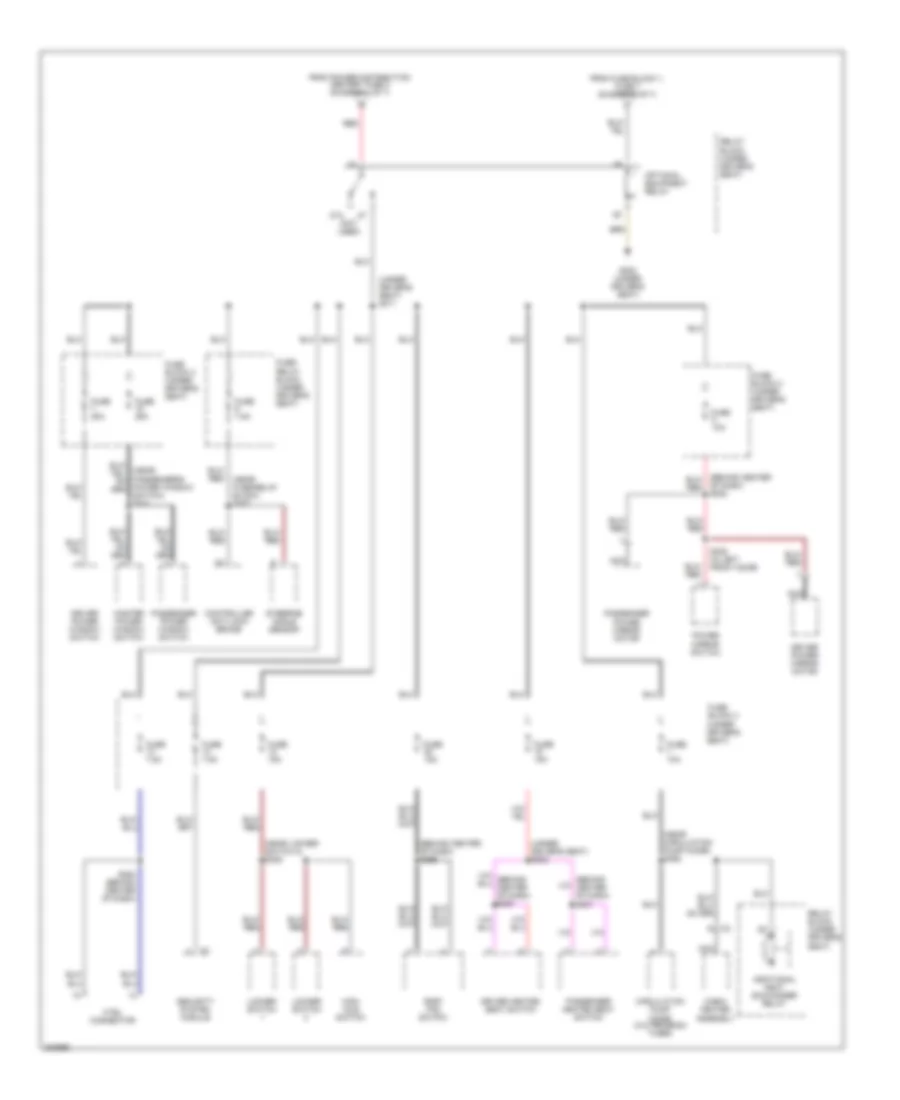

Электросхема блока предохранителей и реле (5 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (5 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (left side of engine compt) s200
• (near brake lamp switch) s204
• (near control module timer) s255
• (near optional equipment relay) s206
• (under driver's seat) s219
• (w/ esp)
• (w/ obd)
• (w/o esp)
• (w/o obd)
• 87a
• Airbag control module
• Brake lamp switch
• Center of dash) s210
• Central timer module
• Circulation pump relay
• Data link connector
• Engine control module
• From fuse block 1 (diagram 4 of 7)
• Front wiper motor
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse block 1 (under steering column)
• Hazard warning switch
• Horn (vtss)
• Horn relay
• Ignition switch 0 off 1 acc 2 run 3 start
• Instrument cluster
• Mass air flow sensor
• Multifunction switch
• Nca
• Radio
• Radio/ cellular antenna
• Rear window defogger switch
• Red
• Relay block (under driver's seat)
• Sentry key remote entry module
• Shifter assembly
• Starter motor relay
• To optional equipment relay (diagram 6 of 7)
• To run/ start relay (diagram 1 of 7)
• Transmission relay
• Turn signal switch
• Washer on/off switch
• Wiper on/off relay
• Wiper switch
• Wiper/ turn signal/ engine start control module

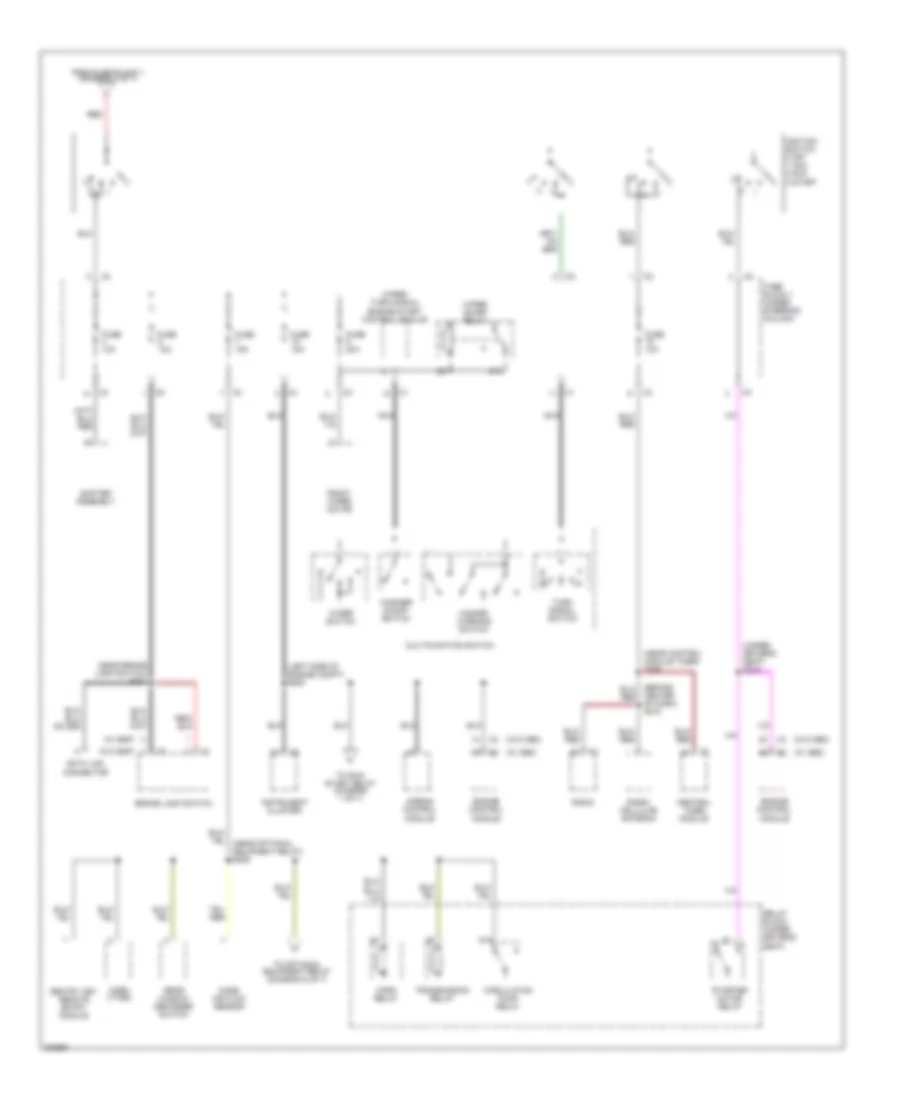

Электросхема блока предохранителей и реле (6 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (6 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (behind center of dash) s301
• (behind center of dash) s365
• (near circulation pump diode) s362
• (near locker switch 2) s306
• (not used)
• (under driver's seat) s302
• (under driver's seat) s311
• 87a
• Additional heat exchanger relay
• Cabin heater assembly
• Circulation pump diode (w/o program timer)
• Controller anti-lock brake
• Ctel connector
• Driver heated seat switch
• Driver power mirror motor
• Driver power window switch
• From fuse block 1, fuse 7 (diagram 5 of 7)
• From power distribution center, fuse 2 (diagram 1 of 7)
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 7.5a
• Fuse block 2 (under driver's seat)
• Fuse block 3 (under driver's seat)
• Fuse/ relay block (under driver's seat)
• G202 (under driver's seat)
• High idle switch
• Locker switch
• Master power window switch
• Nca
• Of dash) s202
• Optional equipment relay
• Passenger heated seat switch
• Passenger power mirror motor
• Passenger power window switch
• Power mirror switch
• Red
• Relay block (under driver's seat)
• Roof fan switch
• S305 (in left front door)
• S364 (behind center of dash)
• Security system module
• Steering angle sensor

Электросхема блока предохранителей и реле (7 из 7) для Dodge Sprinter 3500 2005

Электросхема блока предохранителей и реле (7 из 7) для Dodge Sprinter 3500 2005 - Список элементов:

• (behind center of dash) s256
• (behind center of dash) s310
• (near trailer tow connector) s350
• (under driver's seat)
• 87a
• Automatic temperature control module
• Auxiliary battery relay
• Central timer module
• D+ relay 1
• Daytime running lamps relay
• From splice s100 (diagram 3 of 7)
• Fuse 15a
• Fuse 7.5a
• Fuse block 2 (under driver's seat)
• Fuse block 3
• G202 (under driver's seat)
• Instrument cluster
• Left lamp relay
• Left side daytime running lamp relay
• Rear window defogger module
• Red
• Relay block (under driver's seat)
• Right lamp relay
• Right side daytime running lamp relay
• Roof a/c switch
• To relay block, d+ relay 2 (diagram 1 of 7)
