Электросхемы СИСТЕМА КОНДИЦИОНЕРА Dodge Sprinter 3500 2005

СИСТЕМА КОНДИЦИОНЕРА

Электросхема кондиционера (1 из 2) для Dodge Sprinter 3500 2005

Электросхема кондиционера (1 из 2) для Dodge Sprinter 3500 2005 - Список элементов:

• (behind center of dash) s218
• (behind left side of dash) g203
• (left rear of engine compt) g200
• (rest system)
• (under dash) data link connector
• 0 off 1 low 2 med-low 3 med-high 4 high
• 5v ref
• A/c aux fan rly ctrl
• A/c auxiliary fan relay (in relay block)
• A/c comp clutch (+)
• A/c compressor clutch
• Air outlet temperature sensor (right rear of engine compt)
• Aot sens sig
• Automatic temperature control module
• Auxiliary heater timer
• Blower motor resistor block (right rear of engine compt)
• C2 c2
• Cabin heater assembly
• Can c bus (+)
• Can c bus (-)
• Circ pmp mtr (+)
• Circ pmp mtr req
• Circulation pump (front of engine compt)
• D+ relay ctrl
• Evap temp sen sig
• Evaporator temperature sensor (under right side of dash)
• Fuse 15a
• Fuse 30a
• Fuse block 1 (under steering column)
• Fuse/ relay block (under driver's seat)
• Fused d+ rly 1 output
• G202 (under driver's seat)
• Gnd
• Hot at all times
• Htr booster mode
• Htr booster mode ctrl
• Interior lights system
• K-ic/atc/hbm/chm
• Lamp driver
• Nca
• Recirc air sol vlv (+)
• Red
• Refrig press sen sig
• Refrigerant pressure sensor (left front of engine compt)
• S201 (behind center of dash)
• S201 com cir
• S209
• S221 (under dash)
• S223
• Sens gnd
• Sig
• W/ program timer
• W/o program timer
• Wtr cycl vlv (duty cycl)

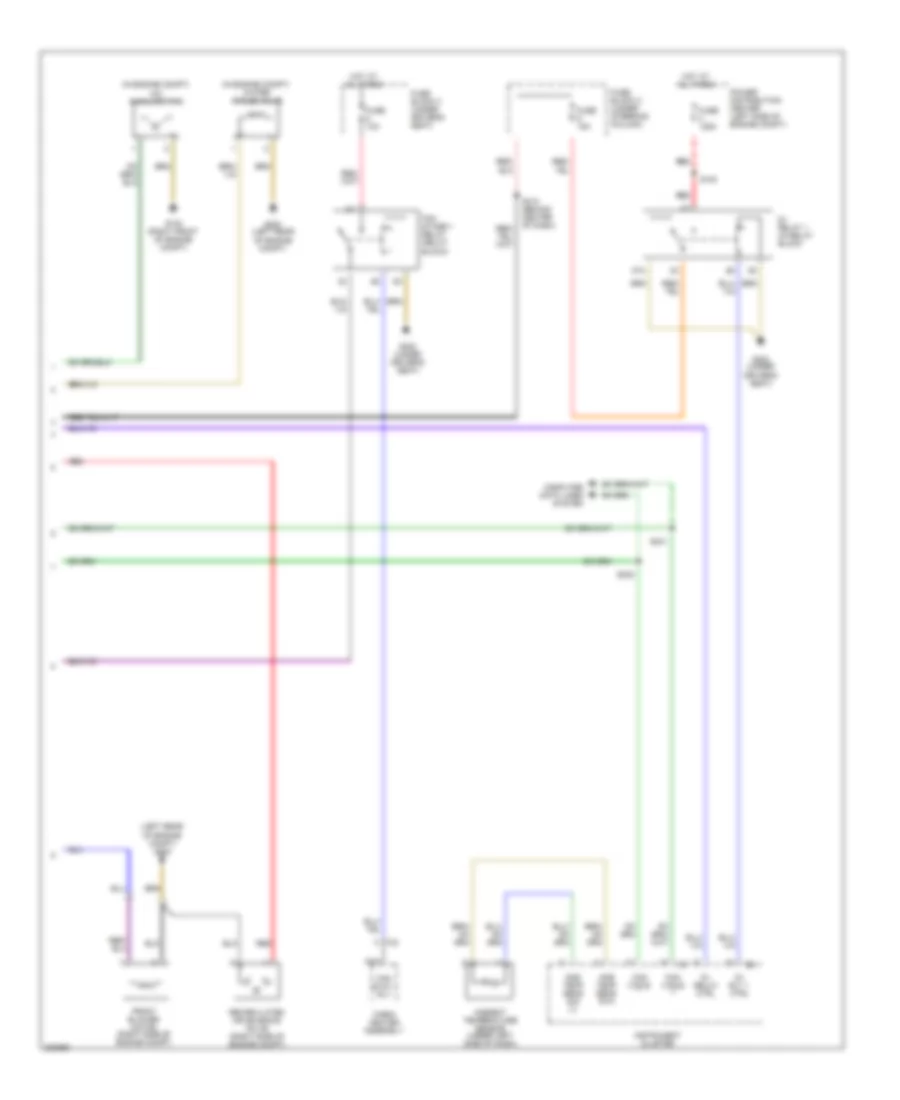

Электросхема кондиционера (2 из 2) для Dodge Sprinter 3500 2005

Электросхема кондиционера (2 из 2) для Dodge Sprinter 3500 2005 - Список элементов:

• (in engine compt) a/c auxiliary fan
• (in engine compt) water cycle valve
• (left rear of engine compt) g200
• 87a
• Amb temp sens rtn
• Amb temp sens sig (+)
• Ambient temperature sensor (under left side of dash)
• Cabin heater assembly
• Can c bus +
• Can c bus -
• Computer data lines system
• D+ relay 1 (in relay block
• D+ relay ctrl
• D+ rly 1 ctrl
• Fan stage 1 relay (relay block)
• Fan stg 1 rly
• Front blower motor (right side of engine compt)
• Fuse 10a
• Fuse 125a
• Fuse 15a
• Fuse block 2 (under steering column)
• Fuse block 3 (under driver's seat)
• G102 (right front of engine compt)
• G200 (left rear of engine compt)
• G202 (under driver's seat)
• Hot at all times
• Instrument cluster
• Nca
• Power distribution center (left side of engine compt)
• Recirculated air solenoid valve (right side of engine compt)
• Red
• S100
• S231
• S232
• S310 (behind center of dash)

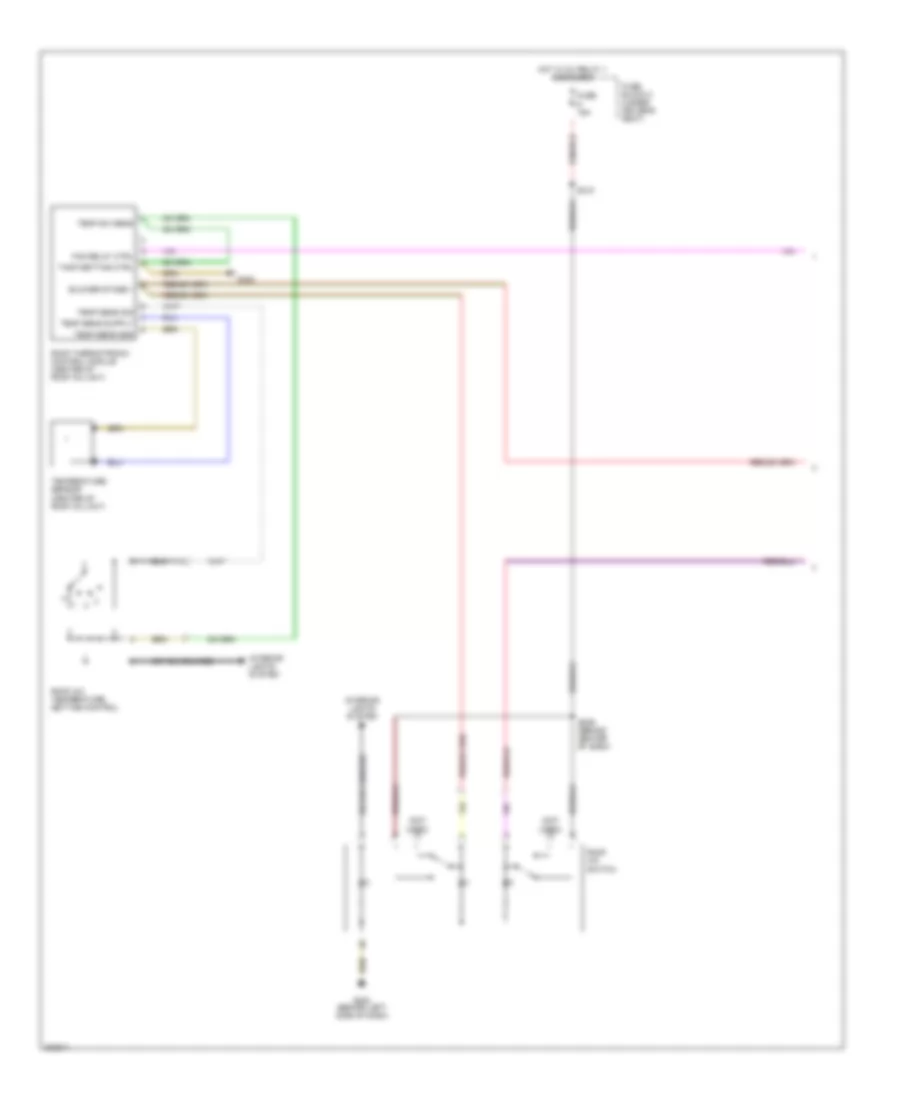

Вспомогательная Схема Вентилятора, С Thermotronic (1 из 2) для Dodge Sprinter 3500 2005

Вспомогательная Схема Вентилятора, С Thermotronic (1 из 2) для Dodge Sprinter 3500 2005 - Список элементов:

• (not used)
• Blower stage 1
• Fan relay ctrl
• Fuse 15a
• Fuse block 2 (under driver's seat)
• G203 (behind left side of dash)
• G305
• Hot w/ d+ relay 1 energized
• Interior lights system
• Roof a/c switch
• Roof a/c temperature setting control
• Roof thermotronic control module (center of roof a/c unit)
• S256 (behind center of dash)
• S310
• Tamp setting ctrl
• Temp sens gnd
• Temp sens sig
• Temp sw sens
• Temperature sensor (center of roof a/c unit)

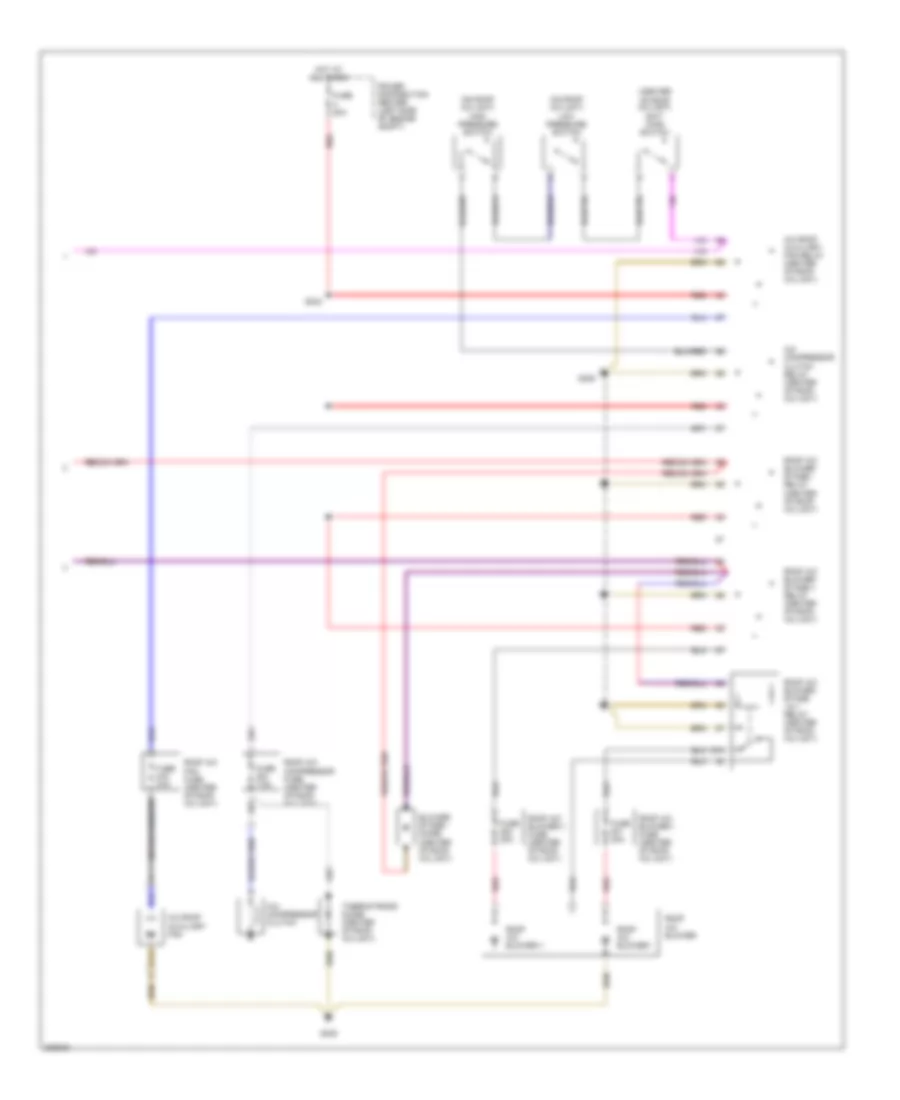

Вспомогательная Схема Вентилятора, С Thermotronic (2 из 2) для Dodge Sprinter 3500 2005

Вспомогательная Схема Вентилятора, С Thermotronic (2 из 2) для Dodge Sprinter 3500 2005 - Список элементов:

• (center of roof a/c unit) anit- icing switch
• (on roof a/c unit) high pressure switch
• (on roof a/c unit) low pressure switch
• 87a
• A/c compressor clutch
• A/c compressor clutch relay (center of roof a/c unit)
• A/c roof auxiliary fan
• A/c roof auxiliary fan relay (center of roof a/c unit)
• Blower stage i diode (center of roof a/c unit)
• Fuse 30a
• Fuse 7.5a
• Fuse 80a
• G305
• Hot at all times
• Power distribution center (left side of engine compt)
• Red
• Roof a/c blower
• Roof a/c blower i
• Roof a/c blower i fuse (center of roof a/c unit)
• Roof a/c blower ii
• Roof a/c blower ii fuse (center of roof a/c unit)
• Roof a/c blower stage i & ii relay (center of roof a/c unit)
• Roof a/c blower stage i relay (center of roof a/c unit)
• Roof a/c blower stage ii relay (center of roof a/c unit)
• Roof a/c compressor fuse (center of roof a/c unit)
• Roof a/c fan fuse (center of roof a/c unit)
• S234
• Thermotronic diode (center of roof a/c unit)

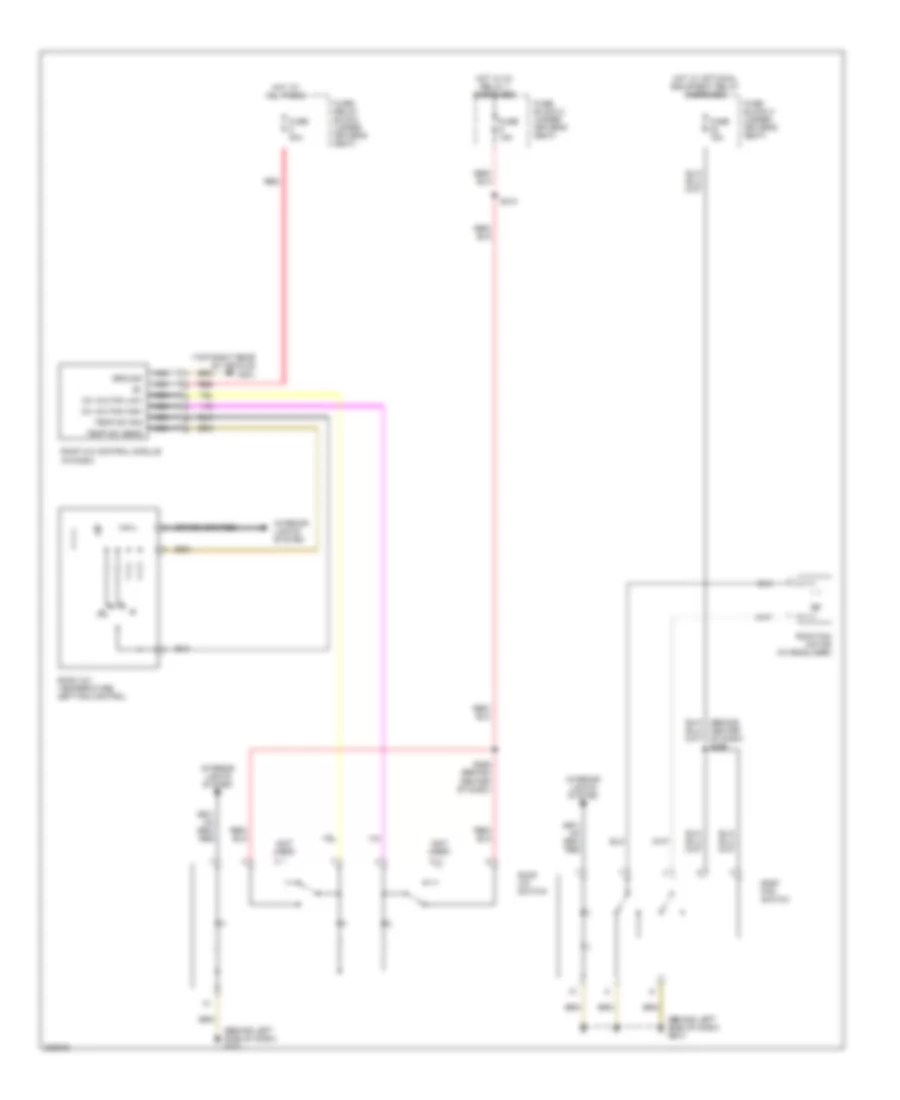

вспомогательная схема вентилятора, без Thermotronic для Dodge Sprinter 3500 2005

вспомогательная схема вентилятора, без Thermotronic для Dodge Sprinter 3500 2005 - Список элементов:

• (behind left side of dash) g203
• (not used)
• (top right rear of vehicle) g301
• 12v a/c fan high
• 12v a/c fan low
• Center of dash) s365
• Fuse 15a
• Fuse 40a
• Fuse block 2 (under driver's seat)
• Fuse block 3 (under driver's seat)
• Fuse/ relay block (under driver's seat)
• Ground
• Hot at all times
• Hot w/ d+ relay 1 energized
• Hot w/ optional equipment relay energized
• Interior lights system
• Nca
• Red
• Roof a/c control module (in dash)
• Roof a/c switch
• Roof a/c temperature setting control
• Roof fan motor (in headliner)
• Roof fan switch
• S256 (behind center of dash)
• S310
• Temp sw sens
• Temp sw sig

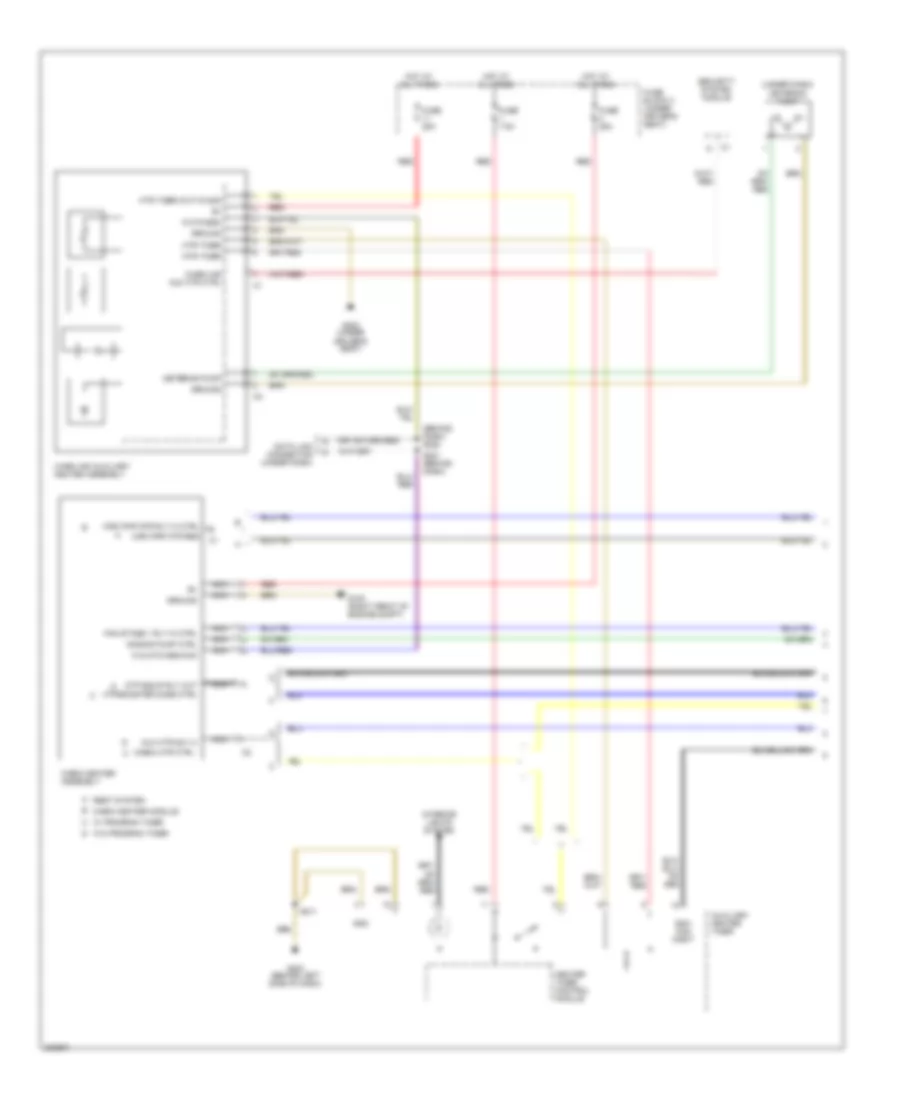

вспомогательная схема нагревателя (1 из 3) для Dodge Sprinter 3500 2005

вспомогательная схема нагревателя (1 из 3) для Dodge Sprinter 3500 2005 - Список элементов:

• (behind dash) s222
• (under dash) metering pump
• A rest system
• Aux htr sw (+)
• Auxiliary heater timer
• B cabin heater module
• C w/ program timer
• Cabin heater assembly
• Cabin htr ctrl
• Circ pmp mtr req
• Circ pmp mtr rly hi ctrl
• D w/o program timer
• Data link connector (under dash)
• Dosing pump ctrl
• Fan stage 1 rly hi ctrl
• Fuse 25a
• Fuse 7.5a
• Fuse block 3 (under driver's seat)
• G100 (right front of engine compt)
• G202 (under driver's seat)
• G203 (behind left side of dash)
• Gnd
• Ground
• Heater timer control module
• Hot at all times
• Htr booster mode ctrl
• Htr timer
• Htr timer (cut-in sig)
• Interior lights system
• K-ctm/ssm
• K-ic/atc/hbm/chm
• Metering pump
• Nca
• Otp equip rly out
• Red
• S201 com circt
• S211
• S221 (behind dash)
• Security system module
• Warm air aux htr ctrl
• Warm air auxiliary heater assembly

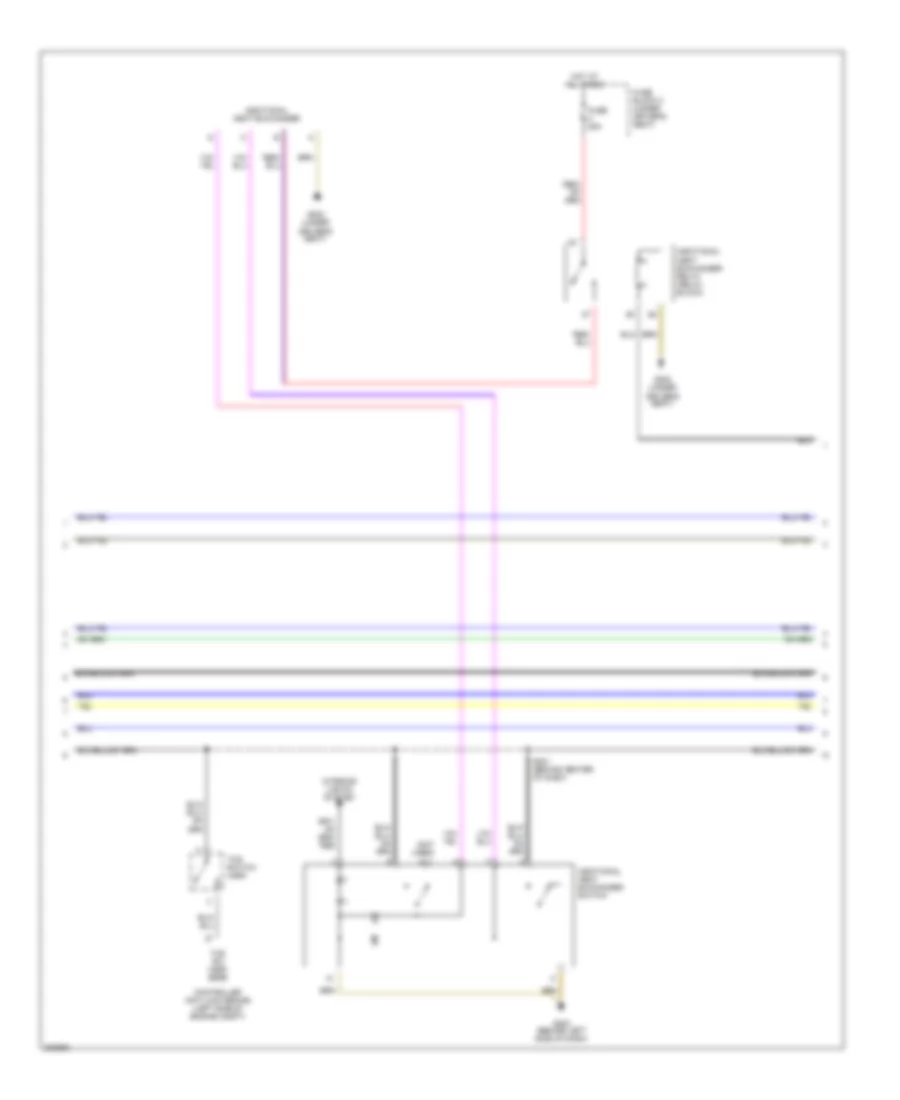

вспомогательная схема нагревателя (2 из 3) для Dodge Sprinter 3500 2005

вспомогательная схема нагревателя (2 из 3) для Dodge Sprinter 3500 2005 - Список элементов:

• (not used)
• Additional heat exchanger
• Additional heat exchanger relay (relay block)
• Additional heat exchanger switch
• Controller anti-lock brake (left side of engine compt)
• Fuse 25a
• Fuse block 3 (under driver's seat)
• G202 (under driver's seat)
• G203 (behind left side of dash)
• Hot at all times
• Interior lights system
• S201 (behind center of dash)
• Tcs sw (asr) sens
• Tcs switch (asr)

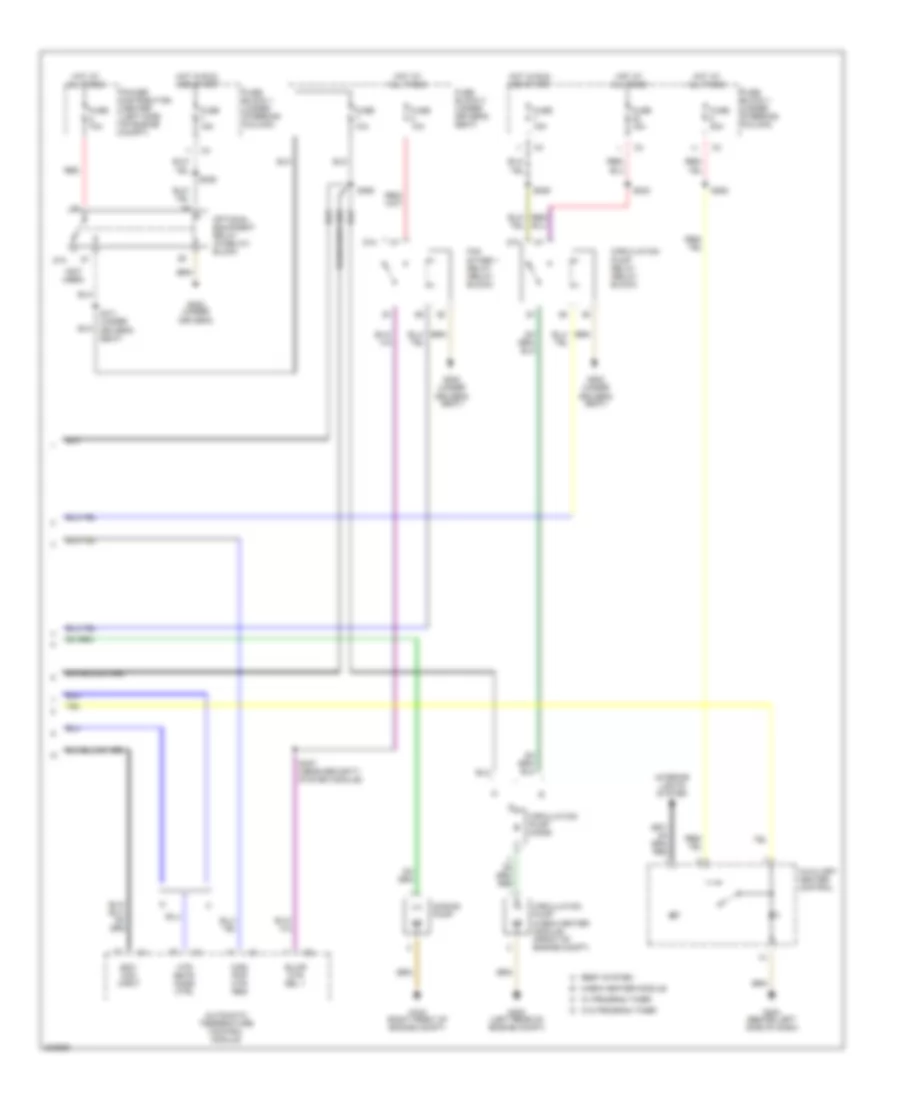

вспомогательная схема нагревателя (3 из 3) для Dodge Sprinter 3500 2005

вспомогательная схема нагревателя (3 из 3) для Dodge Sprinter 3500 2005 - Список элементов:

• (not used)
• 87a
• A rest system
• Automatic temperature control module
• Auxiliary heater control
• B cabin heater module
• Blwr mtr sel 1
• C w/ program timer
• Circ pmp mtr req
• Circulation pump (cabin heater module) (front of engine compt)
• Circulation pump diode
• Circulation pump relay (relay block)
• D w/o program timer
• Dosing pump
• Fan stage 1 relay (relay block)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 70a
• Fuse block 1 (under steering column)
• Fuse block 3 (under driver's seat)
• G100 (right front of engine compt)
• G200 (left rear of engine compt)
• G202 (under driver's
• G202 (under driver's seat)
• G203 (behind left side of dash)
• Hot at all times
• Hot in run and start
• Htr bstr mode ctrl
• Interior lights system
• Optional equipment relay (in relay) block
• Power distribution center (left side of engine compt)
• Red
• S201 com circt
• S206
• S223
• S252
• S311 (under driver's seat)
• S327 (near security system module)
• S362
