Электросхемы Стартер Генератор Dodge Sprinter 3500 2005

Стартер Генератор

Электросхема Генератора для Dodge Sprinter 3500 2005

Электросхема Генератора для Dodge Sprinter 3500 2005 - Список элементов:

• Auxiliary battery
• Auxiliary battery relay (in relay block)
• Battery
• Fuse 19 15a
• Fuse 200a
• Fuse block no.3
• G200 (left rear of eng compt)
• G202 (under driver's seat)
• Generator
• Generator field driver
• Hot when no.1 d+ relay energized
• Instrument cluster
• Nca
• Power distribution center (left side of eng compt)
• Red

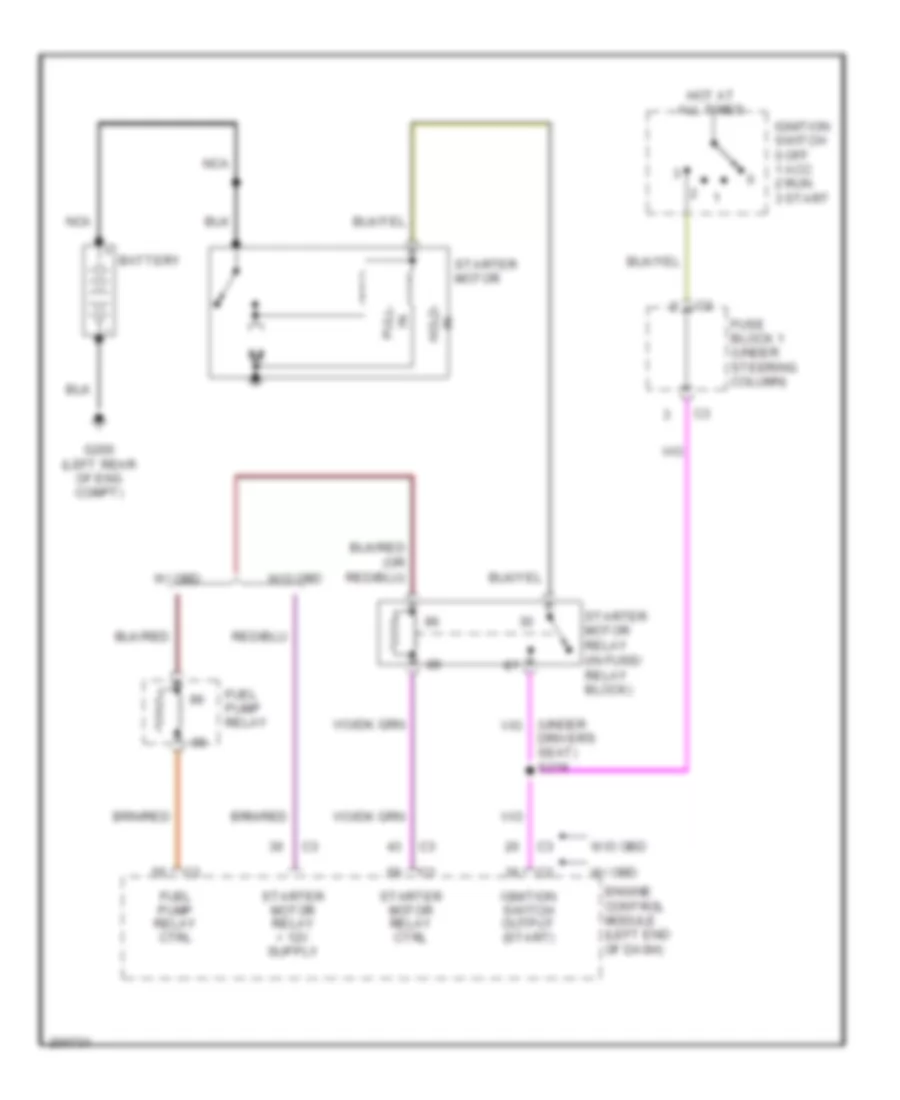

Электросхема стартера для Dodge Sprinter 3500 2005

Электросхема стартера для Dodge Sprinter 3500 2005 - Список элементов:

• (under driver's seat) s219
• Battery
• Engine control module (left end of dash)
• Fuel pump relay
• Fuel pump relay ctrl
• Fuse block 1 (under steering column)
• G200 (left rear of eng compt)
• Hold- in
• Hot at all times
• Ignition switch 0 off 1 acc 2 run 3 start
• Ignition switch output (start)
• In pull-
• Nca
• Starter motor
• Starter motor relay (in fuse/ relay block)
• Starter motor relay ctrl
• W/ obd
• W/o obd
