Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Dodge Sprinter 3500 2005

ЦЕНТРАЛЬНЫЙ ЗАМОК

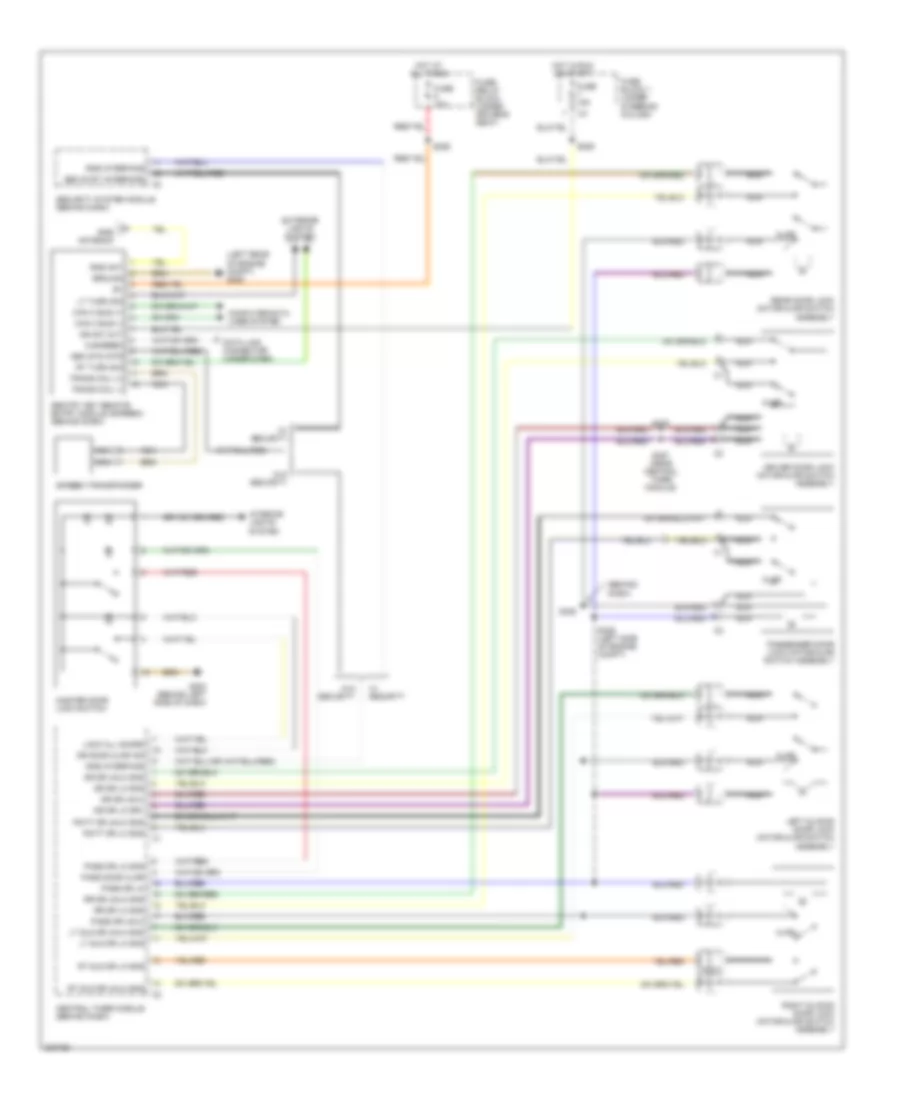

Электросхема центрального замка для Dodge Sprinter 3500 2005

Электросхема центрального замка для Dodge Sprinter 3500 2005 - Список элементов:

• (behind dash)
• (left rear of engine compt) g200
• Ajar
• Can c bus (+)
• Can c bus (-)
• Central timer module (behind dash)
• Computer data lines system
• Data link connector (under dash)
• Dr door ajar ind
• Dr dr lk drv
• Dr dr lk sns
• Dr dr unlk
• Dr dr unlk sns
• Driver door lock motor/ajar switch assembly
• Exterior lights system
• Fuse 10a
• Fuse 15a
• Fuse block 1 (under steering column)
• Fuse/ relay block (under driver's seat)
• G203 (behind left side of dash)
• Ground
• Hot at all times
• Hot in run or start
• Ign sw out
• Interior lights system
• K-skreem
• Left sliding door lock motor/ajar switch assembly
• Lock all doors
• Lt sld dr lk sns
• Lt sld dr unlk sns
• Lt turn sig
• Master door lock switch
• Nca
• Pass door ajar
• Pass dr lk
• Pass dr lk sns
• Pass dr unlk
• Passenger door lock motor/ajar switch assembly
• Ps ft dr lk sns
• Ps ft dr unlk sns
• Rear door lock motor/ajar switch assembly
• Right sliding door lock motor/ajar switch assembly
• Rke ant
• Rke antenna
• Rke interface
• Rr dr lk sns
• Rr dr unlk sns
• Rt sld dr lk sns
• Rt sld dr unlk sns
• Rt turn sig
• S206
• S226
• S328
• S329 (left side of engine compt)
• S357 (near central timer module)
• S375
• Sec sys intr
• Sec syst interface
• Security system module (behind dash)
• Sentry key remote entry module (skreem) (behind dash)
• Skreem transponder
• Trans coil (+)
• Trans coil (-)
• W/ security
• W/o security
