Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Sprinter 3500 2005

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

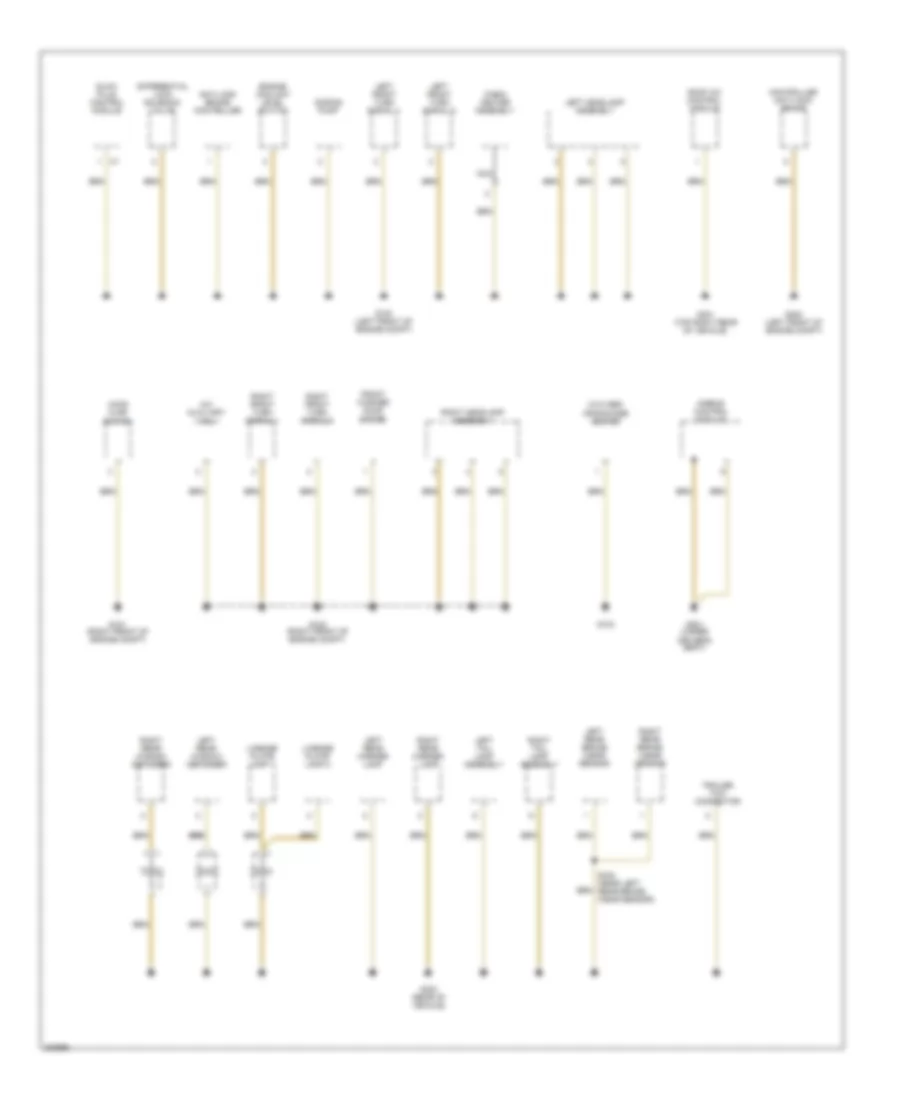

Электросхема подключение массы заземления (1 из 4) для Dodge Sprinter 3500 2005

Электросхема подключение массы заземления (1 из 4) для Dodge Sprinter 3500 2005 - Список элементов:

• (w/ obd)
• (w/o obd)
• Battery
• Brake fluid level switch
• Center high mounted stop lamp
• Circulation pump
• Clock spring
• Data link connector
• Dome lamp
• Driver cylinder lock switch
• Engine control module
• Front blower motor
• Front wiper motor
• Fuse block 1 (under steering column)
• G200 (left rear of engine compt)
• Hazard warning switch
• Horn switch
• Ignition lock switch
• Instrument cluster
• Interior lamp 1
• Interior lamp 2
• Interior lamp 3
• Interior lamp 4
• Interior lamp 5
• Interior lighting connector
• Intrusion sensor
• Kickdown switch
• Lamp)
• Left front brake wear sensor
• Left interior lamp
• Middle front interior lamp
• Middle rear interior lamp
• Multi- function switch
• Nca
• Reading lamp connector
• Rear interior lamp 2
• Recirculated air solenoid valve
• Right front brake wear sensor
• Right interior lamp
• S308 (near interior lamp 3)
• Sentry key remote entry module
• Siren
• Steering angle sensor
• Water cycle valve
• Wiper/ turn signal/ engine start control module

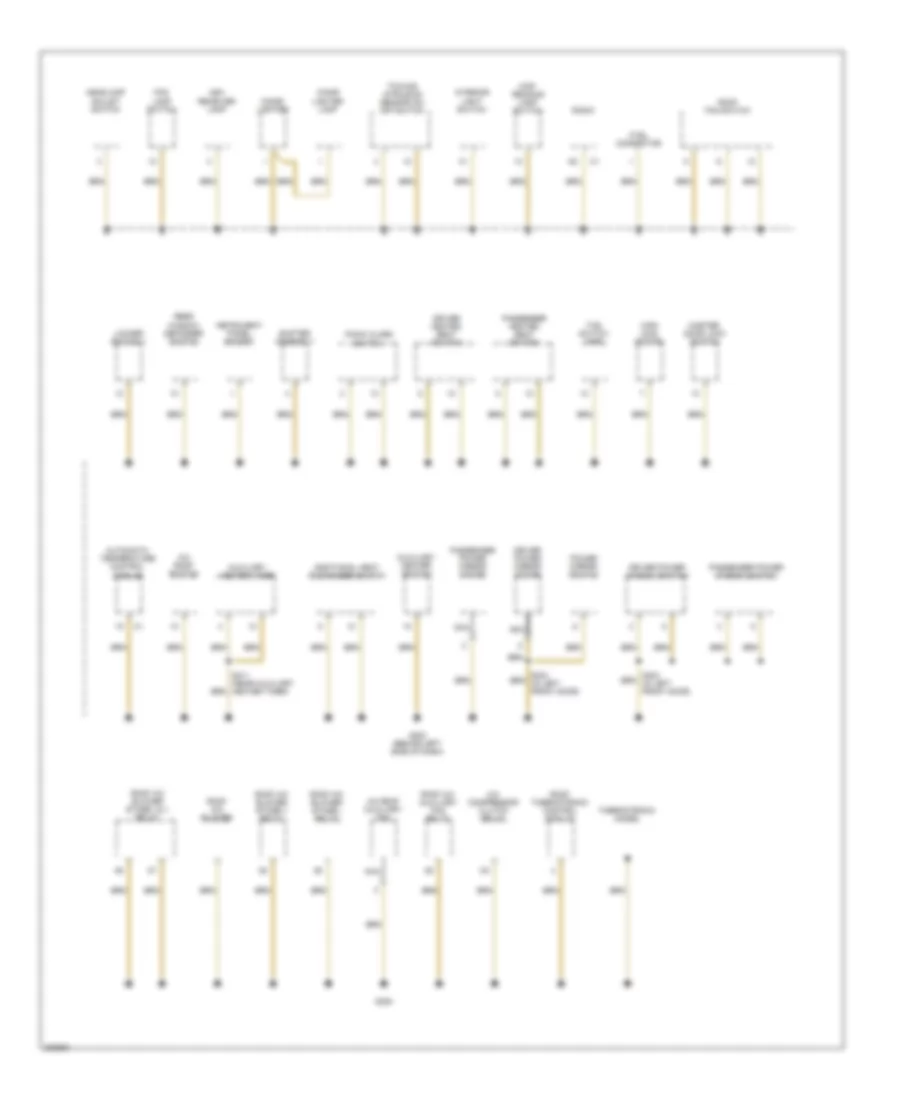

Электросхема подключение массы заземления (2 из 4) для Dodge Sprinter 3500 2005

Электросхема подключение массы заземления (2 из 4) для Dodge Sprinter 3500 2005 - Список элементов:

• (w/o obd) crankcase heater
• A/c auxiliary fan
• Airbag control module
• Anti-lock brake controller
• Cabin heater assembly
• Controller anti-lock brake
• Differential lock solenoid valve
• Dosing pump
• Engine coolant level switch
• Front washer pump motor
• G100 (left front of engine compt)
• G101 (right front of engine compt)
• G102 (right front of engine compt)
• G103
• G201 (under driver's seat)
• G300 (rear of vehicle)
• G301 (top right rear of vehicle)
• G302 (left front of engine compt)
• Glow plug control module
• Hood ajar switch
• Left front turn signal 1
• Left front turn signal 2
• Left headlamp assembly
• Left rear brake wear sensor
• Left rear marker lamp
• Left rear window defogger
• Left tail lamp assembly
• License plate lamp 1
• License plate lamp 2
• Nca
• Right front turn signal 1
• Right front turn signal 2
• Right headlamp assembly
• Right rear brake wear sensor
• Right rear marker lamp
• Right rear window defogger
• Right tail lamp assembly
• Roof a/c control module
• S332 (near left rear brake wear sensor)
• Trailer tow connector

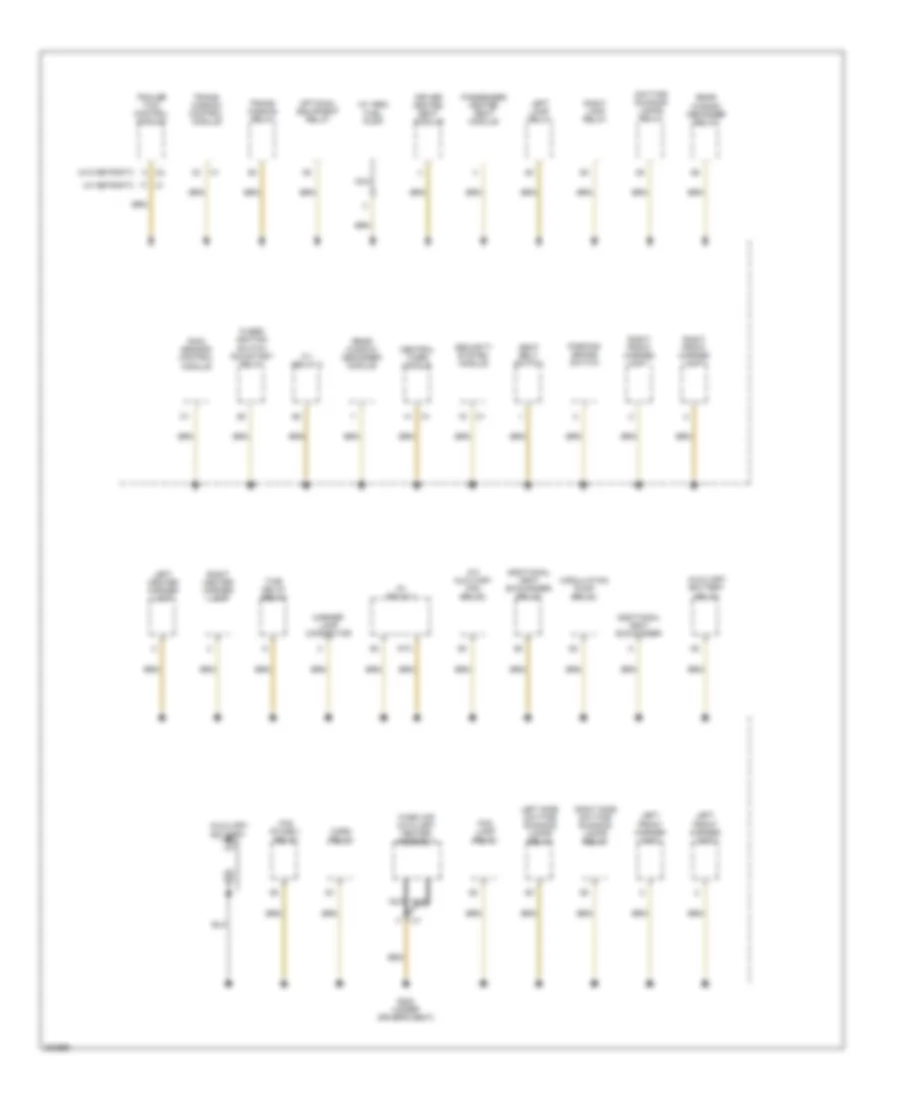

Электросхема подключение массы заземления (3 из 4) для Dodge Sprinter 3500 2005

Электросхема подключение массы заземления (3 из 4) для Dodge Sprinter 3500 2005 - Список элементов:

• (w/ obd) fuel pump
• (w/ retrofit)
• (w/o retrofit)
• 87a
• A/c auxiliary fan relay
• Additional heat exchanger
• Additional heat exchanger relay
• Auxiliary battery
• Auxiliary battery relay
• Central timer module
• Circulation pump relay
• D + relay 2
• D+ relay 1
• Daytime running lamps relay
• Driver heated seat module
• Fan stage 1 relay
• Fog lamp relay
• Fused ignition switch run/start relay
• G202 (under driver's seat)
• Horn relay
• Left center marker lamp
• Left front marker lamp 1
• Left front marker lamp 2
• Left lamp relay
• Left side daytime running lamps relay
• Marker lamp connector
• Nca
• Optional equipment relay
• Parking brake switch
• Passenger heated seat module
• Rain sensor control module
• Rear window defogger module
• Rear window defogger relay
• Right center marker lamp
• Right front marker lamp 1
• Right front marker lamp 2
• Right lamp relay
• Right side daytime running lamps relay
• Seat belt switch
• Security system module
• Time delay relay
• Trailer tow control module
• Trans- mission control module
• Trans- mission relay
• Warm air auxiliary heater assembly

Электросхема подключение массы заземления (4 из 4) для Dodge Sprinter 3500 2005

Электросхема подключение массы заземления (4 из 4) для Dodge Sprinter 3500 2005 - Список элементов:

• A/c compressor clutch relay
• A/c roof auxiliary fan
• A/c roof switch
• Additional heat exchanger switch
• Ash receiver lamp
• Automatic temperature control module
• Auxiliary heater switch
• Auxiliary heater timer
• Cigar lighter
• Cigar lighter lamp
• Ctel connector
• Driver heated seat switch
• Driver power mirror motor
• Driver power window switch
• Fog lamp switch
• G203 (behind left side of dash)
• G305
• Headlamp adjust switch
• High idle switch
• Instrument panel socket
• Interior light switch
• Locker switch 1
• Map/ reading lamp switch
• Master door lock switch
• Nca
• Panic alarm switch
• Passenger heated seat switch
• Passenger power mirror motor
• Passenger power window switch
• Power mirror switch
• Radio
• Rear window defogger switch
• Roof a/c auxiliary fan relay
• Roof a/c blower
• Roof a/c blower stage i & ii relay
• Roof a/c blower stage i relay
• Roof a/c blower stage ii relay
• Roof fan switch
• Roof thermotronic control module
• S211 (near auxiliary heater timer)
• Shifter assembly
• Tcs switch (asr)
• Thermotronic diode
• Towing/ intrusion sensor on/ off switch
