ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

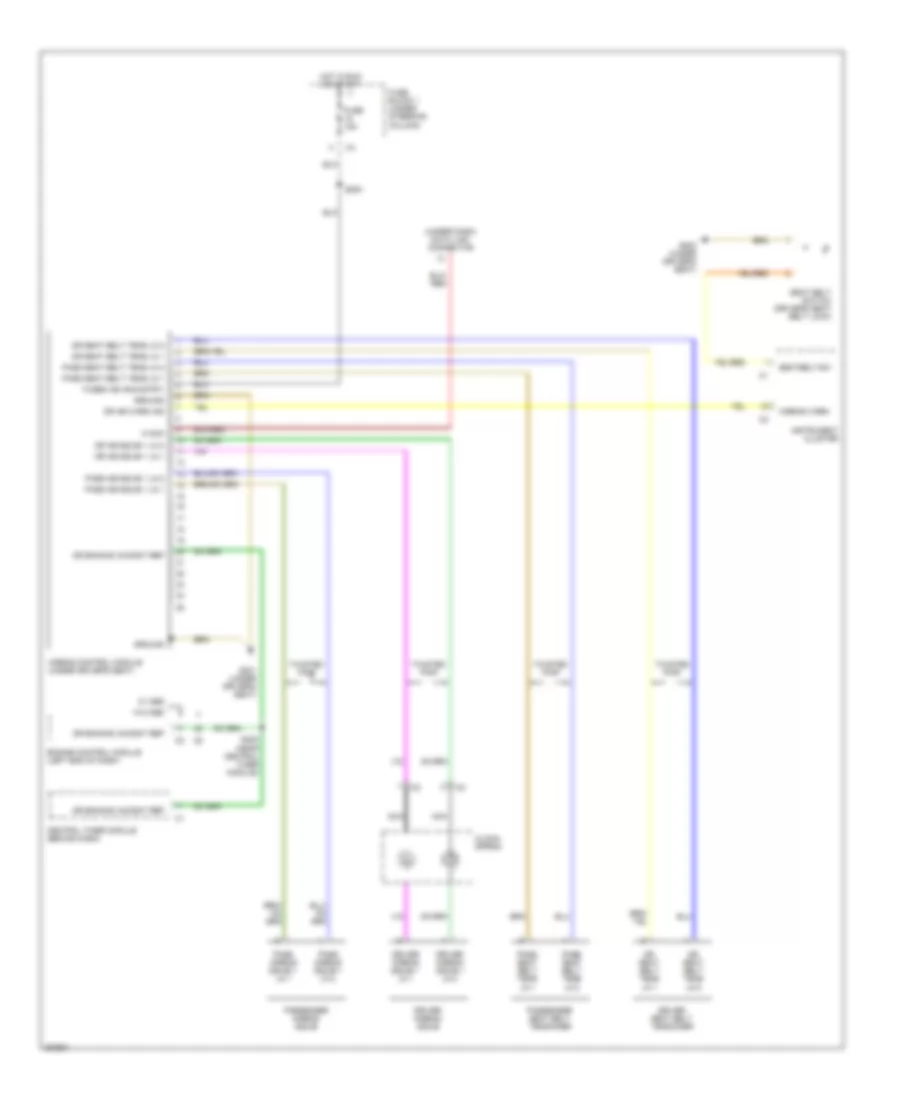

Электросхема подушек безопасности SRS AirBag для Dodge Sprinter 3500 2005

Электросхема подушек безопасности SRS AirBag для Dodge Sprinter 3500 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема подушек безопасности SRS AirBag для Dodge Sprinter 3500 2005 - Список элементов:

  • (under dash) data link connector
  • Airbag control module (under driver's seat)
  • Airbag warn
  • Central timer module (behind dash)
  • Clock- spring
  • Dr ab squib 1 ln 1
  • Dr ab squib 1 ln 2
  • Dr ab warn ind
  • Dr enhncd accdnt rep
  • Dr seat belt tens ln 1
  • Dr seat belt tens ln 2
  • Driver airbag squib
  • Driver airbag squib 1 ln 1
  • Driver airbag squib 1 ln 2
  • Driver seat belt tensioner
  • Engine control module (left end of dash)
  • Fuse 15a
  • Fuse block 1 (under steering column)
  • Fused ign (run/strt)
  • G201 (under driver's seat)
  • G202 (under driver's seat)
  • Ground
  • Hot in run or start
  • Instrument cluster
  • K-acm
  • Nca
  • Pass ab squib 1 ln 1
  • Pass ab squib 1 ln 2
  • Pass airbag squib 1 ln 1
  • Pass airbag squib 1 ln 2
  • Pass seat belt tens ln 1
  • Pass seat belt tens ln 2
  • Passenger airbag squib
  • Passenger seat belt tensioner
  • S200
  • S220 (near central timer module)
  • Seat belt switch (driver's seat belt lock)
  • Seatbelt sw
  • Twisted pair
  • W/ obd
  • W/o obd
