Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Dodge Sprinter 3500 2005

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

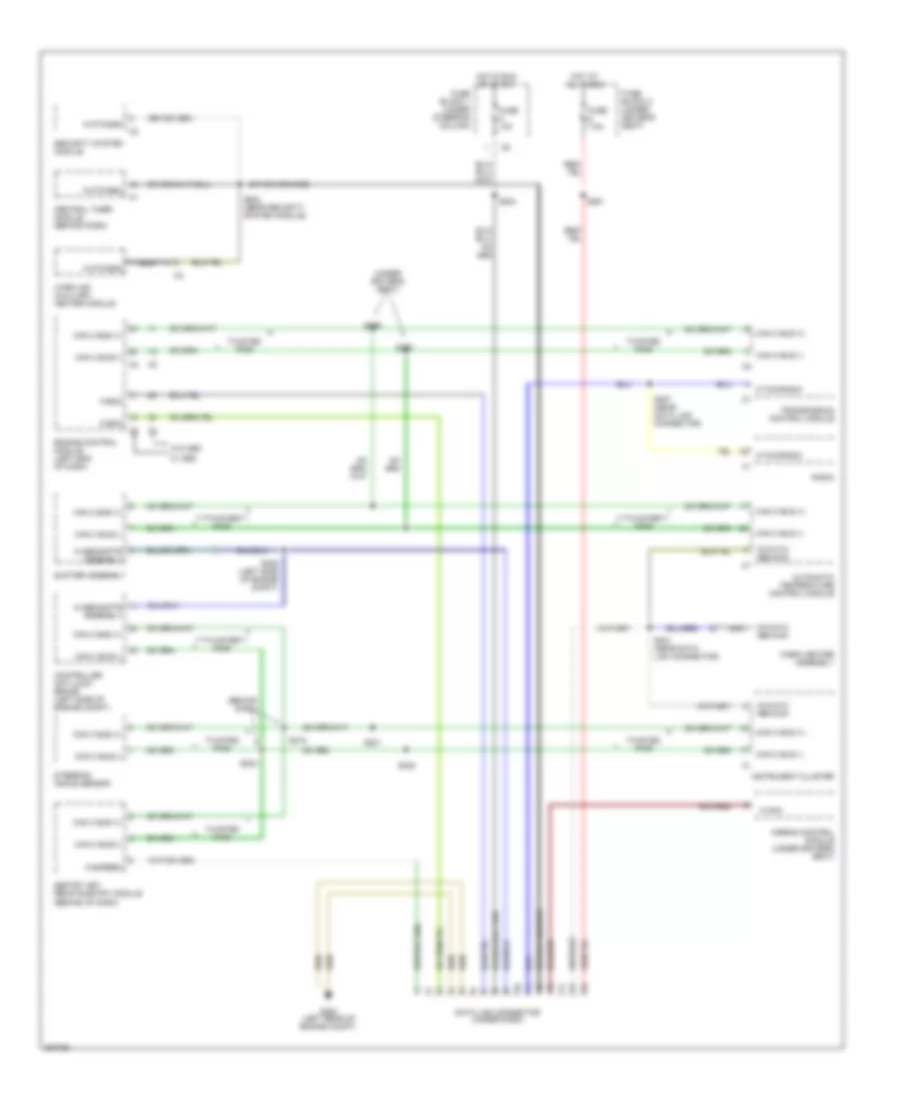

Электросхема линии передачи данных CAN для Dodge Sprinter 3500 2005

Электросхема линии передачи данных CAN для Dodge Sprinter 3500 2005 - Список элементов:

• (behind dash)
• (under driver's seat)
• Airbag control module (under driver's seat)
• Automatic temperature control module
• Cabin heater assembly
• Can c bus (+)
• Can c bus (-)
• Central timer module (behind dash)
• Controller anti-lock brake (left side of engine compt)
• Data link connector (under dash)
• Engine control module (left end of dash)
• Fuse 10a
• Fuse 7.5a
• Fuse block 1 (under steering column)
• Fuse block 2 (under driver's seat)
• G200 (left rear of engine compt)
• Hot at all times
• Hot in run or start
• Instrument cluster
• K-abs/shftr assembly
• K-acm
• K-ctm/ssm
• K-ecm
• K-ic/atc/ hbm/chm
• K-skreem
• K-tcm/radio
• Nca
• Radio
• S204
• S215
• S221 (near data link connector)
• S222 (near security system module)
• S224
• S229 (left side of engine compt)
• S231
• S232
• S257 (near data link connector)
• S259
• S260
• S261
• Security system module
• Sentry key remote entry module (behind of dash)
• Shifter assembly
• Steering angle sensor
• Transmission control module
• Twisted pair
• W/ obd
• W/o obd
• Warm air auxiliary heater module
