Электросхемы Система Фар Dodge Sprinter 3500 2005

Система Фар

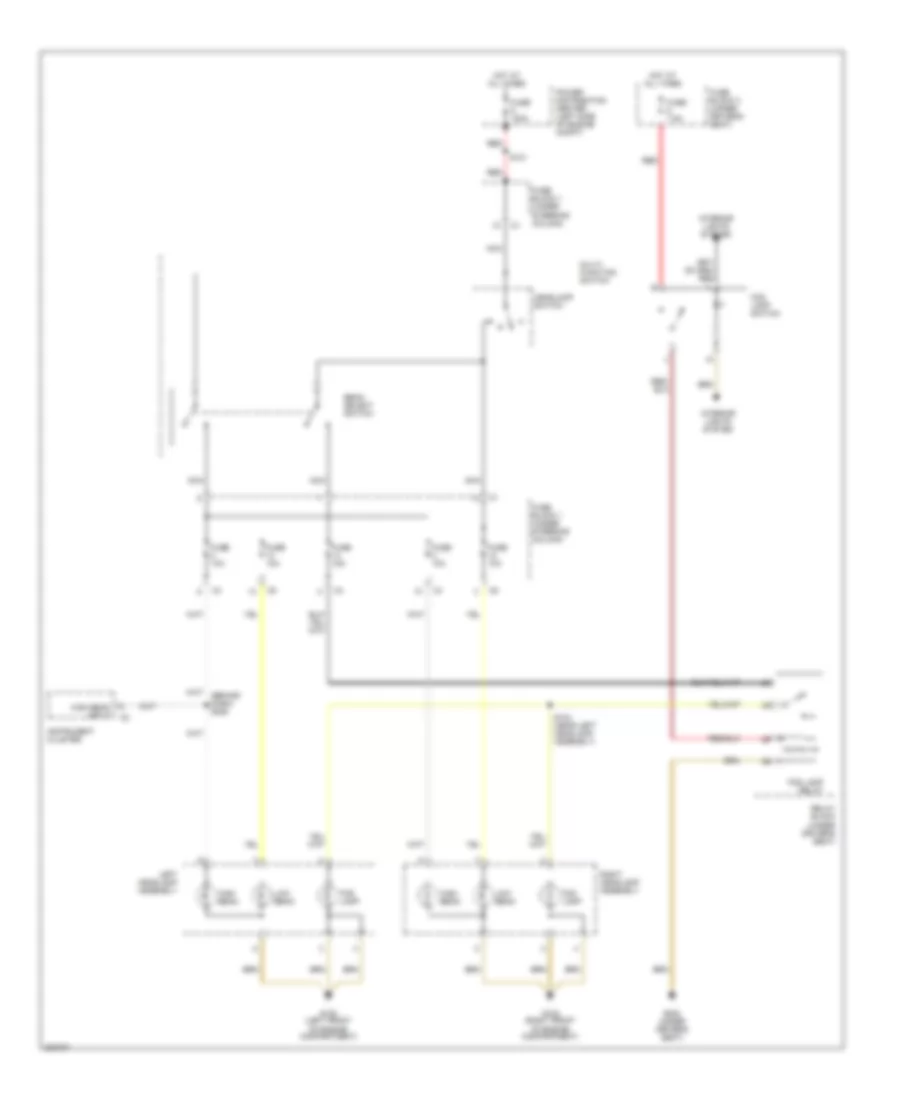

Электросхема фар, С DRL для Dodge Sprinter 3500 2005

Электросхема фар, С DRL для Dodge Sprinter 3500 2005 - Список элементов:

• (behind dash) s225
• 87a
• Beam select switch
• Fog lamp
• Fog lamp relay
• Fog lamp switch
• Fuse 100a
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• Fuse block 1 (under steering column)
• Fuse block 2 (under driver's seat)
• Fuse block 3 (under driver's seat)
• G100 (left front of engine compartment)
• G102 (right front of engine compartment)
• G202 (under driver's seat)
• Headlamp switch
• High beam
• High beam input
• Hot at all times
• Hot with d+ relay 1 energized
• Instrument cluster
• Interior lights system
• Left headlamp assembly
• Left side daytime running lamp relay
• Low beam
• Multi- function switch
• Nca
• Power distribution center (left side of engine compt)
• Red
• Relay block (under driver's seat)
• Right headlamp assembly
• Right side daytime running lamp relay
• S101
• S104 (near left headlamp assembly)
• S205 (under driver's seat)

Электросхема фар, без DRL для Dodge Sprinter 3500 2005

Электросхема фар, без DRL для Dodge Sprinter 3500 2005 - Список элементов:

• (behind dash) s225
• Beam select switch
• Fog lamp
• Fog lamp relay
• Fog lamp switch
• Fuse 100a
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• Fuse block 1 (under steering column)
• Fuse block 3 (under driver's seat)
• G100 (left front of engine compartment)
• G102 (right front of engine compartment)
• G202 (under driver's seat)
• Headlamp switch
• High beam
• High beam input
• Hot at all times
• Instrument cluster
• Interior lights system
• Left headlamp assembly
• Low beam
• Multi- function switch
• Nca
• Power distribution center (left side of engine compt)
• Red
• Relay block (under driver's seat)
• Right headlamp assembly
• S101
• S104 (near left headlamp assembly)
