Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Dodge Grand Caravan SXT 2012

ЦЕНТРАЛЬНЫЙ ЗАМОК

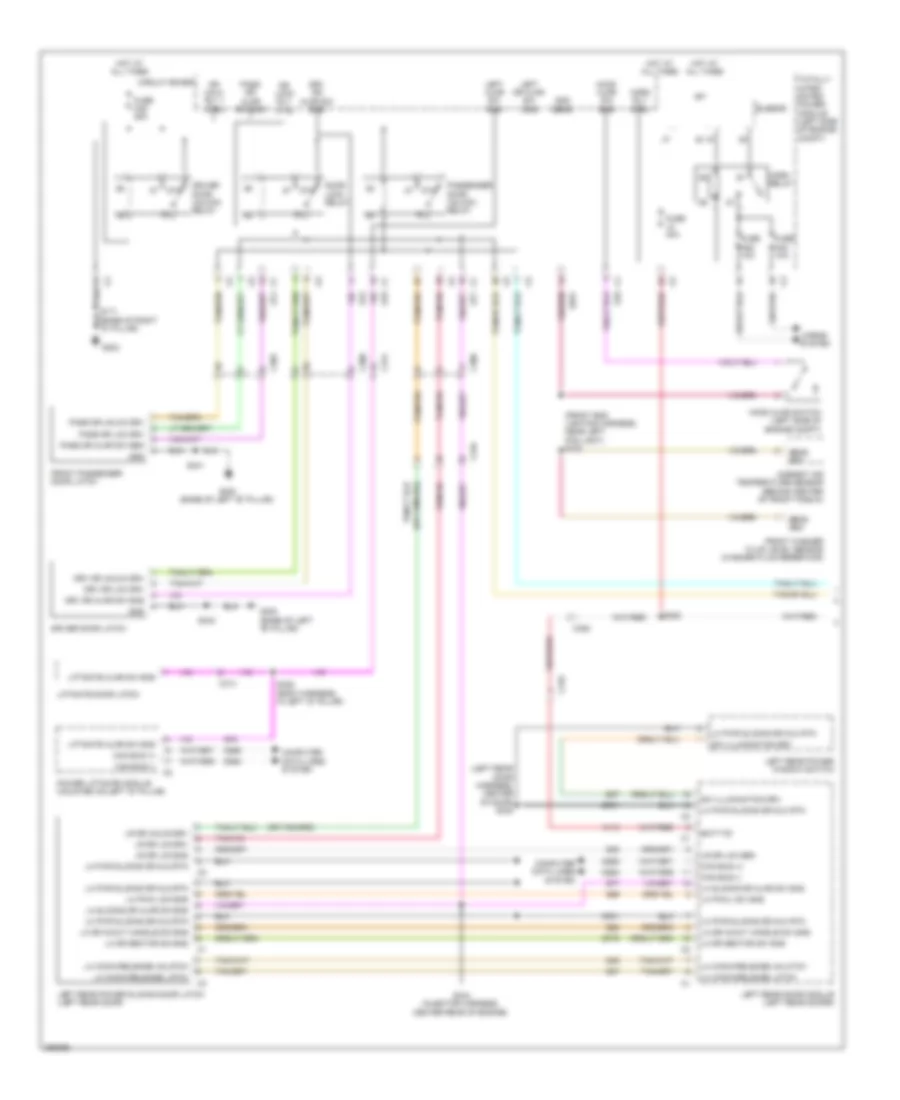

Электросхема центрального замка (1 из 2) для Dodge Grand Caravan SXT 2012

Электросхема центрального замка (1 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar)
• (front end lighting harness, near left fog light) s102
• (left rear door harness, center of door) s348
• 87a
• A113
• Ambient air temperature sensor (behind center of front fascia)
• Batt fd
• Busbar
• C300
• C302
• C308
• C314
• C316
• Can bus (+)
• Can bus (-)
• Circuit board
• Computer data lines system
• D264
• D265
• Door lock relay
• Dr lock rly ctrl
• Dr unlk rly 1 ctrl
• Driver door latch
• Driver door unlock relay
• Drv dr ajar sw sns
• Drv dr lck drv
• Drv dr unlck drv
• E37
• Front passenger door latch
• Front washer fluid level sensor (washer fluid reservoir)
• Fuse j3 40a
• Fuse m22 10a
• Fuse m23 10a
• Fuse m38 25a
• G300
• G300 (base of left "b" pillar)
• G302
• G70
• G74
• G75
• G77
• G78
• G931
• Gnd
• Gnd sens
• Hood ajar sw sns
• Hood ajar switch (left side of engine compt)
• Horn relay
• Horn rly ctrl
• Horns system
• Hot at all times
• Left ajar sw sns
• Left dr ajar sw sns
• Left rear door module (left rear doors)
• Left rear power sliding door latch (left rear door)
• Left rear power window switch
• Lh cinch/release latch
• Lh cinch/release unlatch
• Lh dr in/out handle sw sns
• Lh dr sector sw sns
• Lh pawl sw sns
• Lh pwr sliding dr mux rtn
• Lh sliding dr ajar sw sns
• Liftgate ajar sw sns
• Liftgate door latch
• Lr dr lck drv
• Lr dr lck sen
• Lr dr lck sns
• Lr dr unlck drv
• Pass dr ajar sw sen
• Pass dr ajar sw sns
• Pass dr lck drv
• Pass dr unlck drv
• Passenger door unlock relay
• Power liftgate module (mounted on left "d" pillar)
• Q35
• Q47
• Q49
• Q55
• Q59
• Q779
• Q781
• S171 (base of right "d" pillar)
• S320
• S328 (body harness, in left "d" pillar)
• S341
• S342
• S344 (injector harness, center rear of engine)
• Sens gnd
• Sw illumination drv
• Totally integ- rated power module (left side of engine compt)

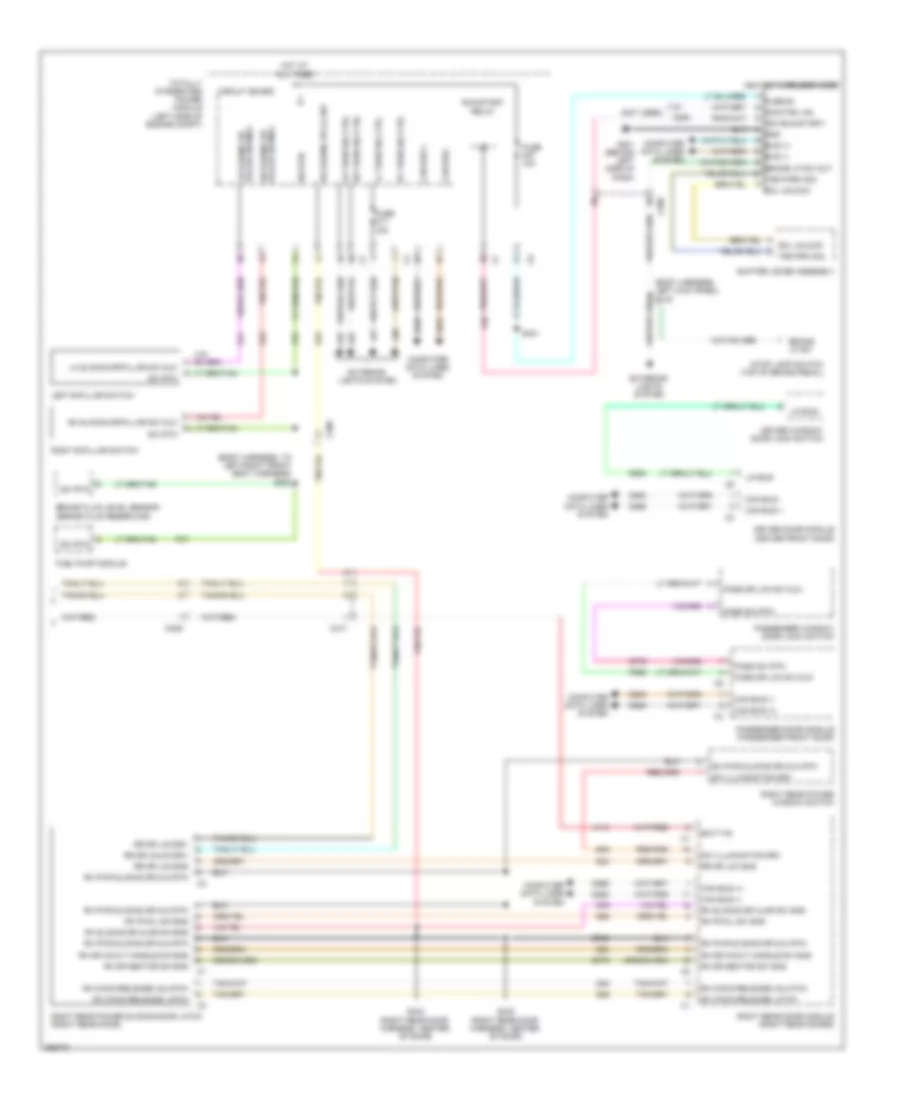

Электросхема центрального замка (2 из 2) для Dodge Grand Caravan SXT 2012

Электросхема центрального замка (2 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (body harness, left kick panel) s319
• (body harness, to left/right front seat harness) s202
• (not used)
• A113
• B +
• Batt fd
• Brake fluid level sensor (brake fluid reservoir)
• Brake lp sw
• C200
• C309
• C317
• Can bus (+)
• Can bus (-)
• Can bus +
• Can bus -
• Circuit board
• Computer data lines system
• D264
• D265
• D903
• Driver door module (driver front door)
• Driver window/ door lock switch
• E36
• Exterior lights system
• F20
• Fuel pump module
• Fuse b+ monitor lan ign (run-start) gnd bus (+) bus (-) brake lp sw out trs park sig sol unlock
• Fuse m17 15a
• Fuse m27 10a
• G201 (behind left side of dash)
• G41
• G42
• G76
• G776
• Hot at all times
• Ignition wireless node
• L60
• L61
• L62
• L63
• Left b-pillar switch
• Lf turn sig ctrl
• Lh sliding dr pillar sw mux
• Lin bus
• Lr turn sig ctrl
• P37
• P696
• Pass dr lck sw mux
• Pass sw rtn
• Passenger door module (passenger front door)
• Passenger window/ door lock switch
• Q34
• Q46
• Q48
• Q54
• Q58
• Q778
• Q780
• Rf turn sig ctrl
• Rh cinch/release latch
• Rh cinch/release unlatch
• Rh dr in/out handle sw sns
• Rh dr sector sw sns
• Rh pawl sw sns
• Rh pwr sliding dr mux rtn
• Rh sliding dr ajar sw sns
• Rh sliding dr pillar sw mux
• Right b-pillar switch
• Right rear door module (right rear doors)
• Right rear power sliding door latch (right rear door)
• Right rear power window switch
• Rr dr lck drv
• Rr dr lck sns
• Rr dr unlck drv
• Rr sliding dr aj sw
• Rr turn sig ctrl
• Run/start relay
• S301
• S343 (right rear door harness, center of door)
• S345 (right rear door harness, center of door)
• Shifter lever assembly
• Sol unlock
• Stop lamp switch (top of brake pedal)
• Sw illumination drv
• Sw rtn
• Totally integrated power module (left side of engine compt)
• Trs prk sig
