Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Dodge Grand Caravan SXT 2012

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

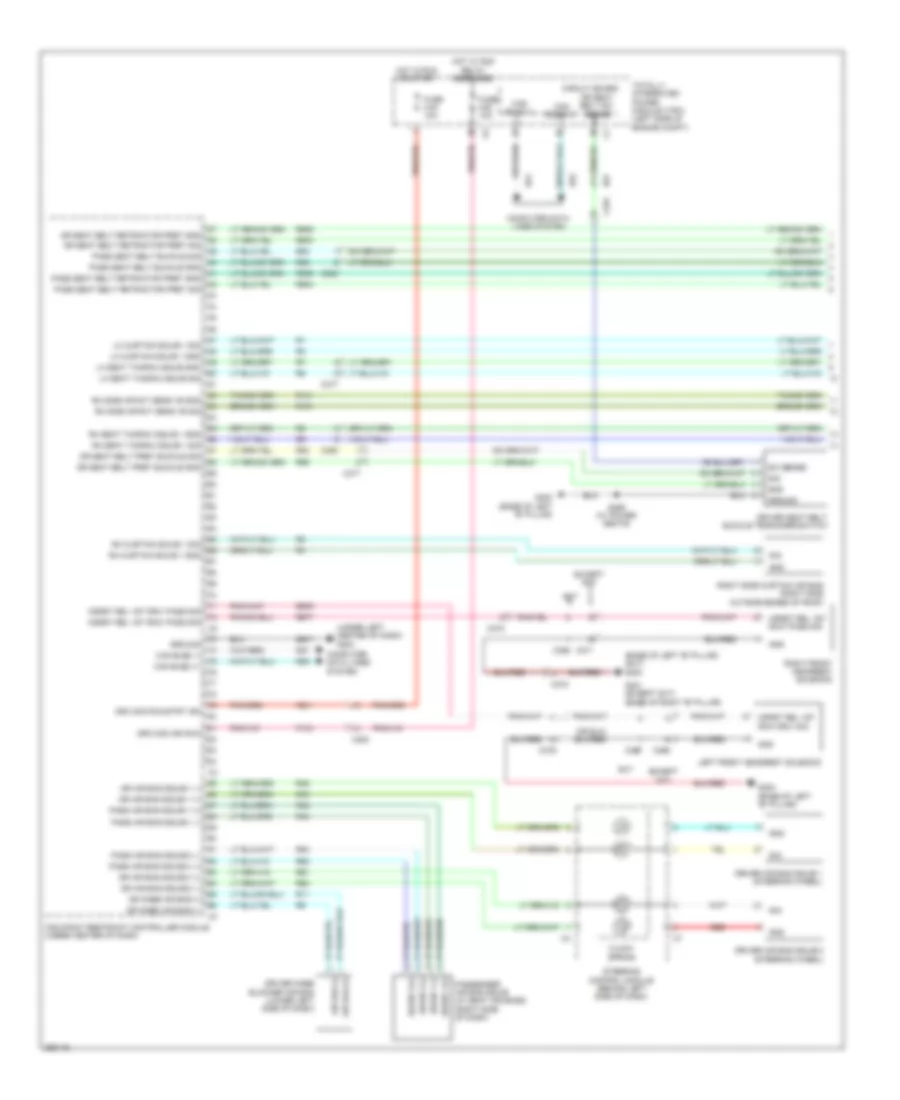

Электросхема подушек безопасности SRS AirBag (1 из 3) для Dodge Grand Caravan SXT 2012

Электросхема подушек безопасности SRS AirBag (1 из 3) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar) (sxt) g300
• (under left center of dash) g203
• Air bag (+)
• Air bag (-)
• C200
• C371
• C372
• C376
• C377
• C378
• C380
• C397
• C398
• Can bus2 (+)
• Can bus2 (-)
• Circuit board
• Clock spring
• Computer data lines system
• D51
• D52
• Dr air bag squib 1 (+)
• Dr air bag squib 1 (-)
• Dr air bag squib 2 (+)
• Dr air bag squib 2 (-)
• Dr knee air bag (+)
• Dr knee air bag (-)
• Dr seat belt pret buckle gnd
• Dr seat belt pret buckle sig
• Dr seat belt retractor pret gnd
• Dr seat belt retractor pret sig
• Dr seat belt sw sense
• Driver air bag squib 1 (steering wheel)
• Driver air bag squib 2 (steering wheel)
• Driver knee blocker air bag (lower left side of dash)
• Driver seat belt buckle tensioner/switch
• Except sxt
• F100
• F201
• Fuse m16 10a
• Fuse m32 10a
• G300 (base of left "b" pillar)
• G301 (except sxt) (base of right "b" pillar)
• Gnd
• Ground
• Hdrst rel 1st driv pass sig
• Hdrst rel 1st row driv sig
• Hdrst rel 1st row pass sig
• Hot in run or start
• Hot w/ run relay energized
• Left front headrest solenoid
• Lh curtain souib 1 gnd
• Lh curtain souib 1 sig
• Lh seat thorax squib gnd
• Lh seat thorax squib sig
• Occupant restraint controller module (under center of dash)
• Orc mod ign run
• Orc mod run/strt ign
• Pass air bag squib 1 (+)
• Pass air bag squib 1 (-)
• Pass air bag squib 2 (+)
• Pass air bag squib 2 (-)
• Pass seat belt buckle gnd
• Pass seat belt buckle sig
• Pass seat belt retractor pret gnd
• Pass seat belt retractor pret sig
• Passenger air bag squib (w/ seat air bags) (right side of dash)
• R11
• R141
• R161
• R42
• R43
• R44
• R45
• R503
• R504
• R505
• R506
• R53
• R54
• R55
• R56
• R57
• R61
• R62
• R63
• R64
• R676
• R677
• Red
• Rh curtain souib 1 gnd
• Rh curtain souib 1 sig
• Rh seat thorax squib 1 gnd
• Rh seat thorax squib 1 sig
• Rh side impact sens 1b gnd
• Rh side impact sens 1b sig
• Right front headrest solenoid
• Right side curtain air bag (right side outside edges of roof)
• S465 (w/ power seats)
• Sig
• Squib 1 (+)
• Squib 1 (-)
• Squib 2 (+)
• Squib 2 (-)
• Steering control module (behind left side of dash)
• Sw sense
• Sxt
• Totally integrated power module (tipm) (left side of engine compt)
• Z907

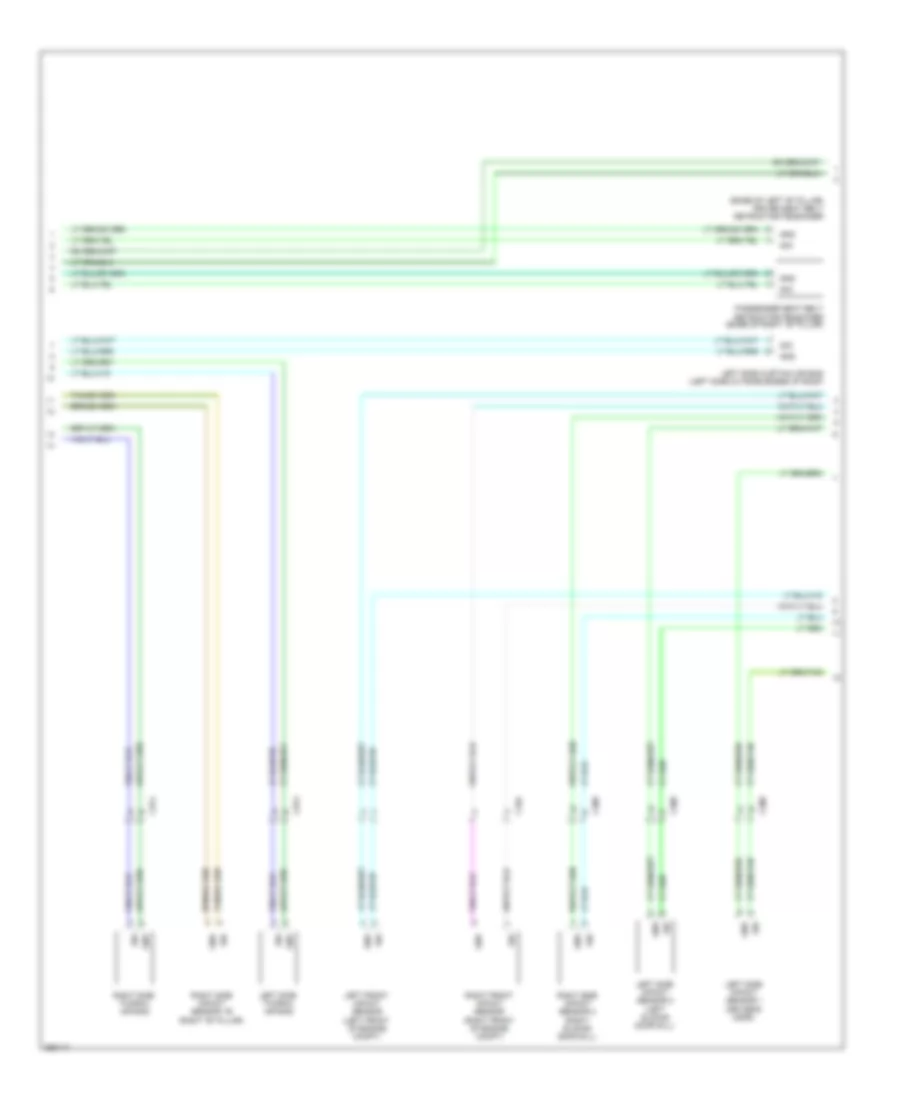

Электросхема подушек безопасности SRS AirBag (2 из 3) для Dodge Grand Caravan SXT 2012

Электросхема подушек безопасности SRS AirBag (2 из 3) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar) driver seat belt retractor/tensioner
• C104
• C300
• C308
• C309
• C373
• C374
• Gnd
• Left front impact sensor (left front of engine compt)
• Left side curtain air bag (left side outside edges of roof)
• Left side impact sensor 1 (driver's door)
• Left side impact sensor 2 (left sliding door sill)
• Left side thorax air bag
• Passenger seat belt retractor/tensioner (base of right "b" pillar)
• Right front impact sensor (right front of engine compt)
• Right side impact sensor 1b (right "b" pillar)
• Right side impact sensor 2 (right sliding door sill)
• Right side thorax air bag
• Sig

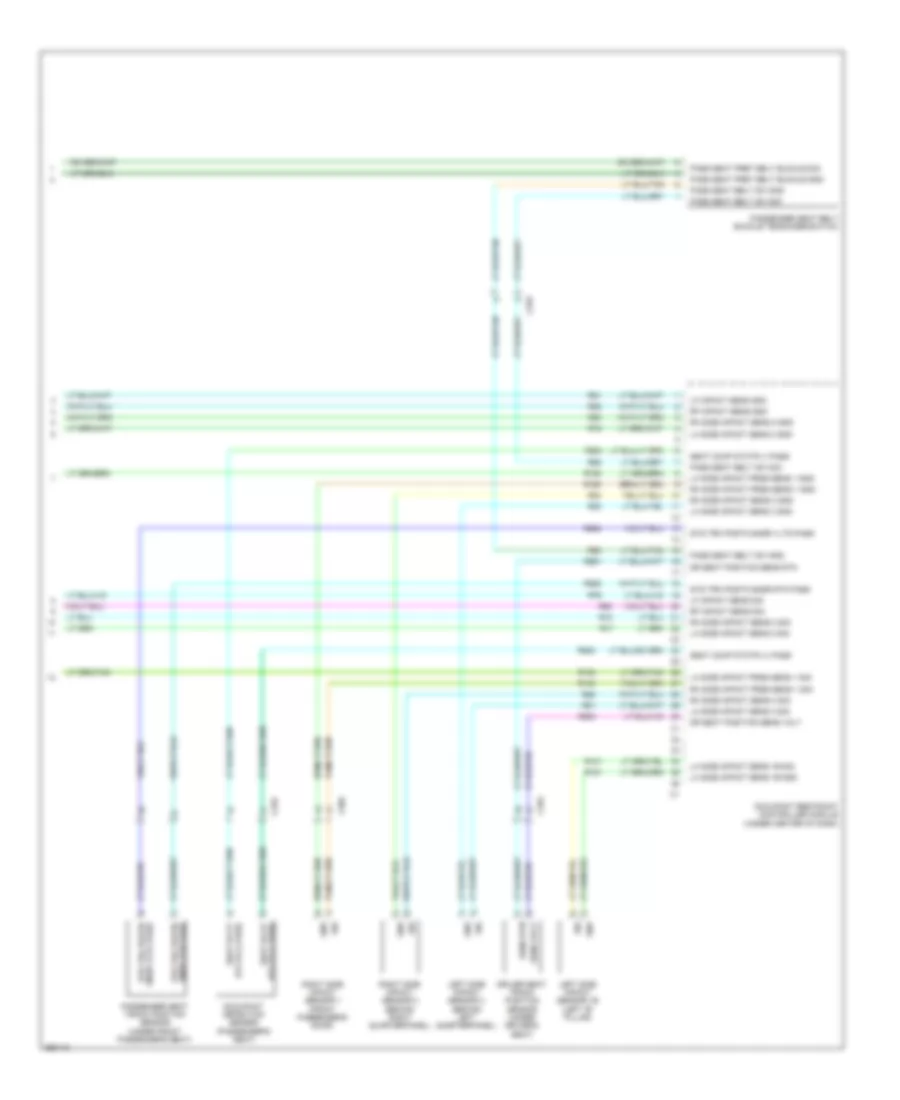

Электросхема подушек безопасности SRS AirBag (3 из 3) для Dodge Grand Caravan SXT 2012

Электросхема подушек безопасности SRS AirBag (3 из 3) для Dodge Grand Caravan SXT 2012 - Список элементов:

• C302
• C376
• C378
• Dr seat position sens rtn
• Dr seat position sens volt
• Driver seat track position sensor (under driver's seat)
• Dtctr (+) pass seat occp
• Dtctr (-) pass seat occp
• Gnd
• Left side impact sensor 1b (left "b" pillar)
• Left side impact sensor 3 (behind left quarterpanel)
• Lf impact sens gnd
• Lf impact sens sig
• Lh side impact prss sens 1 gnd
• Lh side impact prss sens 1 sig
• Lh side impact sens 1b gnd
• Lh side impact sens 1b sig
• Lh side impact sens 2 gnd
• Lh side impact sens 2 sig
• Lh side impact sens 3 gnd
• Lh side impact sens 3 sig
• Occupant detection sensor (passenger's seat)
• Occupant restraint controller module (under center of dash)
• Pass seat belt sw gnd
• Pass seat belt sw sig
• Pass seat pret belt buckle gnd
• Pass seat pret belt buckle sig
• Passenger seat belt buckle tensioner/switch
• Passenger seat track position sensor (under front passenger's seat)
• R130
• R131
• R140
• R150
• R151
• R160
• R17
• R18
• R19
• R20
• R21
• R22
• R23
• R24
• R261
• R262
• R263
• R264
• R283
• R284
• R58
• R60
• R79
• R80
• R81
• R82
• Rf impact sens gnd
• Rf impact sens sig
• Rh side impact prss sens 1 gnd
• Rh side impact prss sens 1 sig
• Rh side impact sens 2 gnd
• Rh side impact sens 2 sig
• Rh side impact sens 3 gnd
• Rh side impact sens 3 sig
• Right side impact sensor 1 (front passenger's door)
• Right side impact sensor 3 (behind right quarterpanel)
• Seat occp dtctr (+) pass
• Seat occp dtctr (-) pass
• Sens rtn
• Sens volt
• Sig
• Snsr rtn pass sts trk postn
• Snsr vltg pass sts trk postn
• Sts trk postn snsr rtn pass
• Sts trk postn snsr vltg pass
