ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

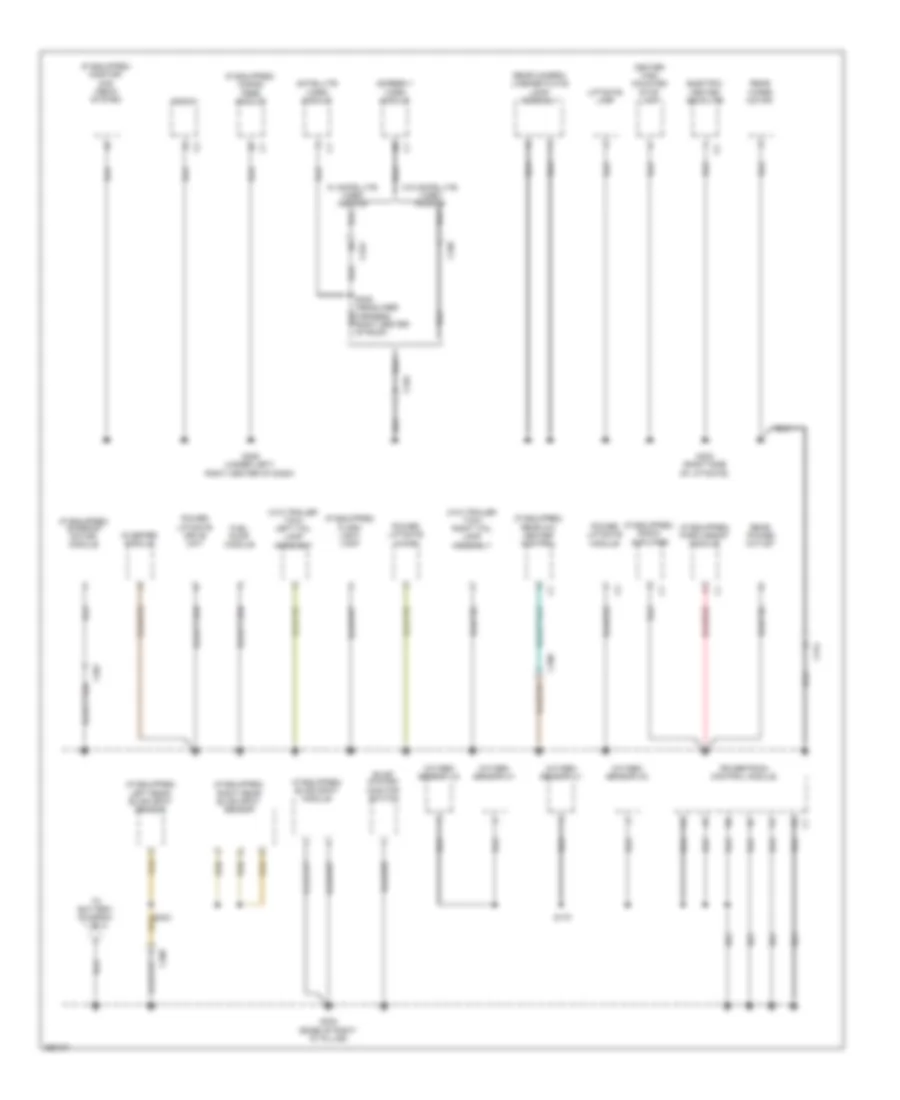

Электросхема подключение массы заземления (1 из 4) для Dodge Grand Caravan SXT 2012

Электросхема подключение массы заземления (1 из 4) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (chrysler) fog lamp relay
• (engine harness, left rear of engine)
• (left side of engine compt) totally integrated power module
• 87a
• A/c compressor clutch
• Anti-lock brakes module
• Battery
• C335
• Camshaft 1/1 position solenoid
• Camshaft 1/2 position solenoid
• Chrysler
• Circuit board
• Dodge
• Door lock relay
• Driver door unlock relay
• Exhaust variable valve timing solenoid
• From ground g302 (diagram 3 of 4)
• Front washer pump relay
• G101 (left side of engine compt)
• G103 (left rear of engine compt)
• G203 (under left center of dash)
• G804 (left side of transmission)
• Harness, near right headlight assembly)
• Headlamp washer relay
• Horn 1
• Horn 2
• Intake variable valve timing solenoid
• Left front fog lamp
• Left front lamp assembly
• Lighting harness, near left headlight assembly)
• Occupant restraint controller module
• Oil pump solenoid
• Passenger door unlock relay
• Radiator cooling fan module
• Rear wiper relay
• Right front fog lamp
• Right front lamp assembly
• S171
• Vacuum pump

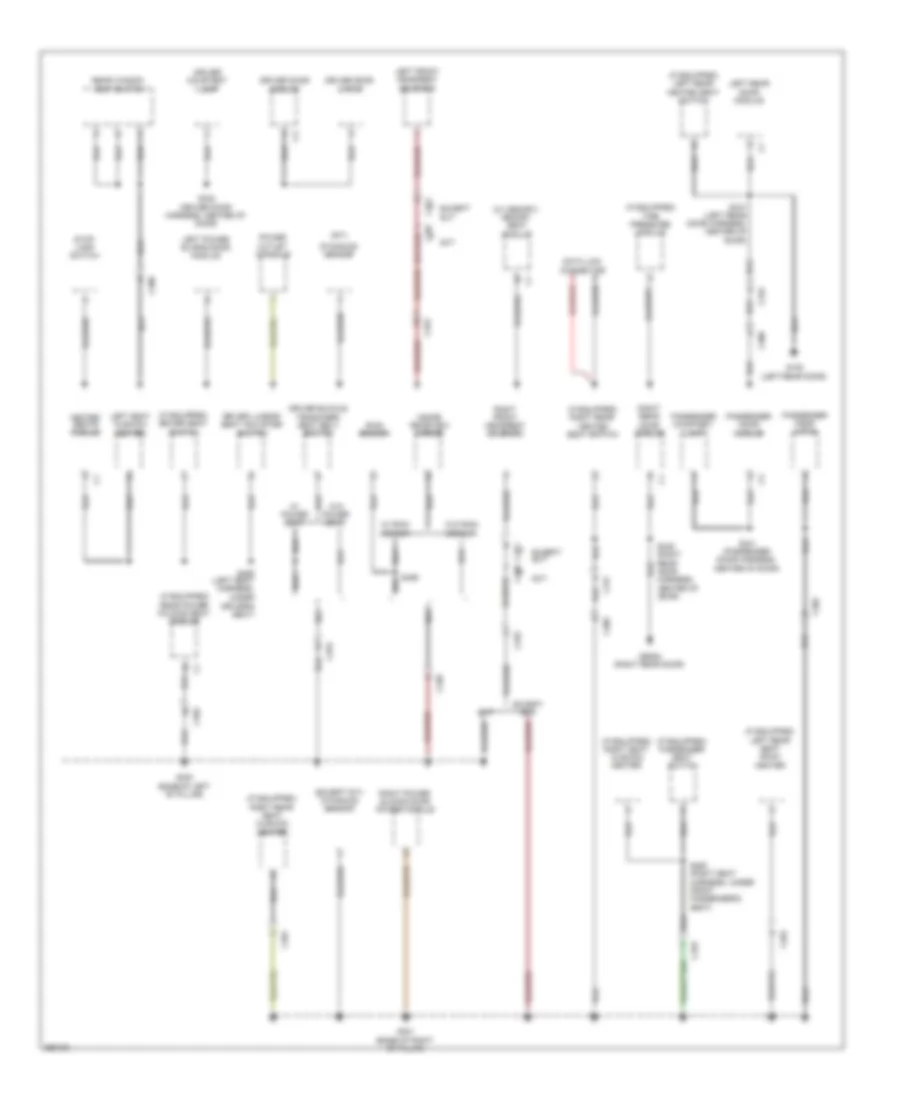

Электросхема подключение массы заземления (2 из 4) для Dodge Grand Caravan SXT 2012

Электросхема подключение массы заземления (2 из 4) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (if equipped) passive entry module
• (left side of engine compt) totally integrated power module
• (limited) 2nd row 1 overhead rail lamp
• (limited) rear blower control switch
• (not used)
• (r/t)
• (r/t) dome lamp
• (r/t) driver 2 overhead halo lamp
• (r/t) passenger 2 overhead halo lamp
• (sxt) rear blower control switch
• (sxt) rear dome lamp
• 2nd row 1 overhead rail lamp
• 2nd row 2 overhead rail lamp
• 3rd row 1 overhead rail lamp
• 3rd row 2 overhead rail lamp
• 87a
• A/c heater control
• A15
• Adjustable pedals switch
• C201
• C204
• C210
• C336
• C340
• C347
• C396
• Center console lamp
• Center console super assembly
• Cigar lighter
• Circuit board
• Cluster
• Compass module
• Dimmer switch
• Driver 1 overhead halo lamp
• Driver 2 overhead halo lamp
• Except sxt
• Front blower motor power module
• Front reading lamp
• G102 (left rear of engine compt)
• G201 (behind left side of dash)
• Headlamp switch
• Ignition-win wireless node
• Instrument panel power outlet
• Left headlamp analog clock module
• Limited
• Map 2 lamp
• Overhead console
• Passenger 1 overhead halo lamp
• Passenger 2 overhead halo lamp
• R/t
• Rear blower control switch
• Right vanity lamp
• S392 (headliner harness, top of right "a" pillar)
• S393 (headliner harness, near right vanity light)
• S422 (console center instrument harness, under center console)
• S424 (limited) (console center instrument harness, under center console)
• S426
• Shifter lever assembly
• Steering control module
• Sxt
• Upper bank switch
• W/ memory
• W/o memory
• Winshield wiper motor
• Wiper on/off relay

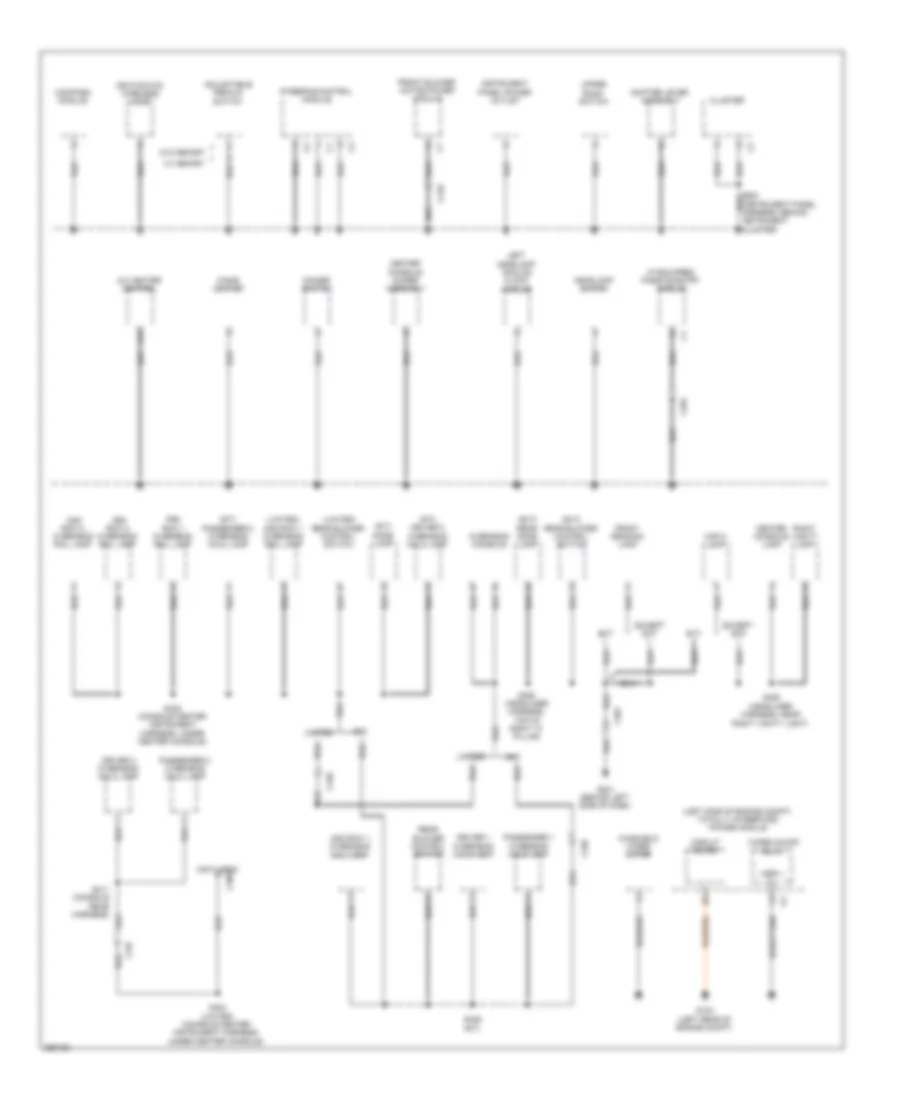

Электросхема подключение массы заземления (3 из 4) для Dodge Grand Caravan SXT 2012

Электросхема подключение массы заземления (3 из 4) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (if equipped) blind spot module
• (if equipped) flash light lamp
• (if equipped) hands free module
• (if equipped) left rear blind spot sensor
• (if equipped) monitor/ dvd media system
• (if equipped) park assist module
• (if equipped) radio amplifier
• (if equipped) rear a/c heater control
• (if equipped) right rear blind spot sensor
• (if equipped) sunroof motor/ module
• (w/o trailer tow) left tail lamp assembly
• (w/o trailer tow) right tail lamp assembly
• C314
• C332
• C336
• C343
• C381
• C390
• C399
• Center high mounted stop lamp
• Electric heated backlite
• Evap system monitor switch
• Fuel pump module
• G302 (base of right "d" pillar)
• G305 (right side of liftgate)
• G306 (under left/ right center of dash)
• Inverter module
• Liftgate lamp
• Oxygen sensor 1/1
• Oxygen sensor 1/2
• Oxygen sensor 2/1
• Oxygen sensor 2/2
• Power liftgate chime
• Power liftgate drive unit
• Power liftgate module
• Powertrain control module
• Radio
• Rear camera license plate lamp/ assembly
• Rear power outlet
• Rear wiper motor
• S170
• S339 (headliner harness, right center of roof)
• Satellite video module
• Screen 1 video module
• To battery (diagram 1 of 4)
• W/ satellite video module
• W/o satellite video module

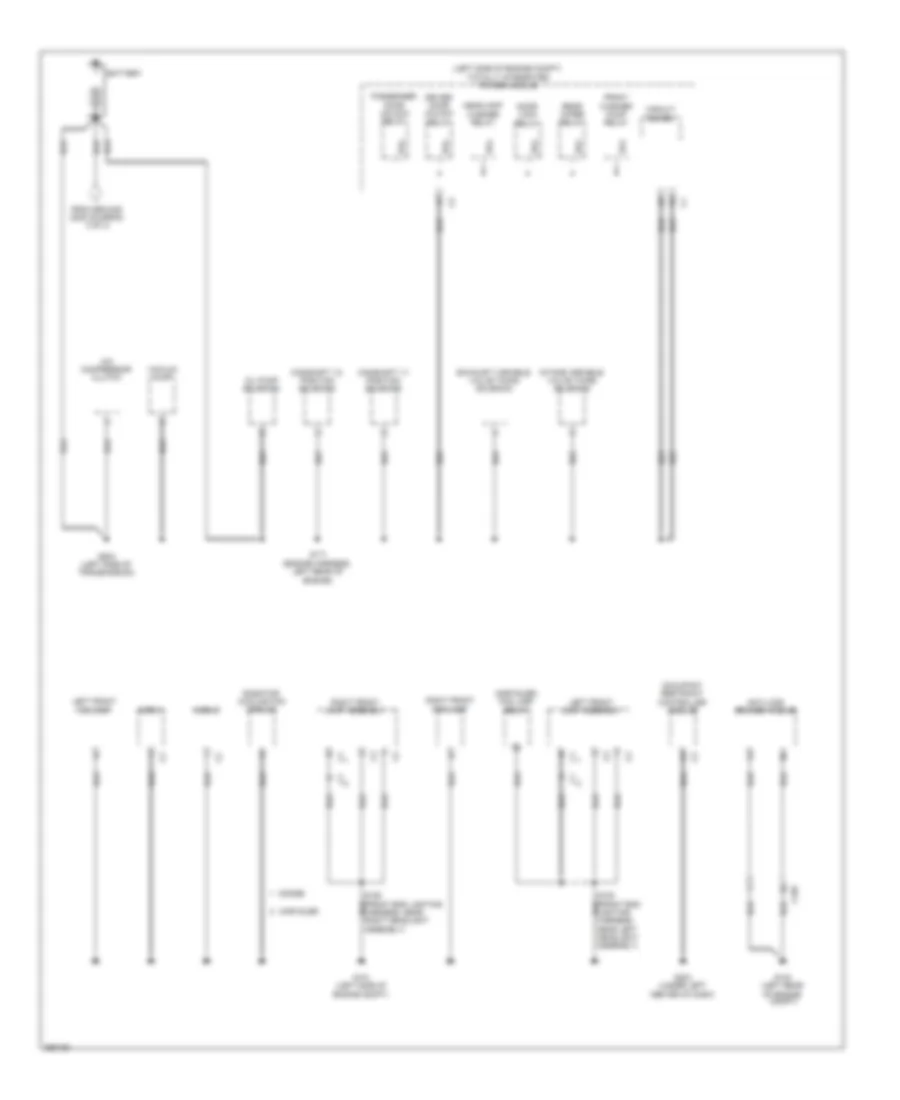

Электросхема подключение массы заземления (4 из 4) для Dodge Grand Caravan SXT 2012

Электросхема подключение массы заземления (4 из 4) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (except r/t) dynamics sensor
• (if equipped) driver seat switch
• (if equipped) left rear heated seat switch
• (if equipped) left rear seat back heater
• (if equipped) passenger seat switch
• (if equipped) rear power folding seat module
• (if equipped) right rear heated seat switch
• (if equipped) right rear seat cushion heater
• (if equipped) right seat cushion heater
• (if equipped) tire pressure module
• (r/t)
• (w/ memory) memory seat module
• C300
• C302
• C308
• C309
• C316
• C317
• C328
• C371
• C372
• C376
• C378
• C392
• C393
• C394
• C397
• C398
• Data link connector
• Driver buckle tensioner/ seat belt switch
• Driver courtesy lamp
• Driver door latch
• Driver door module
• Driver lumbar seat adjuster switch
• Driver's seat)
• Dynamics sensor
• Except sxt
• G108 (left rear door)
• G300 (base of left "b" pillar)
• G301 (base of right "b" pillar)
• G909a (right rear door)
• Heated seats module
• Inside rearview mirror
• Left front headrest solenoid
• Left power sliding door module
• Left rear door module
• Left seat cushion heater
• Passenger courtesy lamp
• Passenger door latch
• Passenger door module
• Power outlet console
• Rain sensor
• Rear window vent switch
• Right front headrest solenoid
• Right power sliding door power module
• Right rear door module
• S341 (passenger door harness, center of door)
• S342 (driver door harness, center of door)
• S346 (right rear door harness, center of door)
• S347 (left rear door harness, center of door)
• S459
• S463 (right seat harness, under front passenger's seat)
• S465 (left seat harness, under
• Stop lamp switch
• Sxt
• W/ power seat
• W/ rain sensor
• W/o power seat
• W/o rain sensor
