Электросхемы СИСТЕМЫ СИДЕНИЙ Dodge Grand Caravan SXT 2012

СИСТЕМЫ СИДЕНИЙ

Электросхема регулировки положения педалей для Dodge Grand Caravan SXT 2012

Электросхема регулировки положения педалей для Dodge Grand Caravan SXT 2012 - Список элементов:

• A128
• Adj ped sw fd
• Adjustable pedals motor (under left side of dash)
• Adjustable pedals switch
• Aft mtr
• C200
• Can 2 bus (+)
• Can 2 bus (-)
• Circuit board
• Computer data lines system
• D51
• D52
• Fused b (+)
• Fwd mtr
• G201 (behind left side of dash)
• Ground
• Hot at all times
• Sw fd
• Totally integrated power module (left side of engine compt)

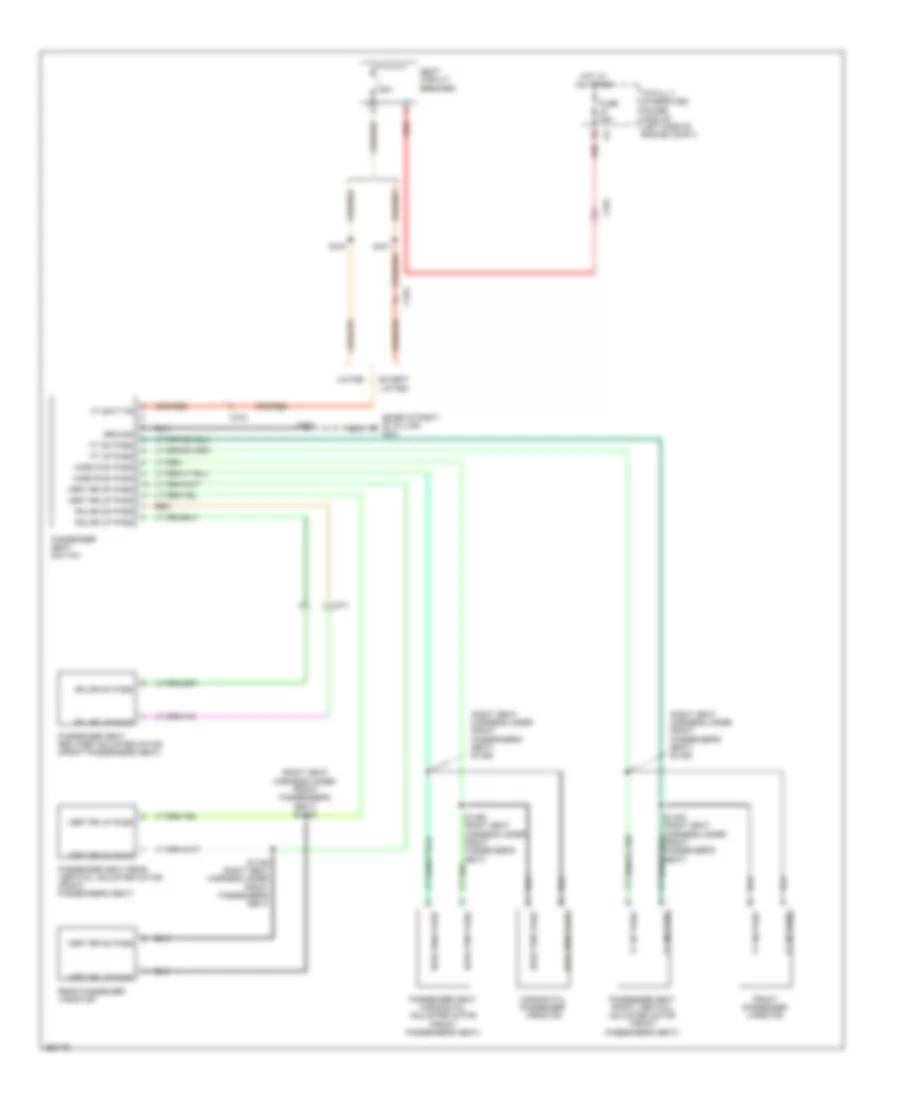

Электросхема привода водительского сиденья для Dodge Grand Caravan SXT 2012

Электросхема привода водительского сиденья для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar) g300
• (driver's seat harness) s444
• (left seat harness, under driver's seat) s451
• (left seat harness, under driver's seat) s6
• (not used)
• 25a
• C372
• C376
• Deflate/rearward
• Driver front varistor
• Driver horizontal varistor
• Driver rear seat vertical adjuster motor (driver's seat)
• Driver rear varistor
• Driver seat forward/rearward lumber motor
• Driver seat horizontal adjuster motor (driver's seat)
• Driver seat lumber adjuster switch
• Driver seat recliner adjuster motor (driver's seat)
• Driver seat switch
• Driver seat vertical adjuster motor
• Drv ft pwr sts dn
• Drv ft pwr sts up
• Drv mem sts rclne aft
• Drv mem sts rclne fwd
• Drv pwr rclnr mtr aft
• Drv pwr rclnr mtr fwd
• Drv pwr sts ft up
• Drv pwr sts horz aft
• Drv pwr sts horz fwd
• Drv pwr sts rr vert dn
• Drv pwr sts rr vert up
• Ft batt fd
• Fuse j8 40a
• G300 (base of left "b" pillar)
• G403
• G493
• Gnd
• Ground
• Hall snsr reclnr gnd
• Hall snsr reclnr pwr
• Hot at all times
• Inflate/forward
• Limited
• Memory seat module (under driver's seat)
• P141
• P143
• R/t
• Red
• S445 (left seat harness, under driver's seat)
• S447
• S452 (left seat harness, under driver's seat)
• S461 (left seat harness, under driver's seat)
• S465
• Seat circuit breaker
• Totally integrated power module (left side of engine compt)

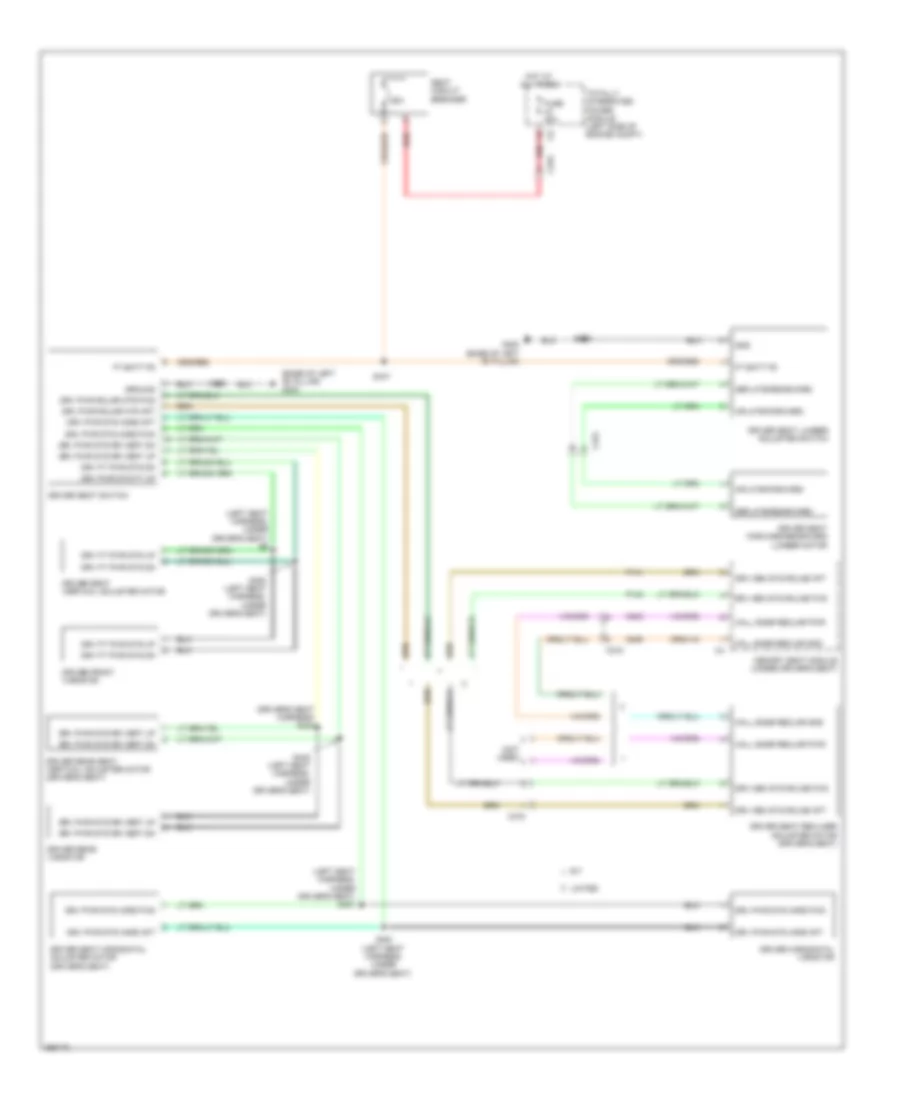

Электросхема подогрева передних сидений для Dodge Grand Caravan SXT 2012

Электросхема подогрева передних сидений для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar) g300
• (body harness, under driver's seat) s473
• (left seat harness, under
• A/c heater control
• C200
• C376
• C378
• C393
• C394
• C91
• C986
• Can bus (+)
• Can bus (-)
• Can bus ihs(+)
• Can bus ihs(-)
• Cluster
• Computer data lines system
• D264
• D265
• Driver's seat)
• F98
• Fuse m8 20a
• Fuse m9 20a
• G300 (base of left "b" pillar)
• G301 (base of right "b" pillar)
• Gnd
• Ground
• Heat out to coil ft lt
• Heat out to coil ft rt
• Heat out to coil ft rt gnd
• Heat out to coil rr rt
• Heat sts snsr rtn
• Heat sts snsr rtn heated sts temp snsr
• Heatd sts fd
• Heated out to coil rr rt rt heated sts ign id
• Heated seats module (under driver's seat)
• Heated sts snsr rtn
• Heated sts temp snsr
• Hot w/ run relay energized
• Htd str whl fd
• Left rear back seat heater
• Left seat cushion heater
• Limited
• Lin ccn
• Lr heated sts temp snsr
• Lt rr heat sts temp snsr
• P177
• P178
• P187
• P188
• P672
• P673
• P687
• P688
• P693
• P968
• Rear heated seats circuit
• Right rear seat cushion heater
• Right seat cushion heater
• Rr heated sts temp snsr
• Rt ft heat sts temp snsr
• Rt heatd sts ign fd
• Rt rr heat sts temp snsr
• S10
• S462
• S463
• S465
• Steering control module (behind left side of dash)
• Strg whl htr rtn
• Totally integrated power module (left side of engine compt)
• Z908

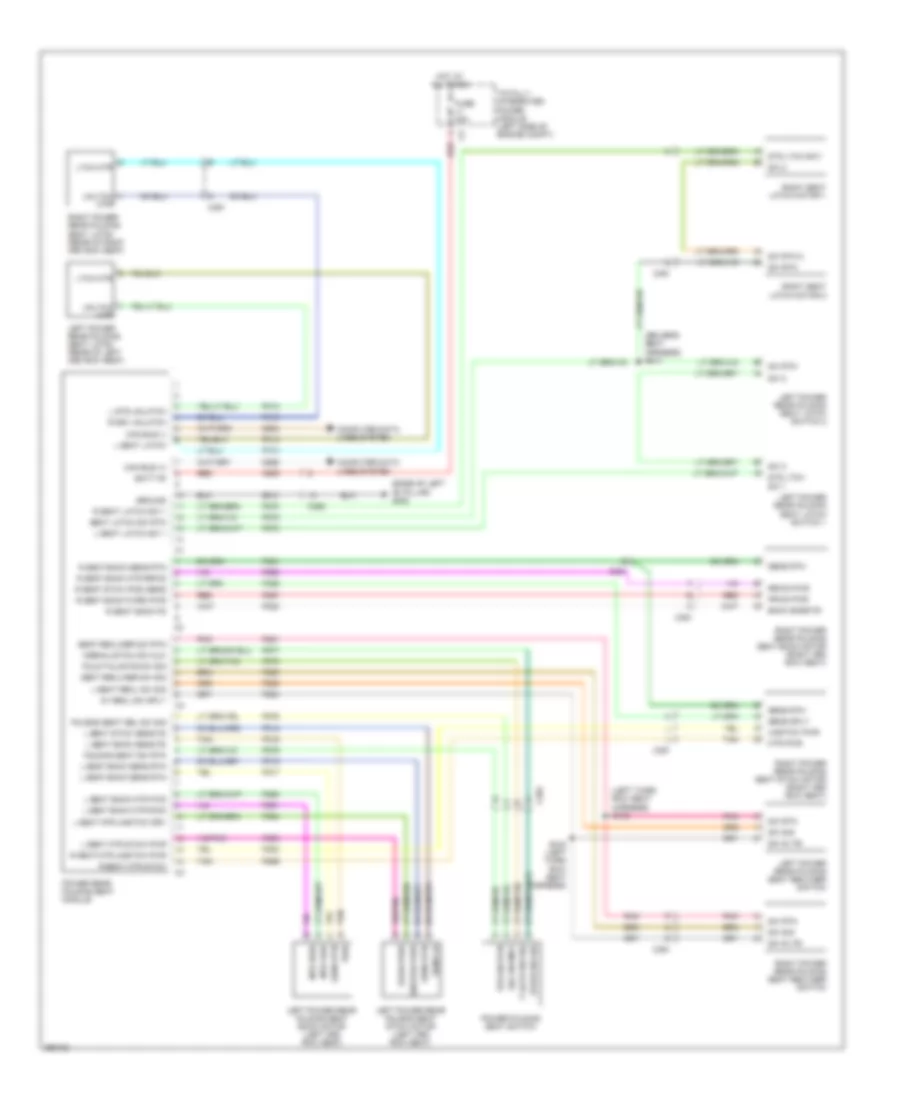

Электросхема привода пассажирского сиденья для Dodge Grand Caravan SXT 2012

Электросхема привода пассажирского сиденья для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of right "b" pillar) g301
• (right seat harness,under front passenger's seat) sv445
• (right seat harness,under front passenger's seat) sv452
• (right seat harness,under front passenger's seat) sv455
• 25a
• C371
• C376
• C378
• Except limited
• Front passenger varistor
• Ft batt fd
• Ft dn pass
• Ft up pass
• Fuse j8 40a
• Ground
• Horizontal passenger varistor
• Horz fwd pass
• Horz rwd pass
• Hot at all times
• Limited
• Passenger seat front vertical adjuster motor (front passenger's seat)
• Passenger seat horizontal adjuster motor (front passenger's seat)
• Passenger seat rear vertical adjuster motor (front passenger's seat)
• Passenger seat recliner adjuster motor (front passenger's seat)
• Passenger seat switch
• Rclnr dn pass
• Rclnr up pass
• Rear passenger varistor
• Red
• S315
• S447
• S463
• Seat circuit breaker
• Sv446 (right seat harness,under front passenger's seat)
• Sv453 (right seat harness,under front passenger's seat)
• Sv456 (right seat harness,under front passenger's seat)
• Totally integrated power module (left side of engine compt)
• Vert rr dn pass
• Vert rr up pass

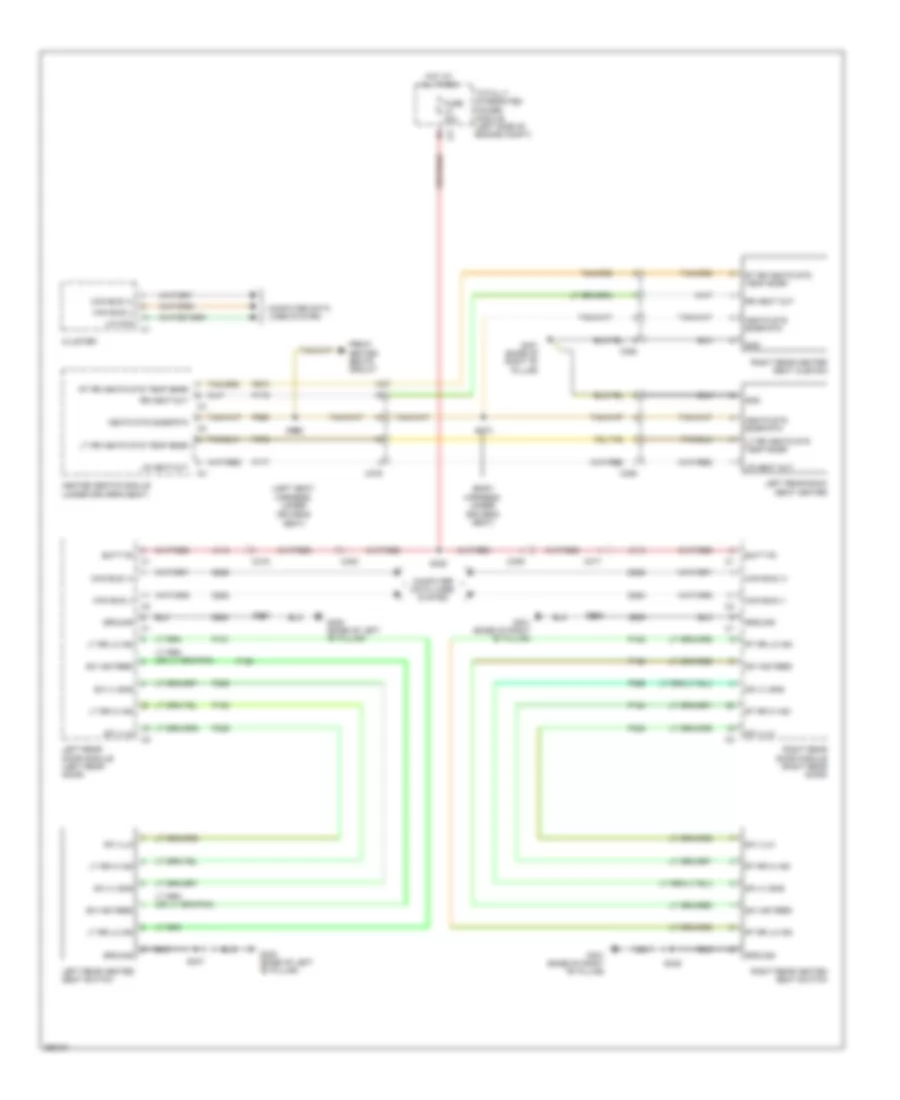

Электросхема заднего откидного сиденья для Dodge Grand Caravan SXT 2012

Электросхема заднего откидного сиденья для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar) g300
• (driver's seat harness) s444
• (left third row seat harness) s442
• 5v recl sw sply
• A905
• Back snsr fd
• Batt fd
• C391
• C392
• Can bus (+)
• Can bus (-)
• Computer data lines system
• D264
• D265
• Fold/tailgate sw sig
• Folding seat sel sw sig
• Folding seat sw rtn
• Frwd pwr
• Fuse j1 40a
• Ground
• Hot at all times
• L seat back mtr fwd
• L seat back mtr rwd
• L seat back sens fd
• L seat back sens rtn
• L seat latch
• L seat latch sw 1
• L seat mtr stow pwr
• L seat mtr unstow drv
• L seat recl sw sig
• L seat stow sens fd
• L sts unlatch
• Left power rear folding seat back motor (left 3rd row seat)
• Left power rear folding seat latch (rear of left 3rd row seat)
• Left power rear folding seat latch switch 1
• Left power rear folding seat latch switch 2
• Left power rear folding seat recliner switch
• Left power rear folding seat stow motor (left 3rd row seat)
• Ltch mtr
• Mtr fwd
• Mtr pwr
• Mtr rwd
• Normal/stow sw mux
• P270
• P272
• P273
• P276
• P277
• P278
• P279
• P280
• P281
• P282
• P284
• P290
• P291
• P293
• P294
• P297
• P298
• P299
• P300
• P312
• P313
• P314
• P315
• P316
• P317
• P318
• P319
• P320
• P321
• P326
• Pnk
• Power folding seat switch
• Power rear folding seat module
• Pwr
• R drv unlatch
• R seat back fd
• R seat back fwrd pwr
• R seat back mtr rrwd
• R seat back sens rtn
• R seat latch sw 1
• R seat mtr stow
• R seat mtr unstow pwr
• R seat stow posi sens
• Red
• Right power rear folding seat back motor (right 3rd row seat)
• Right power rear folding seat latch (rear of right 3rd row seat)
• Right power rear folding seat recliner switch
• Right power rear folding seat stow motor (right 3rd row seat)
• Right seat latch motor 1
• Right seat latch motor 2
• Rrwd pwr
• S443 (left third row seat harness)
• Seat latch sw rtn
• Seat recliner sw rtn
• Seat recliner sw sig
• Sel sw mux
• Sens fd
• Sens rtn
• Sens sply
• Stow pwr
• Stow sw sig
• Sts ltch sw 1
• Sts ltch sw1
• Sts sw rtn
• Sw 2
• Sw 5v fd
• Sw rtn
• Sw rtn 2
• Sw sig
• T gate sw sig
• Tan
• Totally integrated power module (left side of engine compt)
• Unltch mtr
• Unstow pwr
• Z910

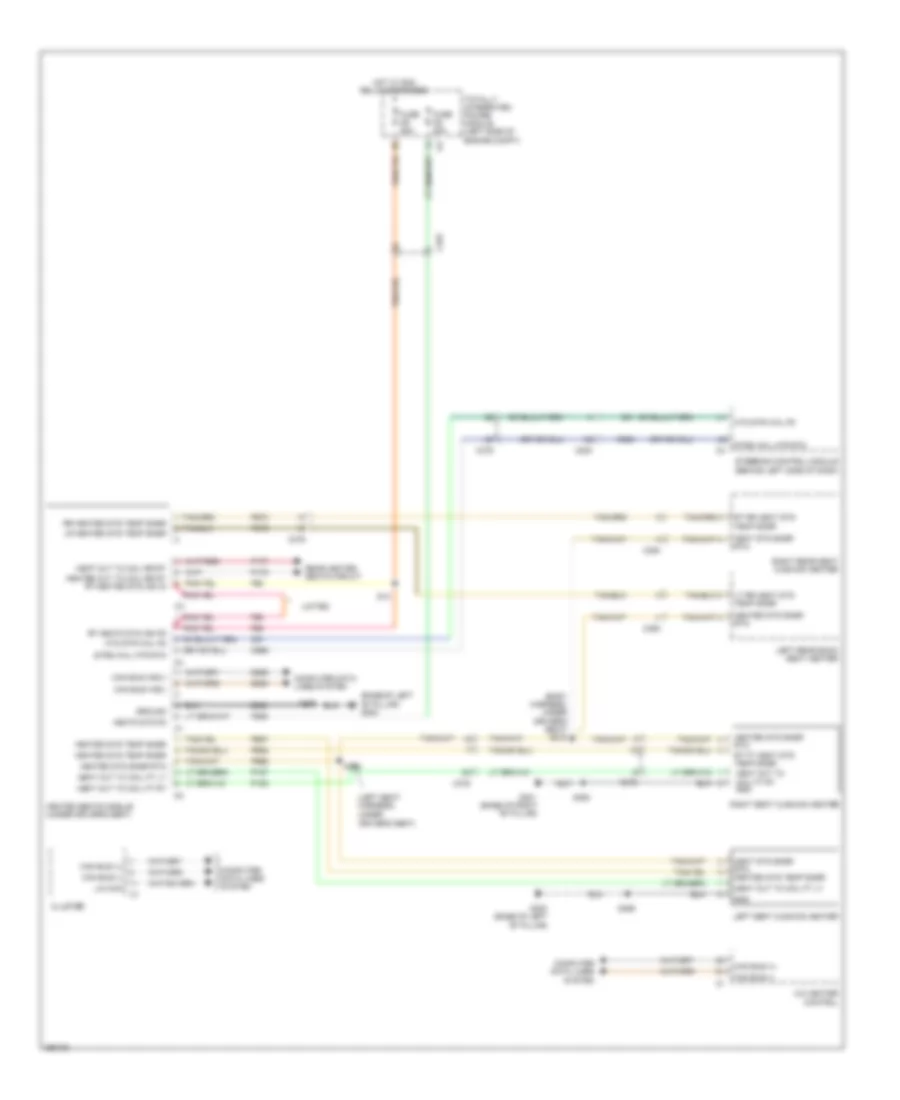

Электросхема подогрева задних сидений для Dodge Grand Caravan SXT 2012

Электросхема подогрева задних сидений для Dodge Grand Caravan SXT 2012 - Список элементов:

• (body harness, under
• (left seat harness, under
• A113
• Batt fd
• C308
• C309
• C316
• C317
• C376
• C393
• C394
• Can bus (+)
• Can bus (-)
• Cluster
• Computer data lines system
• D264
• D265
• Driver's seat)
• Front heated seats circuit
• Fuse j3 40a
• G300 (base of left "b" pillar)
• G301 (base of right "b" pillar)
• Gnd
• Ground
• Heatd sts snsr rtn
• Heated seats module (under driver's seat)
• Hot at all times
• Left rear back seat heater
• Left rear door module (left rear door)
• Left rear heated seat switch
• Lin ccn
• Lr heat out
• Lt rr heatd sts temp snsr
• Lt rr hi ind
• Lt rr lo ind
• P177
• P178
• P181
• P182
• P183
• P184
• P198
• P199
• P328
• P329
• P365
• P366
• P672
• P673
• P968
• Right rear door module (right rear door)
• Right rear heated seat switch
• Right rear heater seat cushion
• Rr heat out
• Rt rr heatd sts temp snsr
• Rt rr hi ind
• Rt rr lo ind
• S320
• S346
• S347
• S462
• S473
• Sw (+) sns
• Sw illm
• Sw ind feed
• Totally integrated power module (left side of engine compt)
• Z908
• Z909
