Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Dodge Grand Caravan SXT 2012

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

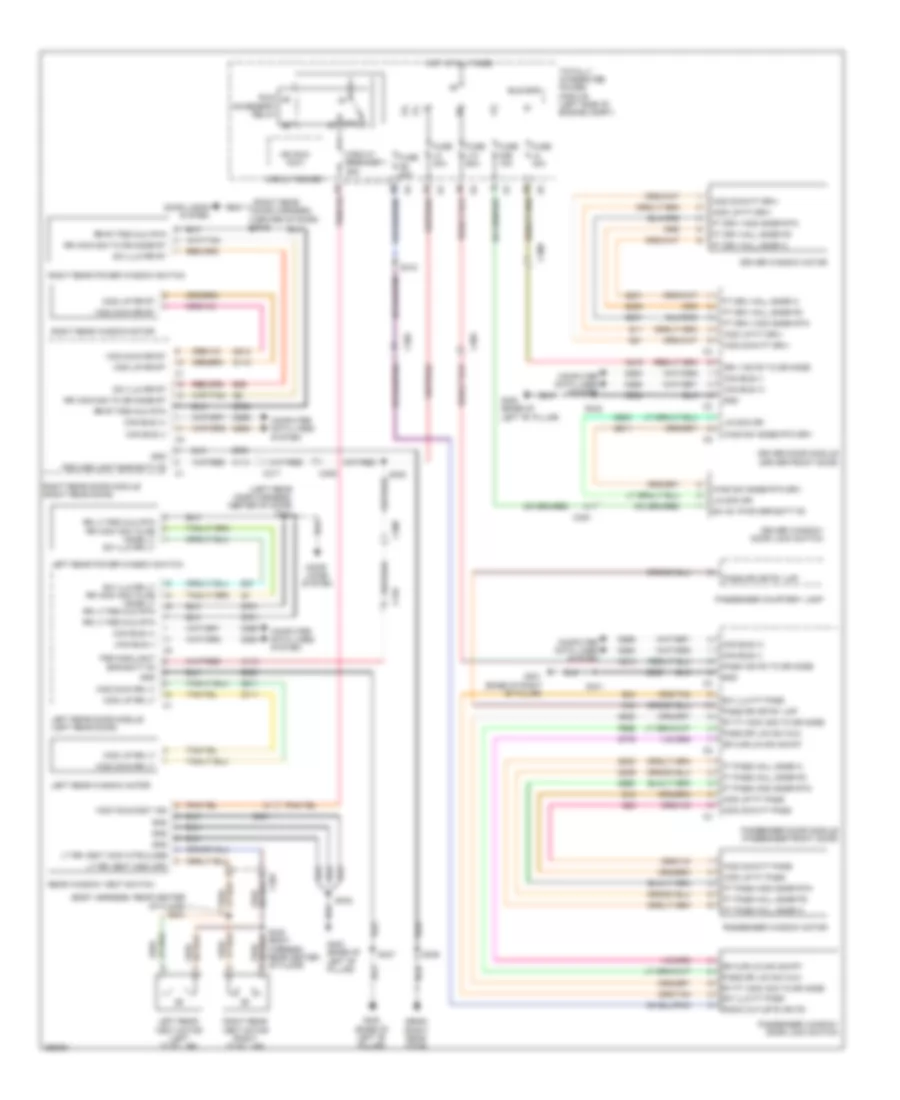

Электросхема стеклоподъемников для Dodge Grand Caravan SXT 2012

Электросхема стеклоподъемников для Dodge Grand Caravan SXT 2012 - Список элементов:

• (body harness, rear center of floor) s331
• (left rear door harness, center of door) s348
• (right rear door harness, center of door) s345
• 87a
• A113
• A214
• A215
• Bar batt fd
• Bus bar
• C300
• C301
• C302
• C308
• C309
• C316
• C317
• Can bus (+)
• Can bus (-)
• Circuit board
• Circuit breaker 1 25a
• Computer data lines system
• D264
• D265
• D903
• Door locks system
• Dr ajr/lk/unk sig rt
• Driver door module (driver front door)
• Driver window motor
• Driver window/ door lock switch
• Drv 10d fd to dr node
• E34
• E36
• E37
• Ft driv wdo snsr rtn
• Ft drv hall snsr a
• Ft drv hall snsr fd
• Ft pass hall snsr a
• Ft pass hall snsr fd
• Ft pass wdo snsr rtn
• Fuse j13 60a
• Fuse j3 40a
• Fuse j4 40a
• Fuse m26 10a
• Fuse m6 20a
• G300 (base of left "b" pillar)
• G301 (base of right "b" pillar)
• G776
• G909a (right rear door)
• Gnd
• Hot at all times
• Ign run acc1
• Left rear door module (left rear door)
• Left rear power window switch
• Left rear vent motor (left "d" pillar)
• Left rear window motor
• Lin dcm dr
• Lt rr vent wdw mtr close
• Lt rr vent wdw opn
• M44
• P696
• Pass dr crtsy lmp
• Pass dr lck sw mux
• Pass iod fd to dr node
• Passenger courtesy lamp
• Passenger door module (passenger front door)
• Passenger window motor
• Passenger window/ door lock switch
• Psd mod/light
• Psd mod/light bar batt fd
• Q11
• Q111
• Q112
• Q12
• Q21
• Q211
• Q212
• Q22
• Q222
• Q301
• Q302
• Q305
• Q306
• Q780
• Q781
• Q911
• Q990
• Q991
• Radio outlets ign fd
• Rear window vent switch
• Right rear door module (right rear door)
• Right rear power window switch
• Right rear vent motor (right "d" pillar)
• Right rear window motor
• Rr lt psd mux rtn
• Rr lt psd mux rtn rr wdw sig to dr node lt
• Rr rt psd mux rtn
• Rr wdw sig to dr node rt
• Rt ft wdw sig to dr node
• Run/ accessory relay
• S318
• S320
• S330 (body harness, rear center of floor)
• S341
• S342
• S346
• S347
• Sw illm ft pass
• Sw illm rr lt
• Sw illm rr lt rr wdw sig to dr node lt
• Sw illm rr rt
• Sw sv pwr mrr batt fd
• Totally integrated power module (left side of engine compt)
• Wdo dwn ft driv
• Wdo dwn ft pass
• Wdo dwn rr lt
• Wdo dwn rr rt
• Wdo up ft driv
• Wdo up ft pass
• Wdo up rr lt
• Wdo up rr rt
• Wdw run/accy ign
• Wind sw snse rtn drv
• Z908
• Z909
