Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Dodge Grand Caravan SXT 2012

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

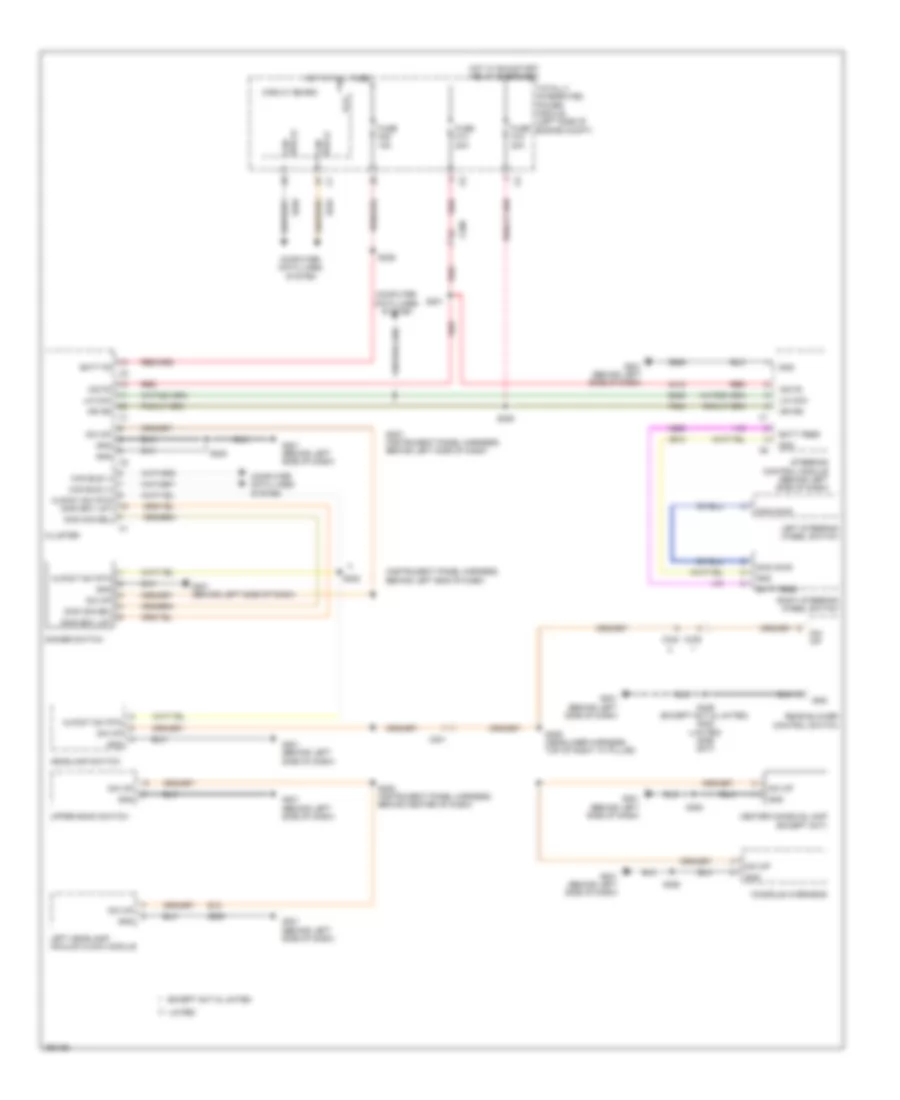

Электросхема подсветки (1 из 2) для Dodge Grand Caravan SXT 2012

Электросхема подсветки (1 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar)
• (base of right "b" pillar)
• (body harness, in left "d" pillar) s328
• (not used) c396
• B(+)
• Batt fd
• C201
• C300
• C302
• C308
• C309
• C314
• C316
• C317
• C336
• C347
• Can bus (+)
• Can bus (-)
• Circuit board
• Cluster
• Computer data lines system
• Console overhead
• Console super center assembly
• D264
• D265
• Driver 1 overhead halo lamp (r/t)
• Driver 2 overhead halo lamp (if equipped)
• Driver door latch
• Drv dr ajar sw in
• Except sxt & limited
• Fuse m20 15a
• G108 (left rear door)
• G201 (behind left side of dash)
• G300
• G301
• G302 (base of right "d" pillar)
• G74
• G75
• G76
• G77
• G78
• G909a (right rear door)
• Glve box/ map lp fd
• Glve box/map lmp fd
• Glve box/map lp fd
• Gnd
• Hdlp/fog lmp sel sw
• Headlamp switch
• Hot at all times
• Left rear door latch (left rear door)
• Left rear door module (left rear doors)
• Lgate crtsy fd
• Lh dr ajar sw sig
• Lh rr door ajar sig
• Liftgate ajar sig
• Liftgate door latch
• Limited
• Pass ft dr ajar sw in
• Passenger 1 overhead halo lamp (r/t)
• Passenger 2 overhead halo lamp (if equipped)
• Passenger door latch
• Power liftgate module (mounted on left "d" pillar)
• Psd lckout snse
• Rail lp fds
• Right rear door latch (right rear door)
• Right rear door module (right rear doors)
• Rr dr ajar sw sig
• Rt/lt pwr sldg dr op/cls snse
• S220
• S221 (instrument panel harness, behind center of dash)
• S226
• S341
• S342
• S343 (right rear door harness, center of door)
• S344 (injector harness, center rear of engine)
• S346
• S347
• S364 (headliner harness, right rear of roof)
• S411 (limited) s422 (r/t)
• S425 (console rear harness, under rear console)
• S426
• Totally integrated power module (left side of engine compt)
• Ugdo disable
• Z908
• Z909
• Z910

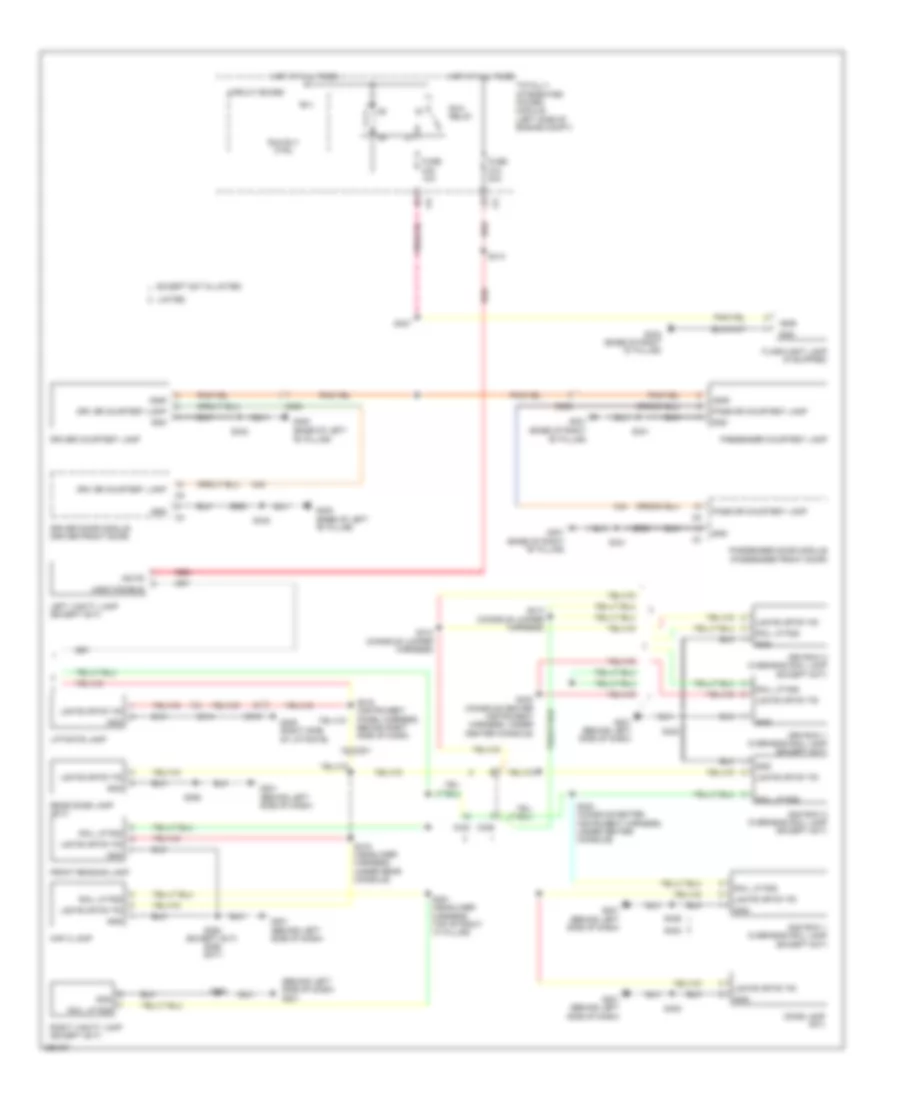

Электросхема подсветки (2 из 2) для Dodge Grand Caravan SXT 2012

Электросхема подсветки (2 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

• (base of left "b" pillar)
• (base of right "b" pillar)
• (behind left side of dash) g201
• 2nd row 1 overhead rail lamp (except sxt)
• 2nd row 2 overhead rail lamp (except sxt)
• 3rd row 1 overhead rail lamp (except sxt)
• 3rd row 2 overhead rail lamp (except sxt)
• B(+)
• C201
• C300
• C302
• C314
• C318
• C336
• C340
• Circuit board
• Dome lamp (r/t)
• Driver courtesy lamp
• Driver door module (driver front door)
• Drv dr courtesy lamp
• Except sxt & limited
• Flashlight lamp (if euipped)
• Front reading lamp
• Fuse m10 20a
• Fuse m34 10a
• G201 (behind left side of dash)
• G300
• G301
• G302 (base of right "d" pillar)
• G305 (right side of liftgate)
• Gnd
• Hot at all times
• Ignr
• Iod fd
• Left vanity lamp (except sxt)
• Lgate crtsy fd
• Liftgate lamp
• Limited
• M43
• M44
• Map 2 lamp
• Pass dr courtesy lamp
• Passenger courtesy lamp
• Passenger door module (passenger front door)
• Rail lp fds
• Rear dome lamp (sxt)
• Red
• Right vanity lamp (except sxt)
• Run relay
• Run rly ctrl
• S218 (instrument panel harness, behind right side of dash)
• S327
• S341
• S342
• S391 (headliner harness, top of right "a" pillar)
• S392
• S393
• S393 (except sxt) s392 (sxt)
• S412 (console jumper harness)
• S413 (console jumper harness)
• S414
• S415 (headliner harness, under rear console)
• S422
• S423 (console center instrument harness, under center console)
• S424 (console center instrument harness, under center console)
• S426
• Totally integrated power module (left side of engine compt)
• Ugdo disable
• Z908
• Z909

Электросхема подсветки приборов для Dodge Grand Caravan SXT 2012

Электросхема подсветки приборов для Dodge Grand Caravan SXT 2012 - Список элементов:

• (instrument panel harness, behind left end of dash)
• A412
• A929
• B (+)
• Batt fd
• Batt feed
• C200
• C201
• C336
• C340
• Can bus (+)
• Can bus (-)
• Center console lamp (except sxt)
• Circuit board
• Cluster
• Computer data lines system
• Console overhead
• D264
• D265
• D506
• Dim 3ip
• Dimm env lgt
• Dimm sig sel
• Dimm sws
• Dimmer switch
• E12
• Except sxt & limited
• F943
• Fuse m13 20a
• Fuse m15 20a
• Fuse m20 15a
• G201 (behind left side of dash)
• Gnd
• Headlamp switch
• Hot at all times
• Hot w/ run/start relay energized
• Ign rs
• Iod fd
• Left headlamp analog clock module
• Left steering wheel switch
• Limited
• Lin ccn
• Mlfnct sw rtn
• Mlfnct sw rtn dimm env lgt
• Rear blower control switch
• Red
• Right steering wheel switch
• S201
• S207 (instrument panel harness, behind left side of dash)
• S208 (instrument panel harness, behind center of dash)
• S220
• S222
• S225
• S226
• S389 (headliner harness, top of right "a" pillar)
• S392
• S393
• S426 (except sxt & limited) s422 (limited) s392 (sxt)
• Steering control module (behind left side of dash)
• Totally integrated power module (left side of engine compt)
• Upper bank switch
• Z905
• Z910
