Электросхемы Система Фар Dodge Grand Caravan SXT 2012

Система Фар

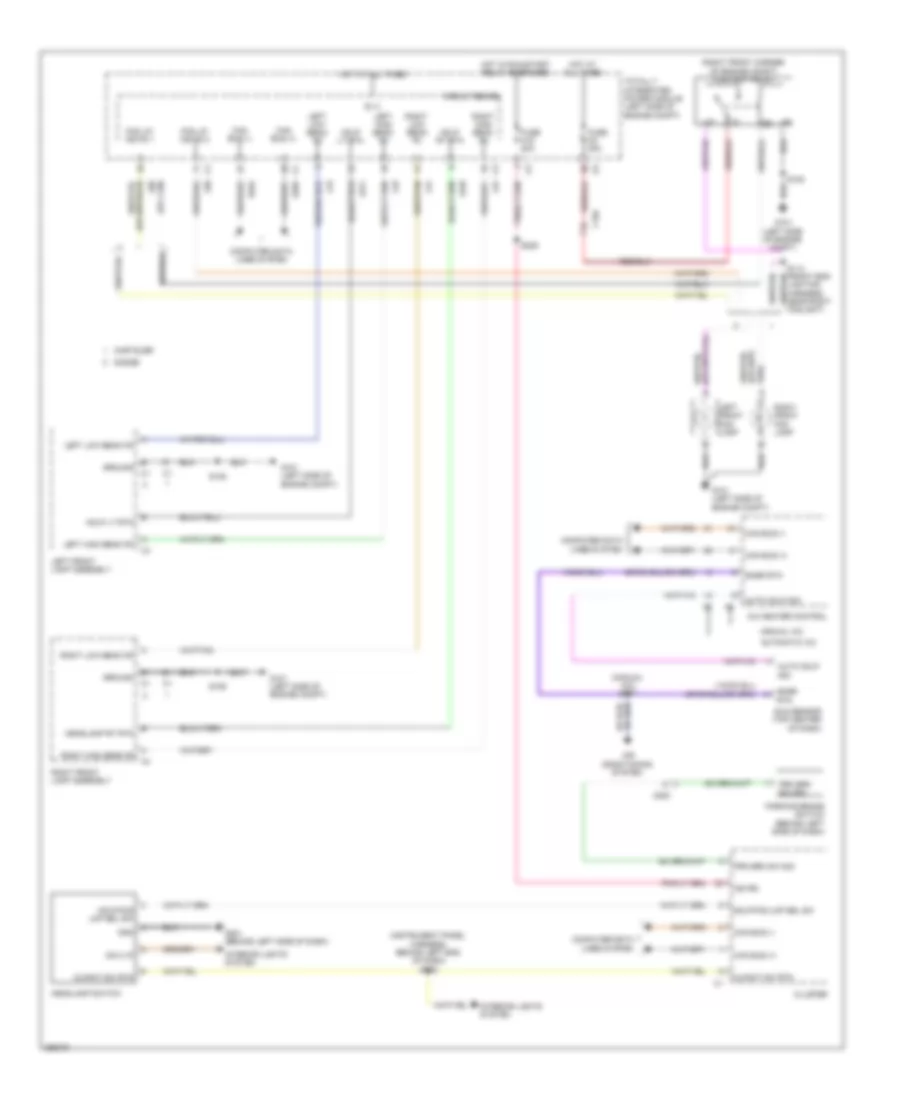

Электросхема фар для Dodge Grand Caravan SXT 2012

Электросхема фар для Dodge Grand Caravan SXT 2012 - Список элементов:

• (instrument panel harness, behind left end of dash) s222
• (manual a/c) s227
• (right front corner of engine compt) fog-lamp relay
• A right high beam fd
• A/c heater control
• Air conditioning system
• Auto hdlp sig
• Automatic a/c
• B (+)
• C104
• C200
• Can bus (+)
• Can bus (-)
• Chrysler
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• Dim 3 ip
• Dodge
• Fog lp/ ind fd 1
• Fog lp/ ind fd 2
• Fuse m15 20a
• Fuse m2 20a
• G101 (left side of engine compt)
• G201 (behind left side of dash)
• Gnd
• Ground
• Hdlp lt rtn
• Hdlp rt rtn
• Hdlp/fog lmp sel sw
• Headlamp rt rtn
• Headlamp switch
• Hot at all times
• Hot w/ run/start relay energized
• Ign rs
• Interior lights system
• L33
• L34
• L43
• L44
• L89 (or l139)
• L90
• L910
• L911
• Left front fog lamp
• Left front lamp assembly
• Left high beam fd
• Left low beam fd
• Lighting harness, near right foglight)
• Manual a/c
• Mlfnct sw rtn
• Parking brake switch (behind left side of dash)
• Prk brk sw sig
• Right front fog lamp
• Right front lamp assembly
• Right high beam fd
• Right low beam fd
• S105
• S106
• S225
• Snsr rtn
• Sun sensor (top center of dash)
• Totally integrated power module (left side of engine compt)
