Электросхемы СИСТЕМА КОНДИЦИОНЕРА Dodge Grand Caravan SXT 2012

СИСТЕМА КОНДИЦИОНЕРА

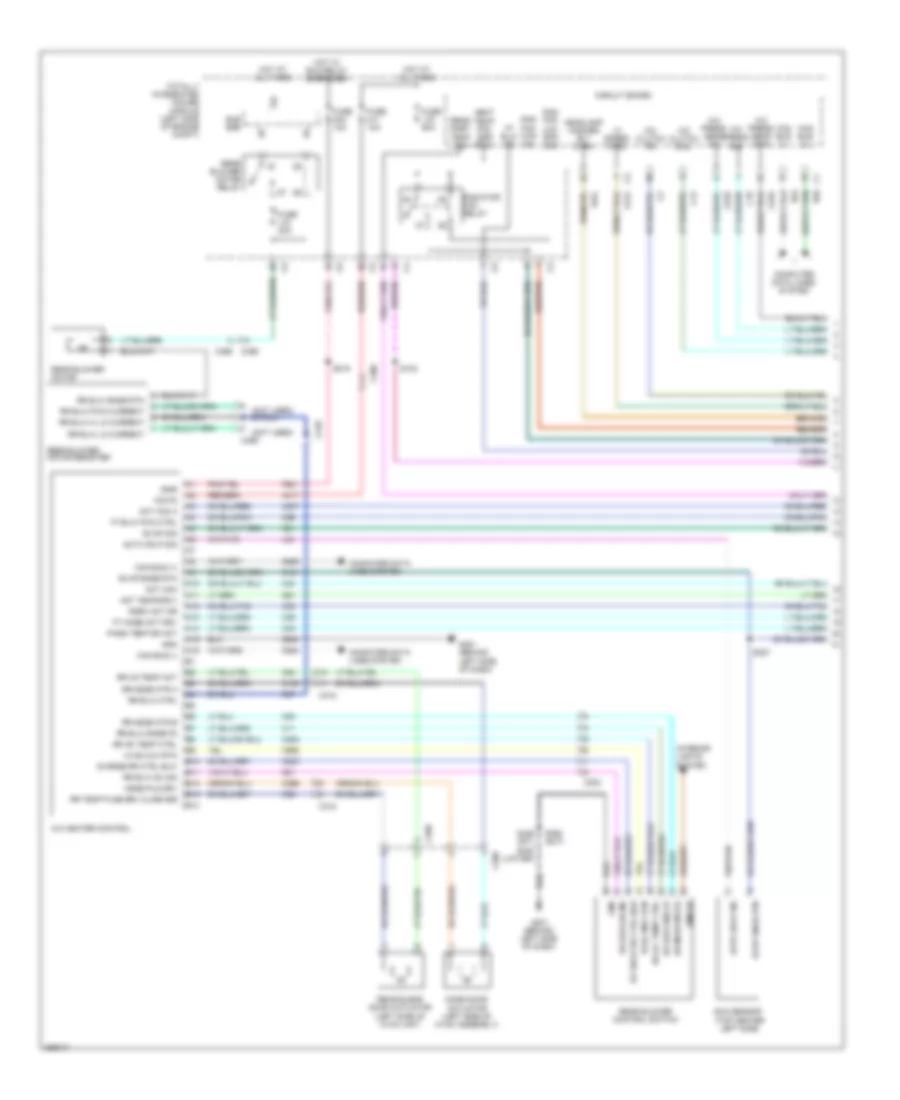

Электросхема кондиционера (1 из 2) для Dodge Grand Caravan SXT 2012

Электросхема кондиционера (1 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

134

• A/c
• A/c clutch coil
• A/c clutch fd
• A/c heater control
• A/c press sens fd
• A/c press sig
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• A19
• A20
• A21
• A22
• A23
• A24
• A25
• A26
• A417
• Abmt temp/ fcm ssr rtn 1
• Act com
• Act com 2
• Act temp(driv)
• Auto hdlp sig
• B10
• Bus bar
• C11
• C121
• C13
• C153
• C18
• C200
• C203
• C21
• C254
• C266
• C318
• C32
• C33
• C336
• C34
• C35
• C399
• C53
• C54
• C56
• C57
• C59
• C61
• C800
• C807
• C818
• C918
• C955
• Can bus (+)
• Can bus (-)
• Circuit board
• Computer data lines system
• D264
• D265
• D64
• D65
• Dim 3 ip
• Evap sig
• Evap snse rtn
• F921
• Fan sns
• Fan sns rtn
• Ft blw fd
• Ft blw pwm ctrl
• Ft mode act drv
• Fuse j15 30a
• Fuse j19 60a
• Fuse m11 10a
• Fuse m34 10a
• G139
• G201 (behind left side of dash)
• G21
• G302 (base of right "d" pillar)
• G39
• G939
• Gnd
• Headlamp washer rly ctrl
• Hi speed ctrl
• Hot at all times
• Hot w/ run relay energized
• Hvac mux rtn
• I0d fd
• Ignr
• Interior lights system
• K175
• L24
• Mode door actuator (left side of hvac assembly)
• Mode pls drv
• Pass temp dr act
• Press sens rtn
• Rad fan low spd sig
• Rad fan mtr fd
• Radiator fan relay
• Rcrc act dr
• Rear a/c heater control
• Rear blend door actuator (left side of hvac unit)
• Rear blower control switch
• Rear blower motor
• Rear blower motor relay
• Rr ac blw fd
• Rr ac temp act
• Rr ac temp ctrl
• Rr blw on ind
• Rr blw pwm ctrl
• Rr blw sns fd
• Rr blw snse fd
• Rr mode mtr a
• Rr mode mtr b
• Rr temp plse drv clkbwse
• S102
• S215
• S392 (sxt)
• S426 (r/t) s422 (limited)
• Sens ambt temp sig
• Snsr sunld rtn
• Ssr sunld sig
• Ssr sunld sig 2
• Sun sensor (top center left side)
• Sv srce rr ctrl blw
• Svs rce rr ctrl blw
• Totally integrated power module (left side of engine compt)
• W24
• Z905

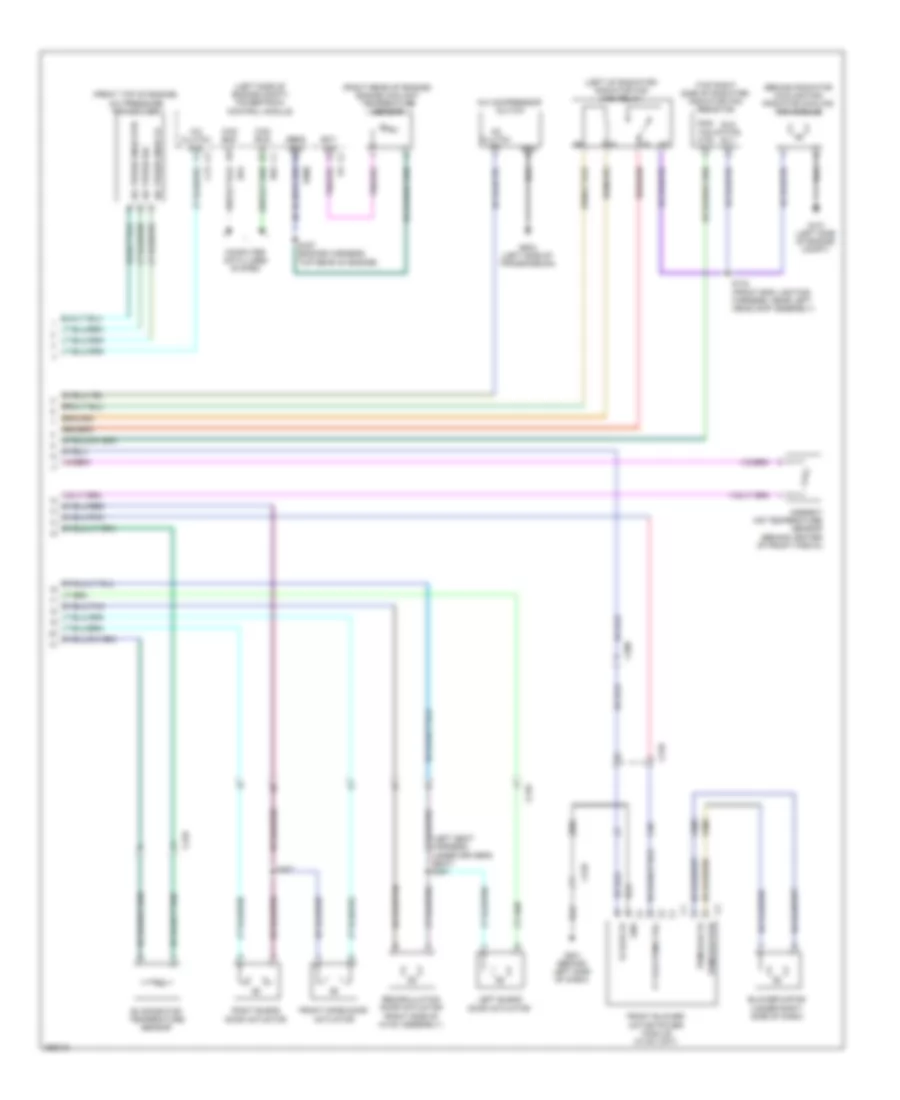

Электросхема кондиционера (2 из 2) для Dodge Grand Caravan SXT 2012

Электросхема кондиционера (2 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

49

• (behind radiator cooling fan) radiator cooling fan module
• (front top of engine) a/c pressure transducer
• (left of radiator) radiator fan high relay
• (left seat harness, under driver's seat) s461
• (left side of engine compt) powertrain control module
• (right rear of engine) engine coolant temperature sensor
• (top right side of radiator) radiator fan resistor
• A/c clutch coil
• A/c compressor clutch
• A/c press sig
• A/c press snse rtn
• A/c press snsr fd
• Ac clutch fd
• Ambient air temperature sensor (behind center of front fascia)
• Blower motor (under right side of dash)
• Blw mtr ctrl sply
• C13
• C200
• C210
• C56
• C805
• C806
• C807
• Can c bus (+)
• Can c bus (-)
• Computer data lines system
• D64
• D65
• Ect sig
• Evaporator temperature sensor
• Front blower motor power module (hvac unit)
• Front mode door actuator
• Ft blw fd
• G101 (left side of engine compt)
• G201 (behind left side of dash)
• G804 (left side of transmission)
• Gnd
• K900
• Left blend door actuator
• Mtr ctrl
• Pwn blw fd
• Rad fan mtr fd
• Recirculation door actuator (right side of hvac assembly)
• Right blend door actuator
• S134 (front end lighting harness, near left headlamp assembly)
• S167 (engine harness, top rear of engine)
• Sens gnd
• Sld state rly fd
• Z905

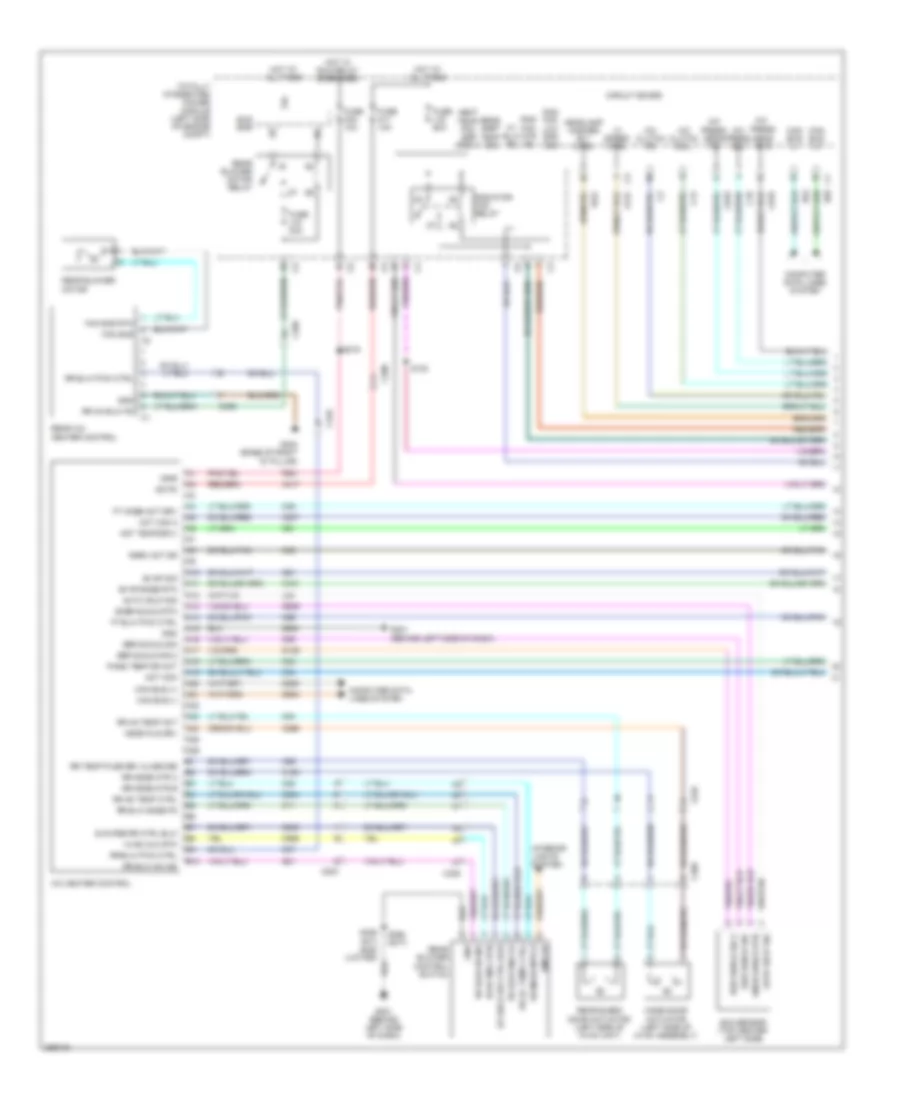

Электросхема кондиционера с ручный управлением (1 из 2) для Dodge Grand Caravan SXT 2012

Электросхема кондиционера с ручный управлением (1 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

123

• (not used)
• (top center left side)
• 10d fd
• A/c clutch coil
• A/c clutch fd
• A/c heater control
• A/c press sens fd
• A/c press sens rtn
• A/c press sig
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A417
• Abmt temp/ fcm ssr rtn 1
• Act com
• Act com 2
• Act temp(driv)
• Auto hdlp sig
• B10
• B11
• B12
• B13
• B14
• Bus bar
• C11
• C121
• C13
• C153
• C18
• C200
• C203
• C21
• C254
• C266
• C318
• C32
• C33
• C34
• C35
• C399
• C53
• C54
• C56
• C57
• C59
• C61
• C800
• C807
• C818
• C918
• C955
• Can bus (+)
• Can bus (-)
• Circuit board
• Computer data lines system
• D264
• D265
• D64
• D65
• Dim 3 ip
• Evap sig
• Evap snse rtn
• F921
• Ft blw fd
• Ft blw pwm ctrl
• Ft mode act drv
• Fuse j15 30a
• Fuse j19 60a
• Fuse m11 10a
• Fuse m34 10a
• G201 (behind left side of dash)
• G21
• Gnd
• Headlamp washer rly ctrl
• Hi speed ctrl
• Hot at all times
• Hot w/ run relay energized
• Hvac mux rtn
• Ignr
• Interior lights system
• K175
• L24
• Mode door actuator (left side of hvac assembly)
• Mode pls drv
• Pass temp dr act
• Rad fan low spd sig
• Rad fan mtr fd
• Radiator fan relay
• Rcrc act dr
• Rear blend door actuator (left side of hvac unit)
• Rear blower control switch
• Rear blower motor
• Rear blower motor relay
• Rear blower motor resister
• Rr ac temp act
• Rr ac temp ctrl
• Rr blw ctrl
• Rr blw hi lo current
• Rr blw lo current
• Rr blw on ind
• Rr blw pwm current
• Rr blw sns fd
• Rr blw snse fd
• Rr blw snse rtn
• Rr mode mtr a
• Rr mode mtr b
• Rr temp plse drv clkbwse
• S102
• S215
• S227
• S392 (sxt)
• S426 (r/t) s422 (limited)
• Sens ambt temp sig
• Sun sensor
• Sv srce rr ctrl blw
• Svsrce rr ctrl blw
• Totally integrated power module (left side of engine compt)
• W24
• Z905

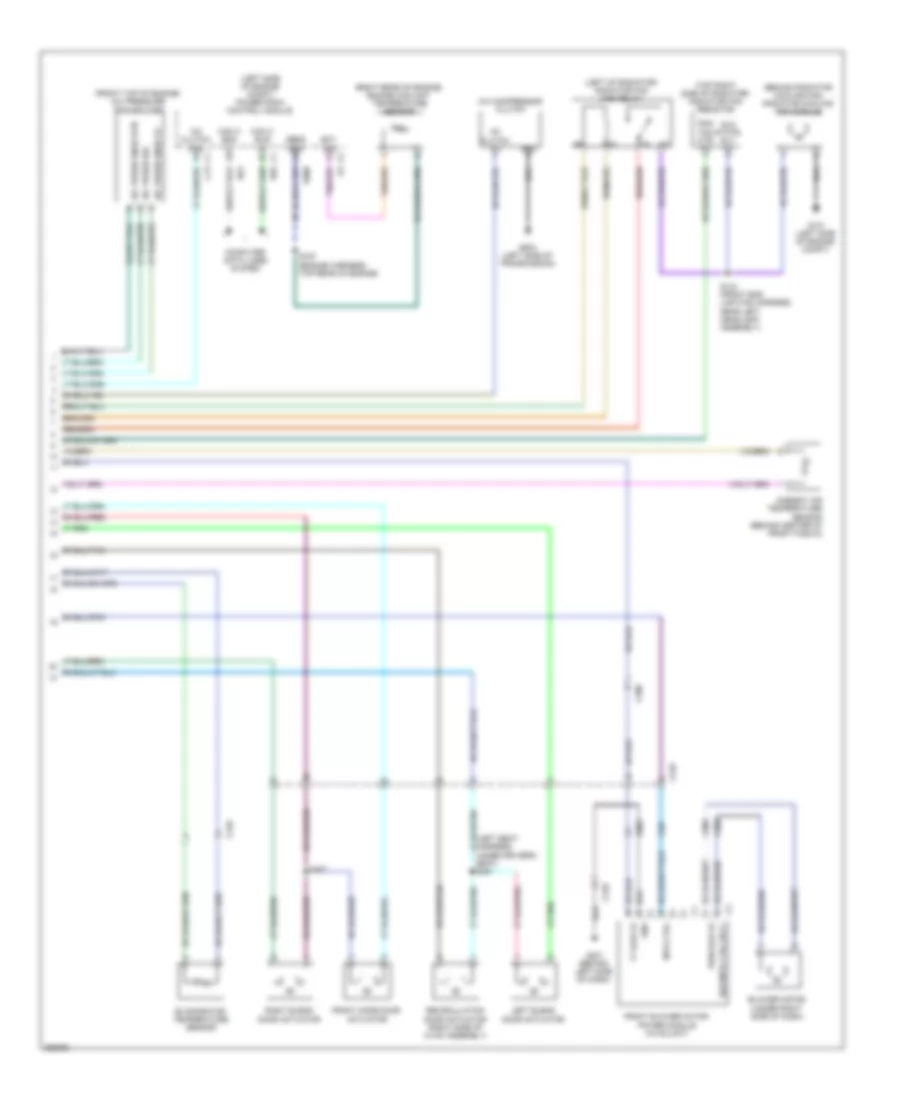

Электросхема кондиционера с ручный управлением (2 из 2) для Dodge Grand Caravan SXT 2012

Электросхема кондиционера с ручный управлением (2 из 2) для Dodge Grand Caravan SXT 2012 - Список элементов:

49

• (behind radiator cooling fan) radiator cooling fan module
• (front top of engine) a/c pressure transducer
• (left of radiator) radiator fan high relay
• (left seat harness, under driver's seat) s461
• (left side of engine compt) powertrain control module
• (right rear of engine) engine coolant temperature sensor
• (top right side of radiator) radiator fan resistor
• A/c clutch coil
• A/c compressor clutch
• A/c press sig
• A/c press snse rtn
• A/c press snsr fd
• Ac clutch fd
• Ambient air temperature sensor (behind center of front fascia)
• Blower motor (under right side of dash)
• C13
• C200
• C210
• C56
• C805
• C806
• C807
• Can bus (+)
• Can bus (-)
• Computer data lines system
• D64
• D65
• Ect sig
• Evaporator temperature sensor
• Fd blw fd
• Front blower motor power module (hvac unit)
• Front mode door actuator
• Ft plw pwm ctrl
• G101 (left side of engine compt)
• G201 (behind left side of dash)
• G804 (left side of transmission)
• Gnd
• K900
• Left blend door actuator
• Pwm blw fd
• Pwm blw rtn
• Rad fan mtr fd
• Recirculation door actuator (right side of hvac assembly)
• Right blend door actuator
• S134 (front end lighting harness, near left headlamp assembly)
• S167 (engine harness, top rear of engine)
• Sens gnd
• Sld state rly fd
• Z905
