Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Dodge Cab amp; Chassis R2500 2002

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

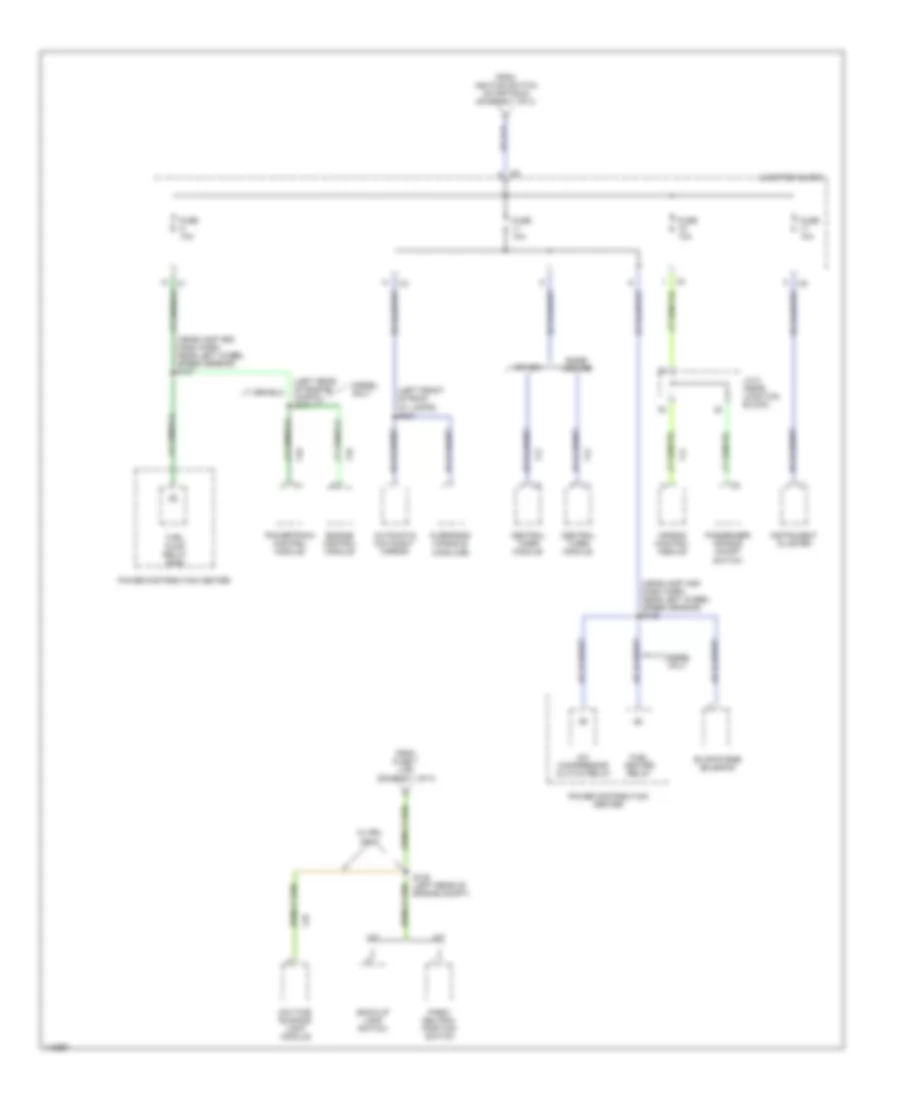

Электросхема блока предохранителей и реле (1 из 3) для Dodge Cab amp; Chassis R2500 2002

Электросхема блока предохранителей и реле (1 из 3) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (left rear of engine compt, in breakout to controller anti-lock brake) s113
• (left side of dash) s304
• (near engine control module) s167
• (not used)
• A/c heater temp- erature select
• A/t
• A14
• Acc
• After- market
• Aftermarket trailer tow connector
• Air bag control module
• Automatic shut down relay
• Auxiliary battery (diesel)
• Battery
• Blend door act- uator
• Blower motor relay
• Brake light switch
• Breakout)
• Bypass jumper
• Central timer module
• Cigar lighter
• Circuit breaker 1 20a
• Clutch pedal position switch
• Combi- nation flasher
• Combin- ation flasher
• Con- troller anti-lock brake
• Controller anti-lock brake
• Driver door window/ lock switch
• Driver heated seat switch
• Electric brake provision
• Engine starter motor relay
• Engine control module (diesel)
• Engine starter motor
• Engine starter motor relay
• Except after- market
• Fuel heater relay
• Fuel pump relay
• Fuse 10a
• Fuse 20a
• Fuse 25a
• Fuse 30a
• Fuse 40a
• Fuse 40a (diesel)
• Fuse 50a
• Fuse spare
• G201 (right center of dash)
• Heated mirror switch
• Ignition switch
• Intake air heater relay 1 (diesel)
• Intake air heater relay 2 (diesel)
• Inter- mittent wiper switch
• J/c (in pdc)
• J/c 8 (near junction block)
• Junction block
• M/t
• Nca
• Off
• Passenger door window/ lock switch
• Passenger heated seat switch
• Power distrib- ution center
• Power distribuiton center
• Power distribution center
• Power- train control module (diesel)
• Power- train control module (gas)
• Power- train control module) s161
• Radio
• Red
• Red/
• Run
• Start
• Tan
• To circuit breaker 2 (j/b) (diagram 2 of 3)
• To fuse 11 (j/b) (diagram 3 of 3)
• To fuse b (diagram 2 of 3)
• To generator fuse (diagram 2 of 3)
• To splice s108 (diagram 3 of 3)
• Trailer tow connector
• Trailer tow relay
• Wiper motor
• Wiper motor relay

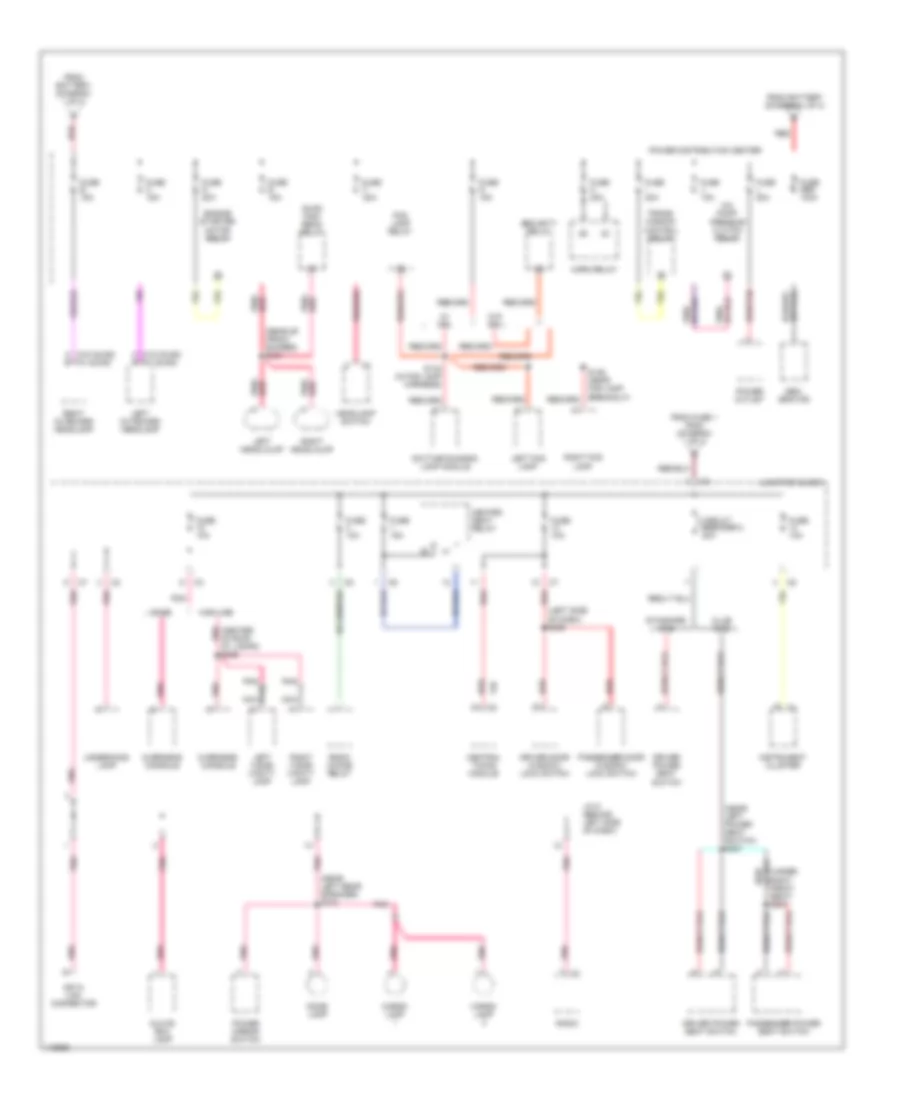

Электросхема блока предохранителей и реле (2 из 3) для Dodge Cab amp; Chassis R2500 2002

Электросхема блока предохранителей и реле (2 из 3) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (center of roof pnk at lamps) s326
• (left side of dash) s306
• (near left power seat switch) s327
• (near left rear speaker) s310
• (rear of front bumper) s181
• A (w/0 quad) (w/ quad)
• A/c comp- pressor clutch relay
• Base
• Cargo lamp
• Central timing module
• Circuit breaker 2 20a
• Club cab
• Data link connector
• Daytime running lamp module
• Dome lamp
• Driver door window/ lock switch
• Driver power seat switch
• Engine starter motor relay
• F35
• Fog lamp relay
• From battery (diagram 1 of 3)
• From fuse 1 (pdc) (diagram 1 of 3)
• Fuse 10a
• Fuse 15a
• Fuse b 15a
• Fuse c 15a
• Fuse d 20a
• Fuse e 15a
• Fuse f 20a
• Fuse g 15a
• Fuse gen 140a
• Fuse h 20a
• Fuse i 20a
• Fuse j 10a
• Fuse l 20a
• Gen- erator
• Glove box lamp
• Headlamp switch
• Heated seat relay
• Highline
• Horn relay
• Instrument cluster
• J/c 5 (behind left side of dash)
• Junction block
• Left fog lamp
• Left headlalmp
• Left outboard headlamp
• Left visor/ vanity lamp
• Nca
• Overhead console
• Passenger door window/ lock switch
• Passenger power seat switch
• Pnk
• Pnk/ red
• Pnk/red
• Power distribution center
• Power mirror switch
• Power outlet
• Quad high beam relay
• Radio
• Radio choke relay
• Red
• Red/
• Red/tan
• Right fog lamp
• Right headlalmp
• Right outboard headlamp
• Right visor/ vanity lamp
• S136 (near fog lamp breakout)
• S143 (in fog lamp harness)
• Seat) s337
• Security relay
• Standard cab
• Trans- mission control relay
• Underhood lamp
• W/ drl
• W/o drl

Электросхема блока предохранителей и реле (3 из 3) для Dodge Cab amp; Chassis R2500 2002

Электросхема блока предохранителей и реле (3 из 3) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (headlamp and dash harn, near left wheel speed sensor) s105
• (headlamp and dash harn, near left wheel speed sensor) s107
• (left front of roof at lamps) s324
• (left rear of engine compt) s171
• A/c compressor clutch relay
• A/t
• Air bag control module
• Automatic day/night mirror
• Back-up lamp switch
• Base/ midline
• Central timer module
• Daytime running lamp module
• Diesel only
• Engine control module
• Evap/purge solenoid
• F12
• F14
• F18
• From fuse 7 (j/b) (diagram 1 of 3)
• From ignition switch (start/run) (diagram 1 of 3)
• Fuel heater relay
• Fuel pump relay (gas)
• Fuse 10a
• Instrument cluster
• J/c 8 (near junction block)
• Junction block
• L10
• M/t
• Other
• Overhead console (highline)
• Park/ neutral position switch
• Passenger air bag on/off switch
• Power distribution center
• Powertrain control module
• S108 (left rear of engine compt)
• W/ drl only
