Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Cab amp; Chassis R2500 2002

ПРИБОРНАЯ ПАНЕЛЬ

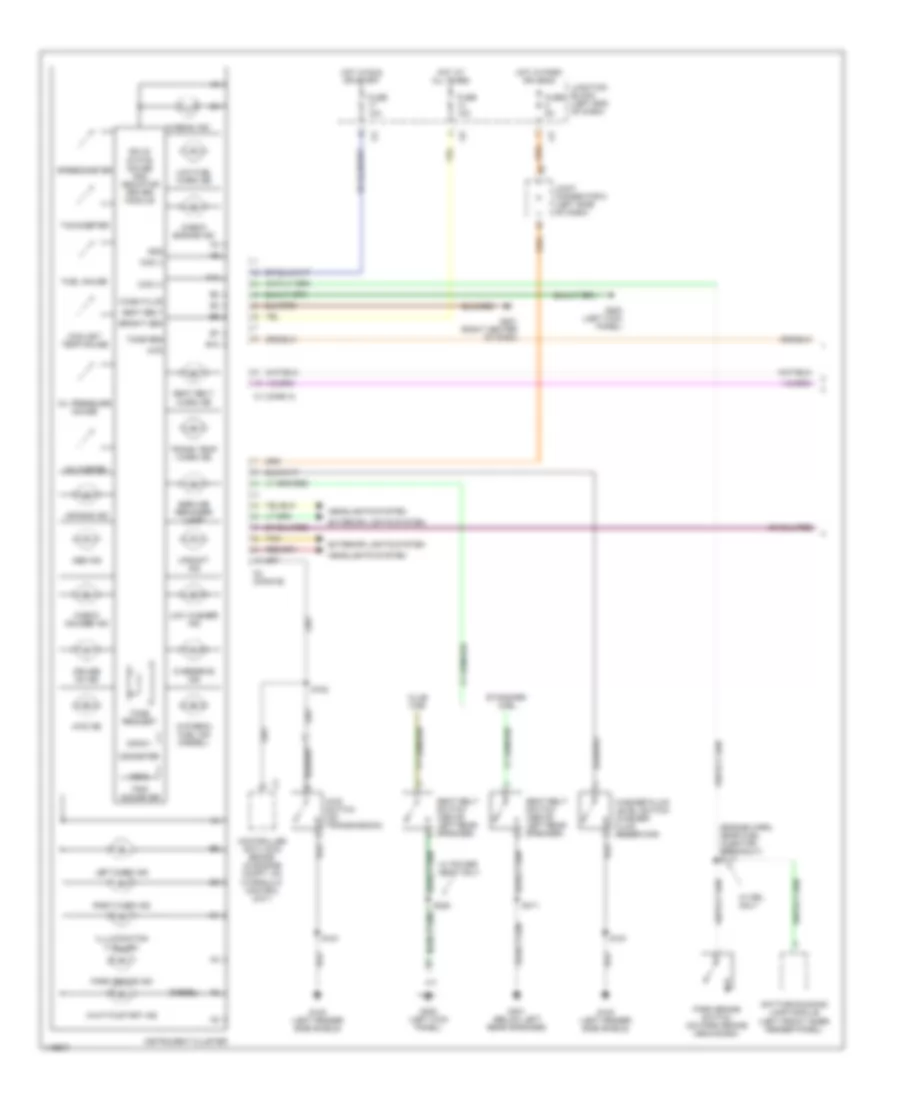

Электросхема панели приборов (1 из 2) для Dodge Cab amp; Chassis R2500 2002

Электросхема панели приборов (1 из 2) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (diesel)
• (engine harn, near fuel injector breakout) s117
• 025.6
• 4wd
• 4wd ind
• 4wd switch (on transmission)
• A10
• Abs ind
• Air bag ind
• B10
• Bright sen
• C1 (conn a)
• C2 (conn b)
• Ccd (+)
• Ccd (-)
• Check engine ind
• Check gauges ind
• Club cab
• Controller anti-lock brake (in engine compt, on hydraulic control unit)
• Coolant temp gauge
• Cruise on ind
• Daytime running lamp module (left front inner fender panel)
• Exterior lights system
• Fuel gauge
• Fuse 10a
• Fuse 5a
• G100 (left fender side shield)
• G200 (left kick panel)
• G201 (right center of dash)
• G300 (left kick panel)
• G301 (below left rear speaker)
• Gnd
• Headlights system
• Hi beam ind
• Hot at all times
• Hot in park or head
• Hot in run or start
• Illlumination (7 bulbs)
• Instrument cluster
• Joint connector 5 (left side of dash)
• Junction block (left end of dash)
• Left turn ind
• Low fuel warn ind
• Low washer ind
• Odometer
• Oil pressure gauge
• Overdrive ind
• Park brake ind
• Park brake switch (on park brake mechanism)
• Right turn ind
• S151
• S152
• S311
• S328
• Seat belt
• Seat belt switch (above left rear speaker)
• Seat belt warn ind
• Service reminder lamp
• Solid state gauge and indicator driver module
• Speedometer
• Standard cab
• Tachometer
• Tan
• Tone req
• Tone request
• Trans temp warn ind
• Trip odometer
• Upshift ind
• Voltmeter
• W/ drl only
• W/ power seat only
• Wait-to-start ind
• Wash fluid
• Washer fluid level switch (washer fluid reservoir)
• Water-in fuel ind

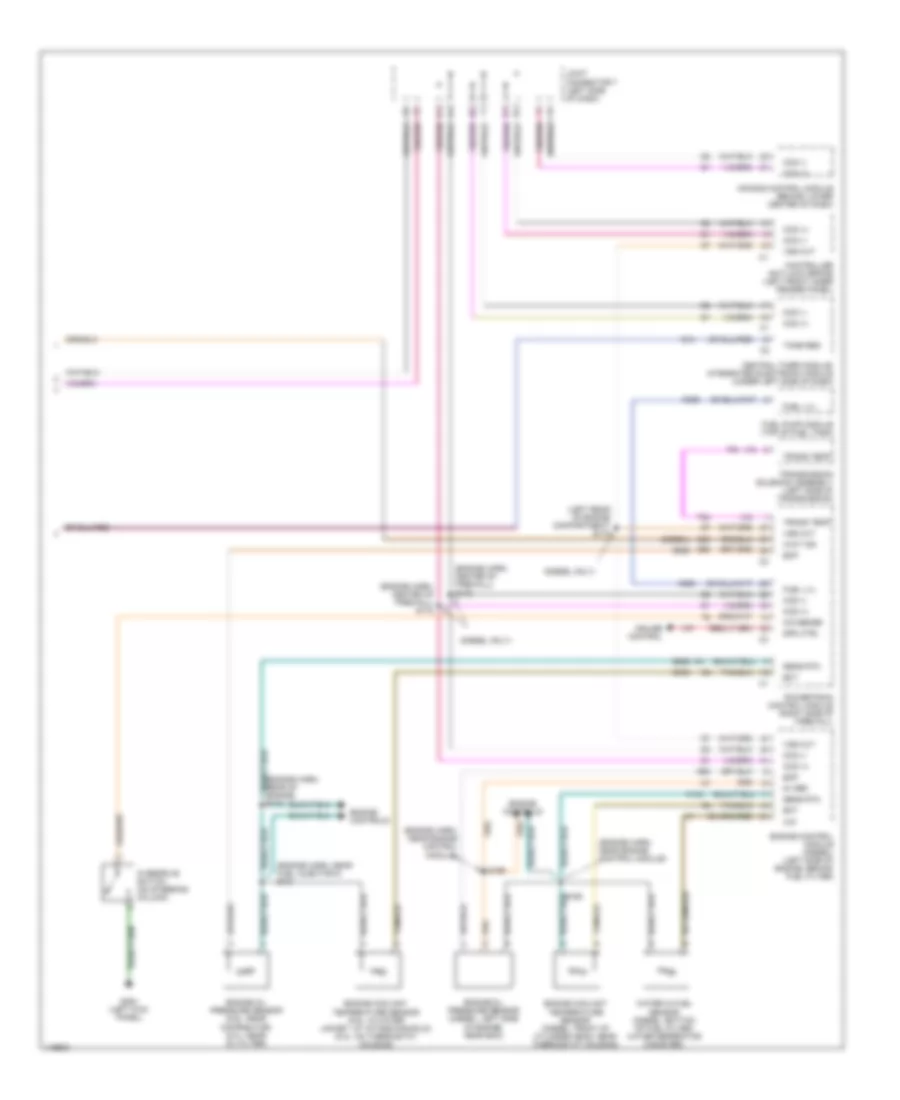

Электросхема панели приборов (2 из 2) для Dodge Cab amp; Chassis R2500 2002

Электросхема панели приборов (2 из 2) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (diesel only)
• (diesel)
• (engine harn, center of firewall) s172
• (engine harn, center of firewall) s173
• (engine harn, near engine control module)
• (engine harn, near fuel injector 5) s121
• (gas)
• (left rear of engine compartment) s174
• 5v ref
• Air bag control module (behind lower center of dash)
• Ccd (+)
• Ccd (-)
• Central timer module/ integrated electronic module (under left side of dash)
• Controller anti-lock brake (left front inner fender panel)
• Cruise control
• Ect
• Engine control module (diesel) (left side of engine, behind fuel filter)
• Engine controls
• Engine coolant temperature sensor (5.9l: in water jacket, at intake manifold) (8.0l: on thermostat housing)
• Engine coolant temperature sensor (diesel: front of cylinder head, near thermostat housing)
• Engine oil pressure sensor (5.9l: near distributor) (8.0l: near oil filter)
• Engine oil pressure sensor (diesel: left side of engine, near ecm)
• Eop
• Fuel lvl
• Fuel pump module (top of fuel tank)
• G13
• G200 (left kick panel)
• G60
• G85
• Joint connector 7 (left side of dash)
• K104
• K226
• O/d sense
• Overdrive switch (on steering column)
• Powertrain control module (right side of firewall)
• S118
• S165
• S166
• Sens rtn
• Spd ctrl
• T54
• Tone req
• Trans temp
• Transmission solenoid assembly (left side of transmission)
• V37
• Vss out
• Wait ind
• Water in fuel sensor (diesel: bottom of fuel filter/ water seperator canister)
• Wif

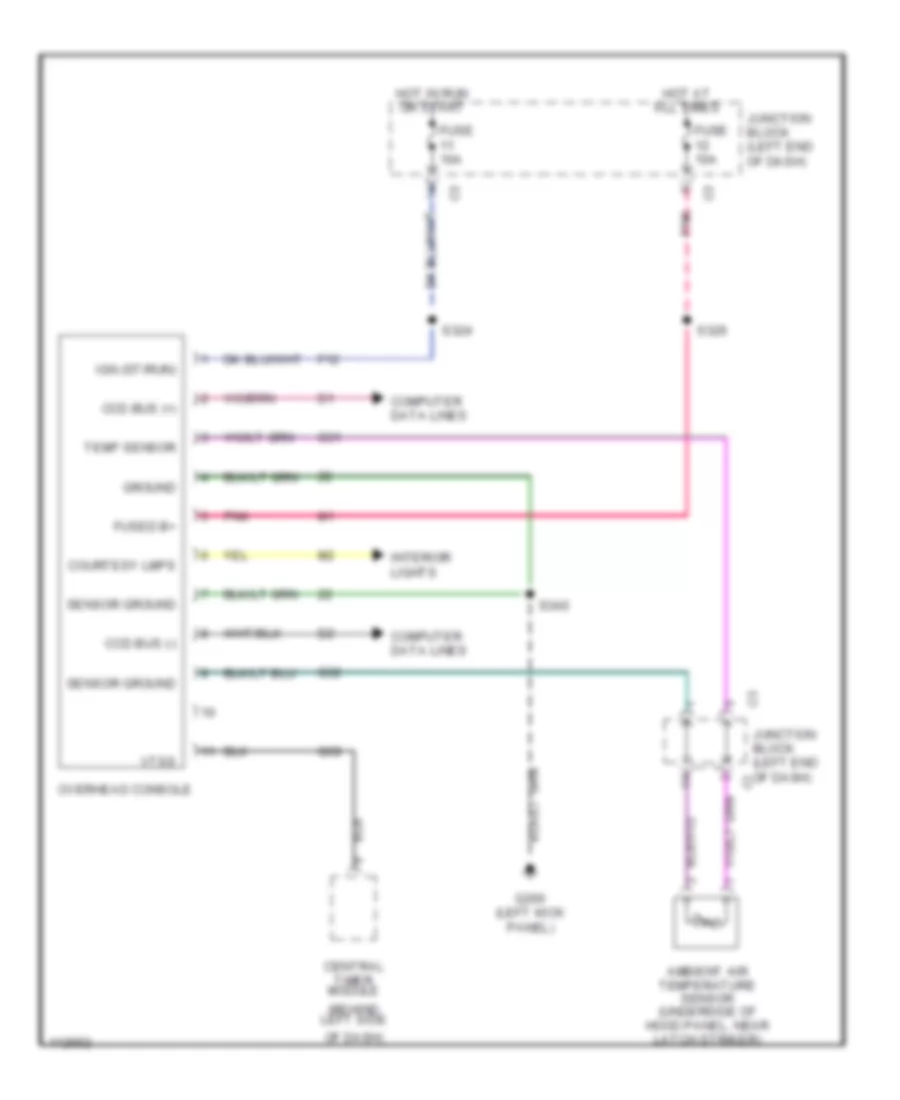

Электросхема верхней консоли управления для Dodge Cab amp; Chassis R2500 2002

Электросхема верхней консоли управления для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (behind left side
• Ambient air temperature sensor (underside of hood panel, near latch striker)
• Ccd bus (+)
• Ccd bus (-)
• Central timer module
• Computer data lines
• Courtesy lmps
• F12
• Fuse 10a
• Fused b+
• G200 (left kick panel)
• G31
• G32
• G69
• Ground
• Hot at all times
• Hot in run or start
• Ign (st/run)
• Interior lights
• Junction block (left end of dash)
• Of dash)
• Overhead console
• Pnk
• S324
• S326
• S340
• Sensor ground
• Temp sensor
• Vtss
