СИСТЕМА КРУИЗКОНТРОЛЯ

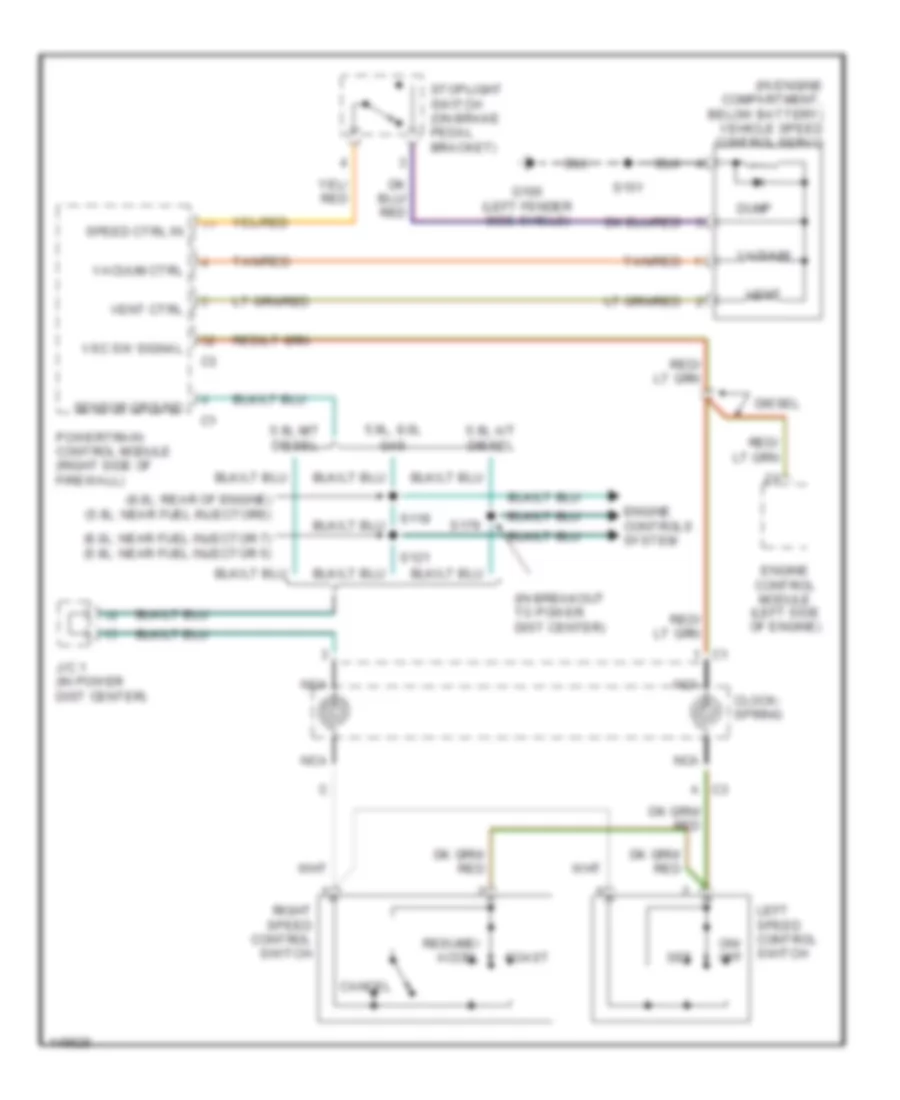

Электросхема системы круизконтроля для Dodge Cab amp; Chassis R2500 2002

Электросхема системы круизконтроля для Dodge Cab amp; Chassis R2500 2002 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы круизконтроля для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

  • (8.0l: near fuel injector 7) (5.9l: near fuel injector 5)
  • (8.0l: rear of engine) (5.9l: near fuel injectors)
  • (in breakout to power dist center)
  • (in engine compartment, below battery) vehicle speed control servo
  • 5.9l a/t diesel
  • 5.9l m/t diesel
  • 5.9l, 8.0l
  • C3 a
  • Cancel
  • Clock- spring
  • Coast
  • Diesel
  • Dump
  • Engine control module (left side of engine)
  • Engine controls system
  • G100 (left fender side shield)
  • Gas
  • J/c 1 (in power dist center)
  • Left speed control switch
  • Nca
  • On/ off
  • Powertrain control module (right side of firewall)
  • Resume/ accel
  • Right speed control switch
  • S118
  • S121
  • S151
  • S179
  • Sensor ground
  • Set
  • Speed ctrl in
  • Stoplight switch (on brake pedal bracket)
  • Tan/red
  • Vacuum
  • Vacuum ctrl
  • Vent
  • Vent ctrl
  • Vsc sw signal
