Электросхемы СИСТЕМЫ СИДЕНИЙ Dodge Cab amp; Chassis R2500 2002

СИСТЕМЫ СИДЕНИЙ

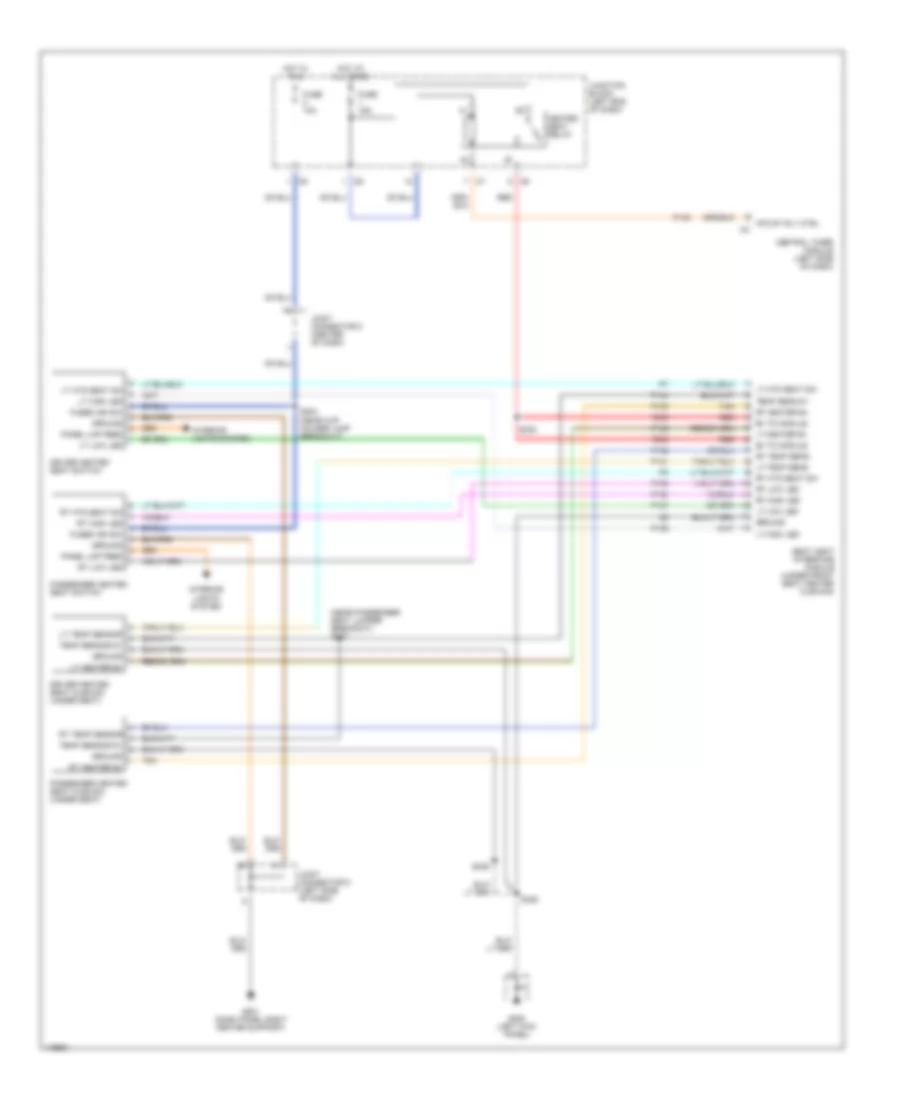

Электросхема подогрева сидений для Dodge Cab amp; Chassis R2500 2002

Электросхема подогрева сидений для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (near passenger seat jumper breakout) s333
• B+ to module
• Central timer module (left side of dash)
• Driver heated seat cushion (under seat)
• Driver heated seat switch
• F235
• Fuse 10a
• Fuse 15a
• Fused ign sw
• G201 (dash panel right center support)
• G300 (left kick panel)
• Ground
• Heated seat relay
• Hot at all times
• Hot in run
• Htd st rly ctrl c2
• Interior lights system
• Joint connector 5 (left side of dash)
• Joint connector 8 (center of dash)
• Junction block (left end of dash)
• Lt heater b+
• Lt high led
• Lt htd seat sw
• Lt low led
• Lt temp sens
• Lt temp sensor
• P130
• P132
• P137
• P138
• P139
• P140
• P141
• P142
• P144
• Panel lmp feed
• Passenger heated seat cushion (under seat)
• Passenger heated seat switch
• Red
• Rt heater b+
• Rt high led
• Rt htd seat sw
• Rt low led
• Rt temp sens
• Rt temp sensor
• S204 (near cup holder lamp breakout)
• S328
• S335
• S336
• Seat heat interface module (under front seat center cushion)
• Tan
• Temp sens 5v
• Temp sensor 5v

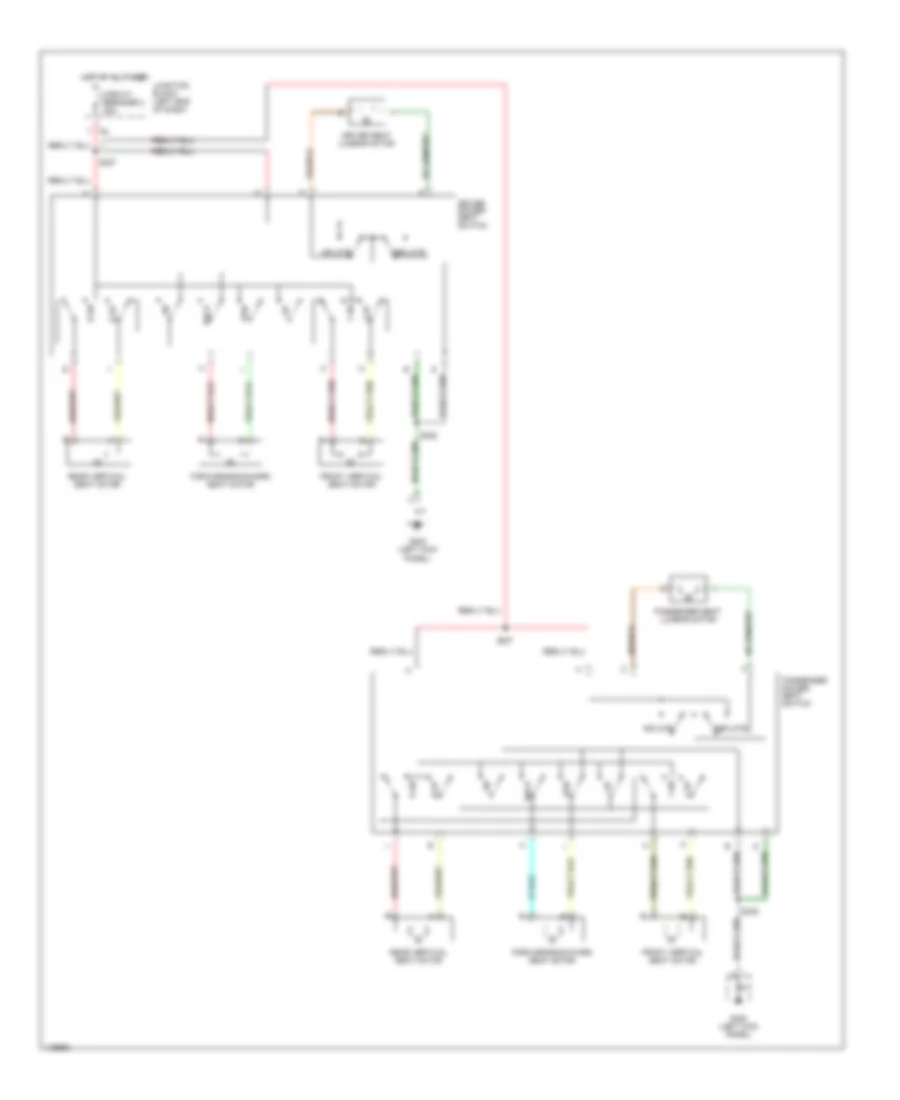

Электросхема привода сидений, двойная кабина для Dodge Cab amp; Chassis R2500 2002

Электросхема привода сидений, двойная кабина для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• Back
• Circuit breaker 2 20a
• Deflate
• Driver power seat switch
• Driver seat lumbar motor
• F dn
• F up
• Forward/backward seat motor
• Front vertical seat motor
• Fwd
• G300 (left kick panel)
• Hot at all times
• Inflate
• Junction block (left end of dash)
• Passenger power seat switch
• Passenger seat lumbar motor
• R dn
• R up
• Rear vertical seat motor
• S327
• S328
• S336
• S337

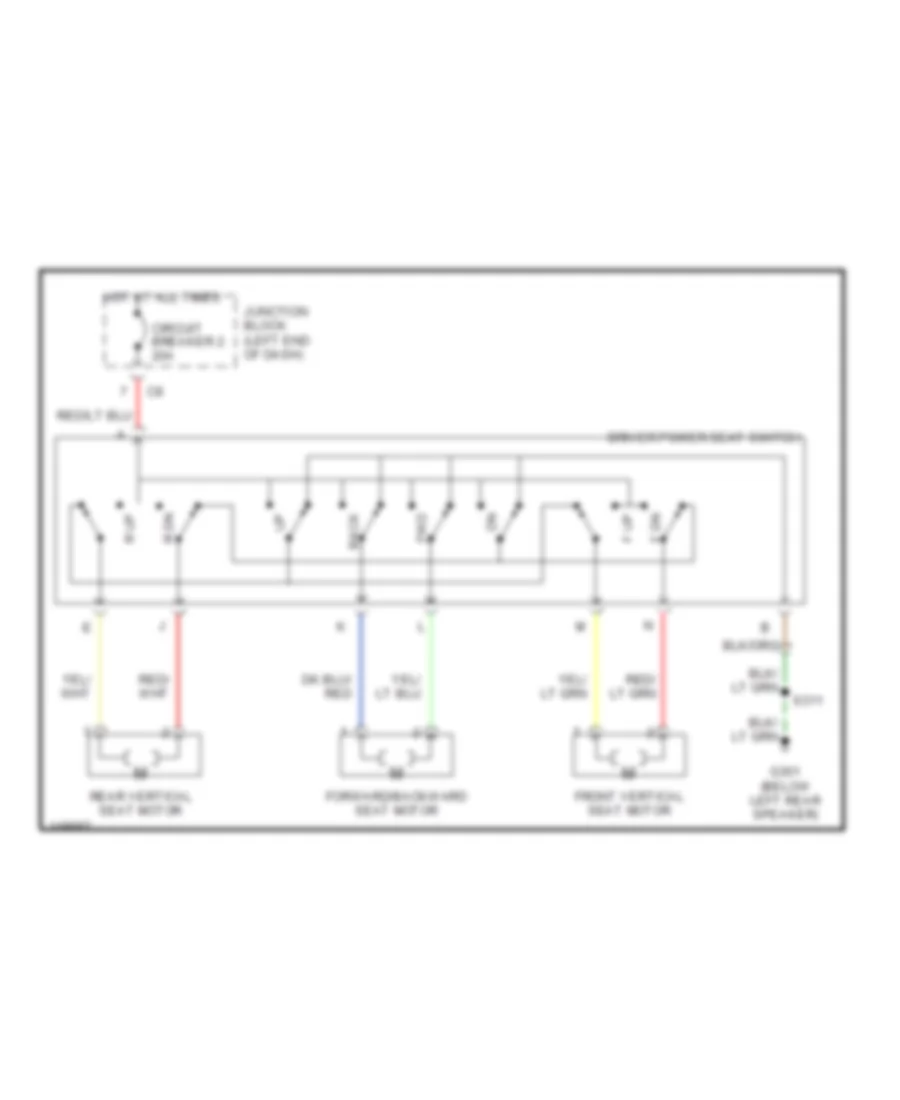

Электросхема привода сидений, стандарт для Dodge Cab amp; Chassis R2500 2002

Электросхема привода сидений, стандарт для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• Back
• Circuit breaker 2 20a
• Driver power seat switch
• F dn
• F up
• Forward/backward seat motor
• Front vertical seat motor
• Fwd
• G301 (below left rear speaker)
• Hot at all times
• Junction block (left end of dash)
• R dn
• R up
• Rear vertical seat motor
• S311
