Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Dodge Cab amp; Chassis R2500 2002

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

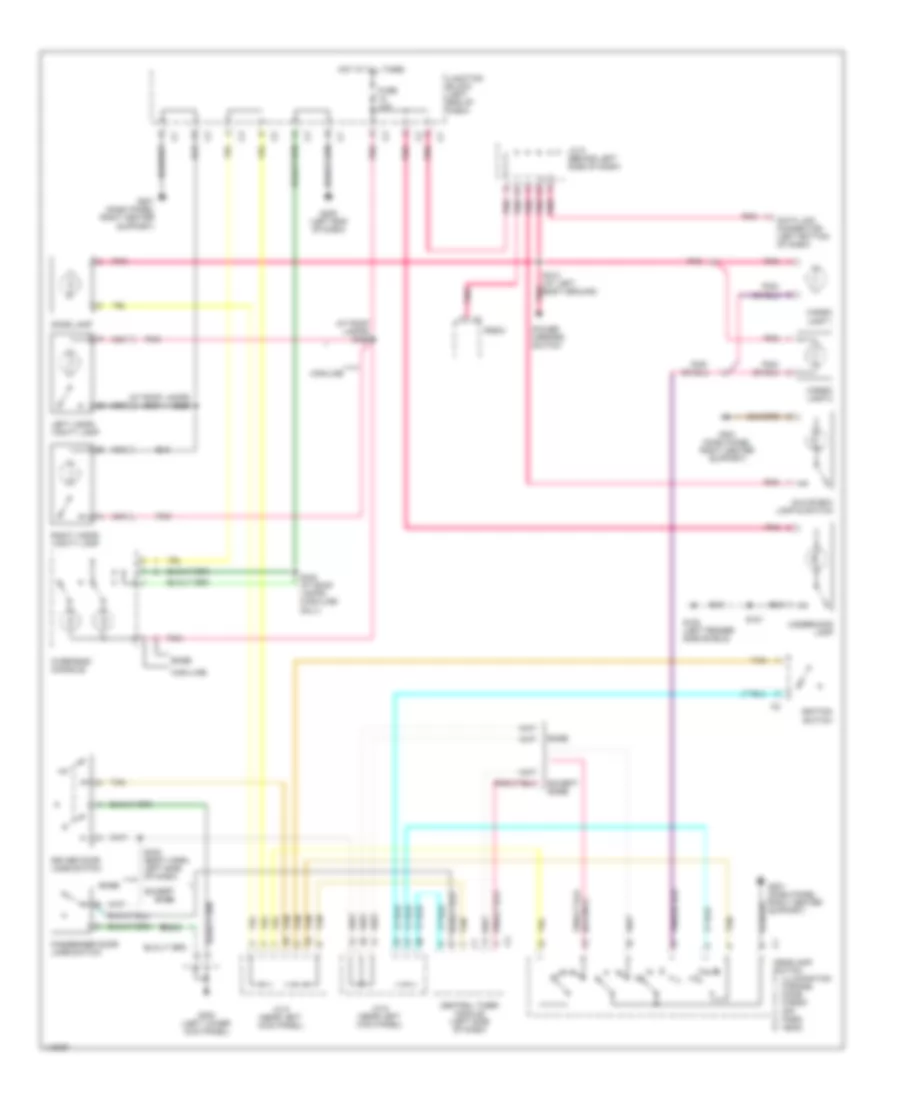

Электросхема подсветки для Dodge Cab amp; Chassis R2500 2002

Электросхема подсветки для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (at roof lamps) s323
• (at roof lamps) s326
• Base
• Cargo lamp 1
• Cargo lamp 2
• Central timer module (left side of dash)
• Data link connector (left bottom of dash)
• Dome lamp
• Driver door jamb switch
• Except base
• Fuse 10a
• G100 (left fender side shield)
• G200 (left end of dash)
• G201 (dash panel right center support)
• G300 (left lower kick panel)
• Glove box lamp & switch
• Headlamp switch
• High-line
• Highline
• Hot at all times
• Ignition switch
• Illumination parade dome cargo off park head
• J/c 5 (behind left side of dash)
• J/c 6 (near left kick panel)
• J/c 8 (near left kick panel)
• Junction block (left end of dash)
• Left visor/ vanity lamp
• Nca
• Overhead console
• Passenger door jamb switch
• Pnk
• Power mirrors switch
• Radio
• Right visor/ vanity lamp
• S151
• S305
• S310 (at left body ground)
• S332 (body harn, left side of dash)
• S340 (at roof lamps) (high-line only)
• Tan
• Underhood lamp

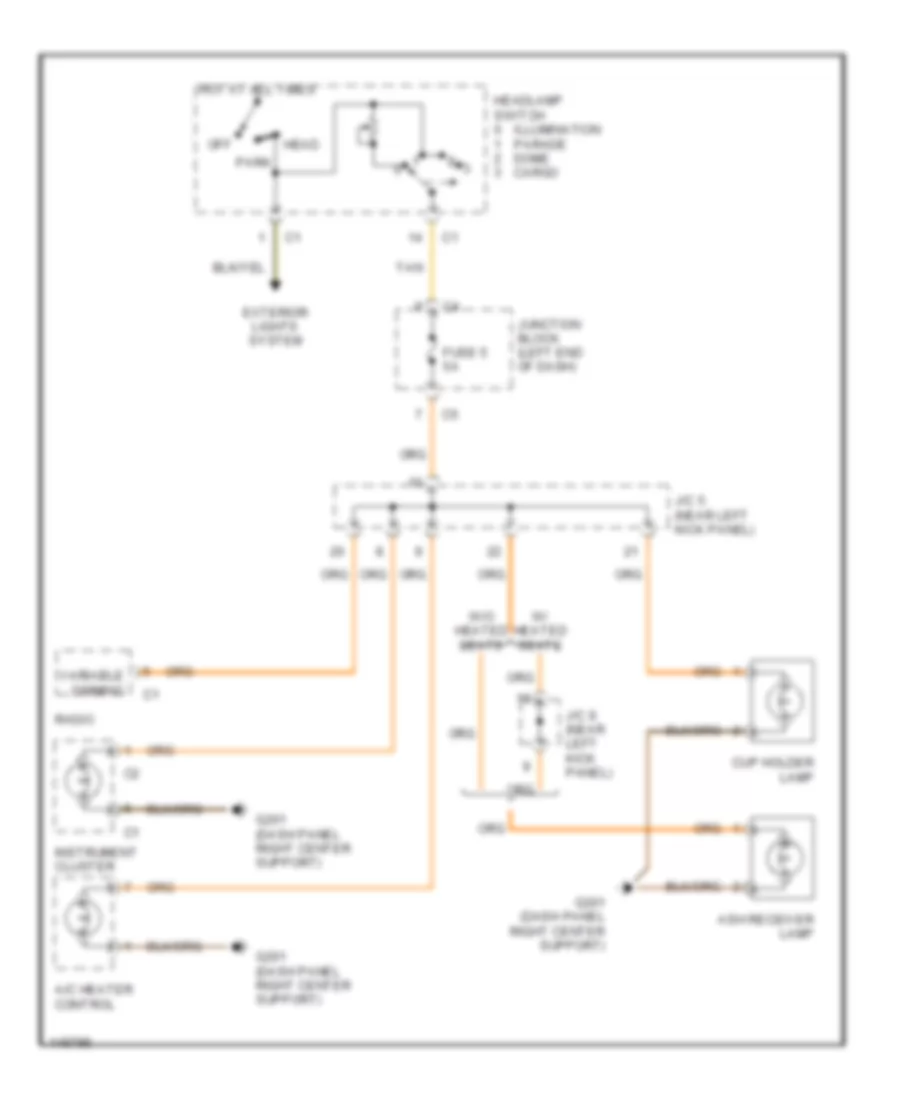

Электросхема подсветки приборов для Dodge Cab amp; Chassis R2500 2002

Электросхема подсветки приборов для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• A/c heater control
• Ash receiver lamp
• Cup holder lamp
• Exterior lights system
• Fuse 5 5a
• G201 (dash panel right center support)
• Head
• Headlamp switch
• Hot at all times
• Illumination parade dome cargo
• Instrument cluster
• J/c 5 (near left kick panel)
• J/c 8 (near left kick panel)
• Junction block (left end of dash)
• Off
• Park
• Radio
• Tan
• Variable dimming
• W/ heated seats
• W/o heated seats
