Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Cab amp; Chassis R2500 2002

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Dodge Cab amp; Chassis R2500 2002

Электросхема заднего хода для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (left rear frame rail) s316
• (near daytime running lamps module)
• (w/ trailer package)
• A/t
• Automatic day/night mirror (highline)
• Back- up lamp switch (on left side of trans)
• Daytime running lamp module
• Fuse 10a
• G100 (left fender side shield)
• Hot in run
• J/c 1 (in pdc)
• Junction block
• Left back-up lamp
• M/t
• Park/ neutral position switch (left side of trans)
• Right back-up lamp
• S108
• S315
• S401
• S402
• Trailer tow connector or aftermarket trailer tow connector
• W/ aftermarket w/o aftermarket
• W/ drl
• W/o drl

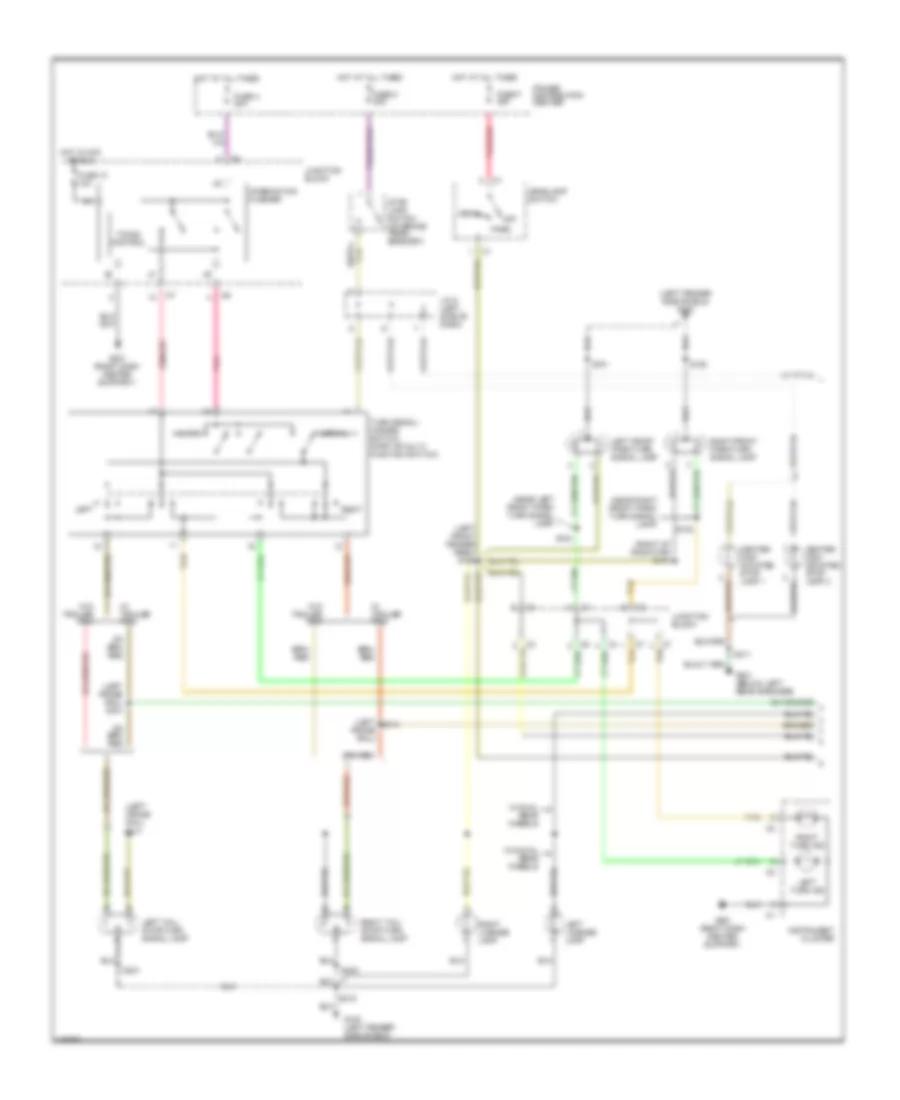

Внешние Лампы и Схема соединителя Трейлера (1 из 2) для Dodge Cab amp; Chassis R2500 2002

Внешние Лампы и Схема соединителя Трейлера (1 из 2) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (left fender side shield) g100
• (left frame rail)
• (left frame rail) s313
• (left front fender area) s104
• (left s314
• (near left front park/ turn signal lamp)
• (near right front park/ turn signal lamp)
• (right of radiator) s141
• Center high mounted stop lamp 1
• Center high mounted stop lamp 2
• Combination flasher
• Frame rail)
• Fuse 10 10a
• Fuse 4 20a
• Fuse 5 20a
• Fuse f 20a
• G100 (left fender side shield)
• G201 (right dash center support)
• G301 (below left rear speaker)
• Hazard
• Head
• Headlamp switch
• Hot at all times
• Hot in acc or run
• Instrument cluster
• J/c 6 (left side of dash)
• Junction block
• Left
• Left front park/turn signal lamp
• Left license lamp
• Left tail/ stop/turn signal lamp
• Left turn ind
• Normal
• Off
• Park
• Pnk
• Pnk/red
• Power distribution center
• Right
• Right front park/turn signal lamp
• Right license lamp
• Right tail/ stop/turn signal lamp
• Right turn ind
• S102
• S103
• S150
• S151
• S311
• S315
• S317
• S401
• S402
• Stop lamp switch (on brake pedal bracket)
• Tan
• Timing control
• Turn signal/ hazard switch (part of multi- function switch)
• W/ dual rear wheels
• W/ trailer tow
• W/o dual rear wheels
• W/o trailer tow

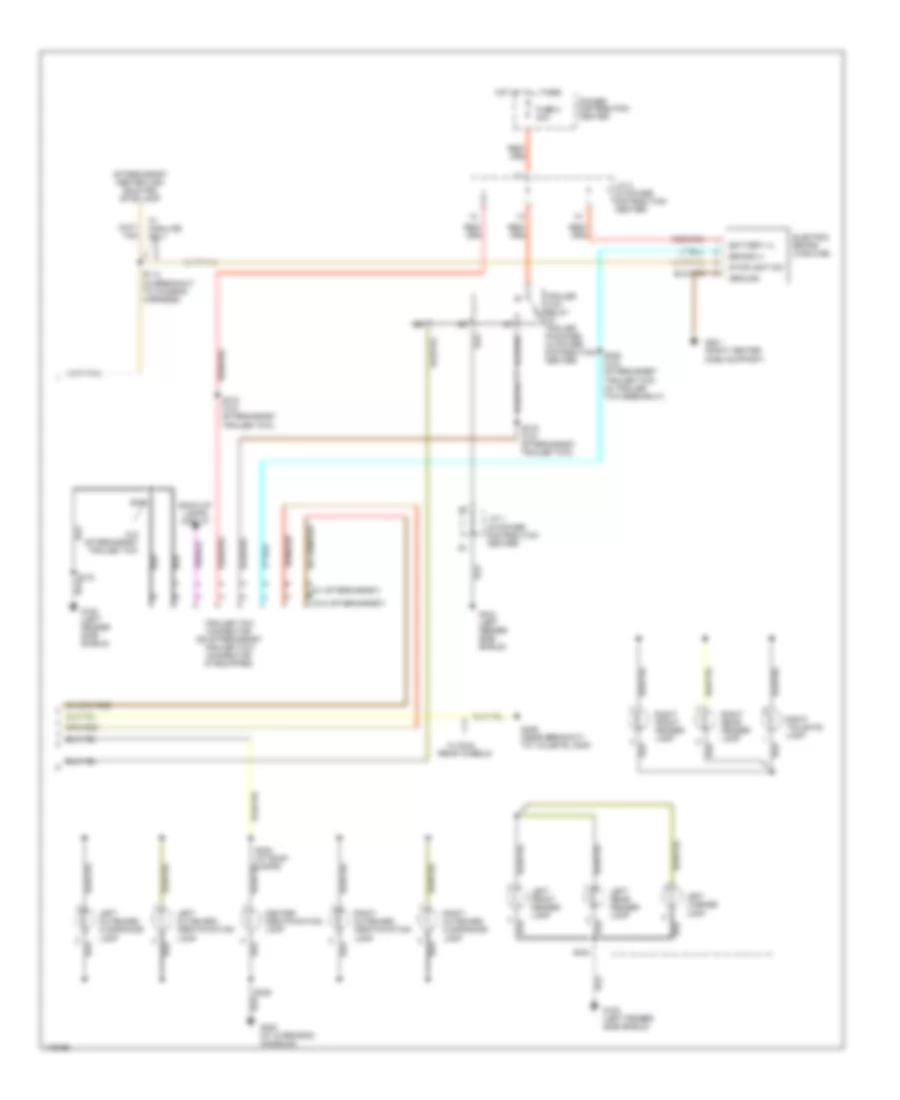

Внешние Лампы и Схема соединителя Трейлера (2 из 2) для Dodge Cab amp; Chassis R2500 2002

Внешние Лампы и Схема соединителя Трейлера (2 из 2) для Dodge Cab amp; Chassis R2500 2002 - Список элементов:

• (w/ aftermarket)
• (w/o aftermarket)
• Aftermarket center high mounted stop lamp
• Back-up lamps circuit
• Battery (+)
• Brake (+)
• Center identification lamp
• Electric brake (highline)
• Fuse 8 40a
• G100 (left fender side shield)
• G102 (left fender side shield)
• G201 (right center dash support)
• G302 (at overhead console)
• Ground
• Hot at all times
• J/c 1 (in power distribution center)
• J/c 2 (in power distribution center)
• Left front fender lamp
• Left license lamp
• Left outboard clearance lamp
• Left outboard identification lamp
• Left rear fender lamp
• Power distribution center
• Rear wheels
• Right front fender lamp
• Right outboard clearance lamp
• Right outboard identification lamp
• Right rear fender lamp
• Right tailgate lamp
• S114 (in breakout to chassis harness)
• S315
• S318 (w/o aftermarket trailer tow)
• S319 (w/o aftermarket trailer tow)
• S320 (w/o aftermarket trailer tow) (in trailer tow breakout)
• S321
• S322 (at roof lamps)
• S325
• S404
• S406 (near breakout to tailgate lamp)
• Stoplight sw
• Trailer tow connector or aftermarket trailer tow connector (if equipped)
• Trailer tow relay (w/ trailer package) (in power distribution center)
• W/ dual
• W/ highline only
• W/0 aftermarket trailer tow
