Система Фар

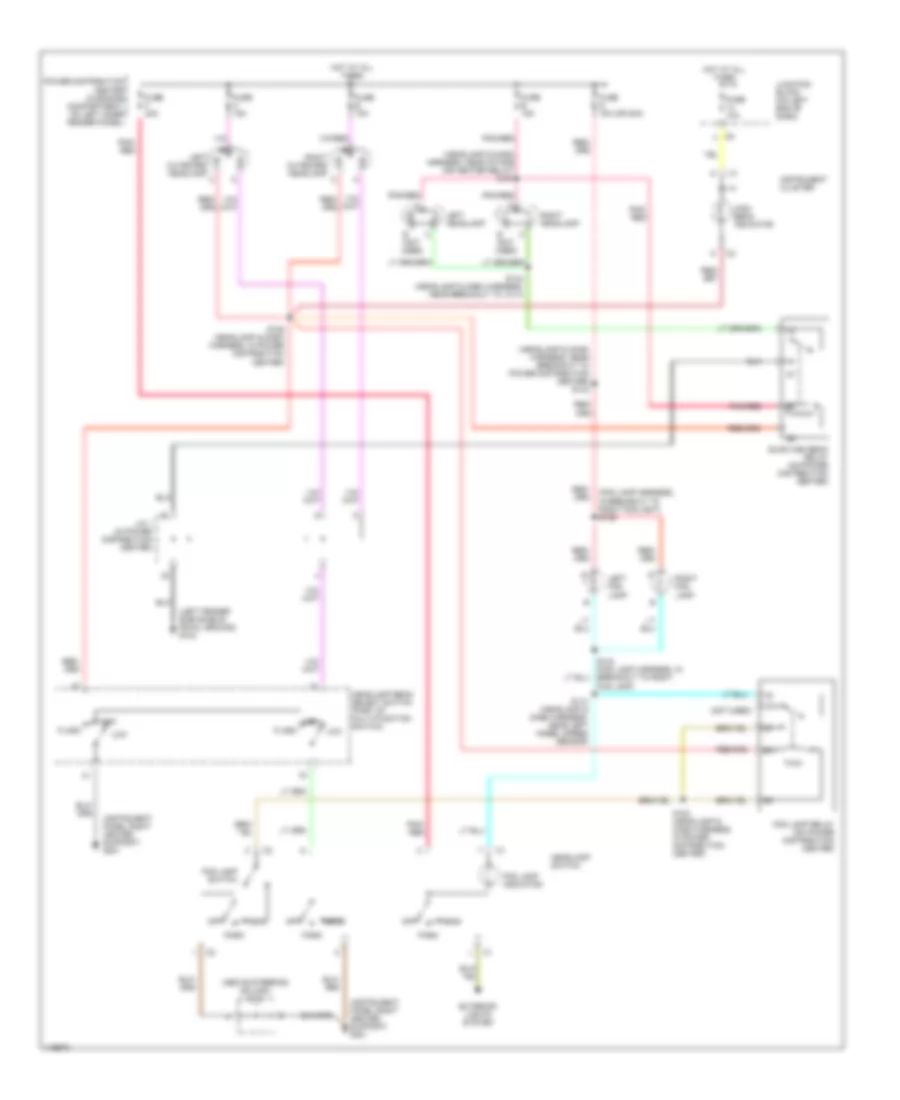

Headlight Wiring Diagram, withDRL & withQuad Headlights для Dodge Cab amp; Chassis R2500 2002
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
Headlight Wiring Diagram, withDRL & withQuad Headlights для Dodge Cab amp; Chassis R2500 2002 - Список элементов:
- (above steering column) j/c 5
- (fog lamp harness, in breakout to right fog lamp) s136
- (headlamp & dash harness, in breakout to daytime running lamps module)
- (headlamp & dash harness, near breakout to power distribution center) s143
- (headlamp & dash harness, near intake air heater relay) s181
- (instrument panel right center support) g201
- (left fender side shield) (rwal ground) g102
- (not used)
- 87a
- Daytime running lamp (drl) module (in engine compartment, on left inner fender panel)
- Exterior lights system
- Flash
- Fog lamp ctrl
- Fog lamp indicator
- Fog lamp relay (on power distribution center)
- Fog lamp switch
- Fuse 10a
- Fuse b 15a
- Fuse c 15a
- Fuse e 15a
- Fuse f 20a
- Fuse g 15a
- Fused b (+)
- G100 (left fender side shield)
- G11
- G34
- Ground
- Head
- Headlamp beam select switch (part of multi-function switch)
- Headlight switch
- High
- High beam ind
- High beam indicator
- High beam out
- High low
- Hot at all times
- Hot in run
- Ignition
- Instrument cluster
- J/c 1 (in power distribution center)
- Junction block (on left end of dash)
- L10
- L139
- L34
- Left fog lamp
- Left headlamp
- Left outboard headlamp
- Low
- Low beam out
- Off
- Park
- Park brake indicator
- Park brake sen
- Park brake switch (on park brake mechanism)
- Pnk/ red
- Pnk/red
- Power distribution center (in engine compartment, on left inner fender panel, near battery)
- Quad high beam relay (in power distribution center)
- Right fog lamp
- Right headlamp
- Right outboard headlamp
- S106 (headlamp & dash harness, in power distribution center)
- S110 (headlamp & dash harness, near left wheel speed sensor)
- S134 (fog lamp harness, in breakout to right fog lamp)
- S144 (headlamp & dash harness, near breakout to j/c 3)
- S151 (left front of engine compartment)
- S177 (headlamp & dash harness, in breakout to daytime running lamps (drl) module)
- S182
- Security relay

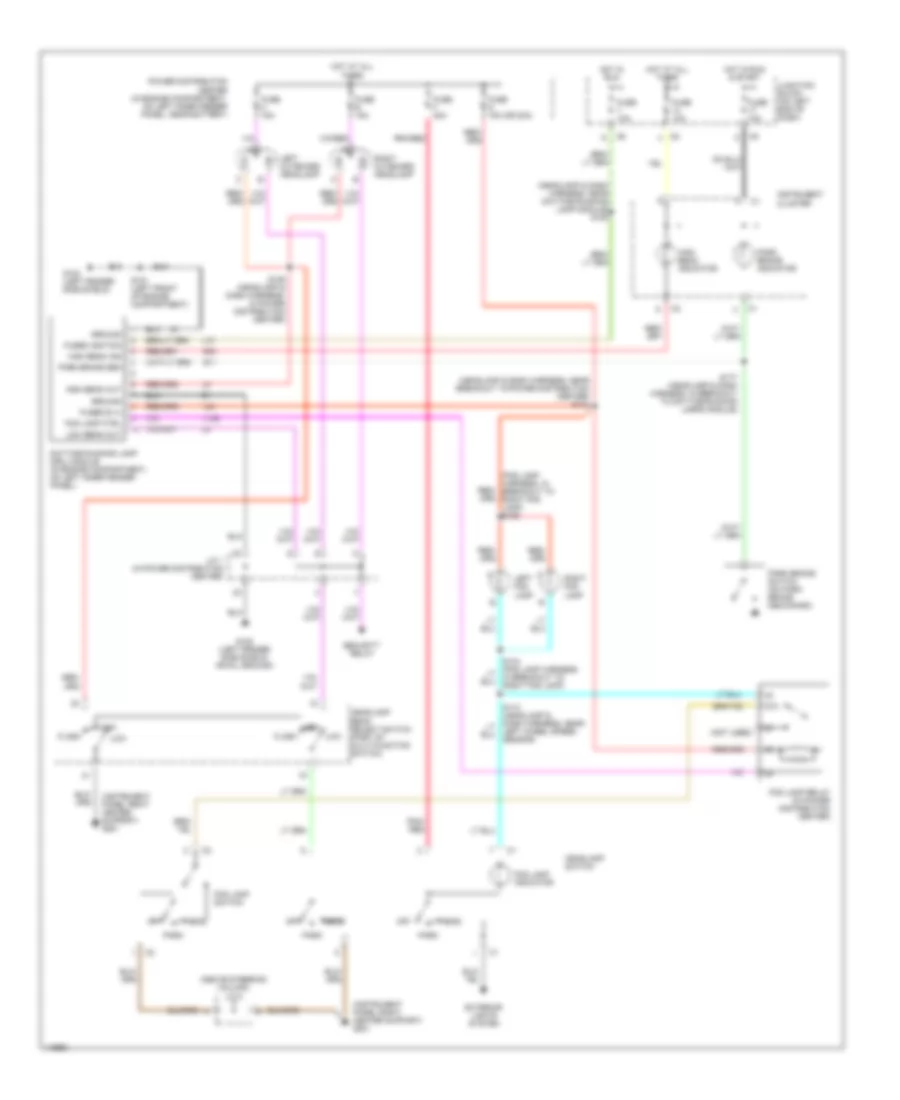

Headlight Wiring Diagram, withDRL & without Квадратические Фары для Dodge Cab amp; Chassis R2500 2002
Headlight Wiring Diagram, withDRL & without Квадратические Фары для Dodge Cab amp; Chassis R2500 2002 - Список элементов:
- (above steering column) j/c 5
- (fog lamp harness, in breakout to right fog lamp) s136
- (headlamp & dash harness, near breakout to power distribution center) s143
- (headlamp & dash harness, near daytime running lamp module) s108
- (instrument panel right center support) g201
- (not used)
- 87a
- Daytime running lamp (drl) module (in engine compartment, on left inner fender panel)
- Exterior lights system
- Flash
- Fog lamp ctrl
- Fog lamp indicator
- Fog lamp relay (in power distribution center)
- Fog lamp switch
- Fuse 10a
- Fuse b 15a
- Fuse c 15a
- Fuse f 20a
- Fuse g 15a (or 20a)
- Fused b (+)
- Fused ignition
- G100 (left fender side shield)
- G102 (left fender side shield) (rwal ground)
- G11
- G34
- Ground
- Head
- Headlamp beam select switch (part of multi-function switch)
- Headlamp switch
- High
- High beam ind
- High beam indicator
- High beam out
- Hot at all times
- Hot in run
- Hot in run & start
- Instrument cluster
- J/c 1 (in power distribution center)
- Junction block (on left end of dash)
- L10
- L139
- L34
- Left fog lamp
- Left outboard headlamp
- Low
- Low beam out
- Off
- Park
- Park brake indicator
- Park brake sen
- Park brake switch (on park brake mechanism)
- Pnk/ red
- Pnk/red
- Power distribution center (in engine compartment, on left inner fender panel, near battery)
- Right fog lamp
- Right outboard headlamp
- S106 (headlamp & dash harness, in power distribution center)
- S110 (headlamp & dash harness, near left wheel speed sensor)
- S134 (fog lamp harness, in breakout to right fog lamp)
- S151 (left front of engine compartment)
- S177 (headlamp & dash harness, in breakout to daytime running lamps module)
- Security relay
Headlight Wiring Diagram, without DRL & withQuad Headlights для Dodge Cab amp; Chassis R2500 2002
Headlight Wiring Diagram, without DRL & withQuad Headlights для Dodge Cab amp; Chassis R2500 2002 - Список элементов:
- (above steering column) j/c 5
- (fog lamp harness, in breakout to right fog light) s136
- (headlamp & dash harness, near breakout to power distribution center) s143
- (headlamp & dash harness, near intake air heater relay) s181
- (instrument panel right center support) g201
- (left fender side shield) (rwal ground) g102
- (not used)
- 87a
- Exterior lights system
- Flash
- Fog lamp indicator
- Fog lamp relay (on power distribution center)
- Fog lamp switch
- Fog lamp)
- Fuse 10a
- Fuse b 15a
- Fuse c 15a
- Fuse e 15a
- Fuse f 20a
- Fuse g 15a (or 20a)
- Head
- Headlamp beam select switch (part of multi-function switch)
- Headlamp switch
- High
- High beam indicator
- Hot at all times
- Instrument cluster
- J/c 1 (in power distribution center)
- Junction block (on left end of dash)
- Left fog lamp
- Left headlamp
- Left outboard headlamp c
- Low
- Off
- Park
- Pnk/ red
- Pnk/red
- Power distribution center (in engine compartment, on left inner fender panel)
- Quad high beam relay (on power distribution center)
- Right fog lamp
- Right headlamp
- Right outboard headlamp c
- S106 (headlamp & dash harness, in power distribution center)
- S110 (headlamp & dash harness, near left wheel speed sensor)
- S144 (headlamp & dash harness, near breakout to j/c 3)
- S183 (headlamp & dash harness, in power distribution center)

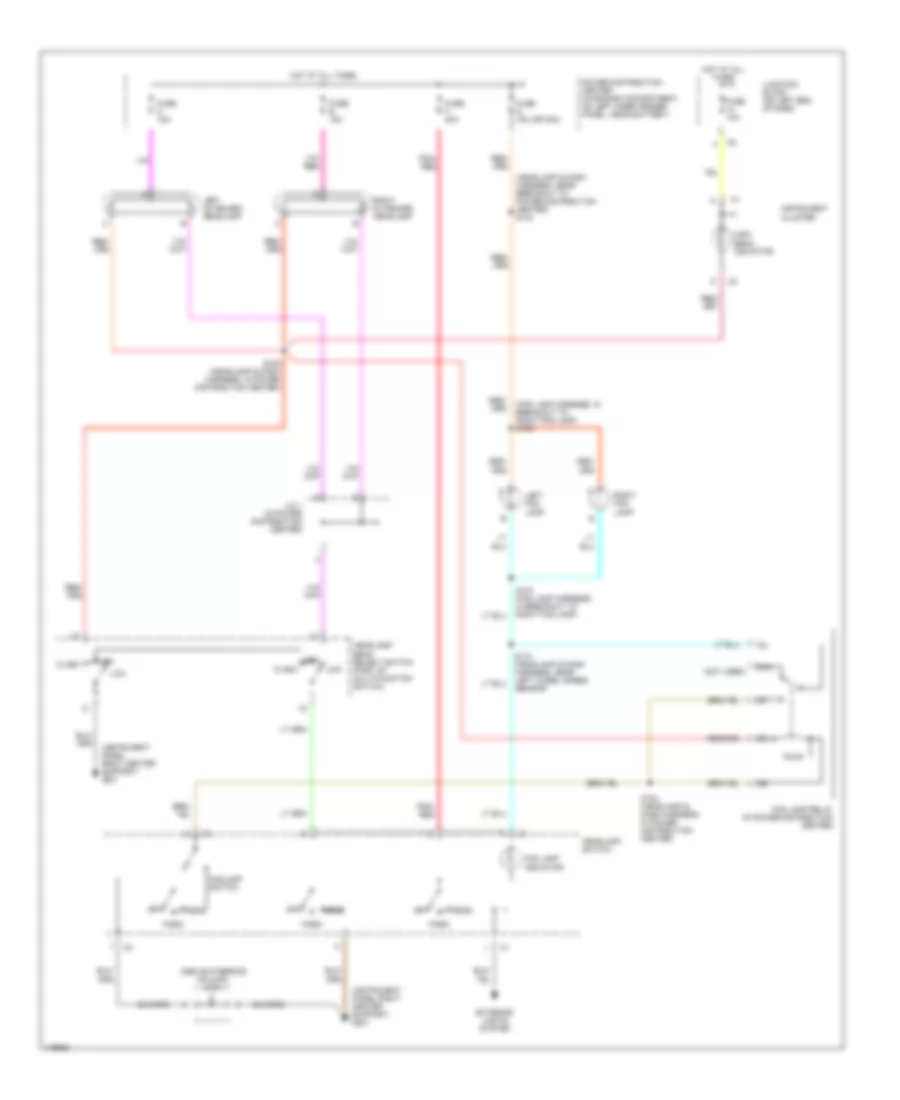

Headlight Wiring Diagram, without DRL & without Квадратические Фары для Dodge Cab amp; Chassis R2500 2002
Headlight Wiring Diagram, without DRL & without Квадратические Фары для Dodge Cab amp; Chassis R2500 2002 - Список элементов:
- (above steering column) j/c 5
- (fog lamp harness, in breakout to right fog lamp) s136
- (headlamp & dash harness, near breakout to power distribution center) s143
- (instrument panel right center support) g201
- (not used)
- 87a
- Exterior lights system
- Flash
- Fog lamp indicator
- Fog lamp relay (in power distribution center)
- Foglamp switch
- Fuse 10a
- Fuse b 15a
- Fuse c 15a
- Fuse f 20a
- Fuse g 15a (or 20a)
- Head
- Headlamp beam select switch (part of multi-function switch)
- Headlamp switch
- High
- High beam indicator
- Hot at all times
- Instrument cluster
- J/c 1 (in power distribution center)
- Junction block (on left end of dash)
- Left fog lamp
- Left outboard headlamp
- Low
- Off
- Park
- Pnk/ red
- Power distribution center (in engine compartment, on left inner fender panel, near battery)
- Right fog lamp
- Right outboard headlamp
- S106 (headlamp & dash harness, in power distribution center)
- S110 (headlamp & dash harness, near left wheel speed sensor)
- S134 (fog lamp harness, in breakout to right fog lamp)
- S183 (headlamp & dash harness, in power distribution center)
