Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Audi A4 2.0T 2011

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

Электросхема линии передачи данных CAN (1 из 3) для Audi A4 2.0T 2011

Электросхема линии передачи данных CAN (1 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (left side of center tunnel) g687
• 11a
• Abs control module (left side of engine compt)
• Active steering control module (w/ dynamic steering & gear box quattro sport) (under driver's seat)
• Air bag control module (below center console)
• All wheel drive control module (in spare tire well)
• Automatic day/ night interior mirror
• Battery monitoring control module (middle of luggage compt, on battery)
• Data bus on board diagnostic interface (behind center of dash)
• Data link connector (under left side of dash)
• Direct shift gearbox (dsg) mechatronic (if equipped)
• Directional stabilization assistance control module
• Distance regulation control module (if equipped) (right side of front bumper)
• Electronic damping control module (right side of trunk)
• Engine control module (except 3.0l: left side of engine compt plenum chamber) (3.0l: right rear of engine compt)
• Esp sensor unit (under driver's seat)
• Esp sensor unit 2 (w/ dynamic steering & gear box quattro sport)
• Fuse 10a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• G687 (left side of center tunnel)
• Generator & voltage regulator
• Headlamp range/ cornering lamp control module (behind glove box)
• Hot at all times
• Lane change assistance control module (if equipped) (on left taillight assembly)
• Lane change assistance control module 2 (on right taillight assembly)
• Left headlamp assembly
• Multitronic
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Phased in modification
• Right headlamp assembly
• Sound systems
• T10h
• T12f
• T17b
• T17c
• T17e
• T17f
• T17r
• T17w
• T94
• Transmission control module (in mechatronic unit)
• Voltage stabilizer (w/ engine start/ stop system) (in spare tire well)
• W/ directional stabilization assistance
• W/o direct shift gear box

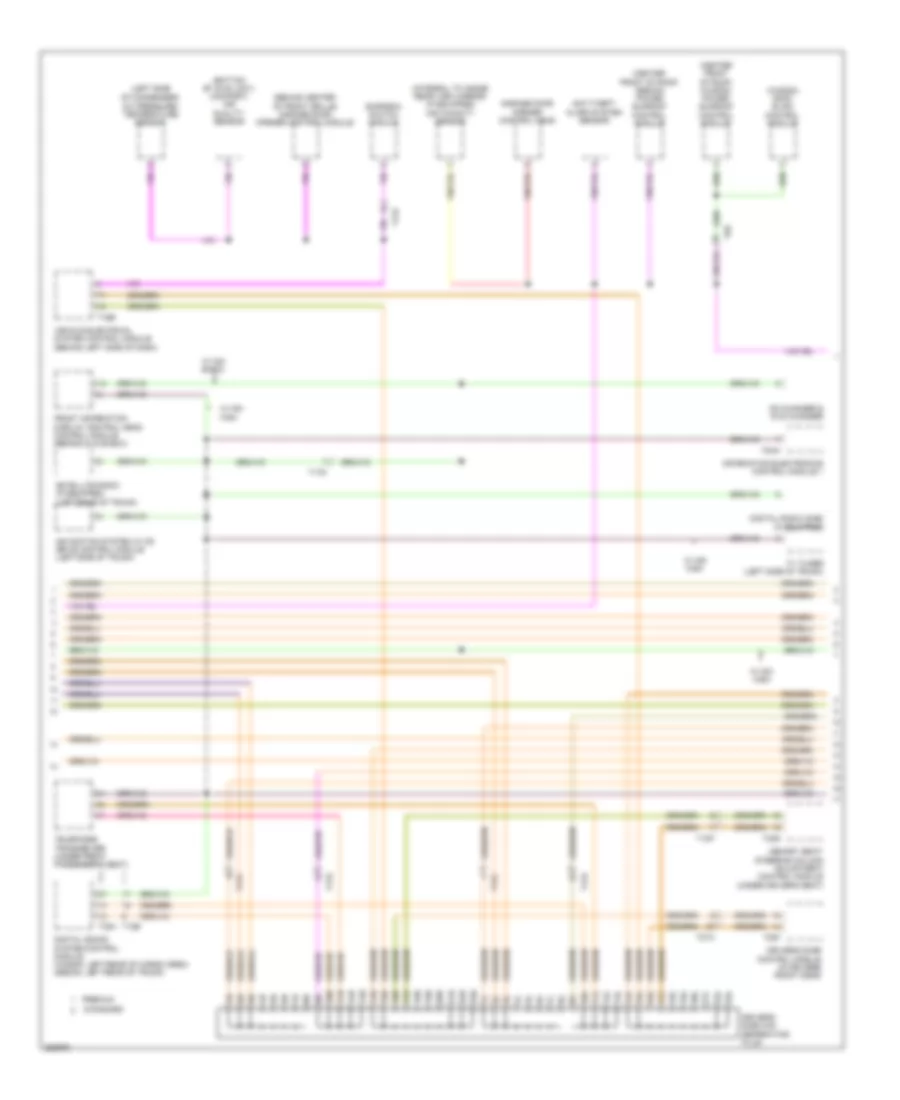

Электросхема линии передачи данных CAN (2 из 3) для Audi A4 2.0T 2011

Электросхема линии передачи данных CAN (2 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (behind center of front grille) garage door opener control module
• (bottom of hvac unit) (comfort) air quality sensor
• (center front of roof) (sedan) power sunroof control module
• (center front of roof) (wagon) power sunroof control module
• (integral to inside rear view mirror) (if equipped) air humidity sensor
• (left side of condenser)
• (wagon) roof blind control module
• 10h
• 10l
• 11h
• 11l
• 12h
• 12l
• 13h
• 13l
• 14h
• 14l
• 15h
• 15l
• 16h
• 16l
• 17h
• 17l
• 18h
• 18l
• 19h
• 19l
• 20h
• 20l
• 21h
• 21l
• 22h
• 22l
• 23h
• 23l
• A/c pressure/ temperature sensor
• Anti-theft alarm system sensor
• Cd changer & dvd changer
• Charisma switch module
• Digital radio (dab) (if equipped)
• Digital sound system control module (wagon: left rear of cargo area) (sedan: left rear of trunk)
• Driver's door control module (in driver's front door)
• Driver's side can seperating plug
• Front information display control head control module (behind glove box)
• Garage door opener control head
• Information electronics control module 1
• Memory seat/ steering column adjustment control module (under driver's seat)
• Navigation system w/ cd drive control module (left side of trunk)
• Premium
• Satellite radio (if equipped) (left rear of trunk)
• Standard
• T10p
• T16b
• T17b
• T17c
• T17d
• T18b
• T20f
• T27a
• T32g
• T32h
• T6e
• T8ah
• Telephone transceiver (under front passenger's seat)
• Tv tuner (left side of trunk)
• Vehicle electrical system control module (behind left side of dash)
• W/ mmi basic
• W/ mmi high

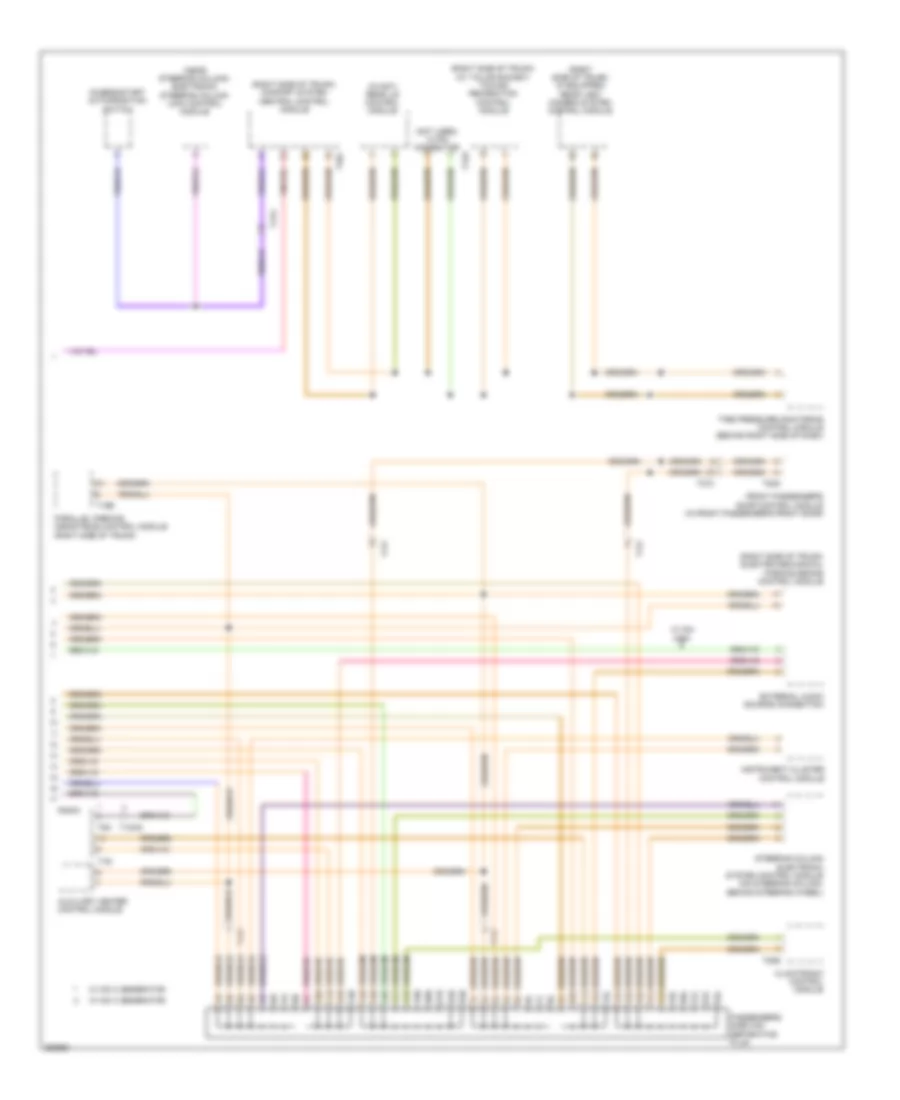

Электросхема линии передачи данных CAN (3 из 3) для Audi A4 2.0T 2011

Электросхема линии передачи данных CAN (3 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (avant) rear lid control module
• (near steering column) electronic steering column lock control module
• (not used) 12 pin connector
• (right side of trunk) (if equipped) rear view camera system control module
• (right side of trunk) (w/ tailor socket) towing recognition control module
• (right side of trunk) comfort system central control module
• (right side of trunk) electro-mechanical parking brake control module
• 10h
• 10l
• 11h
• 11l
• 12h
• 12l
• 13h
• 13l
• 14h
• 14l
• 15h
• 15l
• 16h
• 16l
• 17h
• 17l
• 18h
• 18l
• 19h
• 19l
• 20h
• 20l
• 21h
• 21l
• 22h
• 22l
• 23h
• 23l
• Access/start authorization switch
• Auxiliary heater control module
• Climatronic control module
• External audio source connection
• Front passenger's door control module (in front passenger's front door)
• Instrument cluster control module
• Parallel parking assistance control module (right side of trunk)
• Passenger's side can separating plug
• Radio
• Steering column electronic system control module (on steering column, behind steering wheel)
• T10ag
• T12u
• T16e
• T16i
• T17f
• T17g
• T20e
• T20g
• T27c
• T32c
• T8m
• Tire pressure monitoring control module (behind right side of dash)
• W/ mmi 2 generator
• W/ mmi 3 generator
• W/ mmi high
