Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Audi A4 2.0T 2011

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

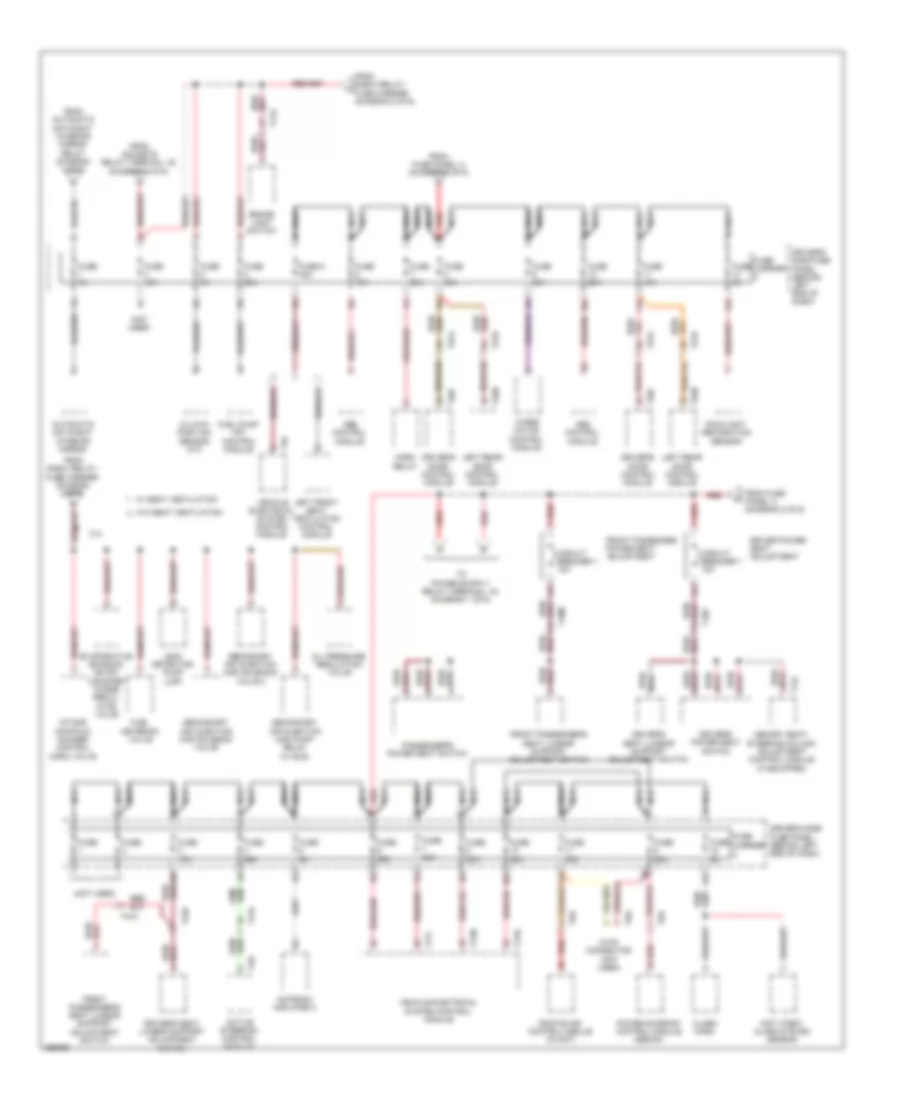

Электросхема блока предохранителей и реле (1 из 6) для Audi A4 2.0T 2011

Электросхема блока предохранителей и реле (1 из 6) для Audi A4 2.0T 2011 - Список элементов:

• (not used)
• (w/ heated spray jet)
• 10a
• 11a
• 12a
• 18 pin connector (not used)
• 40a
• 8 pin connector (not used)
• A/c pressure/ temperature sensor
• Active steering control module
• Air quality sensor
• Asr/esp button
• Automatic day/night interior mirror relay
• Base
• Battery
• Battery monitoring control module (middle of luggage compt, on battery)
• Clutch position sensor (m/t)
• Comfort system central control module
• Data bus on board diagnostic interface
• Data link connector (dlc)
• Digital sound system control module
• Directional stabilization assistance control module
• Distance regulation control module (if equipped)
• Driver's side fuse panel (behind left end of dash)
• From driver's side fuse panel (diagram 4 of 6)
• From driver's side fuse panel (diagram 6 of 6)
• Fuse
• Fuse 10a
• Fuse 110a
• Fuse 3 20a 30a
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• Fuse carrier 1
• Fuse panel a (on battery, in luggage compt)
• G624 (middle of luggage compt, near battery)
• Garage door opener control head
• Garage door opener control module
• Generator & voltage regulator
• Headlamp range control module
• Headlamp range/ cornering lamp control module
• Information electronics control module 1
• Left headlamp assembly (w/ corne- ring lamps)
• Left washer nozzle heater
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Navigation
• Navigation system w/ cd drive control module
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio
• Radio (premium)
• Rear view camera system control module
• Rear window defogger fuse
• Rear window defogger relay
• Red
• Right headlamp assembly
• Right washer nozzle heater
• Satellite radio
• Selector lever sensor system control module
• Shift lock solenoid
• Steering column electronic systems control module
• T10ag
• T12c
• T16i
• T17e
• T17g
• T17r
• T17w
• T18a
• T26a
• T32b
• T32d
• T32h
• T4aj
• T8g
• T8h
• T8m
• T8n
• Telephone amplifier
• Telephone baseplate
• Telephone transceiver
• To driver's side fuse panel (diagram 4 of 6)
• To fuse 2 (diagram 2 of 6)
• To luggage compartment relay/fuse carrier (diagram 3 of 6)
• To passenger's side fuse panel (diagram 2 of 6)
• To sockets relay (diagram 4 of 6)
• To voltage stabilizer (diagram 3 of 6)
• Tv tuner
• Vehicle electrical system control module
• W/ 9zg
• W/ 9zw
• W/ cornering lamps
• W/ sound system
• W/o cornering lamps
• W/o sound system

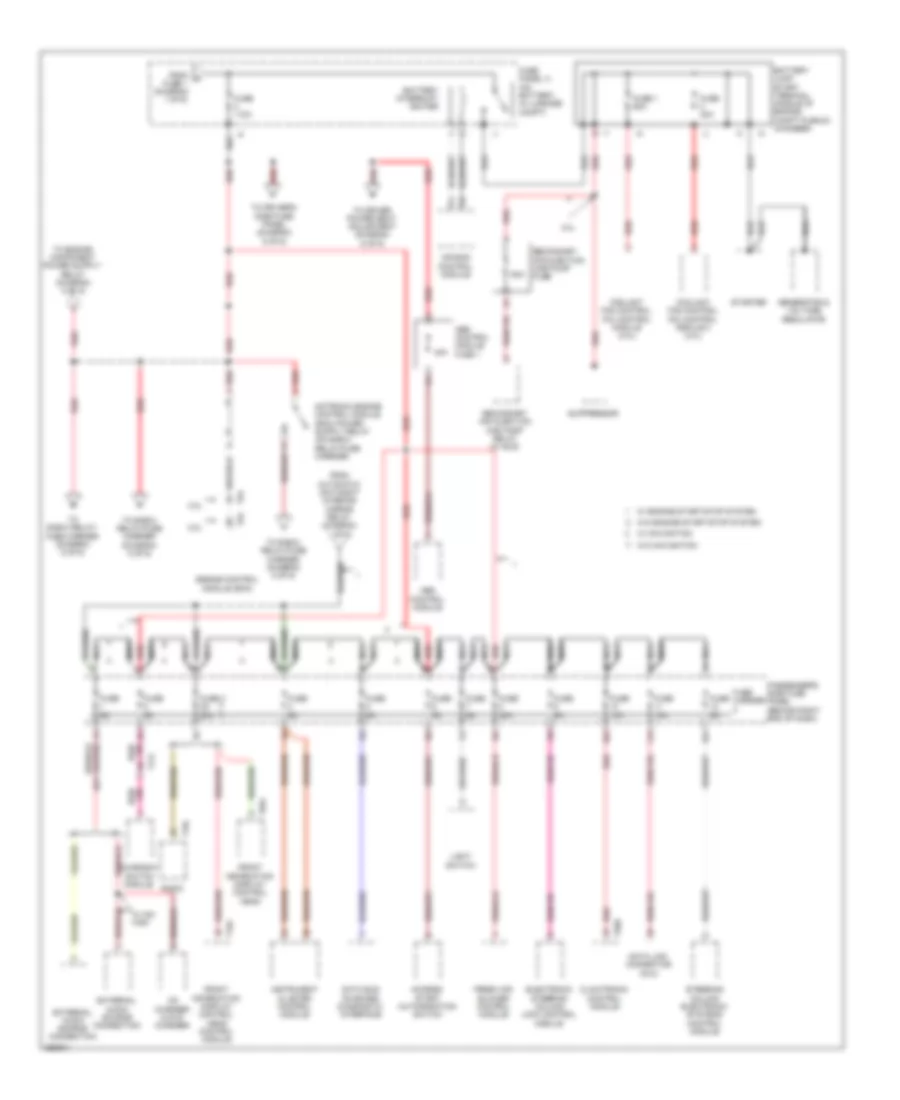

Электросхема блока предохранителей и реле (2 из 6) для Audi A4 2.0T 2011

Электросхема блока предохранителей и реле (2 из 6) для Audi A4 2.0T 2011 - Список элементов:

• 10a
• 11a
• 12a
• 2.0l
• 3.0l
• 40a
• 50a
• Abs control module
• Abs control module fuse 1
• Access/ start authorization switch
• Air bag control module
• Battery interrupt igniter
• Battery jump start terminal (middle of engine compt plenum chamber)
• Cd changer & dvd changer
• Charisma switch module
• Climatronic control module
• Coolant fan control (fc) control module (3.0l)
• Coolant fan control (fc) control module 2 (3.0l)
• Data bus on board diagnostic interface
• Data link connector (dlc)
• Electronic steering column lock control module
• Engine control module (ecm)
• External audio source connection
• Fresh air blower control module
• From a fuse 1 (diagram 1 of 6)
• From automatic day/night interior mirror relay (diagram 1 of 6)
• Front information display control head
• Front information display control head control module
• Fuse 1 60a
• Fuse 10a
• Fuse 110a
• Fuse 3 5a 20a
• Fuse 40a
• Fuse 5a
• Fuse carrier
• Fuse panel a (on battery, in luggage compt)
• Generator & voltage regulator
• Instrument cluster control module
• Light switch
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio
• Red
• Secondary air injection (air) pump fuse
• Secondary air injection (air) pump relay (w/ eu5)
• Starter
• Steering column electronic systems control module
• Suppressor
• T16j
• T16l
• T17f
• T20e
• T8ai
• T94
• To driver power seat adjustment (diagram 6 of 6)
• To driver's side fuse panel (diagram 6 of 6)
• To e-box relay/ fuse carrier (diagram 5 of 6)
• To e-box relay/fuse carrier (diagram 5 of 6)
• W/ engine start/stop system
• W/ mmi high
• W/ navigation
• W/o engine start/stop system
• W/o navigation

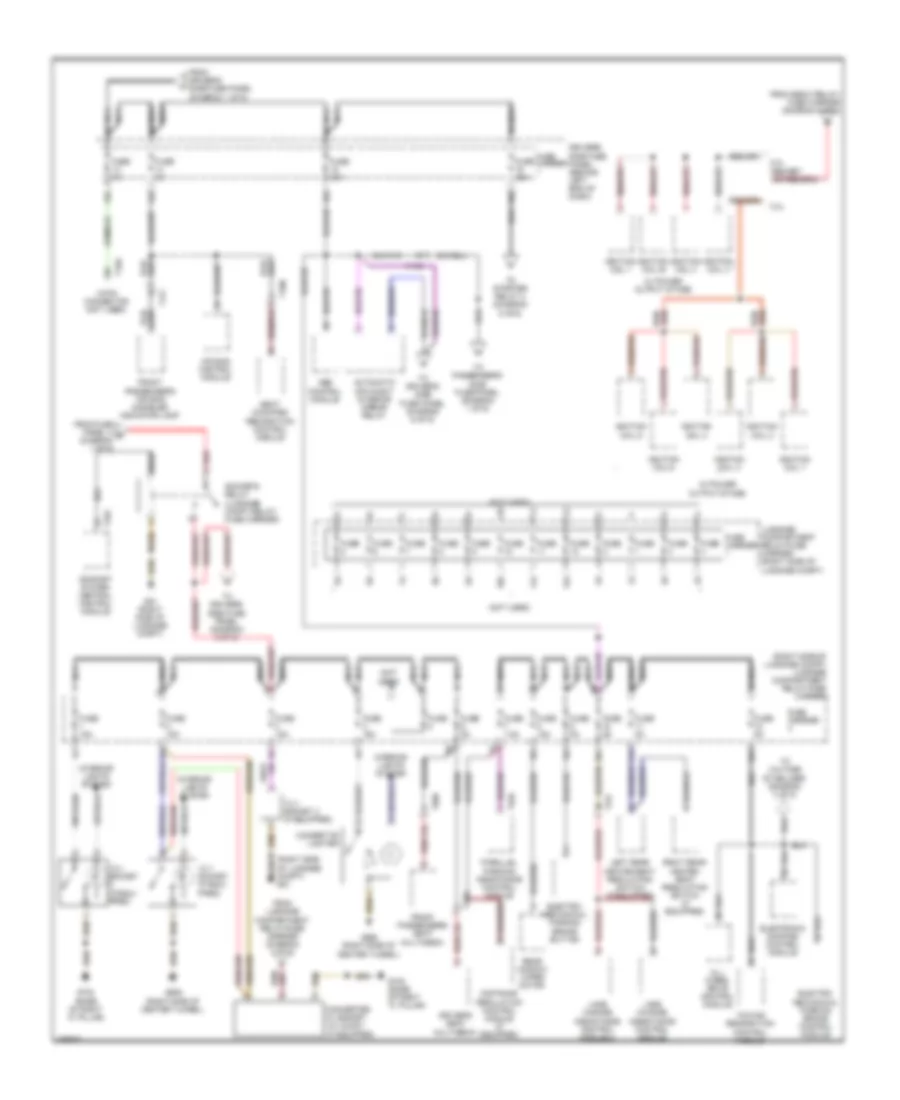

Электросхема блока предохранителей и реле (3 из 6) для Audi A4 2.0T 2011

Электросхема блока предохранителей и реле (3 из 6) для Audi A4 2.0T 2011 - Список элементов:

• (not used)
• (right side of luggage compt) luggage compartment relay/fuse carrier
• 10a
• 11a
• 12a
• All wheel drive control module
• Auxiliary heater control module
• Auxiliary heater radio receiver
• Comfort system central control module
• Digital sound system control module
• Electro- mechanical parking brake button
• Electro- mechanical parking brake control module
• Electronic damping control module
• From battery monitoring control (diagram module 1 of 6)
• From fuse panel a (diagram 1 of 6)
• From luggage compartment relay/fuse carrier (diagram 1 of 6)
• From luggage compartment relay/fuse carrier (diagram 4 of 6)
• Front information display control head control module
• Front passenger's door control module
• Fuse
• Fuse 1 30a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 35a
• Fuse 40a
• Fuse 5a
• Fuse carrier
• Fuse carrier 2
• Fuse carrier 3
• G51 (right side of luggage compt)
• Left rear heated seat regulating switch
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Nca
• Rear lid control module (wagon)
• Rear lid control module 2 (avant)
• Red
• Reductant system control module
• Right front seat ventilation control module
• Right rear door control module
• Right rear heated seat regulating switch
• T12u
• T17o
• T17p
• T20b
• T20g
• T20i
• T27c
• T27d
• T32h
• T6k
• Tire pressure monitoring control module
• To converter w/ socket 12v & 230v (diagram 4 of 6)
• Towing recognition control module
• Vehicle positioning system interface control module
• Voltage stabilizer (w/ engine start/stop system) (in spare tire well)

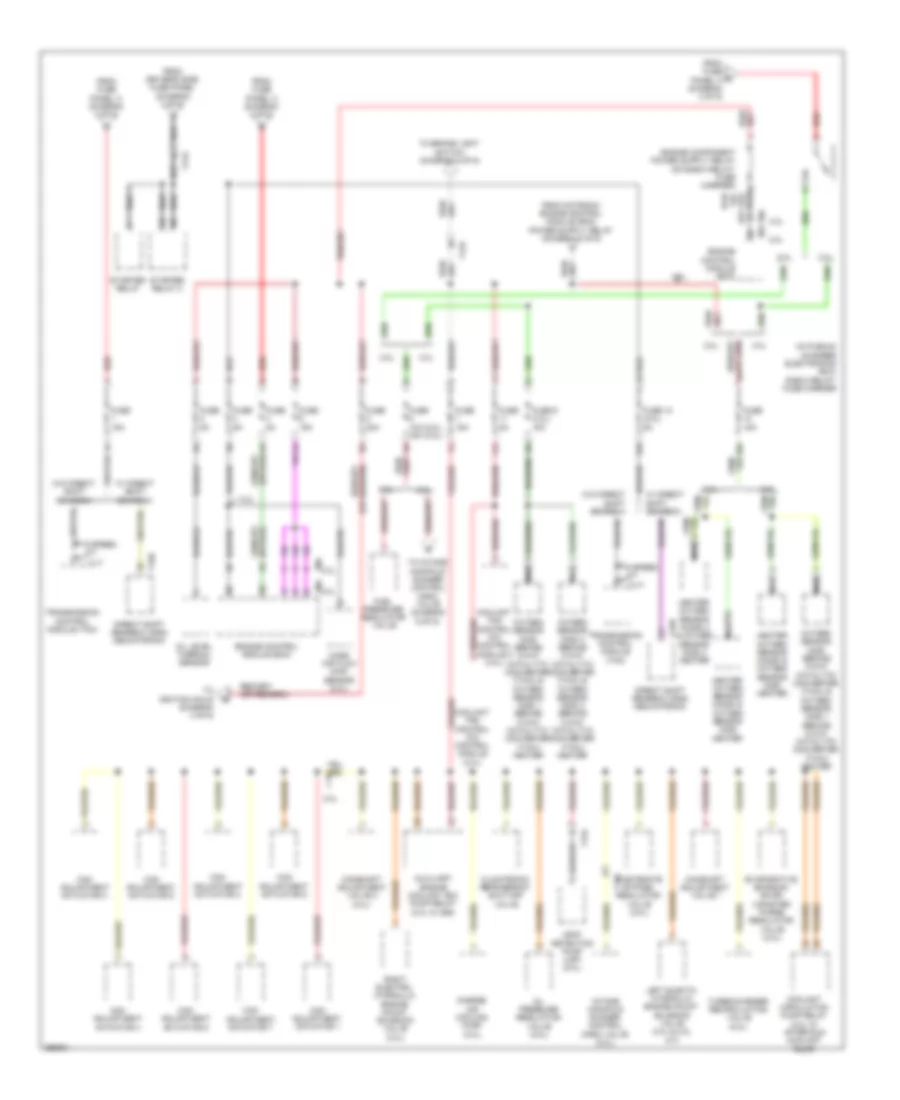

Электросхема блока предохранителей и реле (4 из 6) для Audi A4 2.0T 2011

Электросхема блока предохранителей и реле (4 из 6) для Audi A4 2.0T 2011 - Список элементов:

• (not used)
• (right side of luggage compt) g51
• (right side of luggage compt) luggage compartment relay/fuse carrier
• 10a
• 11a
• 12 v socket (if equi- pped)
• 12 v socket 3 (if equipped)
• 12a
• 13a
• 14a
• 15a
• 16a
• 18 pin connector (not used)
• 2.0l
• 3.0l
• Abs control module
• Air bag control module
• All- wheel drive control module
• Automatic day/night interior mirror relay
• Cigarette lighter
• Comfort system central control module
• Converter w/ socket, 12v & 230v (if equipped)
• Distance regulation control module (if equipped)
• Driver's seat multimedia
• Driver's side fuse panel (behind left end of dash)
• Electro- mechanical parking brake button
• Electro- mechanical parking brake control module
• Electronic damping control module
• From driver's side fuse panel (diagram 1 of 6)
• From e-box relay/ fuse carrier (diagram 5 of 6)
• From fuse panel a e (diagram 1 of 6)
• From luggage compartment relay/fuse carrier (diagram 3 of 6)
• Front passenger's air bag disabled indicator lamp
• Front passenger's seat multimedia
• Fuse
• Fuse 15a
• Fuse 25a
• Fuse 40a
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• G51 (right side of luggage compt)
• G688 (right side of center tunnel)
• G730 (base of right "c" pillar)
• Ignition coil 1
• Ignition coil 2
• Ignition coil 3
• Ignition coil 4
• Ignition coil 5
• Ignition coil 6
• Interior lights system
• Lane change assistance control module
• Lane change assistance control module 2
• Left rear heated seat regulating switch (if equipped)
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Nca
• Parallel parking assistance control module
• Rear window wiper motor
• Red
• Right rear heated seat regulating switch (if equipped)
• Seat occupied recognition control module
• Sockets relay (luggage compt relay/ fuse carrier)
• T10n
• T12f
• T16e
• T17c
• T17f
• T18a
• T20a
• T20b
• T32c
• To driver's side fuse panel (diagram 6 of 6)
• To passenger's side fuse panel (diagram 1 of 6)
• To starter relay 2 (diagram 5 of 6)
• To voltage stabilizer (diagram 3 of 6)
• Towing recognition control module
• W/ power output stage

Электросхема блока предохранителей и реле (5 из 6) для Audi A4 2.0T 2011

Электросхема блока предохранителей и реле (5 из 6) для Audi A4 2.0T 2011 - Список элементов:

• (2.0l) (3.0l)
• (in plenum chamber electronics box) e-box relay/ fuse carrier
• 10a
• 11a
• 12a
• 2.0l
• 2.0l t94
• 3.0l
• 3.0l t94
• 6 speed a/t
• Auxiliary engine coolant (ec) pump relay (3.0l w/ 8z9)
• Cam adjustment actuator 1
• Cam adjustment actuator 2
• Cam adjustment actuator 3
• Cam adjustment actuator 4
• Cam adjustment actuator 5
• Cam adjustment actuator 6
• Cam adjustment actuator 7
• Cam adjustment actuator 8
• Camshaft adjustment valve 1
• Camshaft adjustment valve 2 (3.0l)
• Charge air cooling pump (3.0l)
• Climatronic refrigerant shut-off valve
• Coolant circulation pump relay (2.0l w/ after run coolant pump)
• Coolant fan control (fc) control module (3.0l)
• Coolant fan control (fc) control module 2 (3.0l)
• Cvt
• Direct shift gearbox (dsg) mechatronic
• Engine control module (ecm)
• Evaporative emission (evap) canister purge regulator valve (2.0l)
• From driver's side fuse panel (diagram 4 of 6)
• From fuse panel a (diagram 2 of 6)
• From fuse q panel a (diagram 2 of 6)
• Fuel pressure regulator valve
• Fuse 10a 15a
• Fuse 12 (2.0l) 5a
• Fuse 15a
• Fuse 20a
• Fuse 5a
• Fuse 9 (3.0l) 15a
• Heater oxygen sensor (ho2s) & oxygen sensor (o2s) heater
• Heater oxygen sensor (ho2s) 2 & oxygen sensor (o2s) 2 heater
• Intake manifold runner control (imrc) valve (2.0l)
• Leak detection pump (ldp) (2.0l)
• Left electo- hydraulic engine mount solenoid valve (3.0l & 2.0l a/t)
• Mass air flow (maf) sensor (2.0l)
• Nca
• Oil level thermal sensor
• Oil pressure regulation valve (2.0l)
• Oxygen sensor (o2s) (behind 3-way catalytic converter (twc)) & oxygen sensor (o2s) 1 (behind 3-way catalytic converter (twc)) heater
• Oxygen sensor (o2s) 2 (behind 3-way catalytic converter (twc)) & oxygen sensor (o2s) 2 (behind 3-way catalytic converter (twc)) heater
• Red
• Right electro- hydraulic engine mount solenoid valve (3.0l)
• Starter relay
• Starter relay 2
• T14f
• T16r
• T17q
• T17r
• T94
• To brake light switch (diagram 6 of 6)
• To ignition coils (diagram 4 of 6)
• To intake manifold runner control (imrc) valve (diagram 6 of 6)
• Transmission control module (tcm)
• Turbocharger recirculating valve (2.0l)
• W/ direct shift gearbox
• W/o direct shift gearbox
• Wastegate bypass regulator valve (2.0l)

Электросхема блока предохранителей и реле (6 из 6) для Audi A4 2.0T 2011

Электросхема блока предохранителей и реле (6 из 6) для Audi A4 2.0T 2011 - Список элементов:

• (not used)
• 10a
• 11a
• 12a
• 3.0l
• 6 pin connector (not used)
• Abs control module
• Active steering control module
• Alarm horn
• Antenna amplifier 3
• Anti-theft alarm system sensor
• Automatic day/night interior mirror
• Brake light switch
• Circuit breaker 1 15a
• Clutch position sensor (m/t)
• Driver power seat adjustment
• Driver's door control module
• Driver's power seat switch
• Driver's seat lumbar support adjustment switch
• Driver's side fuse panel (behind left end of dash)
• Evaporative emission (evap) canister purge regul- ator valve
• From automatic day/night interior mirror relay (diagram 4 of 6)
• From e-box relay/ fuse carrier (diagram 5 of 6)
• From fuse panel a (diagram 2 of 6)
• From sockets relay (terminal 15) (diagram 4 of 6)
• Front passenger power seat adjustment
• Front passenger's seat lumbar support adjustment switch
• Fuel metering valve
• Fuel pump (fp) control module
• Fuse
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 25a
• Fuse 30a
• Fuse 35a
• Fuse 5 30a
• Fuse 5a
• Fuse carrier
• Horn relay
• Intake manifold runner control (imrc) valve
• Leak detection pump (ldp)
• Left front seat ventilation control module
• Left rear door control module
• Memory seat/ steering column adjustment control module (if equipped)
• Nca
• Oil pressure regulation valve
• Passenger's power seat switch
• Power sunroof control module (sedan)
• Rain/light recognition sensor
• Red
• Roof blind control module (avant)
• Secondary air injection (air) pump relay (w/ eu5)
• Secondary air injection (air) solenoid valve
• Secondary air injection (air) solenoid valve 2
• T10m
• T10p
• T12l
• T17b
• T17e
• T17l
• T17m
• T17n
• T20f
• T20h
• T27a
• T27b
• T5d
• T6e
• T6f
• Vehicle electrical system control module
• W/ seat ventilation
• W/o seat ventilation
• Wiper motor control module
