Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Audi A4 2.0T 2011

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

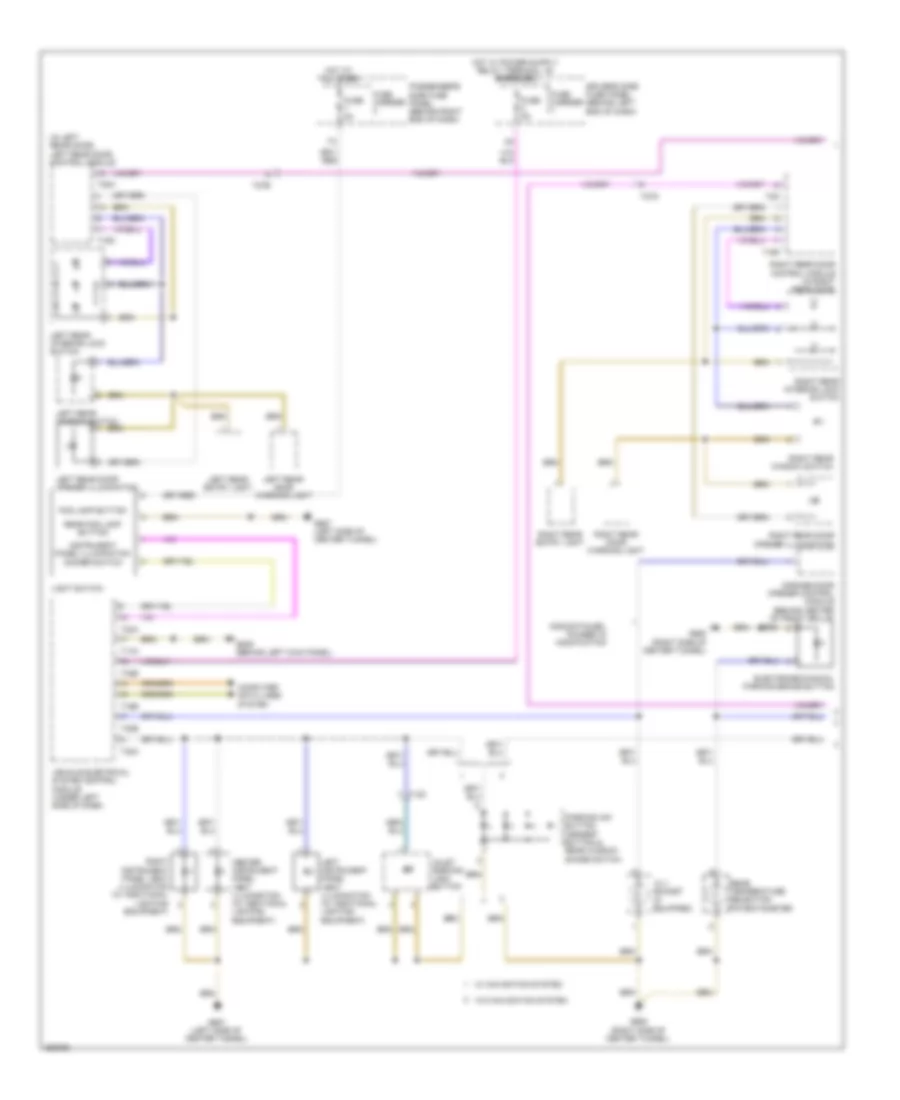

Электросхема подсветки (1 из 2) для Audi A4 2.0T 2011

Электросхема подсветки (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Ambient illumination 1
• Comfort system control module (right side of trunk)
• Computer data lines system
• Driver's make-up mirror light contact switch
• Driver's side fuse panel (behind left end of dash)
• Front passenger's make-up mirror light contact switch
• Fuse 5a
• Fuse carrier 1
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• G639 (behind left kick panel)
• G654 (top of right "d" pillar)
• G687 (left side of center tunnel)
• G730 (base of right "c" pillar)
• Glove compartment lamp switch
• Glove compartment light
• Left front footwell light (w/ additional lighting equipment)
• Left luggage compartment light
• Left make-up mirror illumination (w/ additional lighting equipment)
• Left rear footwell light (w/ additional lighting equipment)
• Luggage compartment light
• Rear lid lock button
• Right front footwell light (w/ additional lighting equipment)
• Right luggage compartment light
• Right make-up mirror illumination (w/ additional lighting equipment)
• Right rear footwell light (w/ additional lighting equipment)
• Sedan
• T10m
• T10p
• T12k
• T16b
• T17g
• T17l
• T17m
• T17p
• T32a
• T32b
• T32c
• Vehicle electrical system control module (under left side of dash)
• W/ led
• W/o led
• Wagon

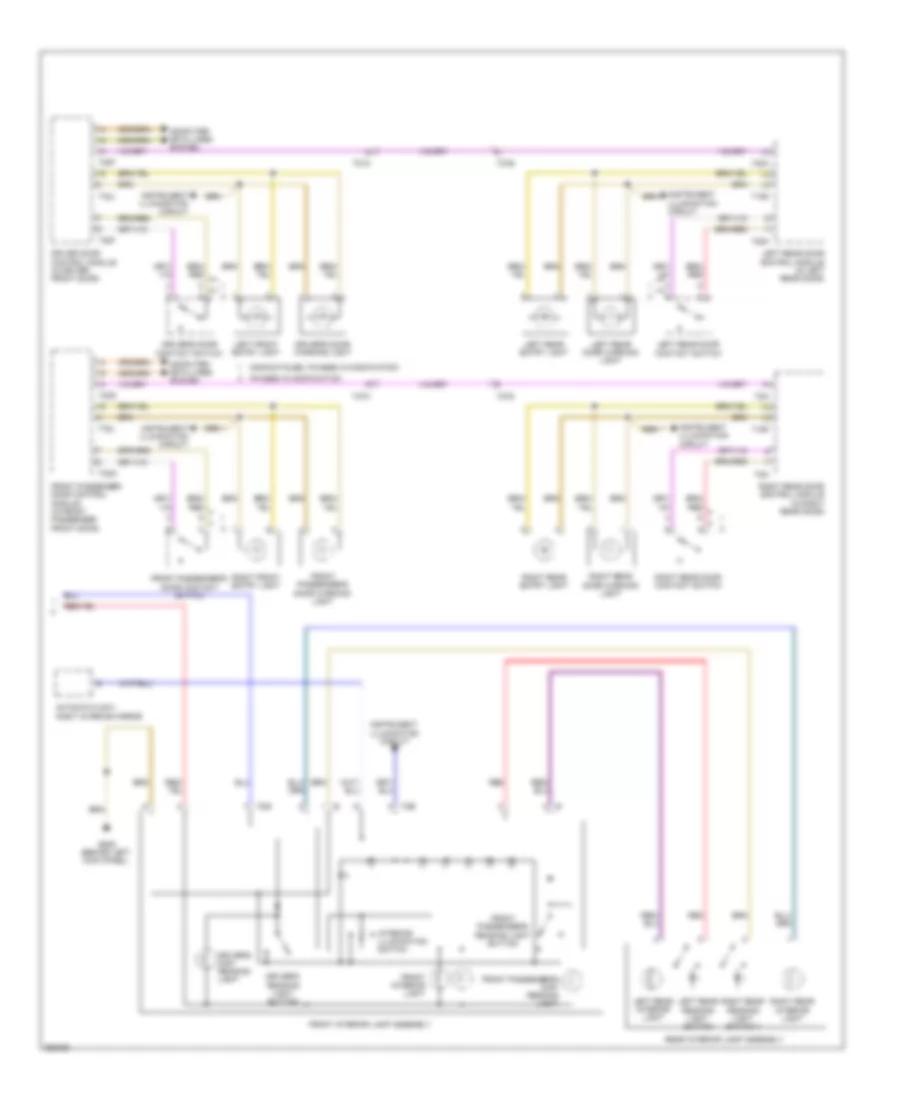

Электросхема подсветки (2 из 2) для Audi A4 2.0T 2011

Электросхема подсветки (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Automatic day/ night interior mirror
• Computer data lines system
• Discontinued, phased in modification
• Driver door control module (in driver front door)
• Driver's door contact switch
• Driver's door warning light
• Driver's map/ reading light
• Driver's reading light button
• Front interior lamp assembly
• Front interior light
• Front passenger door control module (in front passenger front door)
• Front passenger's door contact switch
• Front passenger's door warning light
• Front passenger's map/ reading light
• Front passenger's reading light button
• G639 (behind left kick panel)
• Instrument illumination circuit
• Interior illumination switch
• Left front entry light
• Left rear door contact switch
• Left rear door control module (in left rear door)
• Left rear door warning light
• Left rear entry light
• Left rear interior light
• Left rear reading light switch
• Phased in modification
• Rear interior lamp assembly
• Red
• Right front entry light
• Right rear door contact switch
• Right rear door control module (in right rear door)
• Right rear door warning light
• Right rear entry light
• Right rear interior light
• Right rear reading light switch 1
• T16o
• T16p
• T20f
• T20g
• T20h
• T20i
• T27a
• T27b
• T27c
• T27d
• T32j
• T32l
• T8b

Электросхема подсветки приборов (1 из 2) для Audi A4 2.0T 2011

Электросхема подсветки приборов (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (in left rear door) left rear door control module
• 12 v socket (if equipped)
• Center instrument panel vent illumination (w/ additional lighting equipment)
• Computer data lines system
• Discontinued, phased in modification
• Driver's side fuse panel (behind left end of dash)
• Electromechanical parking brake button
• Fog lamp button
• Fuse 5a
• Fuse carrier
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• G688 (right side of center tunnel)
• Garage door opener control module (behind center of front grille)
• Hot at all times
• Instrument panel illumination dimmer switch
• Left instrument panel vent illumination (w/ additional lighting equipment)
• Left rear door opener illumination
• Left rear door warning light
• Left rear entry light
• Left rear interior lock switch
• Left rear window switch
• Light switch
• Parking aid button, asr/esp button & rear window shade switch
• Passenger's side fuse panel (behind right end of dash)
• Rear fog lamp button
• Rear temperature selection potentiometer
• Right instrument panel vent illumination (w/ additional lighting equipment)
• Right rear door control module (in right rear door)
• Right rear door opener illumination
• Right rear door warning light
• Right rear entry light
• Right rear interior lock switch
• Right rear window switch
• T12k
• T16b
• T16o
• T16p
• T17m
• T20h
• T20i
• T27b
• T27d
• T32a
• T32b
• Valet parking lock button
• Vehicle electrical system control module (under left side of dash)
• W/ navigation system
• W/o navigation system

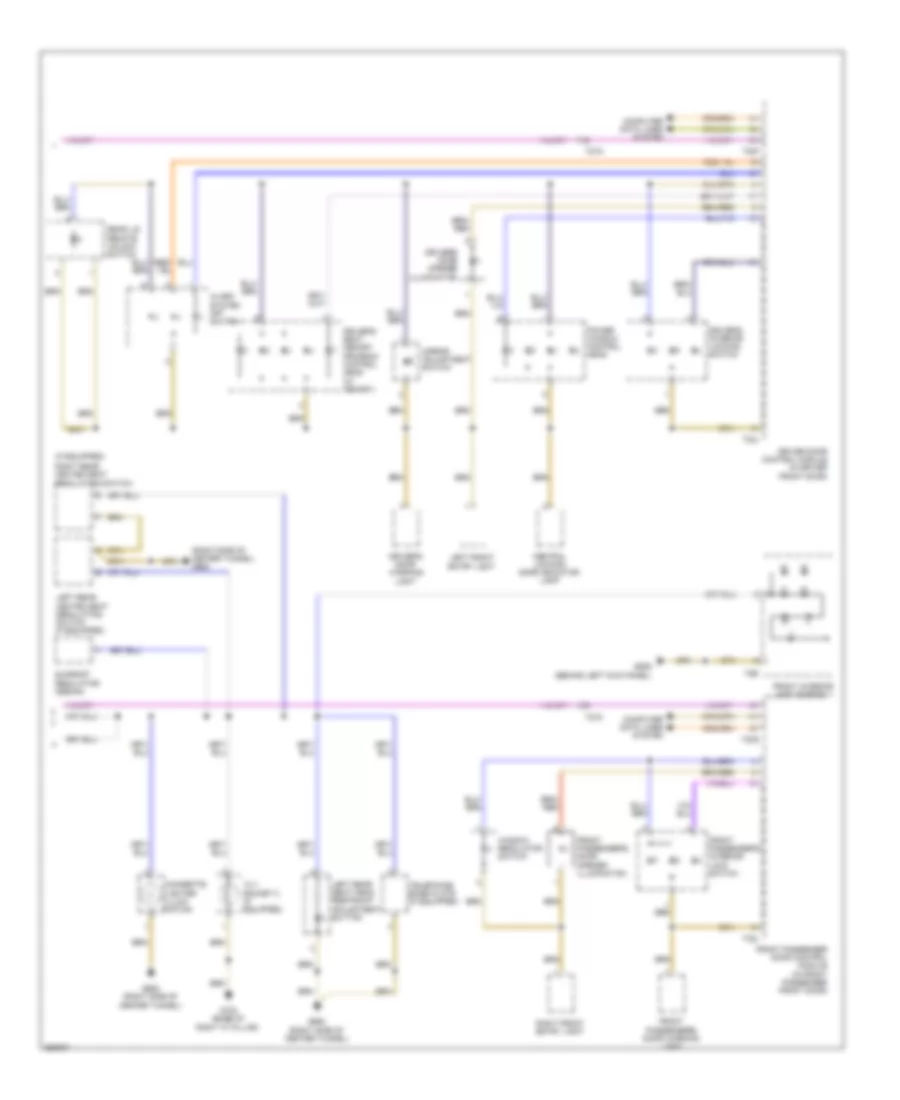

Электросхема подсветки приборов (2 из 2) для Audi A4 2.0T 2011

Электросхема подсветки приборов (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (if equipped)
• (right side of center tunnel) g688
• 12 v socket 2 (if equipped)
• Alarm system off switch
• Central locking safe indicator lamp
• Cigarette lighter illumi- nation
• Computer data lines system
• Driver door control module (in driver front door)
• Driver's door opener illumination
• Driver's door warning light
• Driver's interior locking switch
• Driver's seat memory program control head (w/ memory)
• Front interior lamp assembly
• Front passenger door control module (in front passenger front door)
• Front passenger's door opener illumination
• Front passenger's door warning light
• Front passenger's interior lock switch
• G639 (behind left kick panel)
• G688 (right side of center tunnel)
• G730 (base of right "c" pillar)
• Left front entry light
• Left rear heated seat regulating switch (if equipped)
• Left rear seat head restraint adjustment button
• Mirror adjustment switch
• Power window control head
• Rear lid remote unlock switch
• Right front entry light
• Right rear heated seat regulating switch
• Sunroof regulator (sedan)
• T20f
• T20g
• T27a
• T27c
• T32j
• T32l
• T8b
• Telephone base plate (if equipped)
• Window regulator switch
