Электросхемы БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ Audi A4 2.0T 2011

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

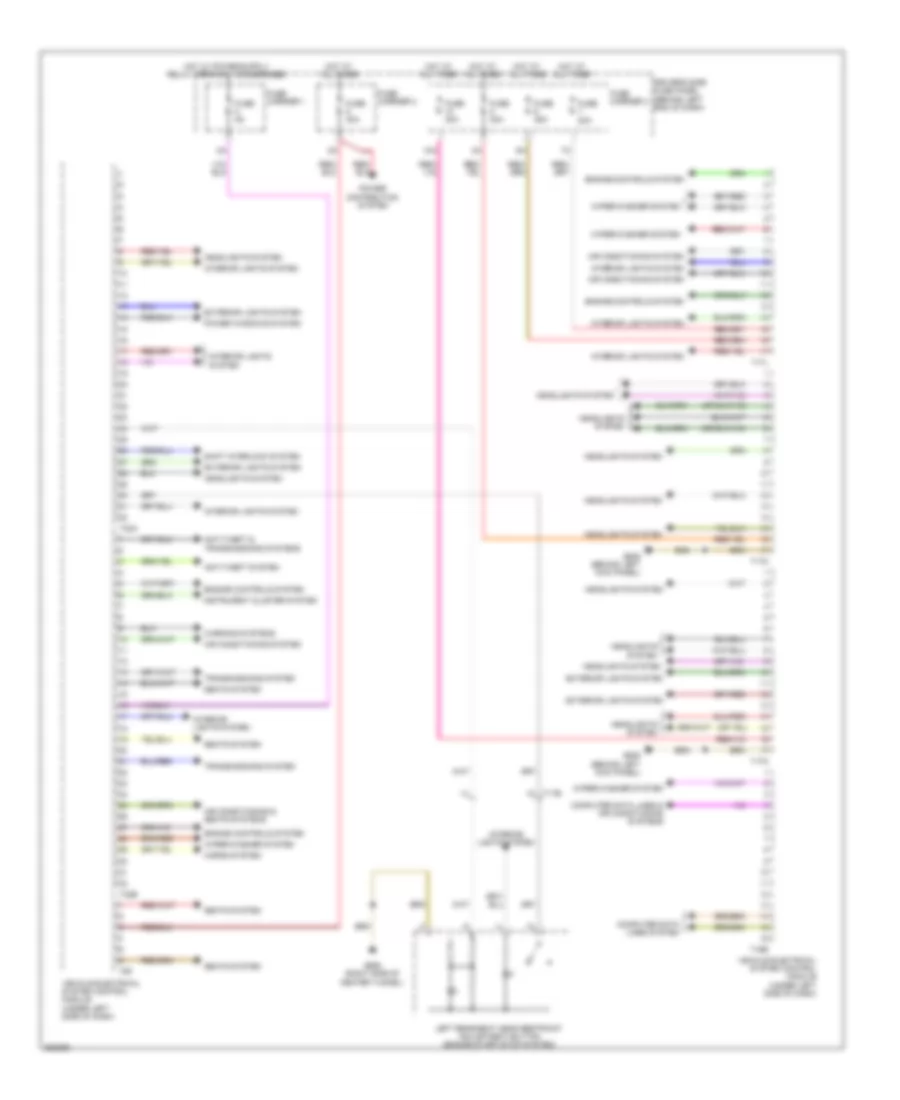

система комфорта центральная схема управляющего модуля для Audi A4 2.0T 2011

система комфорта центральная схема управляющего модуля для Audi A4 2.0T 2011 - Список элементов:

• 10a
• 11a
• Anti-lock brakes system
• Anti-theft system
• Anti-theft system & trunk, tailgate, fuel doors systems
• Anti-theft, trunk, tailgate, fuel doors & door locks systems
• Anti-theft, trunk, tailgate, fuel doors & door locks systems engine controls system
• Comfort system control module (right side of trunk)
• Computer data lines system
• Defogger system
• Door locks system
• Door locks system & anti-theft systems
• Engine controls system
• Exterior lights system
• Fuse 20a
• Fuse 30a
• Fuse carrier 2
• G51 (right side of luggage compt)
• Hot at all times
• Interior lights systems
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Nca
• Power distribution system
• Power tops & anti-theft systems
• Power windows system
• Shift interlock system
• T17o
• T17p
• T32c
• T32d
• T32e
• Transmissions system
• Trunk, tailgate, fuel doors &
• Trunk, tailgate, fuel doors & defogger systems
• Trunk, tailgate, fuel doors system

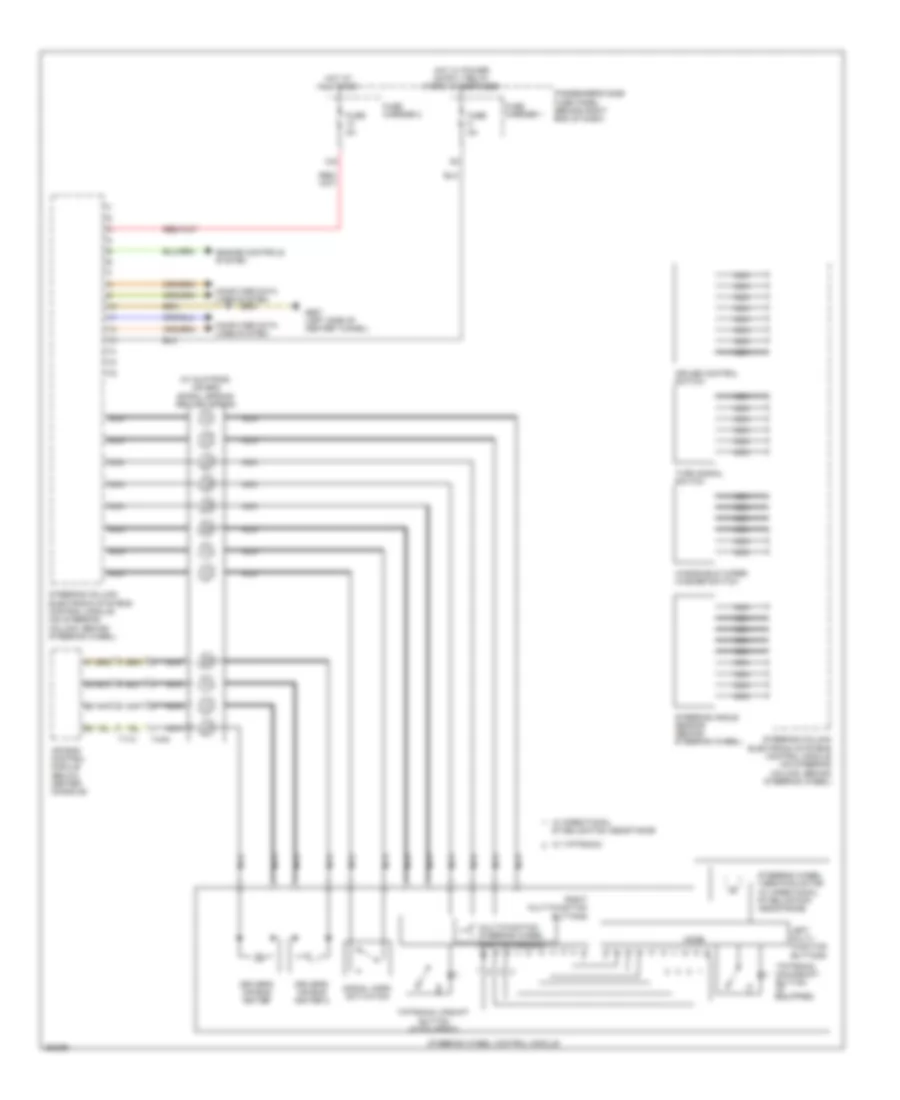

схема управляющего модуля электронных систем рулевой колонки для Audi A4 2.0T 2011

схема управляющего модуля электронных систем рулевой колонки для Audi A4 2.0T 2011 - Список элементов:

• (w/ slip ring) air bag spiral spring/ return spring
• 12a
• Air bag control module (below center console)
• Computer data lines system
• Cruise control switch
• Driver's air bag igniter
• Driver's air bag igniter 2
• Engine controls system
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• G687 (left side of center tunnel)
• Hot at all times
• Left multi- function buttons
• Mode
• Multi-function steering wheel control module
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Right multi-function buttons
• Signal horn activation
• Steering angle sensor (behind steering wheel)
• Steering column electronic systems control module (on steering column, behind steering wheel)
• Steering wheel control module
• Steering wheel vibration motor (w/ directional stabilization assistance)
• T17x
• T4ac
• Tiptronic downshift button (if equipped)
• Tiptronic upshift button (if equipped)
• Turn signal switch
• W/ directional stabilization assistance
• W/ tiptronic
• Windshield wiper/ washer switch

схема управляющего модуля электрической системы транспортного средства для Audi A4 2.0T 2011

схема управляющего модуля электрической системы транспортного средства для Audi A4 2.0T 2011 - Список элементов:

• 10a
• Air conditioning & seats systems
• Air conditioning system
• Anti-theft & transmissions systems
• Anti-theft system
• Computer data lines & air conditioning systems
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Engine controls system
• Exterior lights system
• Fuse 20a
• Fuse 30a
• Fuse 35a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse carrier 3
• G639 (behind left kick panel)
• G688 (right side of center tunnel)
• Headlights system
• Horns system
• Hot at all times
• Instrument cluster system
• Interior lights system
• Left rear seat head restraint adjustment button (engine start/stop system)
• Power distribution system
• Power windows system
• Seats system
• Shift interlock system
• T16b
• T17b
• T17l
• T17m
• T17n
• T32a
• T32b
• T6f
• Transmissions system
• Vehicle electrical system control module (under left side of dash)
• Warning systems
• Wiper/washer system
