Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Audi A4 2.0T 2011

ЦЕНТРАЛЬНЫЙ ЗАМОК

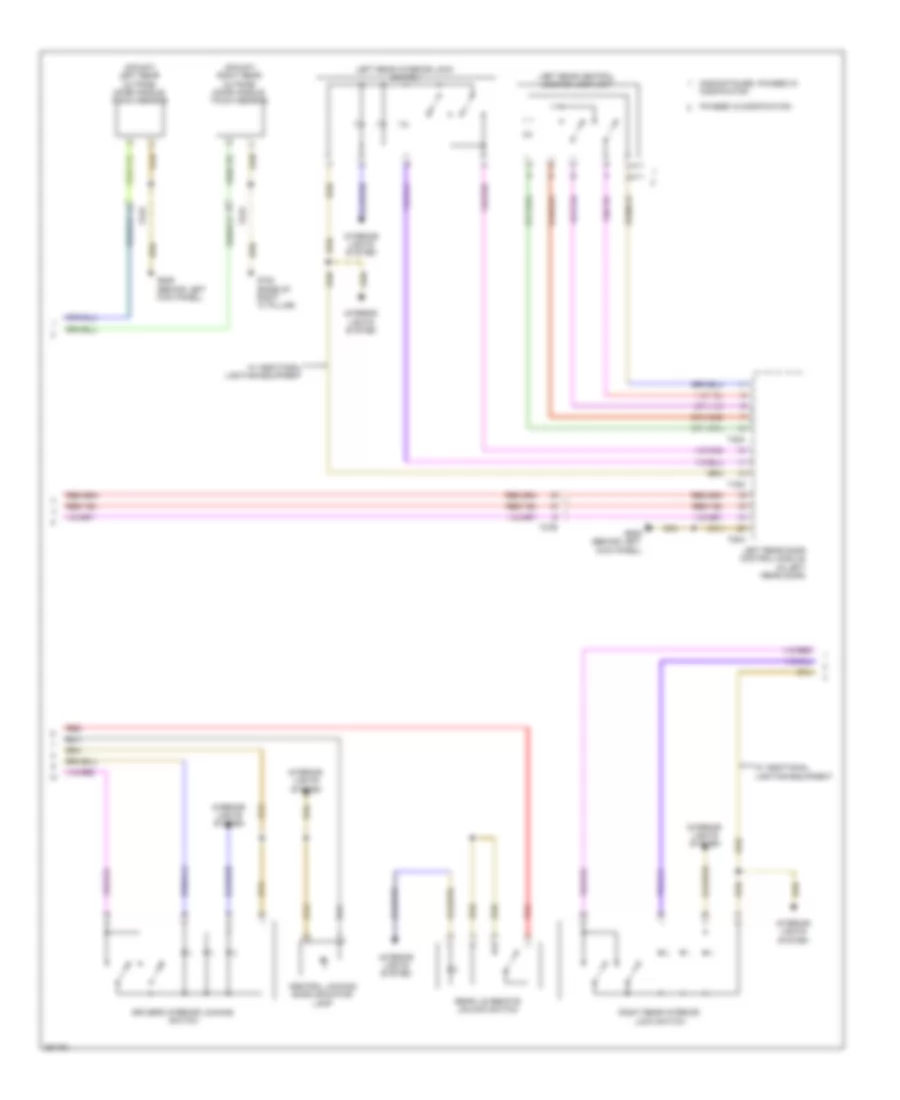

Электросхема центрального замка (1 из 3) для Audi A4 2.0T 2011

Электросхема центрального замка (1 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (4f2/4k7) right front outside door handle touch sensor
• (in driver's door handle) (4f2/4k7) left front outside door handle touch sensor
• (right side of trunk) comfort system control module
• (sedan) left license plate light
• (sedan) rear lid lock cylinder unlock button
• (sedan) right license plate light
• 11a
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Central locking & anti-theft alarm system antenna (sedan)
• Computer data lines system
• Discontinued, phased in
• Driver's door central locking lock unit
• Driver's door control module (in driver's front door)
• Driver's side fuse panel (behind left end of dash)
• Fuse 15a
• Fuse 30a
• Fuse carrier 2
• G51 (right side of luggage compt)
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• G654 (top of right "d" pillar)
• Hot at all times
• Modificaton
• Nca
• Phased in modification
• Red
• Sedan
• T17o
• T20f
• T27a
• T27c
• T32c
• T32d
• T32e
• T32j
• Trunk lid alarm switch & rear lid central locking system motor
• W/ mmi
• W/o mmi
• Wagon

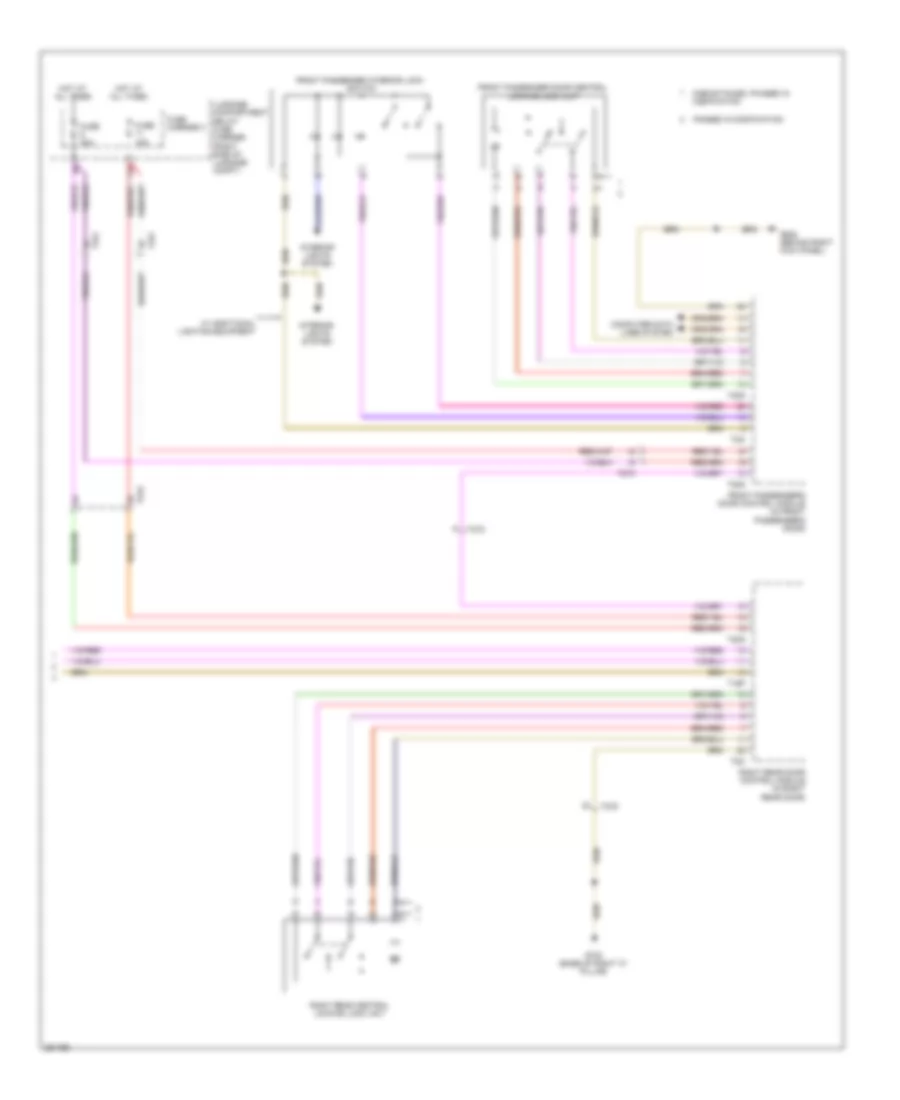

Электросхема центрального замка (2 из 3) для Audi A4 2.0T 2011

Электросхема центрального замка (2 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (4f2/4k7) left rear outside door handle touch sensor
• (4f2/4k7) right rear outside door handle touch sensor
• Central locking safe indicator lamp
• Discontinued, phased in modificaton
• Driver's interior locking switch
• G639 (behind left kick panel)
• G730 (base of right "c" pillar)
• Interior lights system
• Left rear central locking lock unit
• Left rear door control module (in left rear door)
• Left rear interior lock switch
• Phased in modification
• Rear lid remote unlock switch
• Red
• Right rear interior lock switch
• T16o
• T20h
• T27b
• T27d
• W/ additional lighting equipment

Электросхема центрального замка (3 из 3) для Audi A4 2.0T 2011

Электросхема центрального замка (3 из 3) для Audi A4 2.0T 2011 - Список элементов:

• 11a
• Computer data lines system
• Discontinued, phased in modificaton
• Front passenger door central locking lock unit
• Front passenger interior lock switch
• Front passenger's door control module (in front passenger's door)
• Fuse 15a
• Fuse 30a
• Fuse carrier 3
• G638 (behind right kick panel)
• G730 (base of right "c" pillar)
• Hot at all times
• Interior lights system
• Luggage compartment relay/ fuse carrier (right side of luggage compt)
• Phased in modification
• Right rear central locking lock unit
• Right rear door control module (in right rear door)
• T16p
• T20g
• T20i
• T27c
• T27d
• T32i
• W/ additional lighting equipment
