Электросхемы Противоугонная система Сигнализация Audi A4 2.0T 2011

Противоугонная система Сигнализация

Электросхема противоугонной сигнализации (1 из 2) для Audi A4 2.0T 2011

Электросхема противоугонной сигнализации (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (4f2/4k7) right front outside door handle touch sensor
• (behind left kick panel) g639
• (behind right kick panel) g638
• (in driver's door handle) (4f2/4k7) left front outside door handle touch sensor
• 12a
• Alarm horn
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Anti-theft alarm system sensor
• Central locking & anti-theft alarm system antenna (sedan)
• Central locking & anti-theft alarm system antenna (wagon)
• Comfort system control module (right side of trunk)
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 3
• G51 (right side of luggage compt)
• G639 (behind left kick panel)
• Hot at all times
• Interior access/ start authorization antenna 1 (under front of center console)
• Left access/start authorization antenna (4f2/4k7) (in left "b"pillar)
• Luggage compartment access/start authorization antenna (left front of luggage compt)
• Nca
• Passenger's side fuse panel (behind right end of dash)
• T17o
• T27a
• T27b
• T27c
• T32c
• T32d
• T32e
• W/ mmi
• W/o mmi
• Wagon

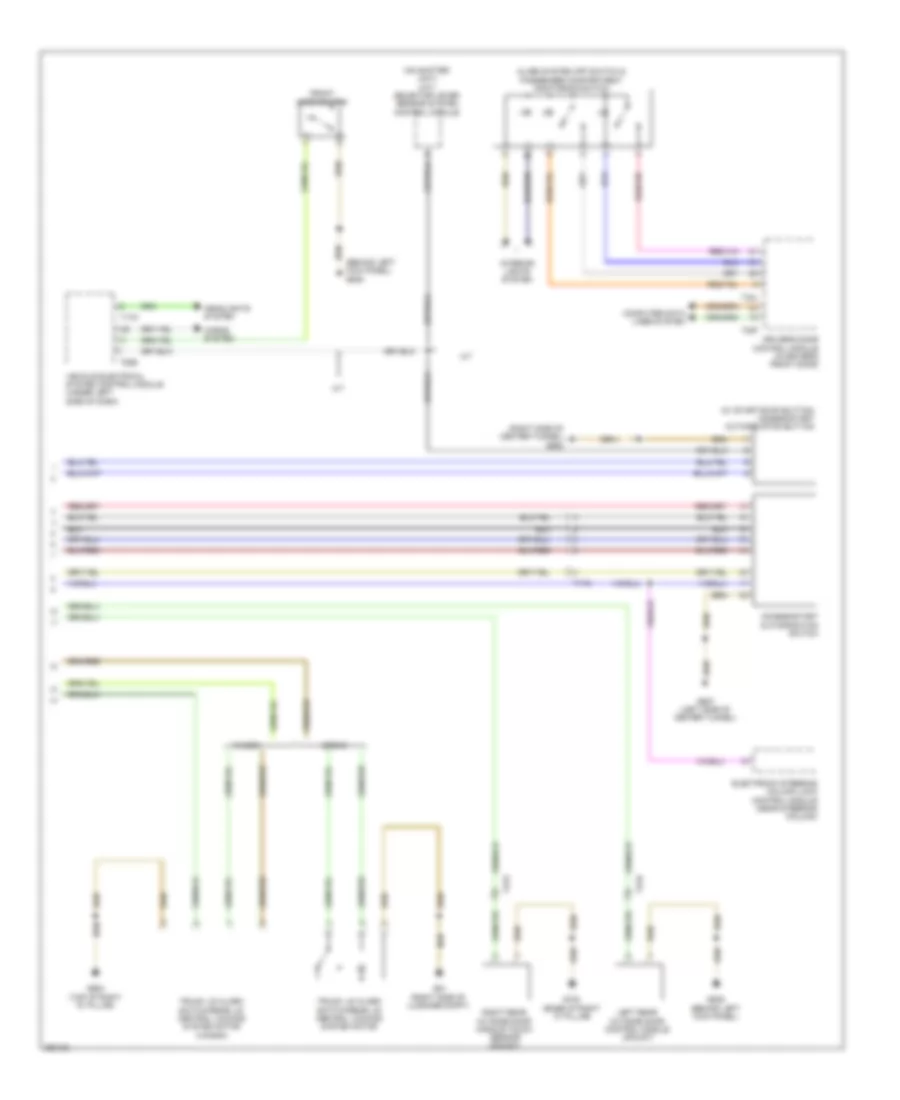

Электросхема противоугонной сигнализации (2 из 2) для Audi A4 2.0T 2011

Электросхема противоугонной сигнализации (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (behind left kick panel) g639
• (on shifter unit) (a/t) selector lever sensor system control module
• (right side of center tunnel) g688
• (w/ start/stop button) access/start authorization button
• A/t
• Access/start authorization switch
• Alarm system off switch & passenger compartment monitoring switch
• Computer data lines system
• Driver's door control module (in driver's front door)
• Electronic steering column lock control module (near steering column)
• Front hood switch
• G51 (right side of luggage compt)
• G639 (behind left kick panel)
• G654 (top of right "d" pillar)
• G687 (left side of center tunnel)
• G730 (base of right "c" pillar)
• Headlights system
• Horns system
• Interior lights system
• Left rear outside door control module (4f2/4k7)
• Right rear outside door handle touch sensor (4f2/4k7)
• Sedan
• T17g
• T17m
• T20f
• T27b
• T27d
• T32b
• T32j
• Trunk lid alarm switch/rear lid central locking system motor
• Trunk lid alarm switch/rear lid central locking system motor (wagon)
• Vehicle electrical system control module (under left side of dash)
• Wagon
