Электросхемы СИСТЕМЫ СИДЕНИЙ Audi A4 2.0T 2011

СИСТЕМЫ СИДЕНИЙ

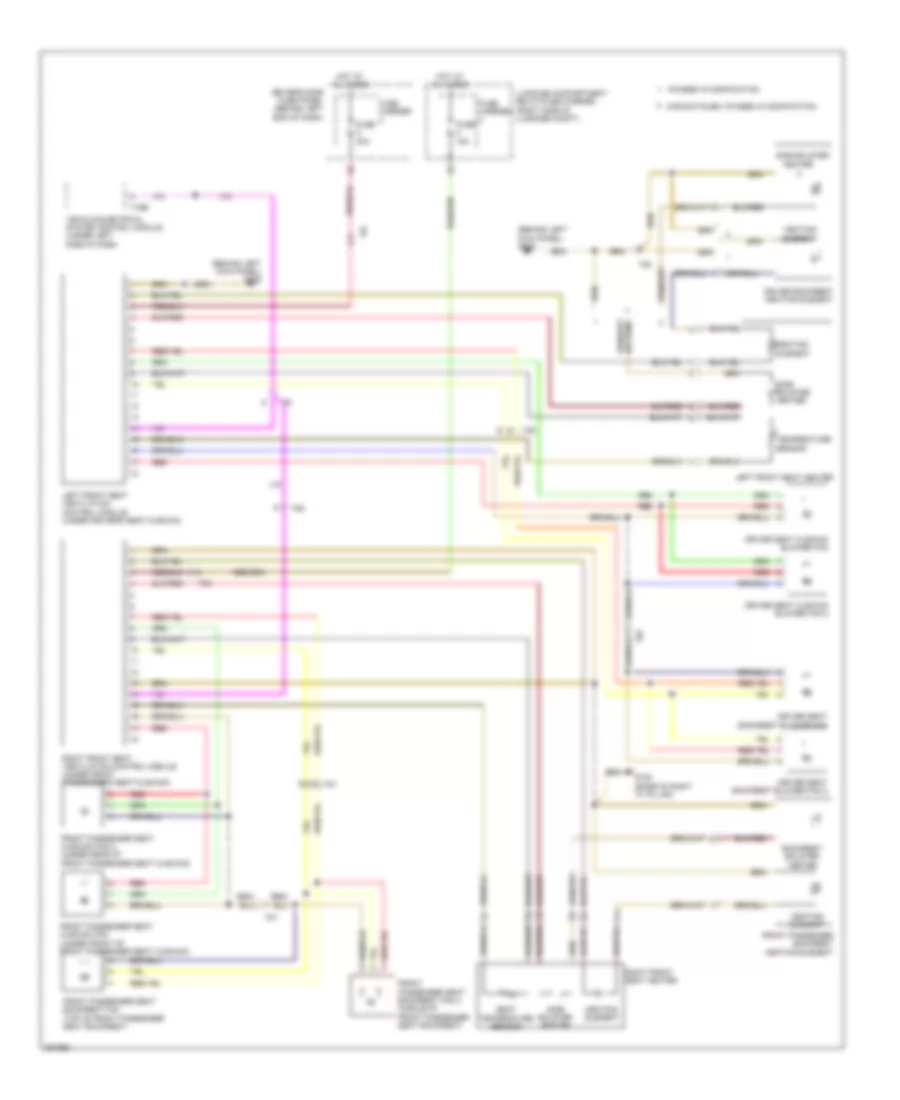

Электросхема подогрева передних сидений, С Места Памяти С Вентиляция для Audi A4 2.0T 2011

Электросхема подогрева передних сидений, С Места Памяти С Вентиляция для Audi A4 2.0T 2011 - Список элементов:

• Backrest heating element
• Circuit breaker 1 15a
• Driver power seat adjustment
• Driver's backrest heating element
• Driver's seat backrest fan (top of driver seat backrest)
• Driver's seat backrest fan 2 (middle of driver seat backrest)
• Driver's seat cushion fan (under front of driver seat cushion)
• Driver's seat cushion fan 2 (under rear of driver seat cushion)
• Driver's seat heater
• G639 (behind left kick panel)
• Hot at all times
• Left front seat temp sensor
• Memory seat/steering column adjustment control module (under driver's seat)
• Red
• Seat heating element
• Side bolster heater
• T12l
• T16h
• T8z

Электросхема подогрева передних сидений, без Места Памяти С Вентиляция для Audi A4 2.0T 2011

Электросхема подогрева передних сидений, без Места Памяти С Вентиляция для Audi A4 2.0T 2011 - Список элементов:

• (behind left kick panel) g639
• Backrest bolster heater
• Discontinued, phased in modification
• Driver backrest heating element
• Driver seat backrest blower fan
• Driver seat backrest blower fan 2
• Driver seat cushion blower fan
• Driver seat cushion blower fan 2
• Driver's side fuse panel (behind left end of dash)
• Front passenger backrest heating element
• Front passenger seat backrest fan (top of front passenger seat backrest)
• Front passenger seat backrest fan 2 (middle of front passenger seat backrest)
• Front passenger seat cushion fan (under front of front passenger seat cushion)
• Front passenger seat cushion fan 2 (under rear of front passenger seat cushion)
• Fuse 15a
• Fuse 30a
• Fuse carrier
• G730 (base of right "c" pillar)
• Heater
• Heating element
• Hot at all times
• Left front seat heater
• Left front seat ventilation control module (under driver's seat cushion)
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Phased in modification
• Red
• Right front seat heater
• Right front seat ventilation control module (under front passenger's seat cushion)
• Seat temperature sensor
• Side bolster
• Side bolster heater
• T16b
• T6i
• T6k
• T8y
• T8z
• Temperature sensor
• Vehicle electrical system control module (under left side of dash)

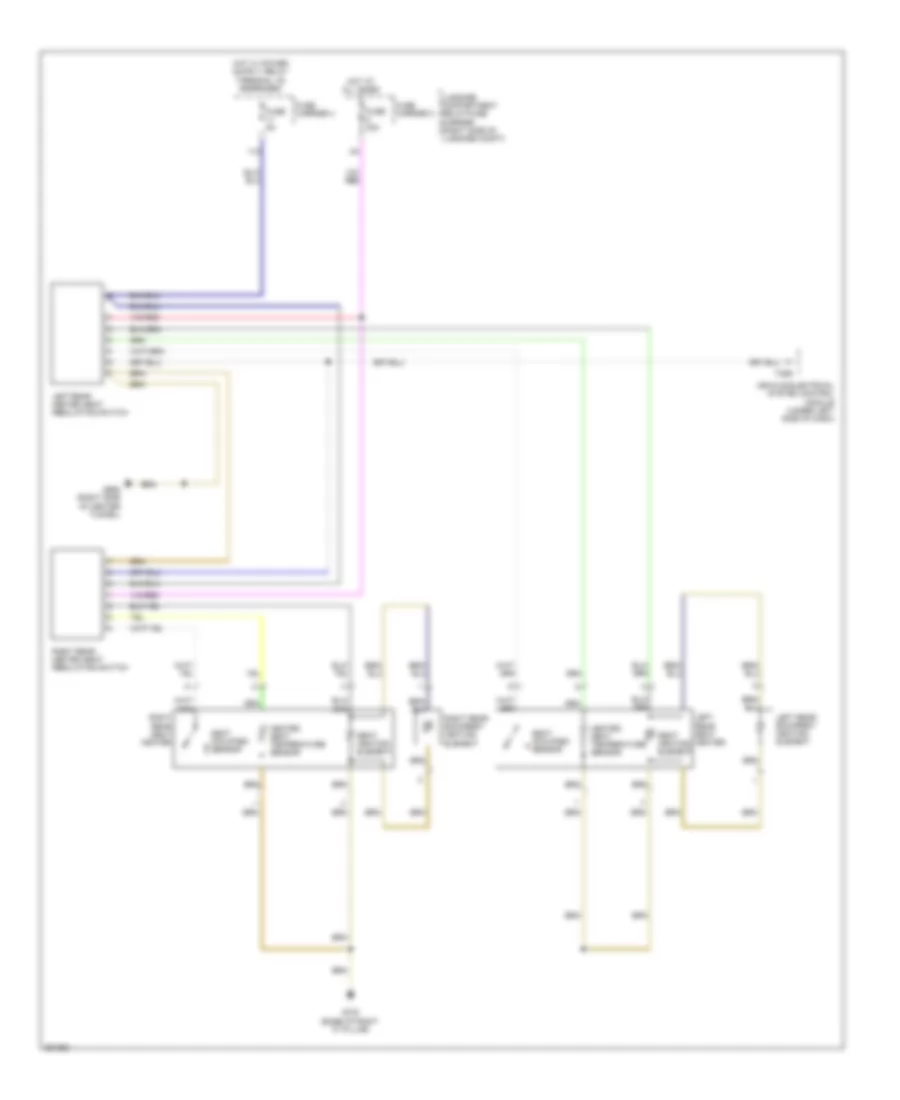

Электросхема подогрева передних сидений, без вентиляция для Audi A4 2.0T 2011

Электросхема подогрева передних сидений, без вентиляция для Audi A4 2.0T 2011 - Список элементов:

• Backrest heating element
• Backrest side bolster heater (if equipped)
• Climatronic control module
• Computer data lines system
• Driver's backrest heating element
• Driver's seat heater
• Driver's side fuse panel (behind left end of dash)
• Front passenger's backrest heating element
• Front passenger's seat heater
• Fuse 30a
• Fuse carrier 2
• G639 (behind left kick panel)
• G730 (base of right "c" pillar)
• Heated driver's seat adjuster
• Heated front passenger's seat adjuster
• Hot at all times
• Left front seat temp sensor
• Right front seat temp sensor
• Seat heating element
• Side bolster heater (if equipped)
• T16b
• T32b
• T6f
• Vehicle electrical system control module (under left side of dash)

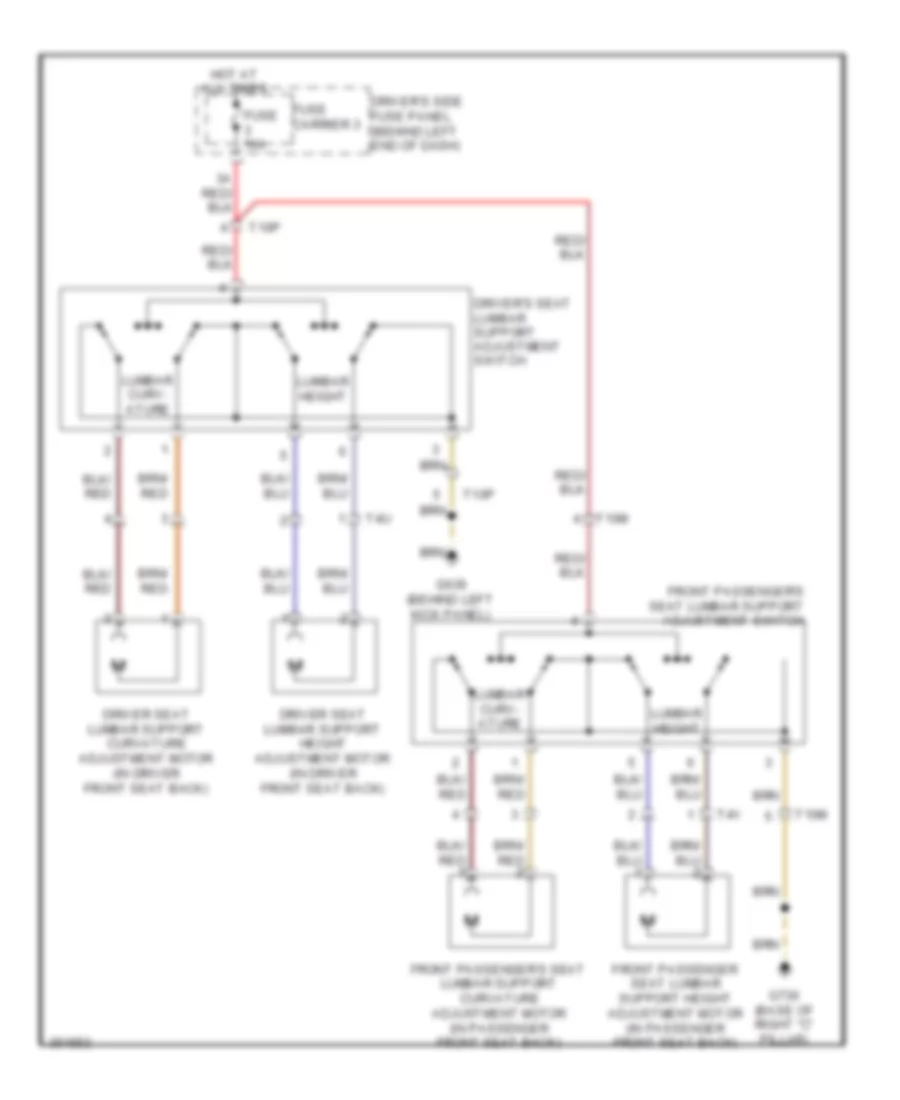

Электросхема регулировки поясницы для Audi A4 2.0T 2011

Электросхема регулировки поясницы для Audi A4 2.0T 2011 - Список элементов:

• Driver seat lumbar support curvature adjustment motor (in driver front seat back)
• Driver seat lumbar support height adjustment motor (in driver front seat back)
• Driver's seat lumbar support adjustment switch
• Driver's side fuse panel (behind left end of dash)
• Front passenger seat lumbar support height adjustment motor (in passenger front seat back)
• Front passenger's seat lumbar support adjustment switch
• Front passenger's seat lumbar support curvature adjustment motor (in passenger front seat back)
• Fuse 10a
• Fuse carrier 3
• G639 (behind left kick panel)
• G730 (base of right "c" pillar)
• Hot at all times
• Lumbar curv- ature
• Lumbar height
• T10m
• T10p
• T4u
• T4v

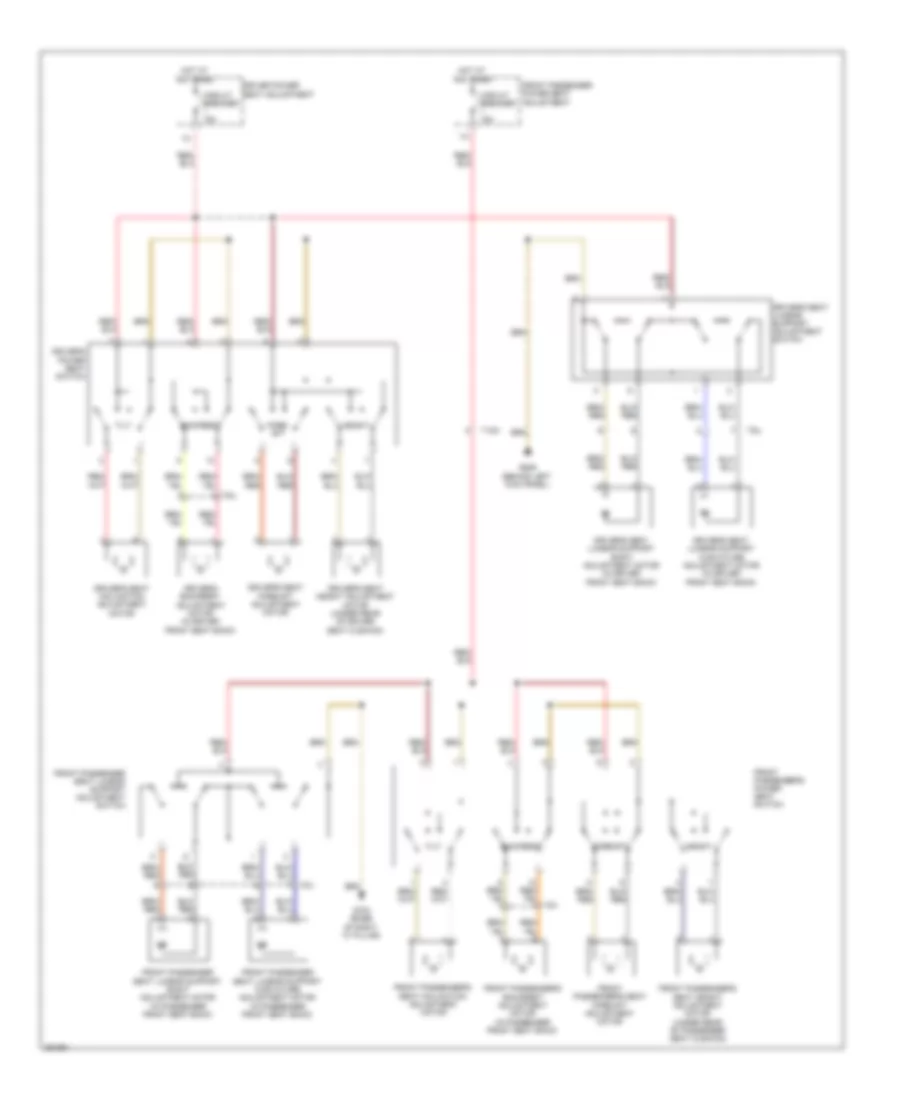

Электросхема привода сидений для Audi A4 2.0T 2011

Электросхема привода сидений для Audi A4 2.0T 2011 - Список элементов:

• Backrest
• Circuit breaker 15a
• Driver power seat adjustment
• Driver's backrest adjustment motor (in driver front seat back)
• Driver's power seat switch
• Driver's seat fore/aft adjustment motor
• Driver's seat height adjustment motor (under rear of driver seat cushion)
• Driver's seat inclination adjustment motor
• Driver's seat lumbar support adjustment switch
• Driver's seat lumbar support curvature adjustment motor (in driver front seat back)
• Driver's seat lumbar support eight adjustment motor (in driver front seat back)
• Fore/ aft
• Fore/aft
• Front passenger power seat adjustment
• Front passenger seat lumbar support adjustment switch
• Front passenger seat lumbar support curvature adjustment motor (in passenger front seat back)
• Front passenger seat lumbar support eight adjustment motor (in passenger front seat back)
• Front passenger's backrest adjustment motor (in passenger front seat back)
• Front passenger's power seat switch
• Front passenger's seat fore/aft adjustment motor
• Front passenger's seat height adjustment motor (under rear of passenger seat cushion)
• Front passenger's seat inclination adjustment motor
• G639 (behind left kick panel)
• G730 (base of right "c" pillar)
• Height
• Hot at all times
• T10m
• T8u
• T8v
• Tilt

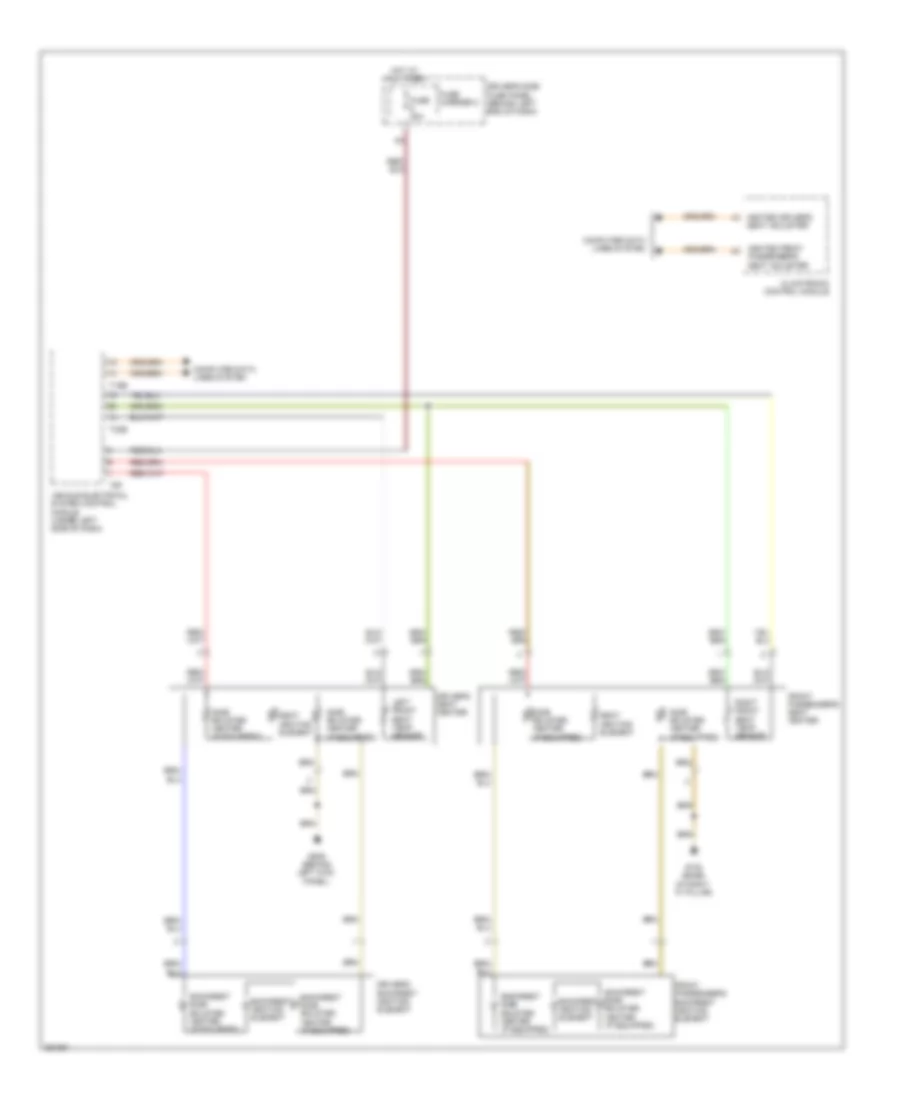

Электросхема подогрева задних сидений для Audi A4 2.0T 2011

Электросхема подогрева задних сидений для Audi A4 2.0T 2011 - Список элементов:

• 11a
• Fuse 30a
• Fuse 5a
• Fuse carrier 3
• Fuse carrier 4
• G688 (right side of center tunnel)
• G730 (base of right "c" pillar)
• Heated seat temperature sensor
• Hot at all times
• Left rear backrest heating element
• Left rear heated seat regulating switch
• Left rear seat heater
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Right rear backrest heating element
• Right rear heated seat regulating switch
• Right rear seat heater
• Seat heating element
• Seat occupied sensor
• T32b
• Vehicle electrical system control module (under left side of dash)
