Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi A4 2.0T 2011

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (base of right "c" pillar) g730
• (left side of luggage compt) g50
• 14a
• Air bag control module (below center console)
• Air bag spiral return/slipring (in steering column)
• Battery interrupt igniter
• Computer data lines system
• Discontinued phased in modification
• Driver air bag igniter & igniter 2 (in steering wheel)
• Driver's front air bag crash sensor
• Driver's side air bag crash sensor
• Driver's side fuse panel (behind left end of dash)
• Front passenger's air bag disabled indicator lamp
• Front passenger's front air bag crash sensor
• Front passenger's side air bag crash sensor
• Fuse 5a
• Fuse carrier
• Hot at all times
• Igniter
• Igniter 2
• Main fuse panel sa
• Nca
• Phased in modification
• Power distribution system
• Rear passenger's side air bag igniter (driver's side)
• Rear passenger's side air bag igniter (front passenger's side)
• Rear side air bag crash sensor (driver's side)
• Rear side air bag crash sensor (front passenger's side)
• Red
• Solid state
• T10n
• T17f
• T17x
• T27a
• T27c

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi A4 2.0T 2011

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (behind left kick panel) g639
• (behind right kick panel) g638
• Air bag malfunction indicator lamp (mil)
• Computer data lines system
• Data bus on board diagnostic interface (behind center of dash)
• Discontinued phased in modification
• Driver's seat belt tensioner & driver's belt force limiter
• Driver's side air bag igniter (outer side of driver's seat back)
• Force limiter
• Front passenger's safety belt switch & seat occupied recognition safety belt force sensor
• Front passenger's seat belt tensioner & front passenger's belt force limiter
• Front passenger's side air bag igniter (outer side of front passenger's seat back)
• Fuse 5a
• Fuse carrier
• G687 (left side of center tunnel)
• Hot at all times
• Igniter
• Instrument cluster
• Instrument cluster control module
• Nca
• Passenger's side can separating plug
• Passenger's side fuse panel (behind right end of dash)
• Phased in modification
• Red
• Seat occupied recognition control module
• Seat occupied recognition pressure sensor
• Solid state
• T10n
• T20d
• T2ai
• T2ca
• T2cd
• T2ce

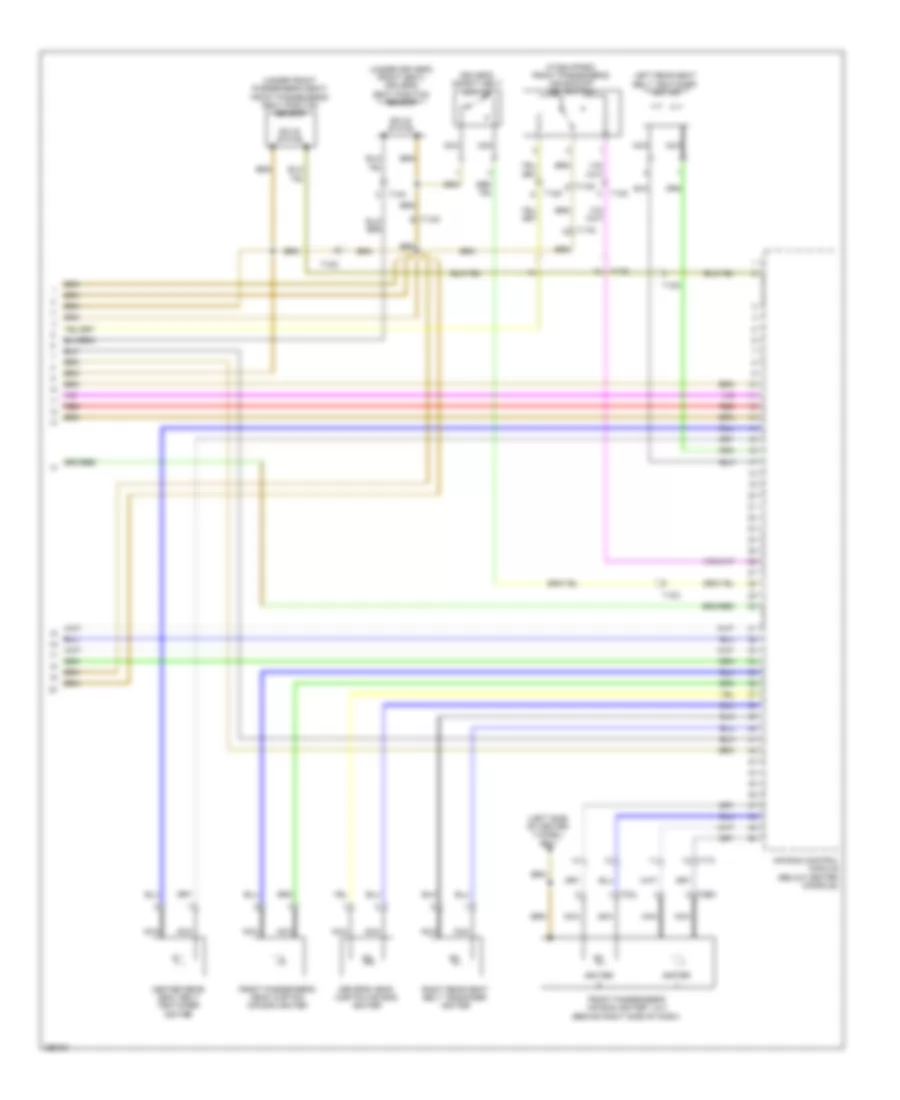

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi A4 2.0T 2011

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (if equipped) front passenger's air bag-off key switch
• (left side of center tunnel) g687
• (under driver's front seat) driver's seat position sensor
• (under front passenger's seat) front passenger's seat position sensor
• Air bag control module (below center console)
• Center rear seat belt tentioner igniter
• Driver's head curtain air bag igniter
• Driver's safety belt switch
• Front passenger's air bag igniter 1 & 2 (behind right side of dash)
• Front passenger's head curtain air bag igniter
• Igniter
• Left rear seat belt tentioner igniter
• Nca
• Red
• Right rear seat belt tensioner igniter
• Solid state
• T10n
• T10o
• T12k
• T17g
• T17x
• T2bh
• T2cl
