Электросхемы ПРИВОД ЗЕРКАЛ Audi A4 2.0T 2011

ПРИВОД ЗЕРКАЛ

Электросхема автозатемнения зеркала заднего вида, С Датчик Влажности для Audi A4 2.0T 2011

Электросхема автозатемнения зеркала заднего вида, С Датчик Влажности для Audi A4 2.0T 2011 - Список элементов:

• 11a
• Automatic day/night interior mirror
• Beam control
• Comfort system control module (right side of trunk)
• Computer data lines system
• Day/night
• Driver door control module (in driver front door)
• Driver side fuse panel (behind left end of dash)
• Driver's exterior mirror assembly
• Exterior lights system
• Front passenger's door control module (in passenger front door)
• Front passenger's exterior mirror assembly
• Fuse 15a
• Fuse 5a
• Fuse carrier
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• Hot at all times
• Humidity sensor (if equipped)
• Interior lights system
• Light recog- nition sensor
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Power distribution system
• T16m
• T16n
• T17p
• T20f
• T20g
• T27a
• T27c
• W/ automatic high
• W/o automatic high

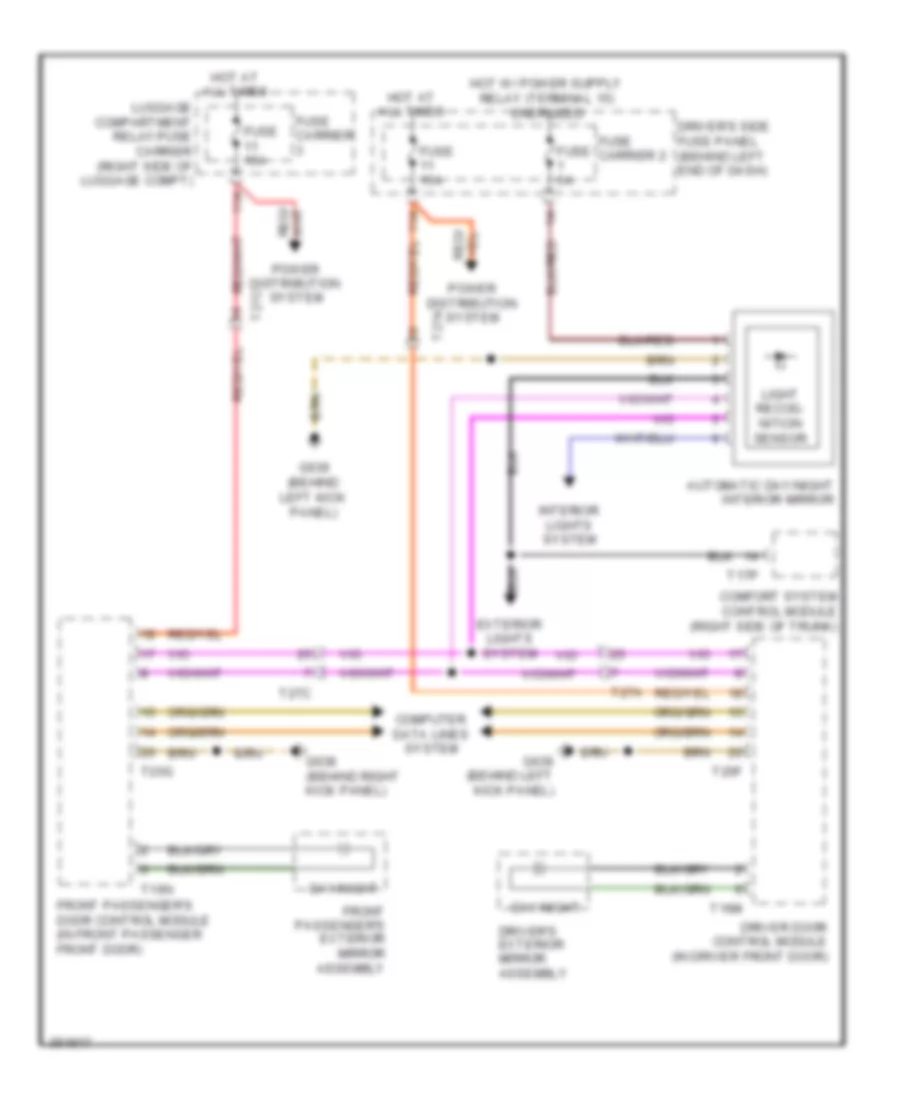

Электросхема автозатемнения зеркала заднего вида, без Датчик Влажности для Audi A4 2.0T 2011

Электросхема автозатемнения зеркала заднего вида, без Датчик Влажности для Audi A4 2.0T 2011 - Список элементов:

• 11a
• Automatic day/night interior mirror
• Comfort system control module (right side of trunk)
• Computer data lines system
• Day/night
• Driver door control module (in driver front door)
• Driver's exterior mirror assembly
• Driver's side fuse panel (behind left end of dash)
• Exterior lights system
• Front passenger's door control module (in front passenger front door)
• Front passenger's exterior mirror assembly
• Fuse 15a
• Fuse 5a
• Fuse carrier
• Fuse carrier 2
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• Hot at all times
• Interior lights system
• Light recog- nition sensor
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Power distribution system
• T16m
• T16n
• T17p
• T20f
• T20g
• T27a
• T27c

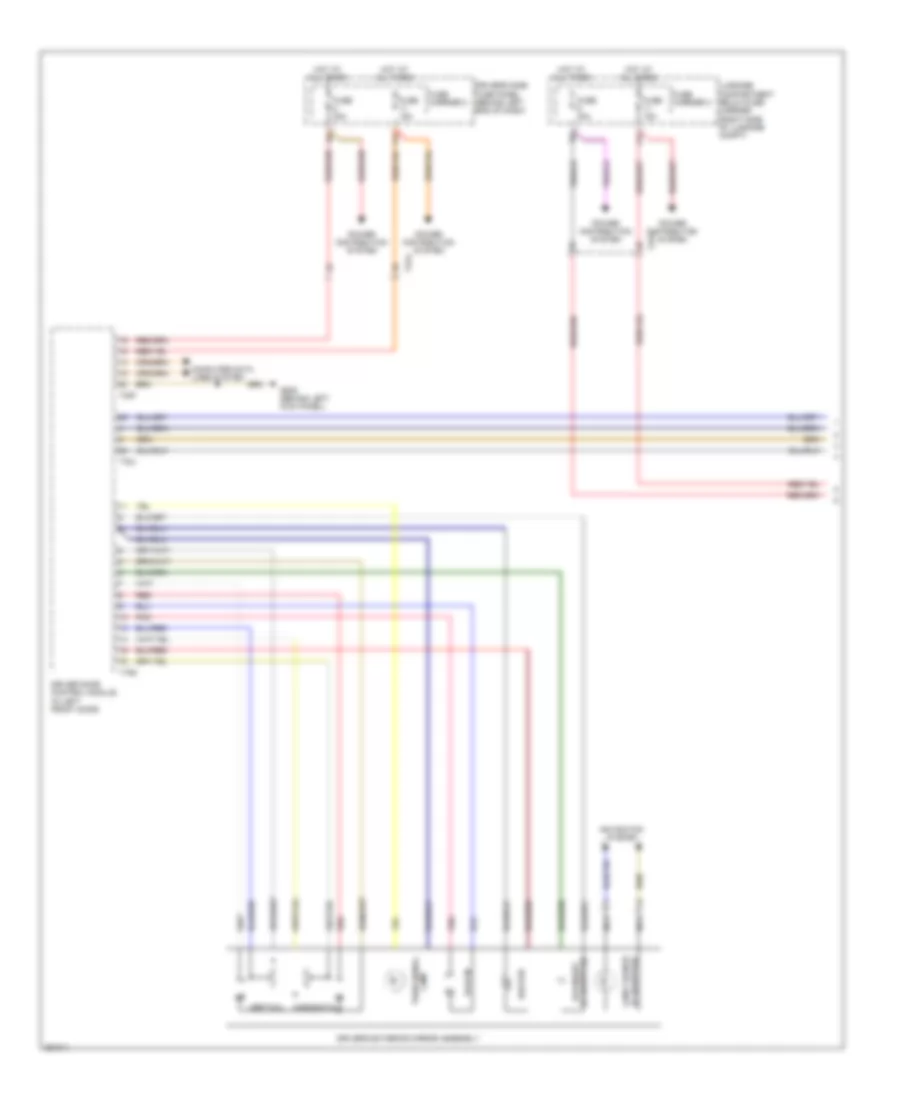

Электросхема привода зеркал (1 из 2) для Audi A4 2.0T 2011

Электросхема привода зеркал (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 11a
• Computer data lines system
• Day/night (if equipped)
• Driver door control module (in left front door)
• Driver's exterior mirror assembly
• Driver's side fuse panel (behind left end of dash)
• Fold-in
• Fuse 15a
• Fuse 30a
• Fuse carrier 2
• Fuse carrier 3
• G639 (behind left kick panel)
• Heater
• Horizontal
• Hot at all times
• Lane change (if equipped)
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Navigation system
• Nca
• Pnk
• Power distribution system
• Red
• T16m
• T20f
• T27a
• T27c
• T32j
• Turn signal lamp
• Vertical

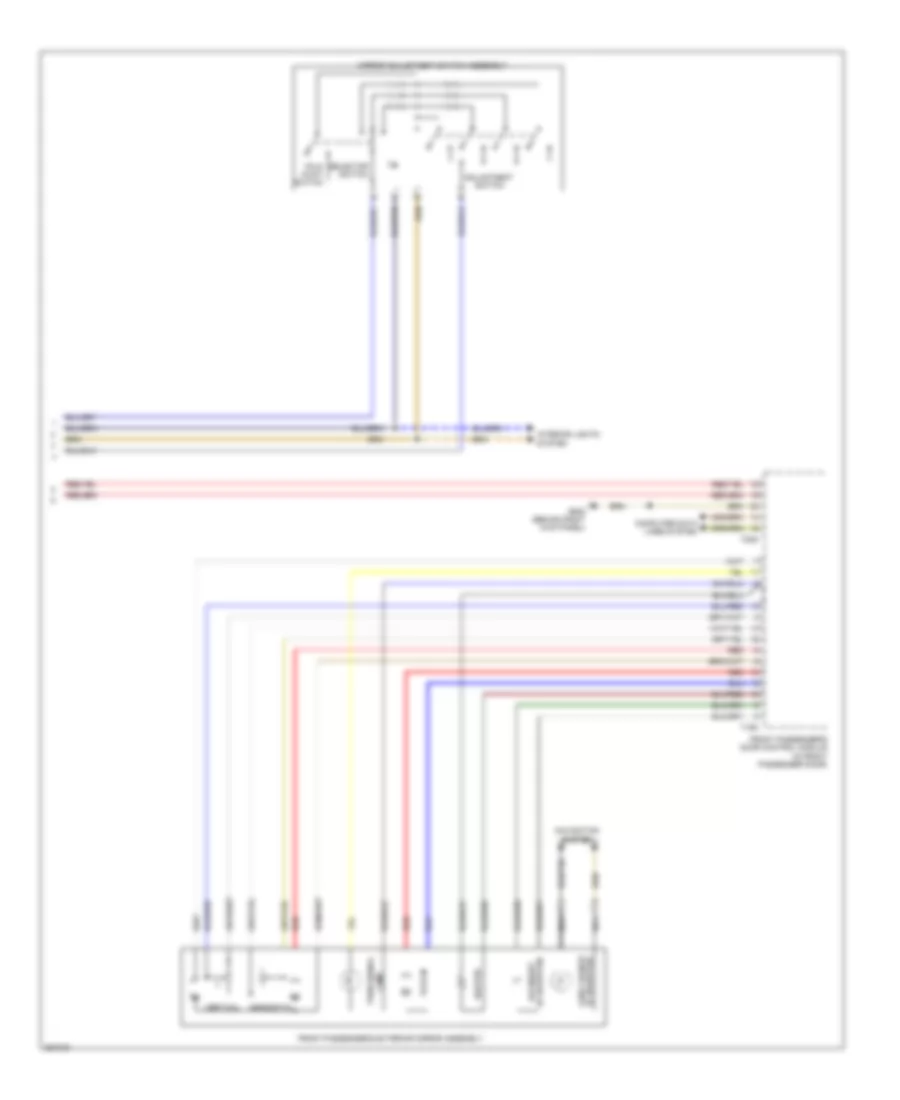

Электросхема привода зеркал (2 из 2) для Audi A4 2.0T 2011

Электросхема привода зеркал (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Adjustment switch
• Computer data lines system
• Day/night (if equipped)
• Fold away switch
• Fold-in
• Front passenger's door control module (in front passenger door)
• Front passenger's exterior mirror assembly
• G638 (behind right kick panel)
• Heater
• Horizontal
• Interior lights system
• Lane change (if equipped)
• Mirror adjustment switch assembly
• Navigation system
• Nca
• Red
• Selector switch
• T16n
• T20g
• Turn signal lamp
• Vertical
