Электросхемы СИСТЕМЫ ПОДВЕСКИ Audi A4 2.0T 2011

СИСТЕМЫ ПОДВЕСКИ

Электросхема электроники подвески (1 из 2) для Audi A4 2.0T 2011

Электросхема электроники подвески (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 12a
• Computer data lines system
• Electronic dampening control module (right side of trunk)
• Fuse 15a
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 4
• G51 (right side of luggage compt)
• Hot at all times
• Left front dampening adjustment valve
• Left rear dampening adjustment valve
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Passenger side fuse panel (behind right end of dash)
• Right front dampening adjustment valve
• Right front level control sensor (in right front wheelwell)
• Right rear dampening adjustment valve

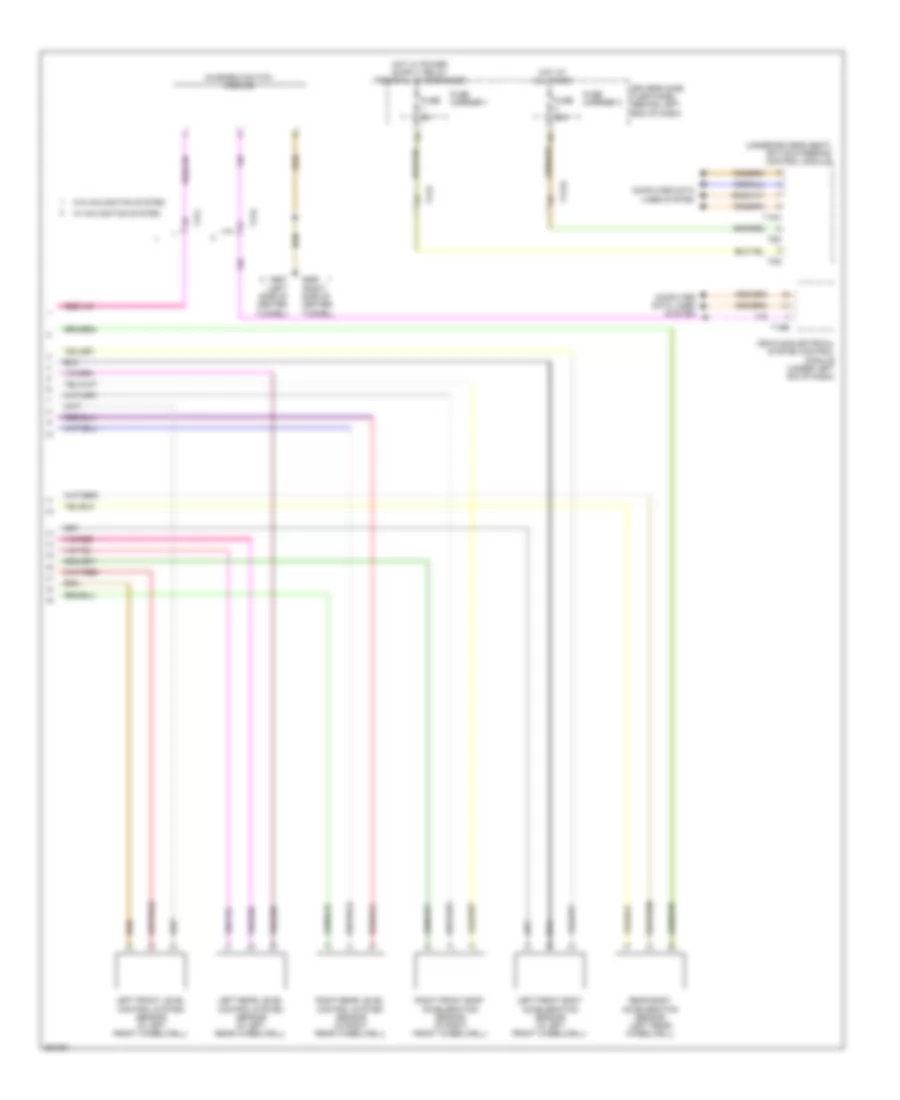

Электросхема электроники подвески (2 из 2) для Audi A4 2.0T 2011

Электросхема электроники подвески (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (under driver's seat) active steering control module
• Charisma switch module
• Computer data
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Fuse 35a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 3
• G687 (left side of center tunnel)
• G688 (right side of center tunnel)
• Hot at all times
• Left front body acceleration sensor (in left front wheelwell)
• Left front level control system sensor (in left front wheelwell)
• Left rear level control system sensor (in left rear wheelwell)
• Lines system
• Rear body acceleration sensor (left rear wheelwell)
• Right front body acceleration sensor (in right front wheelwell)
• Right rear level control system sensor (in right rear wheelwell)
• T10h
• T117b
• T16b
• T17d
• T17e
• T17f
• T5d
• T8g
• Vehicle electrical system control module (under left sid of dash)
• W/ navigation system
• W/o navigation system
