Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Audi A4 2.0T 2011

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Audi A4 2.0T 2011

Электросхема заднего хода для Audi A4 2.0T 2011 - Список элементов:

• 6 speed a/t
• Automatic day/ night interior mirror
• Backup lamp
• Comfort system control module (right side of trunk)
• Computer data lines system
• Cvt
• Direct shift gearbox (dsg) mechatronic
• Fuse 30a
• Fuse carrier
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• G688 (right side of center tunnel)
• Hot at all times
• Left rear taillamp assembly 1
• Left rear taillamp assembly 2
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Prnds
• Right rear taillamp assembly 1
• Right rear taillamp assembly 2
• Sedan
• Selector lever sensor system control module (on shifter unit)
• T17o
• T17p
• T17q
• T32c
• Transmission control module (tcm)
• Transmission control module (tcm) (in mechatronic unit)
• W/ direct shift gear box
• W/ led rear lights
• W/o direct shift gear box
• W/o led rear lights
• Wagon

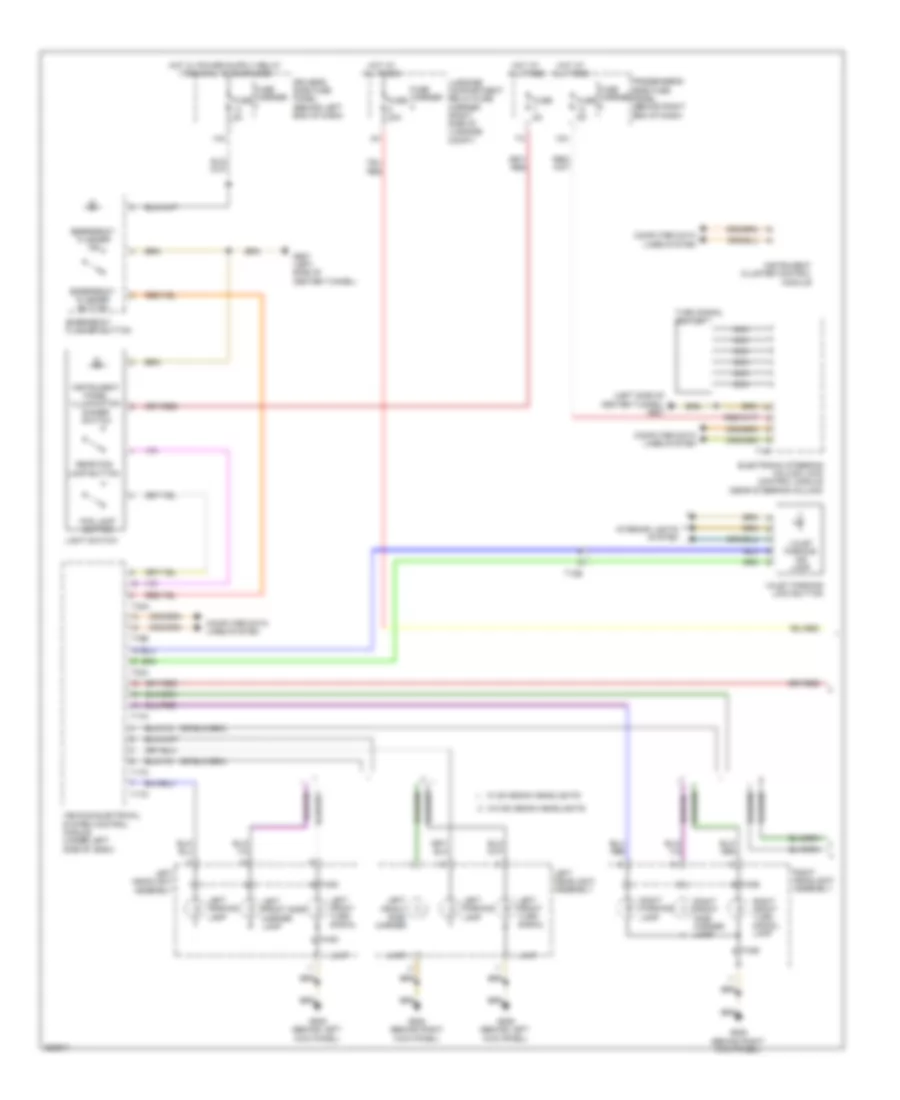

Электросхема внешнего освещения, седан (1 из 3) для Audi A4 2.0T 2011

Электросхема внешнего освещения, седан (1 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (left side of center tunnel) g687
• 12a
• 14a
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Electronic steering column lock control module (near steering column)
• Emergency flasher button
• Emergency flasher ind
• Fog lamp button
• Fuse 30a
• Fuse 5a
• Fuse carrier
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• Hot at all times
• Instrument cluster control module
• Instrument panel illumination dimmer switch
• Interior lights system
• Lamp
• Left front side marker
• Left front side marker lamp
• Left front turn signal
• Left headlight assembly
• Left parking lamp
• Light switch
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Rear fog lamp button
• Right front side marker lamp
• Right front turn signal lamp
• Right headlight assembly
• Right parking lamp
• T12e
• T16b
• T16f
• T17m
• T17n
• T32a
• T4ad
• T4ae
• Turn signal switch
• Valet parking ind lamp
• Valet parking lock button
• Vehicle electrical system control module (under left side of dash)
• W/ bi-xenon headlights
• W/o bi-xenon headlights

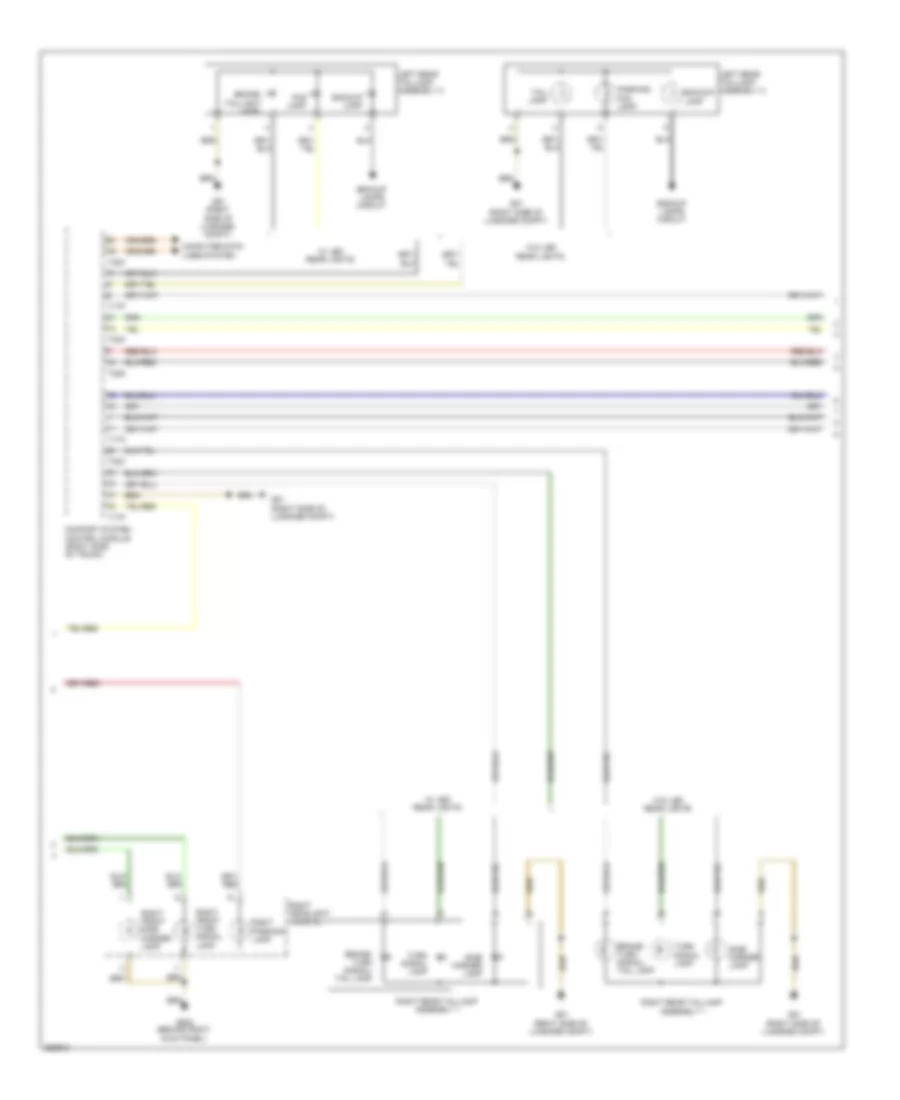

Электросхема внешнего освещения, седан (2 из 3) для Audi A4 2.0T 2011

Электросхема внешнего освещения, седан (2 из 3) для Audi A4 2.0T 2011 - Список элементов:

• Backup lamp
• Backup lamps circuit
• Brake/ taillight lamp2
• Brake/ turn signal/ tail lamp
• Comfort system control module (right side of trunk)
• Computer data lines system
• Fog lamp
• G51 (right side of luggage compt)
• G638 (behind right kick panel)
• Left rear taillamp assembly 2
• Parking lamp
• Parking/ fog lamp
• Right
• Right front side marker lamp
• Right front turn signal lamp
• Right headlight assembly
• Right rear taillamp assembly 1
• Side marker lamp
• T17o
• T17p
• T32c
• T32d
• Tail lamp
• Turn signal lamp
• W/ led rear lights
• W/o led rear lights

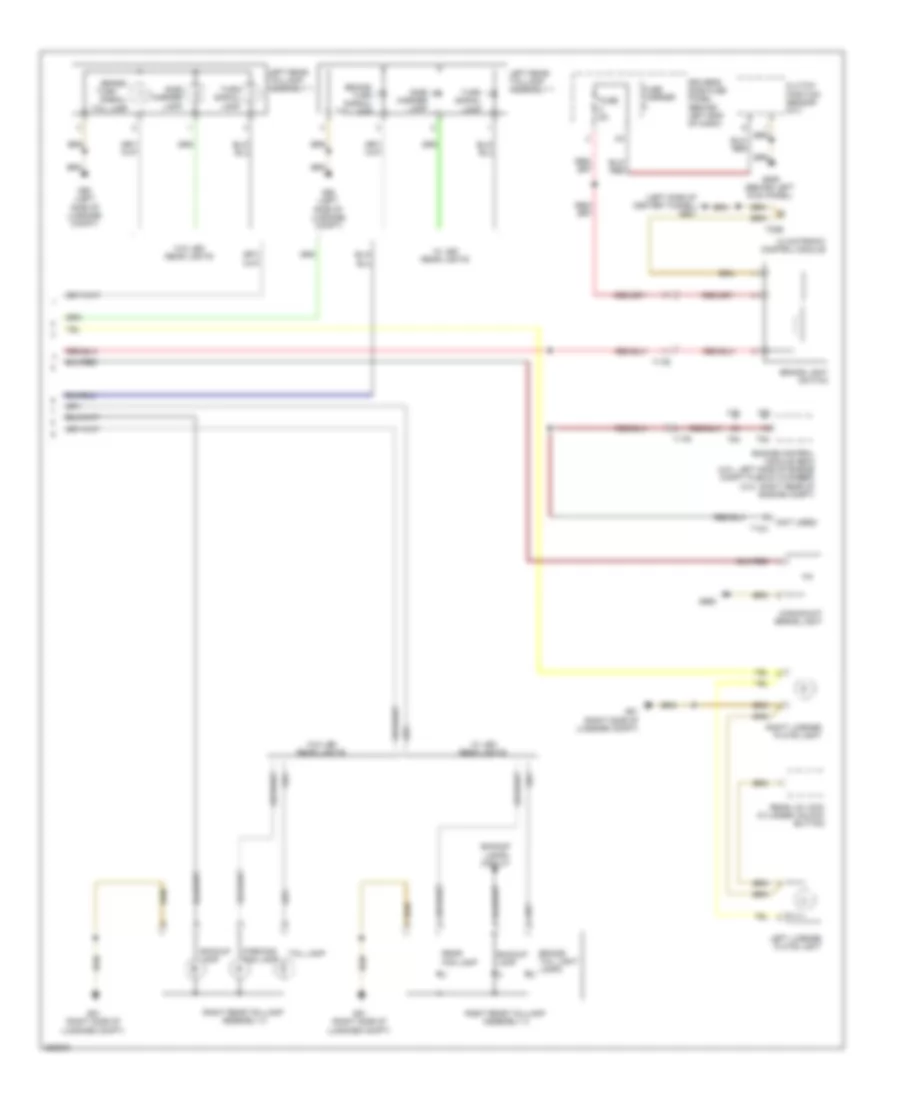

Электросхема внешнего освещения, седан (3 из 3) для Audi A4 2.0T 2011

Электросхема внешнего освещения, седан (3 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (left side of center tunnel) g687
• (not used)
• 2.0l
• 3.0l
• Backup lamp
• Backup lamps circuit
• Brake light switch
• Brake/
• Brake/ tail light lamp2
• Brake/ turn signal/ tail lamp
• Climatronic control module
• Clutch position sensor (m/t)
• Driver's side fuse panel (behind left end of dash)
• Engine control module (ecm) (2.0l: left side of engine compt plenum chamber) (3.0l: right rear of engine compt)
• Fuse 5a
• Fuse carrier
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• G639 (behind left kick panel)
• G690
• High-mount brake light
• Left license plate light
• Left rear taillamp assembly 1
• Parking/ fog lamp
• Rear fog lamp
• Rear lid lock cylinder unlock button
• Right license plate light
• Right rear taillamp assembly 2
• Side marker lamp
• Signal/ tail lamp
• T12u
• T17e
• T17r
• T20e
• T94
• Tail lamp
• Turn
• Turn signal lamp
• W/ led rear lights
• W/o led rear lights

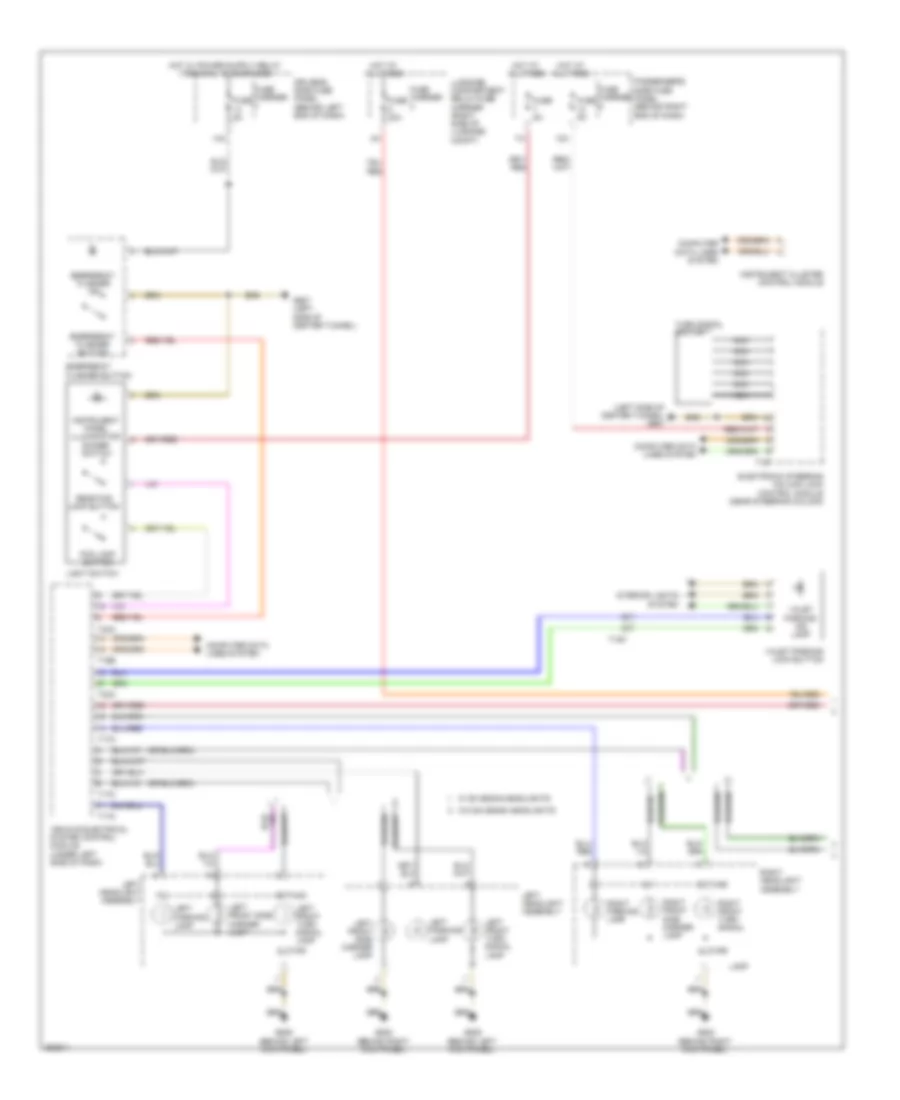

Электросхема внешнего освещения, Универсал (1 из 3) для Audi A4 2.0T 2011

Электросхема внешнего освещения, Универсал (1 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (left side of center tunnel) g687
• 12a
• 14a
• Computer data lines system
• Driver's side fuse panel (behind left end of dash)
• Electronic steering column lock control module (near steering column)
• Emergency flasher button
• Emergency flasher ind
• Fog lamp button
• Fuse 30a
• Fuse 5a
• Fuse carrier
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• Hot at all times
• Instrument cluster control module
• Instrument panel illumination dimmer switch
• Interior lights system
• Lamp
• Left front side marker lamp
• Left front turn signal lamp
• Left headlight assembly
• Left parking lamp
• Light switch
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Rear fog lamp button
• Right front side marker lamp
• Right front turn signal
• Right headlight assembly
• Right parking lamp
• T12k
• T16b
• T16f
• T17m
• T17n
• T32a
• T4ad
• T4ae
• Turn signal switch
• Valet parking ind lamp
• Valet parking lock button
• Vehicle electrical system control module (under left side of dash)
• W/ bi-xenon headlights
• W/o bi-xenon headlights

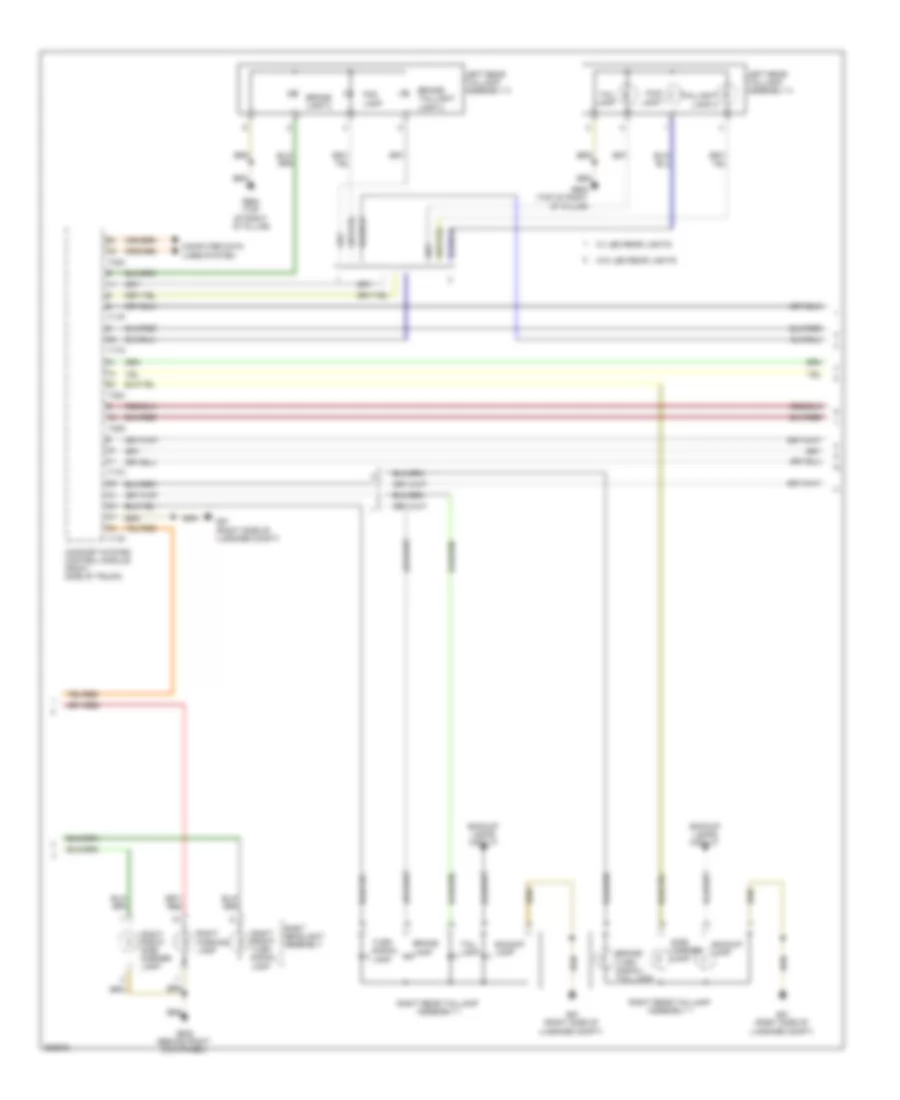

Электросхема внешнего освещения, Универсал (2 из 3) для Audi A4 2.0T 2011

Электросхема внешнего освещения, Универсал (2 из 3) для Audi A4 2.0T 2011 - Список элементов:

• Backup lamp
• Backup lamps circuit
• Brake lamp
• Brake lamp 2
• Brake/ taillight lamp 2
• Brake/ turn signal/ tail lamp
• Comfort system control module (right side of trunk)
• Computer data lines system
• Fog lamp
• G51 (right side of luggage compt)
• G638 (behind right kick panel)
• G654 (top of right "d" pillar)
• Left rear taillamp assembly 2
• Parking lamp
• Right
• Right front side marker lamp
• Right front turn signal lamp
• Right headlight assembly
• Right rear taillamp assembly 1
• Side marker lamp
• T17o
• T17p
• T32c
• T32d
• Tail lamp
• Taillight lamp 2
• Turn signal lamp
• W/ led rear lights
• W/o led rear lights

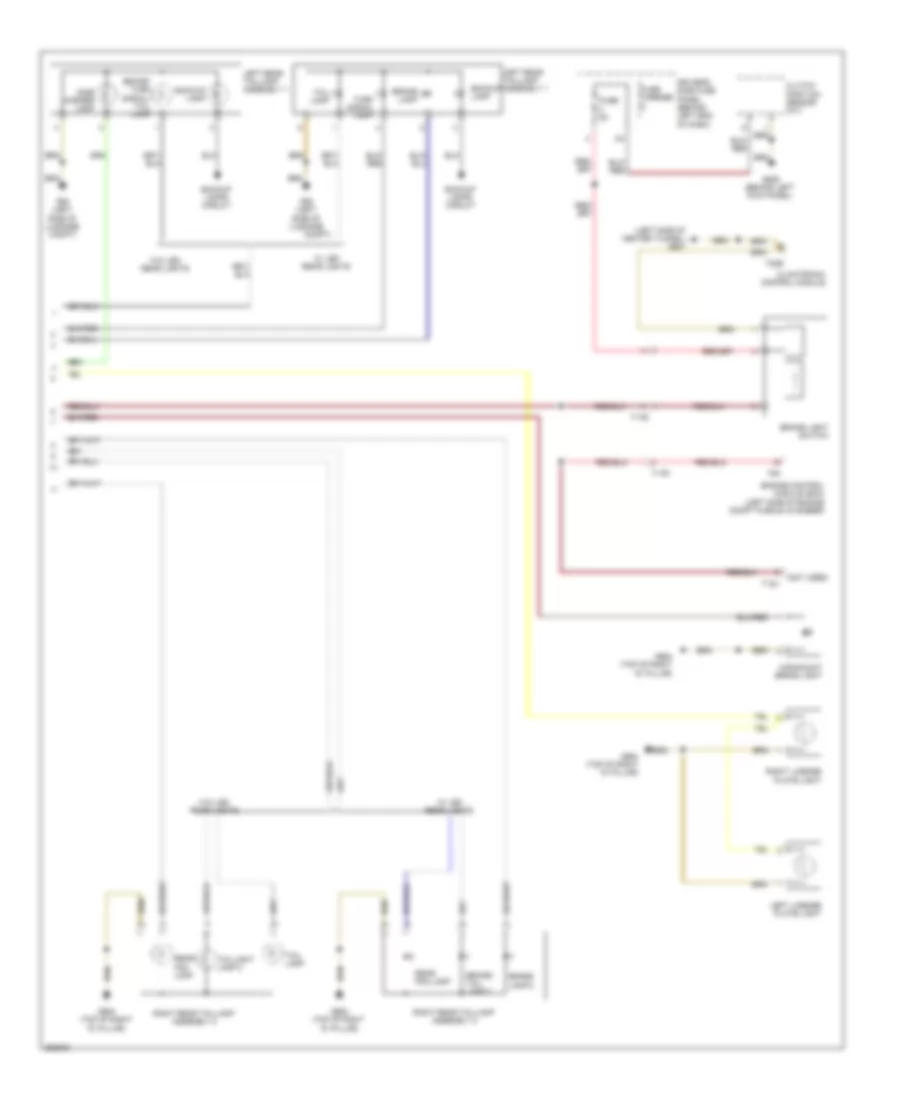

Электросхема внешнего освещения, Универсал (3 из 3) для Audi A4 2.0T 2011

Электросхема внешнего освещения, Универсал (3 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (left side of center tunnel) g687
• (not used)
• Backup lamp
• Backup lamps circuit
• Brake lamp
• Brake lamp 2
• Brake light switch
• Brake/ tail lamp 2
• Brake/ turn signal/ tail lamp
• Climatronic control module
• Clutch position sensor (m/t)
• Compt)
• Driver's side fuse panel (behind left end of dash)
• Engine control module (ecm) (left side of engine compt plenum chamber)
• Fuse 5a
• Fuse carrier
• G50 (left side of luggage
• G50 (left side of luggage compt)
• G639 (behind left kick panel)
• G654 (top of right "d" pillar)
• High-mount brake light
• Left license plate light
• Left rear taillamp assembly 1
• Rear fog lamp
• Right license plate light
• Right rear taillamp assembly 2
• Side marker lamp
• T12u
• T17e
• T17r
• T20e
• T94
• Tail lamp
• Taillight lamp 2
• Turn signal lamp
• W/ led rear lights
• W/o led rear lights
