Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Audi A4 2.0T 2011

СИСТЕМА КРУИЗКОНТРОЛЯ

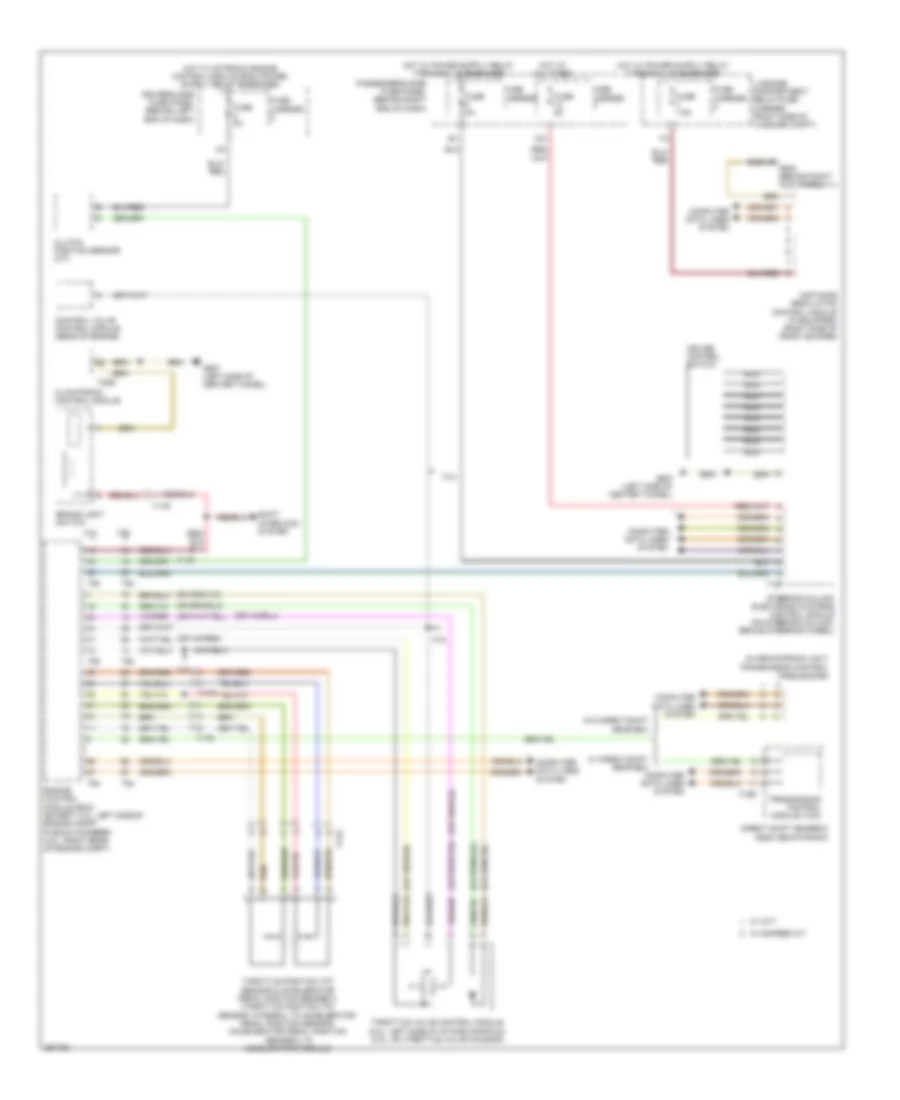

Электросхема системы круизконтроля для Audi A4 2.0T 2011

Электросхема системы круизконтроля для Audi A4 2.0T 2011 - Список элементов:

• (in mechatronic unit) transmission control module (tcm)
• 12a
• 2.0l
• 3.0l
• 3.ol
• Brake light switch
• Climatronic control module
• Clutch position sensor (m/t)
• Computer data lines system
• Control valve control module (rear of engine)
• Cruise control switch
• Direct shift gearbox (dsg) mechatronic
• Distance regulation control module (if equipped) (right side of front bumper)
• Driver's side fuse panel (behind left end of dash)
• Engine control module (ecm) (except 3.0l: left side of engine compt plenum chamber) (3.0l: right rear of engine compt)
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• G638 (behind right kick panel)
• G687 (left side of center tunnel)
• Hot at all times
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Shift interlock system
• Steering column electronic systems control module (on steering column, behind steering wheel)
• T11r
• T16f
• T16r
• T17e
• T17r
• T20e
• T60
• T94
• Throttle position (tp) sensor & accelerator pedal position sender 2 (throttle position (tp) sensor: integral to accelerator pedal position sensor) (accelerator pedal position sender 2: in accelerator module)
• Throttle valve control module (2.0l: left side of intake manifold) (3.0l: on throttle valve housing)
• Transmission control module (tcm)
• W/ 6-speed a/t
• W/ cvt
• W/ direct shift gear box
• W/o direct shift gear box
