Электросхемы Магнитола Мультимедия Audi A4 2.0T 2011

Магнитола Мультимедия

БОЛЬШАЯ ЧАСТЬ схемы шины данных, MMI 2 для Audi A4 2.0T 2011

БОЛЬШАЯ ЧАСТЬ схемы шины данных, MMI 2 для Audi A4 2.0T 2011 - Список элементов:

• (sedan: left rear of trunk)
• Basic
• Cd changer
• Data bus on board diagnostic interface (behind center of dash)
• Digital radio
• Digital sound system control module (wagon: left rear of cargo area)
• Digital sound system control module (wagon: left rear of cargo area) (sedan: left rear of trunk)
• Except premium
• External audio source connection
• Front information display control head control module (behind glove box)
• High
• Lwl in
• Lwl out
• Navigation system w/ cd drive control module (left side of trunk)
• Nca
• Premium
• Radio
• Satellite radio/ digital radio (satellite radio: left rear of trunk)
• T2bg
• Telephone transceiver (under front passenger's seat)
• Tv tuner (left side of trunk)
• W/o integrated control module

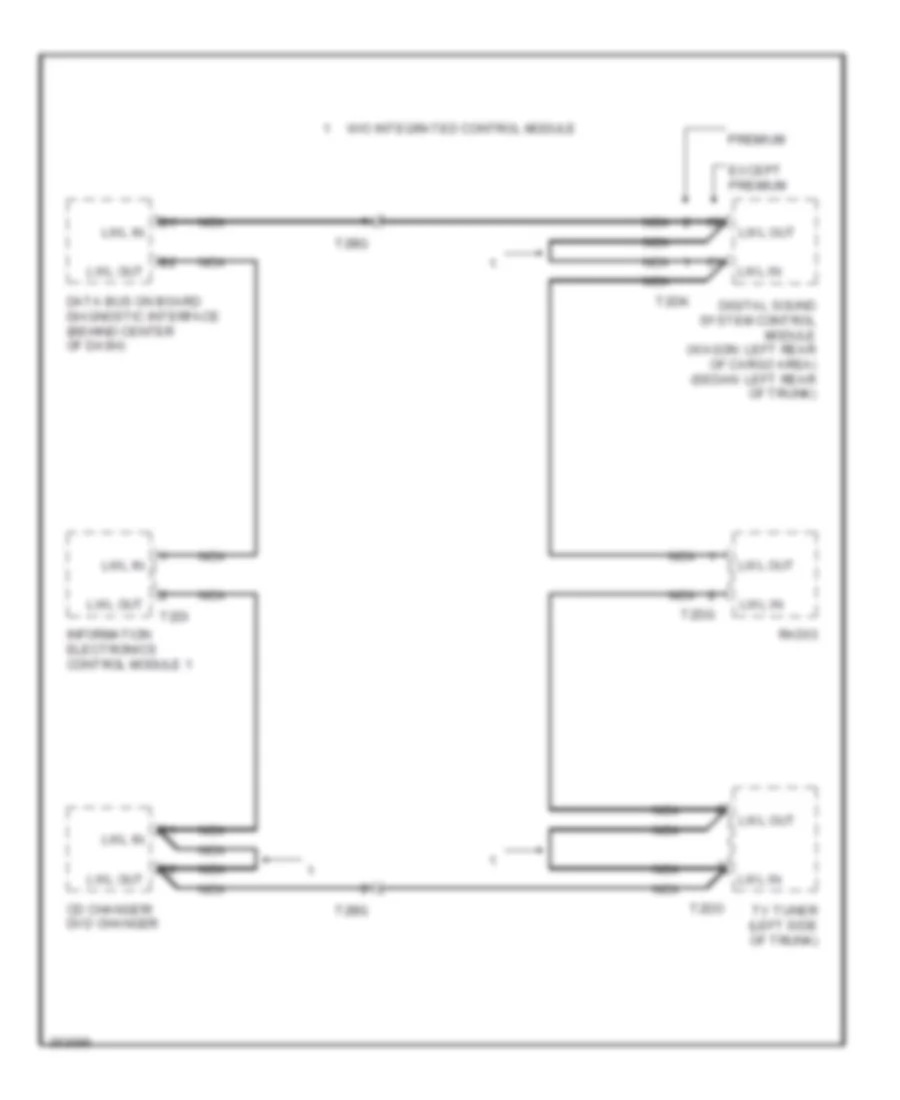

БОЛЬШАЯ ЧАСТЬ схемы шины данных, MMI 3 для Audi A4 2.0T 2011

БОЛЬШАЯ ЧАСТЬ схемы шины данных, MMI 3 для Audi A4 2.0T 2011 - Список элементов:

• Cd changer/ dvd changer
• Data bus on board diagnostic interface (behind center of dash)
• Digital sound system control module (wagon: left rear of cargo area) (sedan: left rear of trunk)
• Except premium
• Information electronics control module 1
• Lwl in
• Lwl out
• Nca
• Premium
• Radio
• T2bg
• T2dg
• T2di
• T2dk
• T2do
• Tv tuner (left side of trunk)
• W/o integrated control module

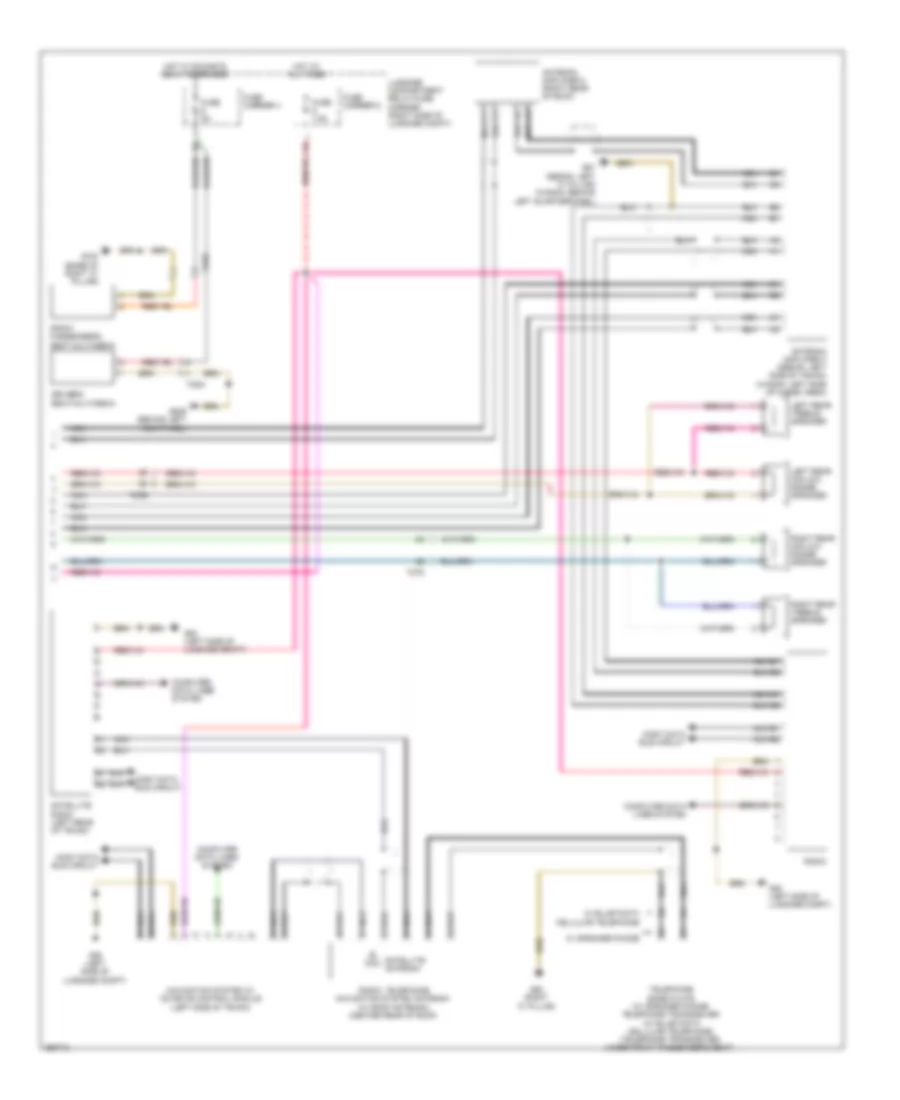

мультимедийная интерфейсная схема (1 из 2) для Audi A4 2.0T 2011

мультимедийная интерфейсная схема (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (left side of center tunnel) g687
• (or nca)
• (right side of center tunnel) g688
• (w/o speaker phone)
• 18 pin connector t18a
• Computer data lines system
• Front information display control head control module (behind glove box)
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• Fuse carrier 2
• G687 (left side of center tunnel)
• Hot at all times
• Information electronics control module 1
• Left front microphone
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Microphone unit (in front of module)
• Mmi basic
• Mmi high
• Most data bus circuit
• Multimedia control head
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Rear view camera system control module (if equipped) (right side of trunk)
• Red
• Right front microphone
• T12x
• T1o
• T1p
• T1s
• T1w
• T2di
• T32b
• T4aj
• T4al
• T4am
• T4an
• T4ao
• T8ah
• T8ai
• T8ao
• Telephone baseplate (w/ speaker)
• Telephone baseplate (w/o speaker)
• Vehicle electrical system control module (under left side of dash)
• W/ mmi basic
• W/ mmi high
• W/ speaker
• W/o speaker

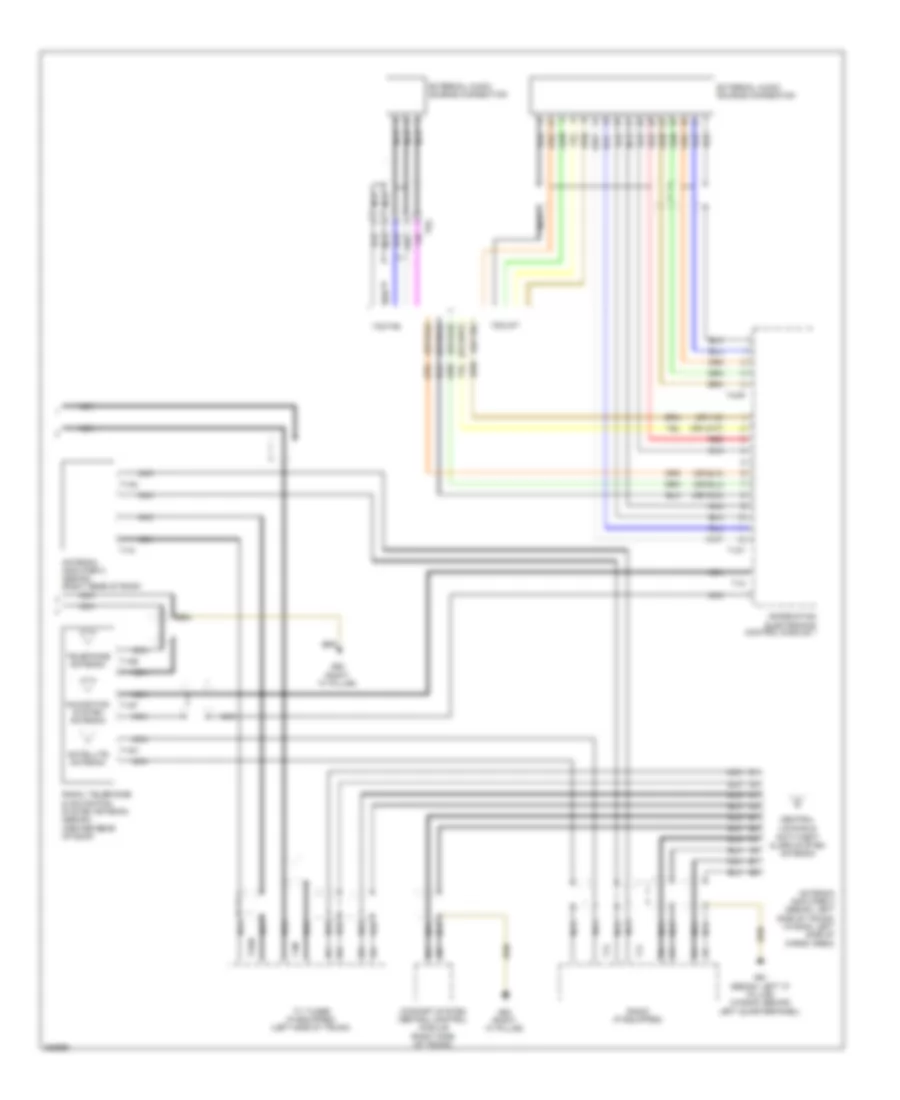

мультимедийная интерфейсная схема (2 из 2) для Audi A4 2.0T 2011

мультимедийная интерфейсная схема (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (or nca)
• 7a3/7a6
• 7d3/uf7
• Antenna amplifier 2 (sedan) (right rear of roof)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Central
• Comfort system central control module (right side of trunk)
• External audio source connection
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G62 (right "c" pillar)
• Information electronics control module 1
• Locking & anti-theft alarm system antenna
• Navigation system antenna
• Nca
• Radio (if equipped)
• Radio, telephone & navigation system antenna (sedan) (center rear of roof)
• Red
• Satellite antenna
• T12y
• T1ac
• T1ae
• T1af
• T1ah
• T1ai
• T1i
• T1l
• T1m
• T1n
• T2dn
• T4ap
• T5g
• Telephone antenna
• Tv tuner (if equipped) (left side of trunk)

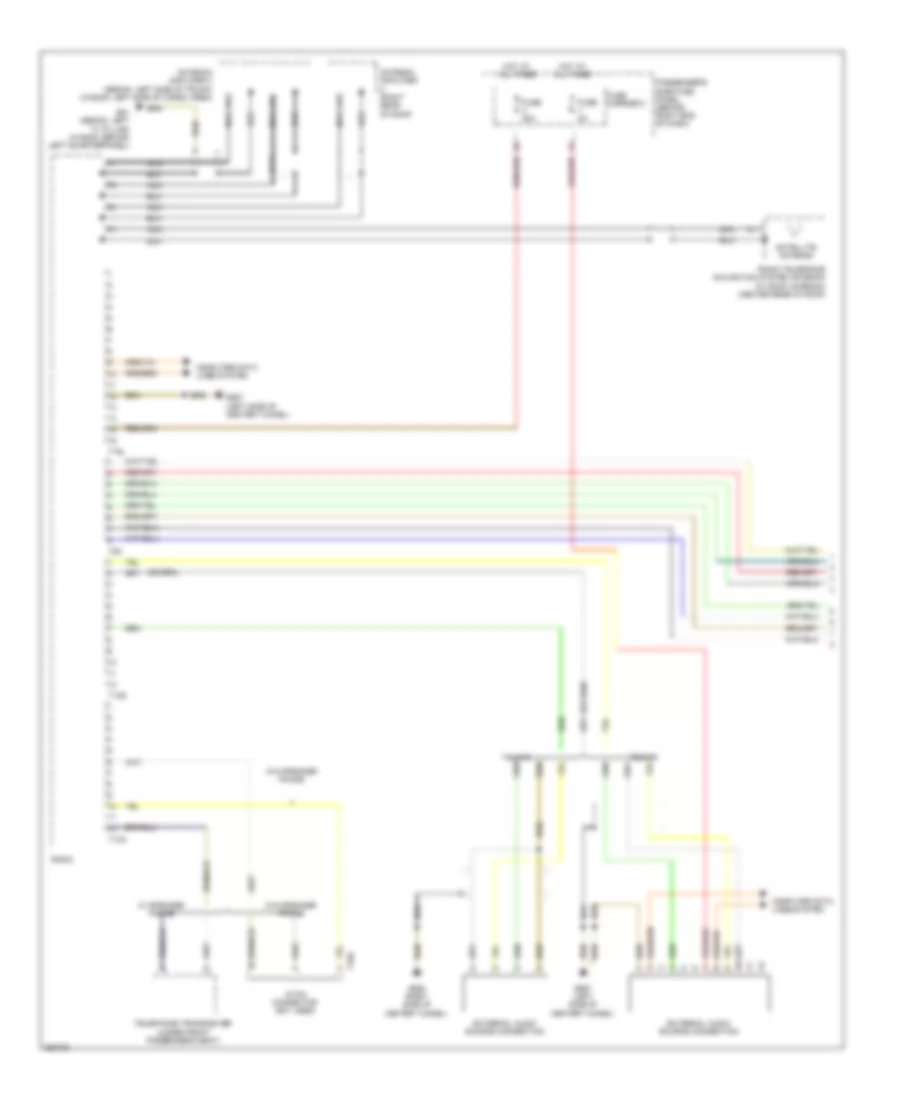

Электросхема магнитолы, основная развлекательно-информационная передача (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, основная развлекательно-информационная передача (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 18 pin connector (not used)
• 7a3/uf0
• 7d3/uf7
• Antenna amplifier (right rear of roof)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Computer data lines system
• External audio source connection
• Fuse 20a
• Fuse 5a
• Fuse carrier
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G687 (left side of center tunnel)
• G688 (right side of center tunnel)
• Hot at all times
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio
• Radio, telephone navigation system antenna (w/ roof antenna) (center rear of roof)
• Satellite antenna
• T12a
• T12s
• T16l
• T18a
• T8k
• Telephone transceiver (under front passenger's seat)
• W/ speaker phone
• W/o speaker phone

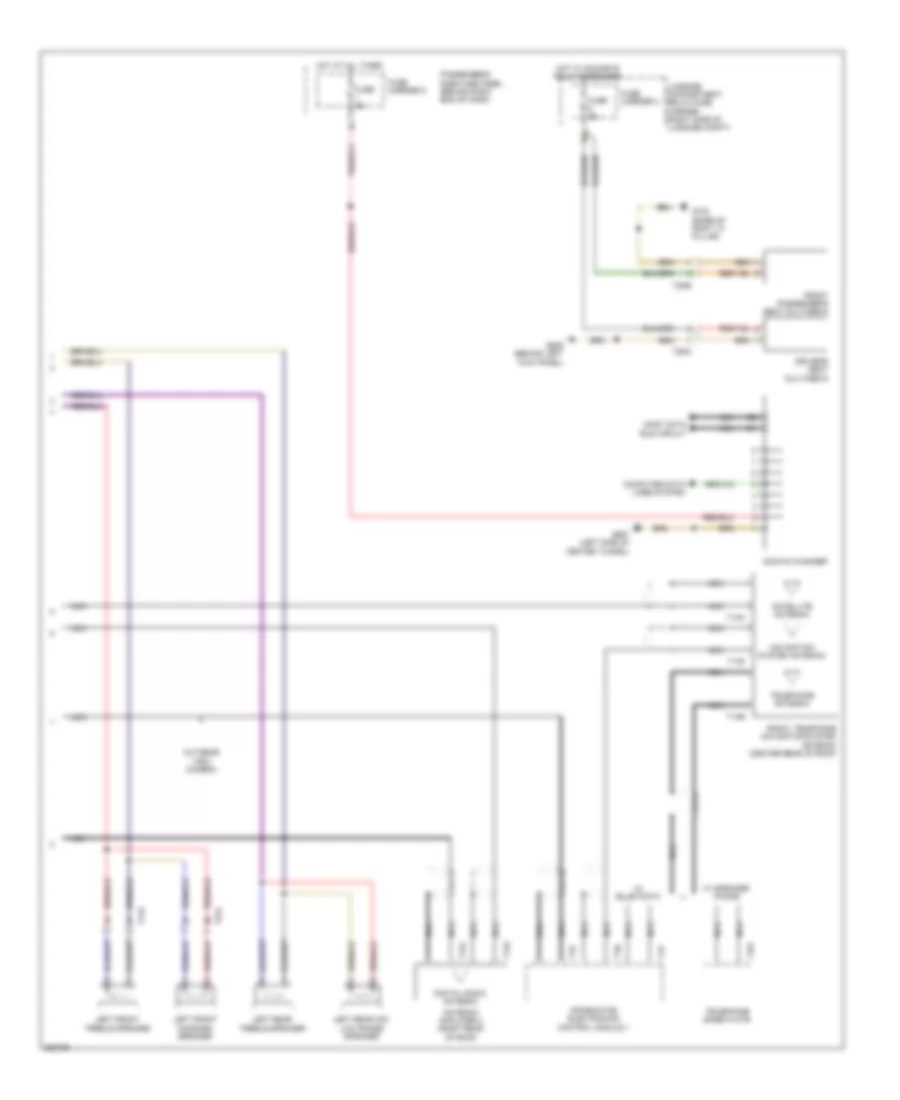

Электросхема магнитолы, основная развлекательно-информационная передача (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, основная развлекательно-информационная передача (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Cd/dvd changer
• Computer data lines system
• Front information display control head control module (w/ radio chorus) (behind glove box)
• Fuse 5a
• Fuse carrier 2
• G687 (left side of center tunnel)
• Hot at all times
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/low range speaker
• Left rear treble speaker
• Most data bus circuit
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid/low range speaker
• Right rear treble speaker
• T17c
• T17d
• T17f
• T27a
• T27b
• T27c
• T27d
• W/ basic
• W/ basic plus

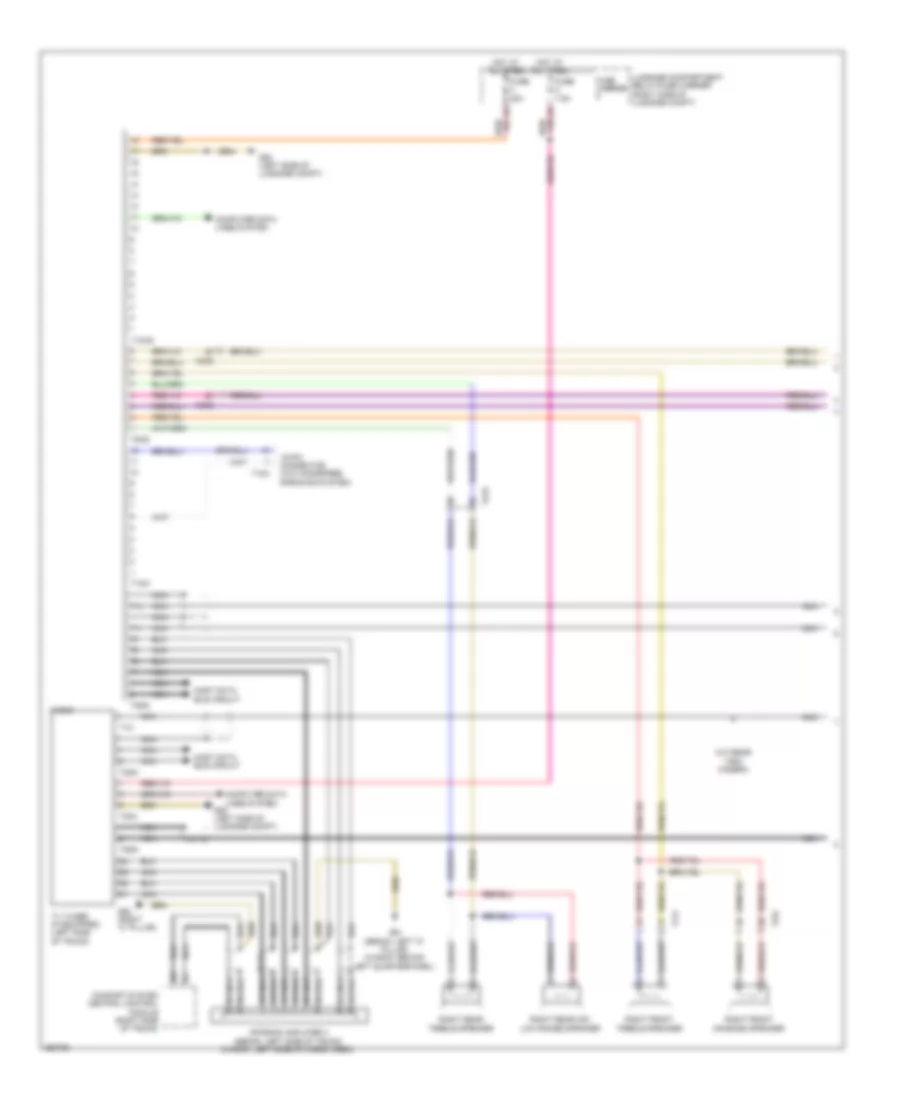

Электросхема магнитолы, основной MMI 2 (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, основной MMI 2 (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 18 pin connector (w/o speaker phone)
• Cd changer
• Computer data lines system
• Digital sound system control module (wagon: left rear cargo area) (sedan: left rear of trunk)
• External audio source connection (w/ mmi high)
• Front information display control head control module (w/o rear view camera) (behind glove box)
• Fuse 40a
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 3
• G50 (left side of luggage compt)
• G687 (left side of center tunnel)
• Hot at all times
• Left front mid-bass speaker
• Left front treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Rear view camera system control module (if equipped) (right side of trunk)
• Right front mid-bass speaker
• Right front treble speaker
• T17d
• T17f
• T18a
• T20c
• T27a
• T27c
• T32h
• Tv tuner (left side of trunk)
• W/ mmi high

Электросхема магнитолы, основной MMI 2 (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, основной MMI 2 (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Antenna amplifier 2 (right rear of roof)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Computer data lines system
• Driver's seat multimedia
• Front passenger's seat multimedia
• Fuse 5a
• Fuse 7.5a
• Fuse carrier 4
• Fuse carrier 5
• G50 (left side of luggage compt)
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G62 (right "c" pillar)
• G639 (behind left kick panel)
• G730 (base of right "c" pillar)
• Hot at all times
• Hot w/ sockets relay energized
• Left rear mid/low range speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Navigation system w/ cd drive control module (left side of trunk)
• Nca
• Radio
• Radio, telephone navigation system antenna (w/ roof antenna) (center rear of roof)
• Right rear mid/low range speaker
• Right rear treble speaker
• Satellite antenna
• Satellite radio (left rear of trunk)
• T27b
• T27d
• T2da
• T2db
• W/ speaker phone

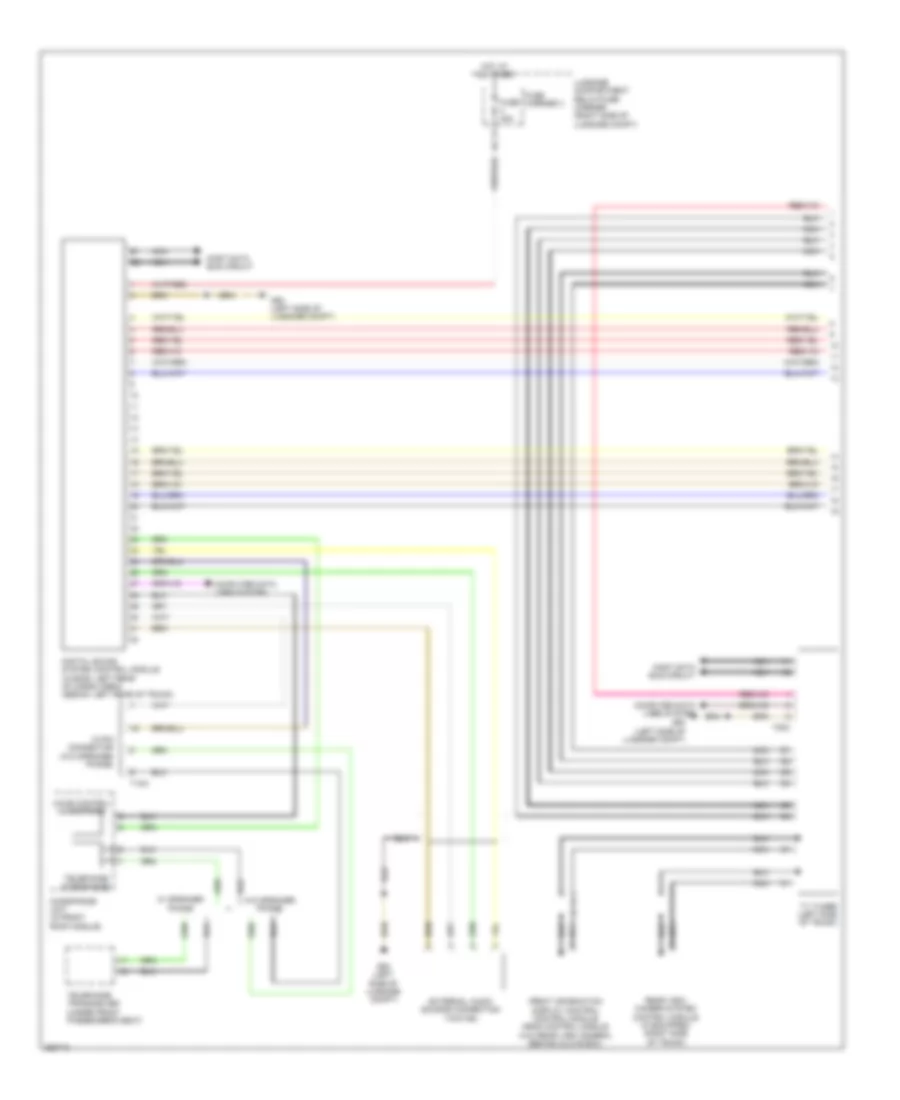

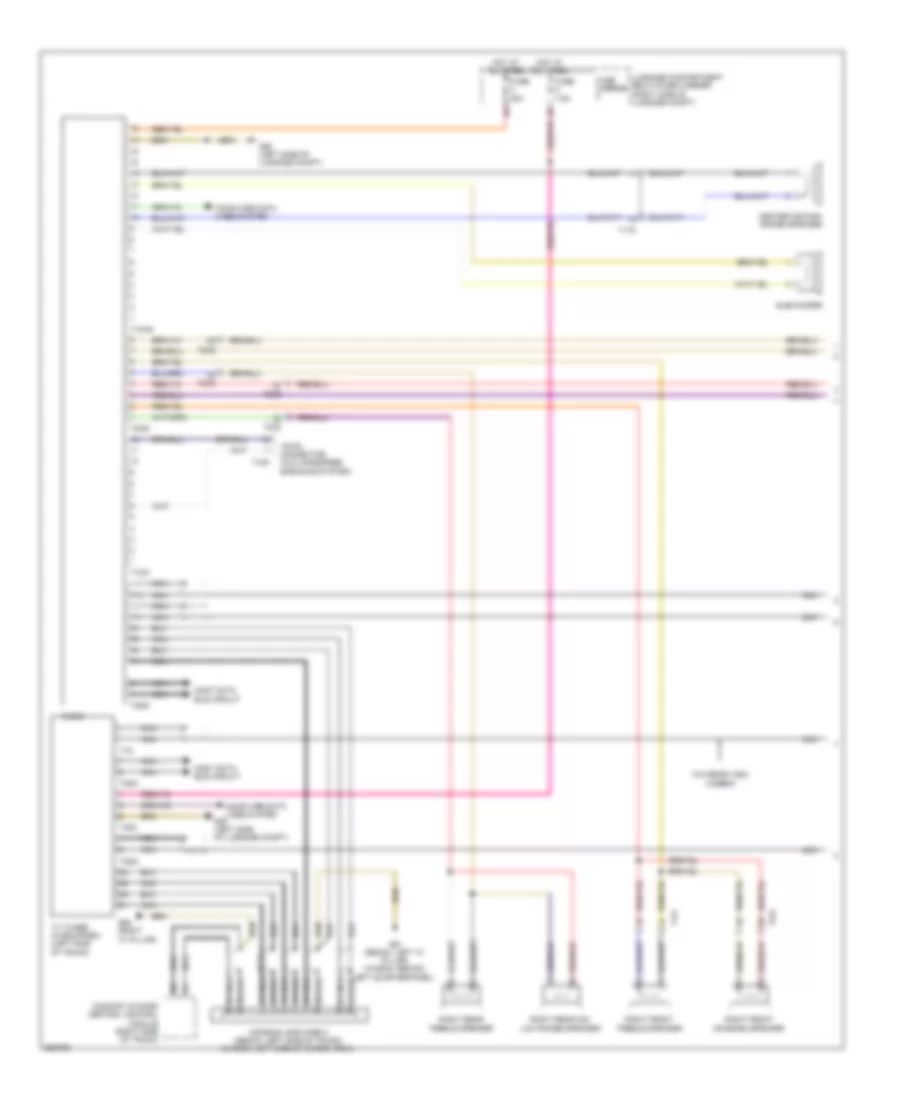

Электросхема магнитолы, стандарт MMI 2 (1 из 3) для Audi A4 2.0T 2011

Электросхема магнитолы, стандарт MMI 2 (1 из 3) для Audi A4 2.0T 2011 - Список элементов:

• 18 pin connector (w/o speaker phone)
• Computer data lines system
• Digital sound system control module (wagon: left rear of cargo area) (sedan: left rear of trunk)
• External audio source connection (7a3/7a6)
• Front information display control control module head control module (w/o rear view camera) (behind glove box)
• Fuse 40a
• Fuse carrier 3
• G50 (left side of luggage compt)
• Hot at all times
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Microphone unit (in front roof module)
• Most data bus circuit
• Nca
• Rear view camera system control module (if equipped) (right side of trunk)
• T18a
• T20c
• Telephone microphone
• Telephone transceiver (under front passenger's seat)
• Tv tuner (left side of trunk)
• Voice control microphone
• W/ speaker phone
• W/o speaker phone

Электросхема магнитолы, стандарт MMI 2 (2 из 3) для Audi A4 2.0T 2011

Электросхема магнитолы, стандарт MMI 2 (2 из 3) для Audi A4 2.0T 2011 - Список элементов:

• (sedan: left side of trunk) (wagon: left side of cargo area)
• Antenna amplifier 2 (right rear of roof)
• Antenna amplifier 3
• Computer data lines system
• Fuse 7.5a
• Fuse carrier
• G50 (left side of luggage compt)
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G62 (right "c" pillar)
• Hot at all times
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Navigation system w/ cd drive control module (left side of trunk)
• Nca
• Radio
• Radio, telephone navigation system antenna (w/ roof antenna) (center rear of roof)
• Satellite antenna
• Satellite radio (left rear of trunk)
• W/ speaker phone

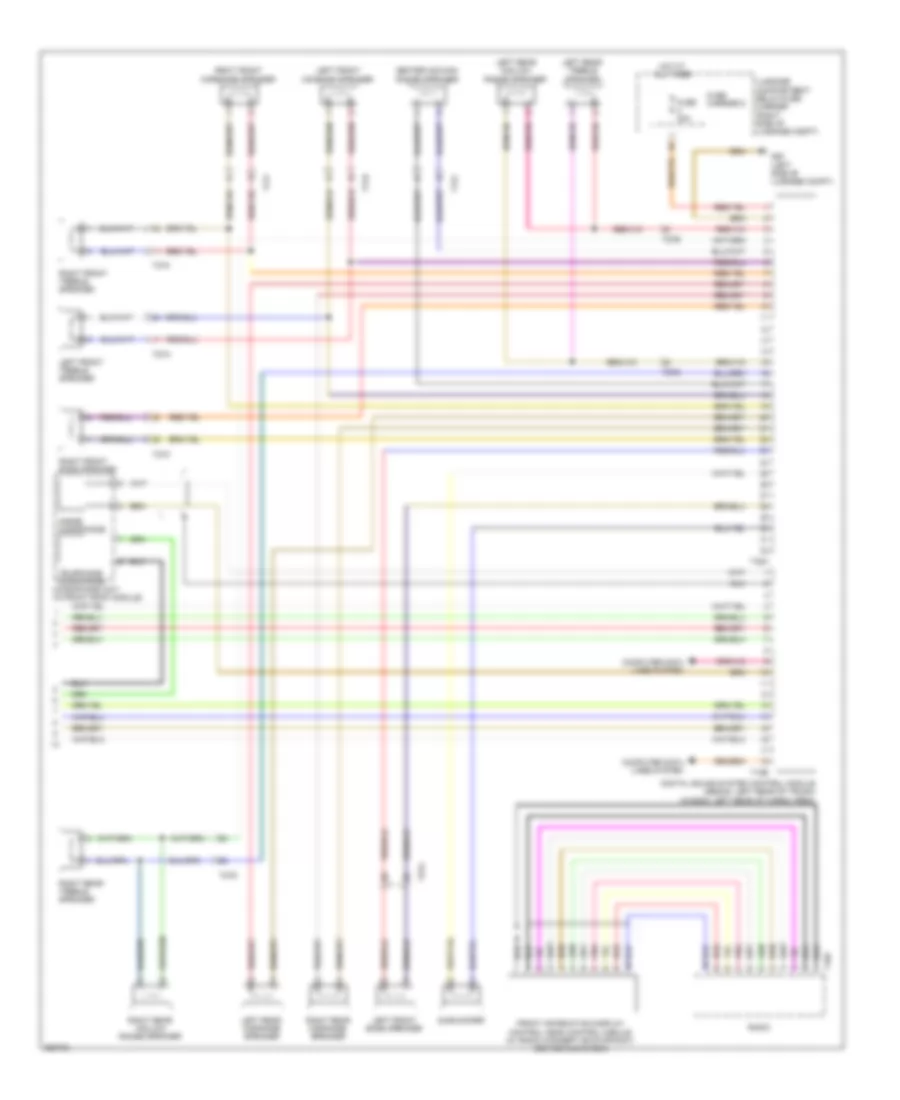

Электросхема магнитолы, стандарт MMI 2 (3 из 3) для Audi A4 2.0T 2011

Электросхема магнитолы, стандарт MMI 2 (3 из 3) для Audi A4 2.0T 2011 - Список элементов:

• Cd changer
• Center mid/high range speaker
• Computer data lines system
• Driver's seat multimedia
• External audio source connection (w/ mmi high)
• Front passenger's seat multimedia
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 4
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• G730 (base of right "c" pillar)
• Hot at all times
• Hot w/ sockets relay energized
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/low range speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid/low range speaker
• Right rear treble speaker
• Subwoofer
• T17c
• T17d
• T17f
• T27a
• T27b
• T27c
• T27d
• T2da
• T2db
• W/ mmi high

Электросхема магнитолы, основной MMI 3 (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, основной MMI 3 (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 18-pin connector (w/o handsfree speaking system)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Comfort system central control module (right side of trunk)
• Computer data lines system
• Fuse 20a
• Fuse 7.5a
• Fuse carrier
• G50 (left side of luggage compt)
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G62 (right "c" pillar)
• Hot at all times
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Nca
• Radio
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid/ low range speaker
• Right rear treble speaker
• T10ag
• T12w
• T17f
• T18a
• T1i
• T1l
• T1m
• T20c
• T27b
• T27c
• T27d
• T2dg
• T2dn
• T2do
• T8ag
• Tv tuner (if equipped) (left side of trunk)
• W/o rear view camera

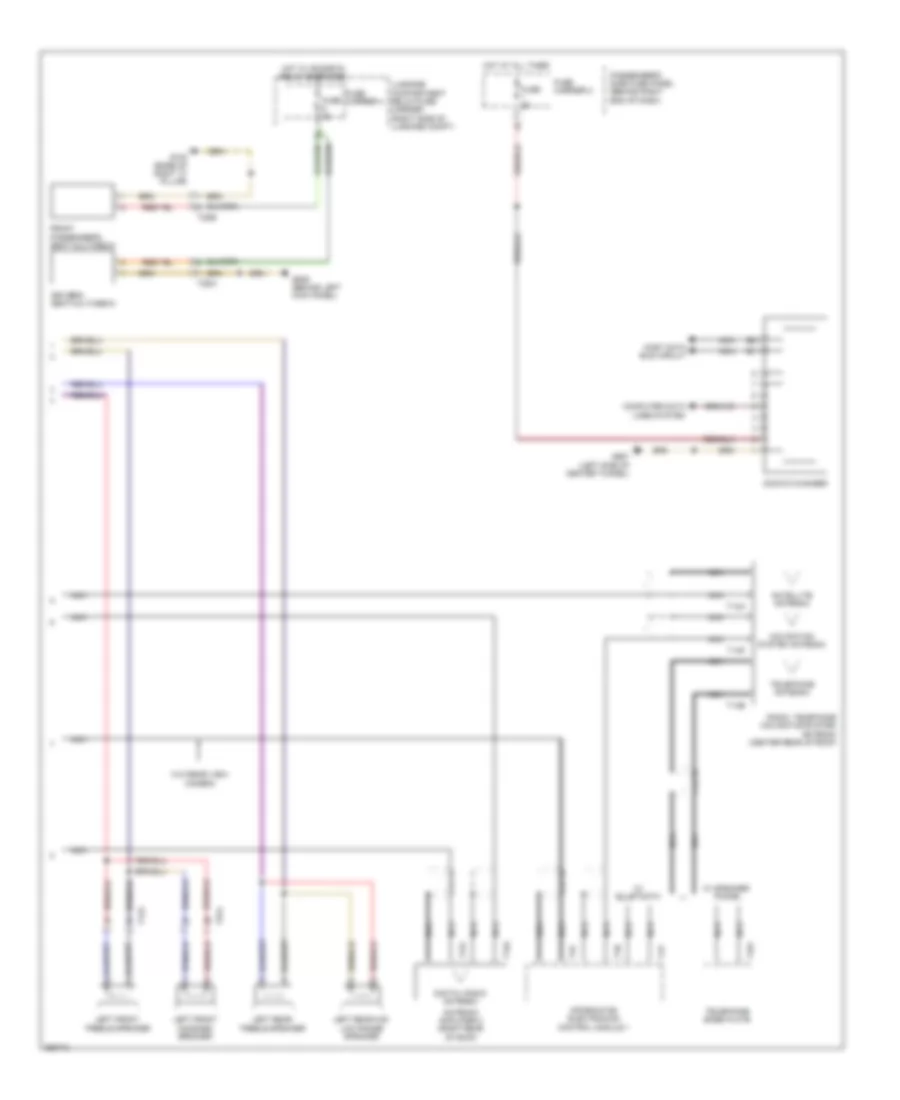

Электросхема магнитолы, основной MMI 3 (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, основной MMI 3 (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Antenna amplifier 2 (right rear of roof)
• Cd/dvd changer
• Computer data lines system
• Digital radio antenna
• Driver's seat multimedia
• Front passenger's seat multimedia
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 4
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• G730 (base of right "c" pillar)
• Hot at all times
• Hot w/ sockets relay energized
• Information electronics control module 1
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/ low range speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Navigation system antenna
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio, telephone navigation system antenna (center rear of roof)
• Satellite antenna
• T17d
• T1ac
• T1ae
• T1af
• T1ah
• T1ai
• T1n
• T1o
• T1p
• T1w
• T27a
• T2da
• T2db
• Telephone antenna
• Telephone base plate
• W/ speaker phone
• W/o rear view camera

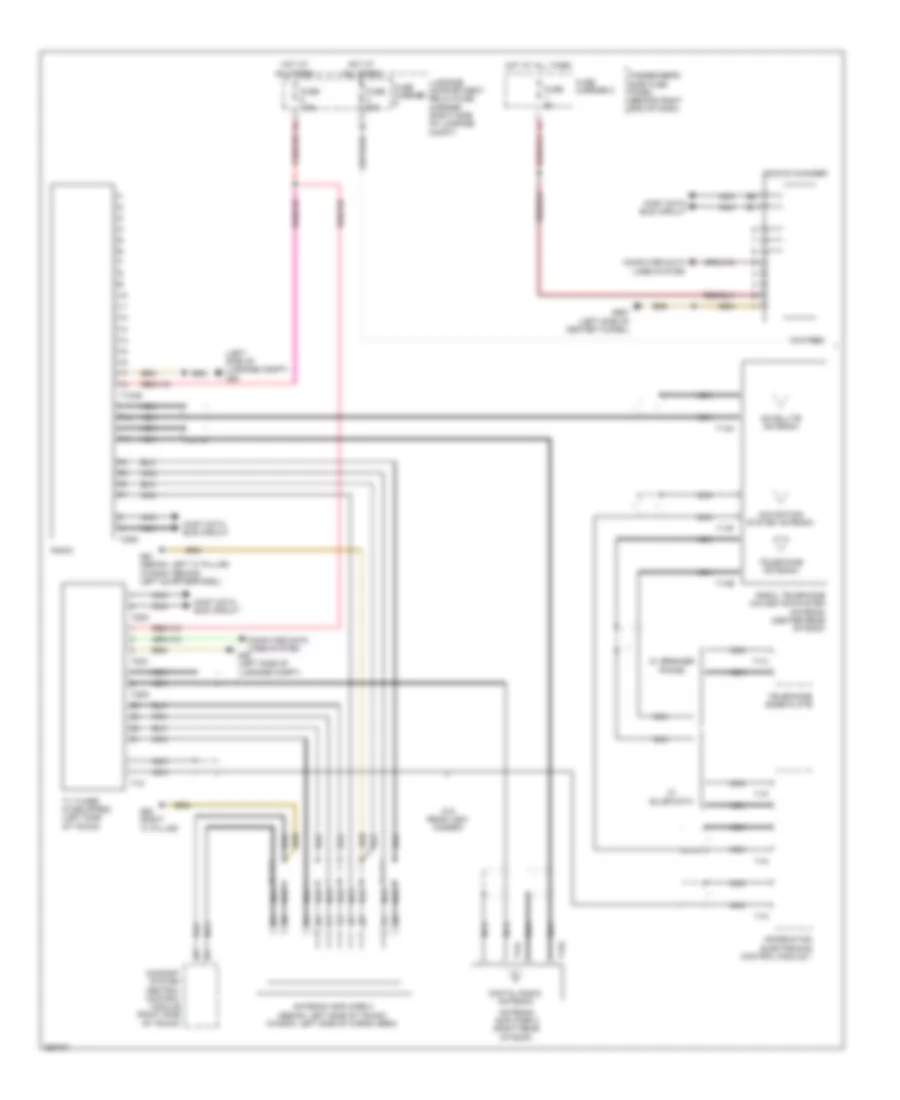

Электросхема магнитолы, Премиум класс MMI 3 (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, Премиум класс MMI 3 (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (left side of luggage compt) g50
• Antenna amplifier 2 (right rear of roof)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Cd/dvd changer
• Comfort system central control module (right side of trunk)
• Computer data lines system
• Digital radio antenna
• Fuse 30a
• Fuse 5a
• Fuse 7.5a
• Fuse carrier
• Fuse carrier 2
• G50 (left side of luggage compt)
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G62 (right "c" pillar)
• G687 (left side of center tunnel)
• Hot at all times
• Information electronics control module 1
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Navigation system antenna
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio
• Radio, telephone navigation system antenna (center rear of roof)
• Satellite antenna
• T10ag
• T1ac
• T1ae
• T1af
• T1ah
• T1ai
• T1i
• T1l
• T1m
• T1n
• T1o
• T1p
• T1w
• T20c
• T2dg
• T2dn
• T2do
• Telephone antenna
• Telephone base plate
• Tv tuner (if equipped) (left side of trunk)
• W/ speaker phone
• W/o rear view camera

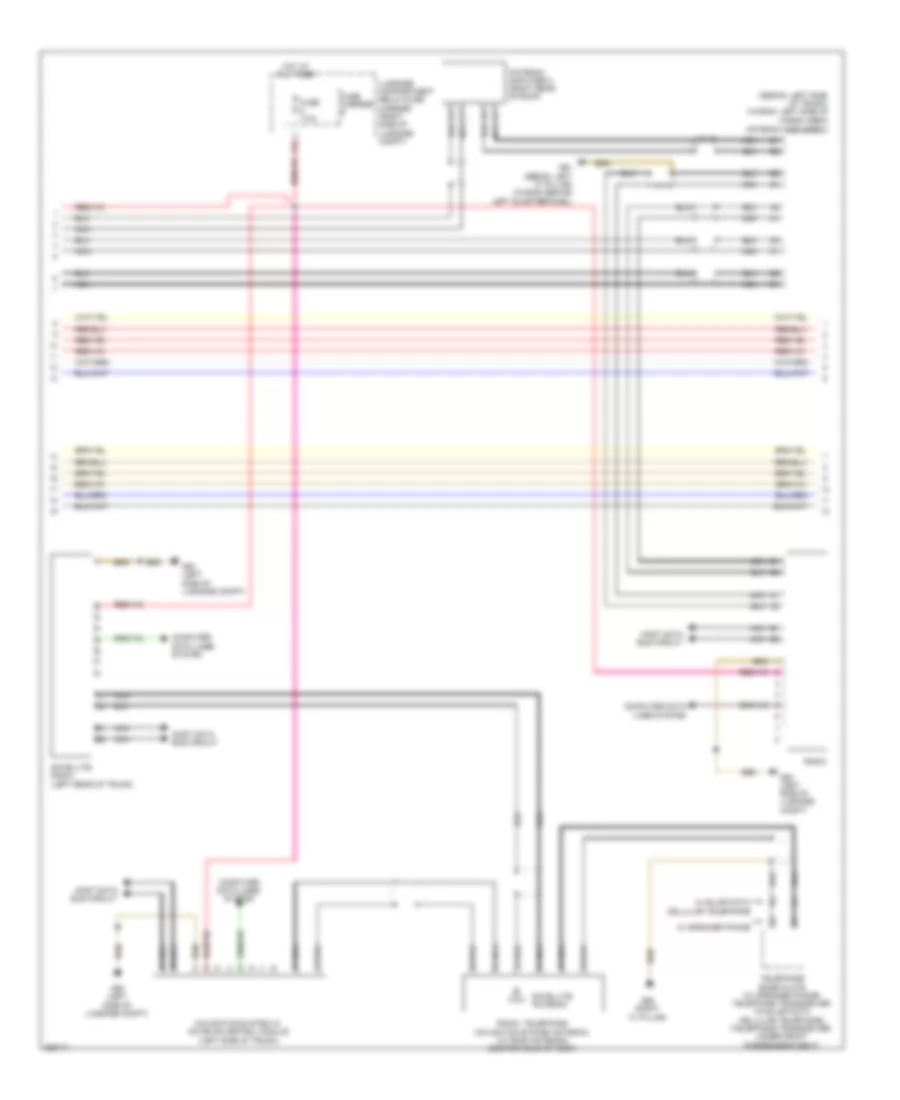

Электросхема магнитолы, Премиум класс MMI 3 (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, Премиум класс MMI 3 (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• (left side of luggage compt) g50
• (sedan: left rear of trunk)
• Center mid/ high range speaker
• Computer data lines system
• Digital sound system control module (wagon: left rear of cargo area)
• Driver's seat multimedia
• Front passenger's seat multimedia
• Fuse 5a
• Fuse carrier 4
• G639 (behind left kick panel)
• G730 (base of right "c" pillar)
• Hot w/ sockets relay energized
• Inside microphone
• Left front bass speaker
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/ low range speaker
• Left rear midrange speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Microphone unit (in front roof module)
• Most data bus circuit
• Nca
• Right front bass speaker
• Right front midrange speaker
• Right front treble speaker
• Right rear mid/ low range speaker
• Right rear midrange speaker
• Right rear treble speaker
• Subwoofer
• T17c
• T17d
• T17f
• T18b
• T27a
• T27b
• T27c
• T27d
• T2da
• T2db
• T2dk
• T32h

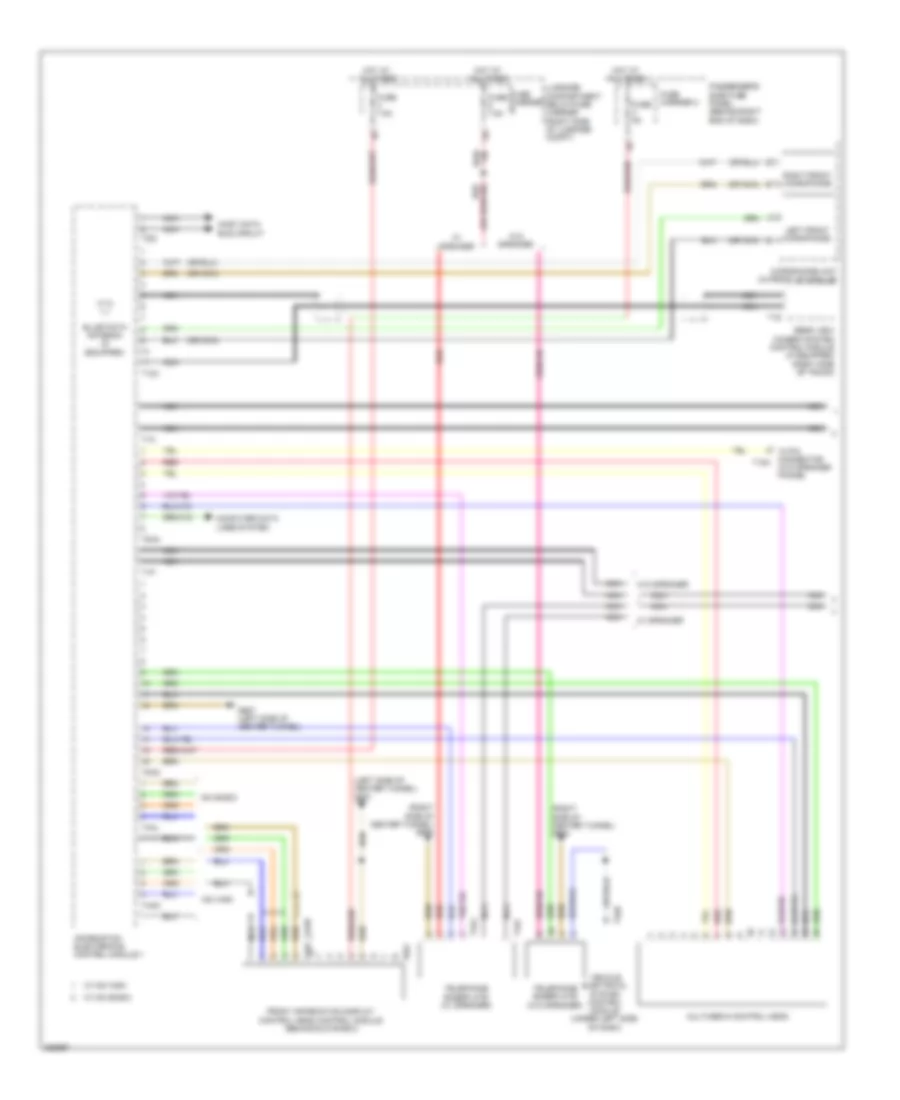

Электросхема магнитолы, стандарт MMI 3 (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, стандарт MMI 3 (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 18-pin connector (w/o handsfree speaking system)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Center mid/high range speaker
• Comfort system central control module (right side of trunk)
• Computer data lines system
• Fuse 30a
• Fuse 7.5a
• Fuse carrier
• G50 (left side of luggage compt)
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G62 (right "c" pillar)
• Hot at all times
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Nca
• Radio
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid/ low range speaker
• Right rear treble speaker
• Subwoofer
• T10ag
• T12w
• T17c
• T17f
• T18a
• T1i
• T1l
• T1m
• T20c
• T27b
• T27c
• T27d
• T2dg
• T2dn
• T2do
• T8ag
• Tv tuner (if equipped) (left side of trunk)
• W/o rear view camera

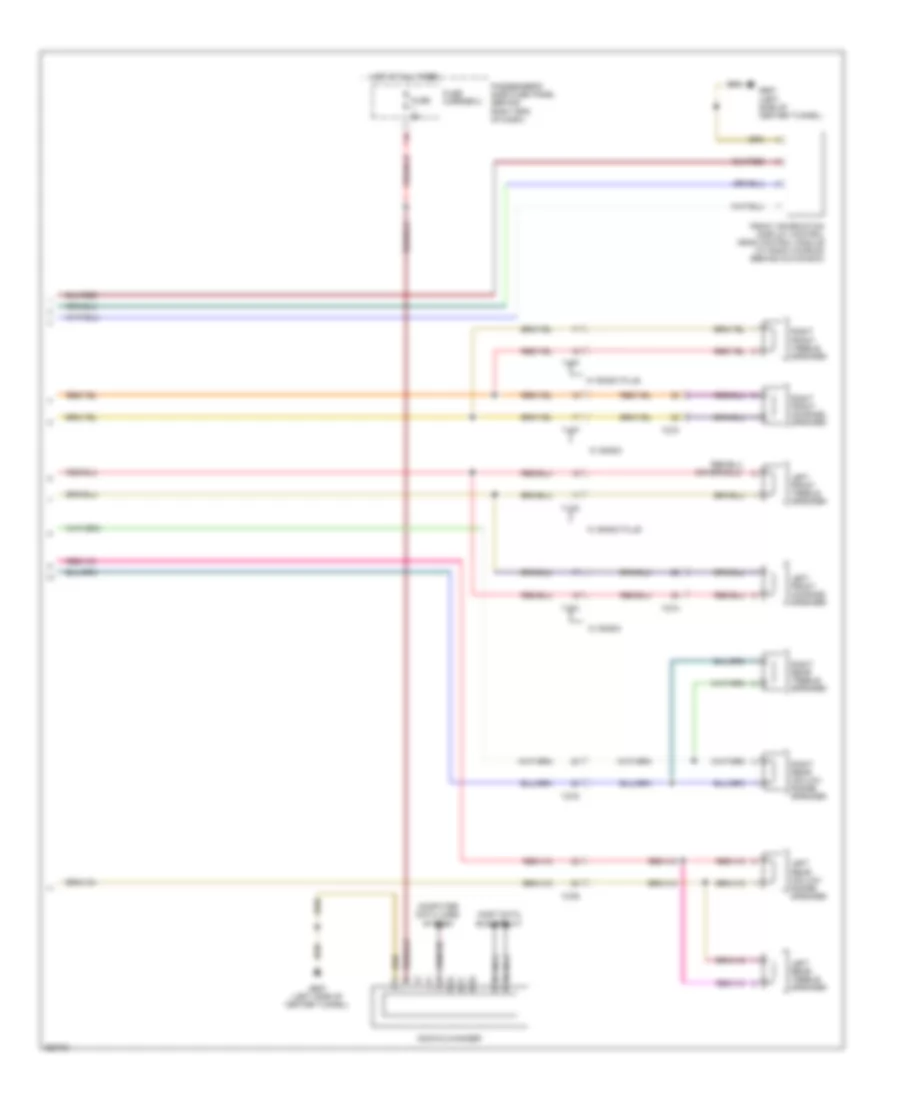

Электросхема магнитолы, стандарт MMI 3 (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, стандарт MMI 3 (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Antenna amplifier 2 (right rear of roof)
• Cd/dvd changer
• Computer data lines system
• Digital radio antenna
• Driver's seat multimedia
• Front passenger's seat multimedia
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 4
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• G730 (base of right "c" pillar)
• Hot at all times
• Hot w/ sockets relay energized
• Information electronics control module 1
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/ low range speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Most data bus circuit
• Navigation system antenna
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio, telephone navigation system antenna (center rear of roof)
• Satellite antenna
• T17d
• T1ac
• T1ae
• T1af
• T1ah
• T1ai
• T1n
• T1o
• T1p
• T1w
• T27a
• T2da
• T2db
• Telephone antenna
• Telephone base plate
• W/ speaker phone
• W/o rear view camera

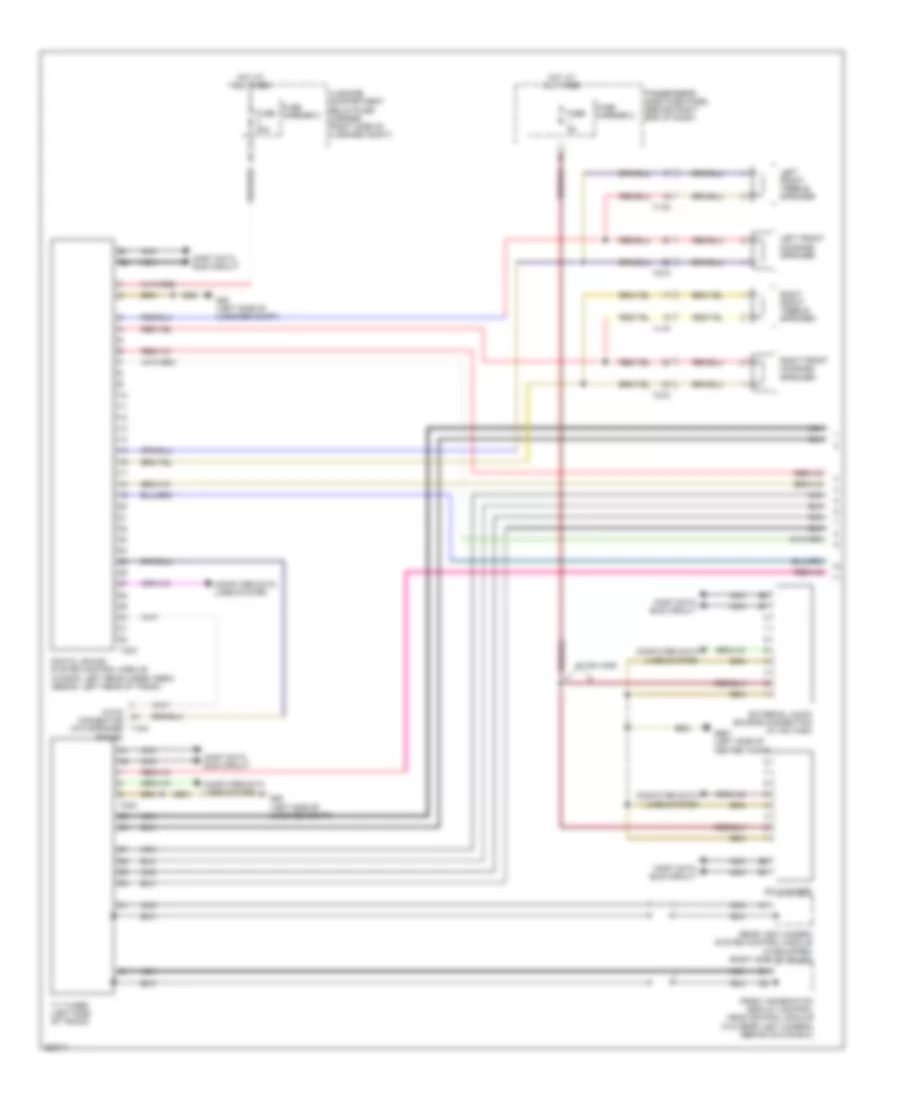

Электросхема магнитолы, развлекательно-информационная передача Премиум класса (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, развлекательно-информационная передача Премиум класса (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 18 pin connector (not used)
• 7a3/uf0
• 7d3/uf7
• Antenna amplifier (right rear of roof)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Computer data lines system
• External audio source connection
• Fuse 20a
• Fuse 5a
• Fuse carrier
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G687 (left side of center tunnel)
• G688 (right side of center tunnel)
• Hot at all times
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio
• Radio, telephone navigation system antenna (w/ roof antenna) (center rear of roof)
• Satellite antenna
• T12a
• T12s
• T16l
• T18a
• T8k
• Telephone transceiver (under front passenger's seat)
• W/ speaker phone
• W/o speaker phone

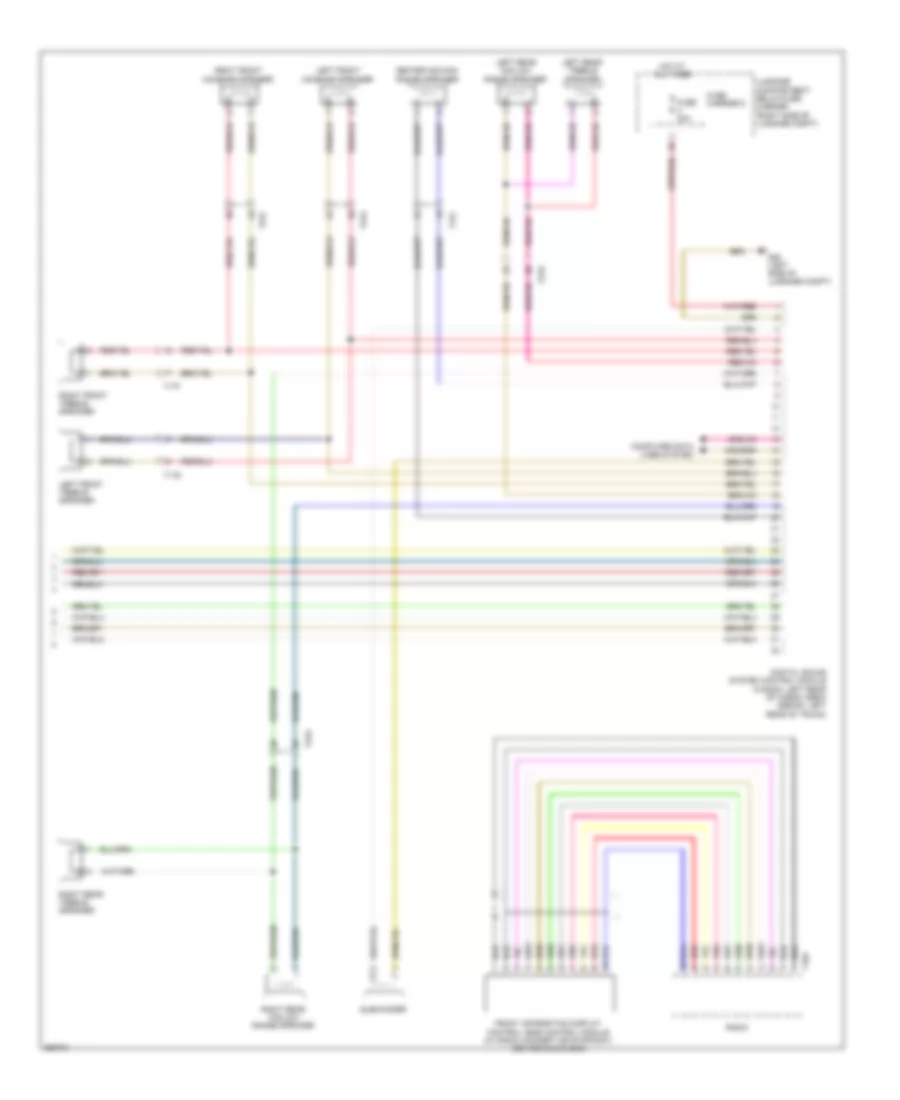

Электросхема магнитолы, развлекательно-информационная передача Премиум класса (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, развлекательно-информационная передача Премиум класса (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Center mid/high range speaker
• Computer data lines system
• Digital sound system control module (sedan: left rear of trunk) (wagon: left rear of cargo area)
• Front information display control head control module (w/ radio concert or symphony) (behind glove box)
• Fuse 30a
• Fuse carrier 5
• G50 (left side of luggage compt)
• Hot at all times
• Inside microphone
• Left front bass speaker
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/low range speaker
• Left rear midrange speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Microphone unit (in front roof module)
• Pnk
• Radio
• Red
• Right front bass speaker
• Right front midrange speaker
• Right front treble speaker
• Right rear mid/low range speaker
• Right rear midrange speaker
• Right rear treble speaker
• Subwoofer
• T10v
• T17c
• T17d
• T17f
• T18b
• T27a
• T27b
• T27c
• T27d
• T32h
• Telephone microphone

Электросхема магнитолы, стандартная развлекательно-информационная передача (1 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, стандартная развлекательно-информационная передача (1 из 2) для Audi A4 2.0T 2011 - Список элементов:

• 18 pin connector (not used)
• 7a3/uf0
• 7d3/uf7
• Antenna amplifier (right rear of roof)
• Antenna amplifier 3 (sedan: left side of trunk) (wagon: left side of cargo area)
• Computer data lines system
• External audio source connection
• Fuse 20a
• Fuse 5a
• Fuse carrier 2
• G61 (sedan: left "c" pillar) (wagon: behind left quarterpanel)
• G687 (left side of center tunnel)
• G688 (right side of center tunnel)
• Hot at all times
• Nca
• Passenger's side fuse panel (behind right end of dash)
• Radio
• Radio,telephone navigation system antenna (w/ roof antenna) (center rear of roof)
• Satellite antenna
• T12a
• T12s
• T16l
• T18a
• T8k
• Telephone transceiver (under front passenger's seat)
• W/ speaker phone
• W/o speaker phone

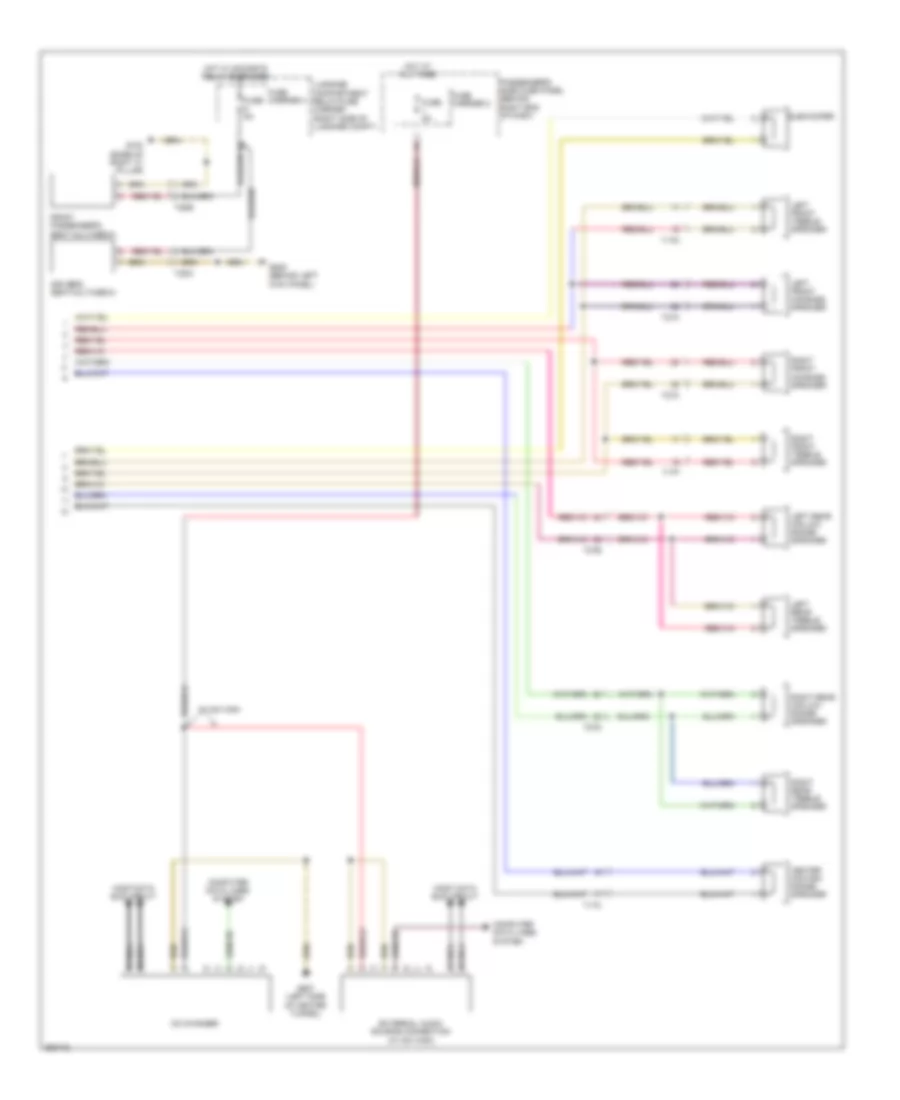

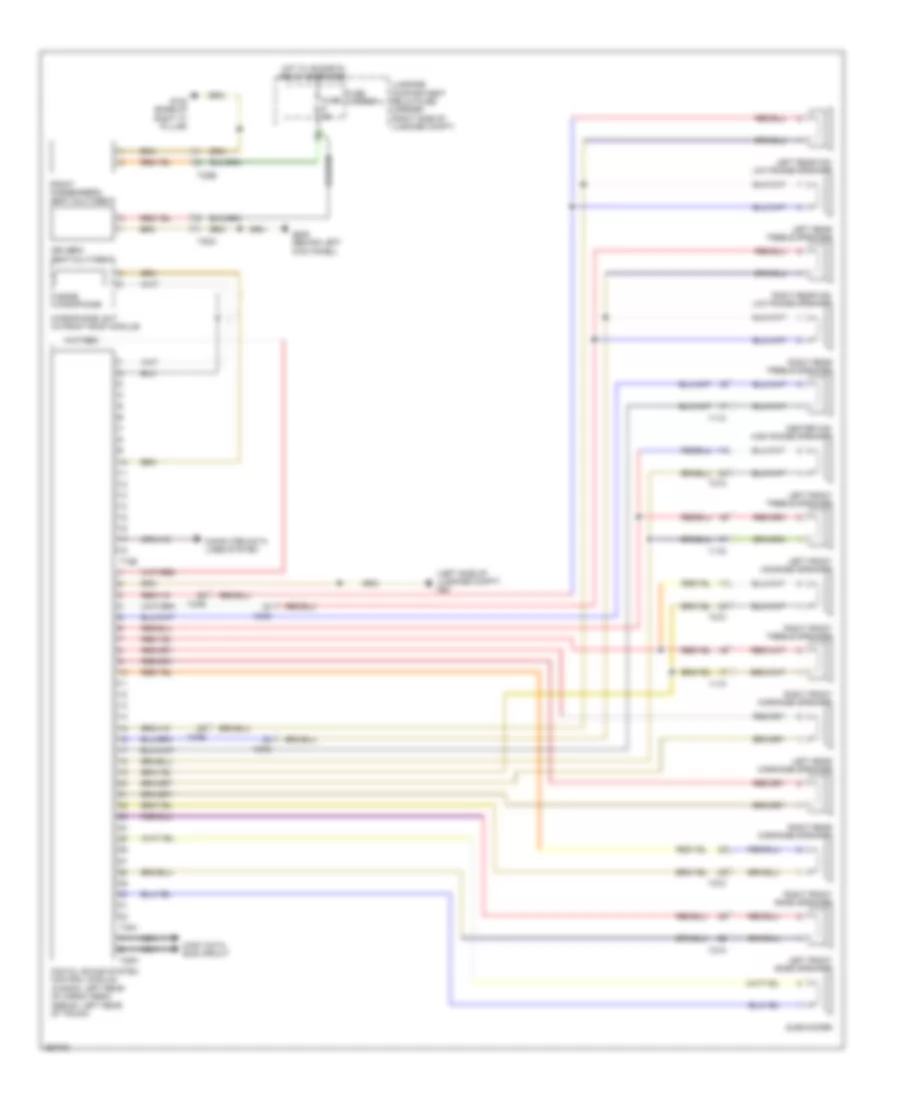

Электросхема магнитолы, стандартная развлекательно-информационная передача (2 из 2) для Audi A4 2.0T 2011

Электросхема магнитолы, стандартная развлекательно-информационная передача (2 из 2) для Audi A4 2.0T 2011 - Список элементов:

• Center mid/high range speaker
• Computer data lines system
• Digital sound system control module (wagon: left rear of cargo area) (sedan: left rear of trunk)
• Front information display control head control module (w/ radio concert or symphony) (behind glove box)
• Fuse 30a
• Fuse carrier 5
• G50 (left side of luggage compt)
• Hot at all times
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid/low range speaker
• Left rear treble speaker
• Luggage compartment relay/fuse carrier (right side of luggage compt)
• Pnk
• Radio
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid/low range speaker
• Right rear treble speaker
• Subwoofer
• T10v
• T17c
• T17d
• T17f
• T27a
• T27b
• T27c
• T27d
